MLC522 Engineering torque sensor

Static torque sensor, mechanical torque sensor, Engineering torque sensor, Torque testing machine torque sensor, torque wrench sensor

Model MLC522
Category Torque sensor
Range 0-1,2,5,10KNm
Material alloy steel
Signal output mv/v, 0-10vdc, 4-20mA, RS485
Application: Static torque sensor, mechanical torque sensor, Engineering torque sensor, Torque testing machine torque sensor, torque wrench sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

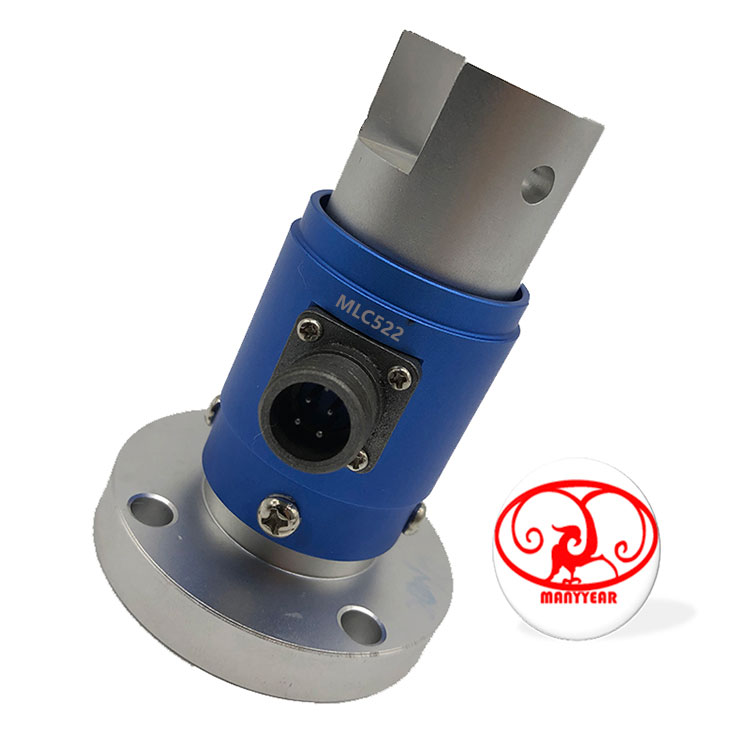

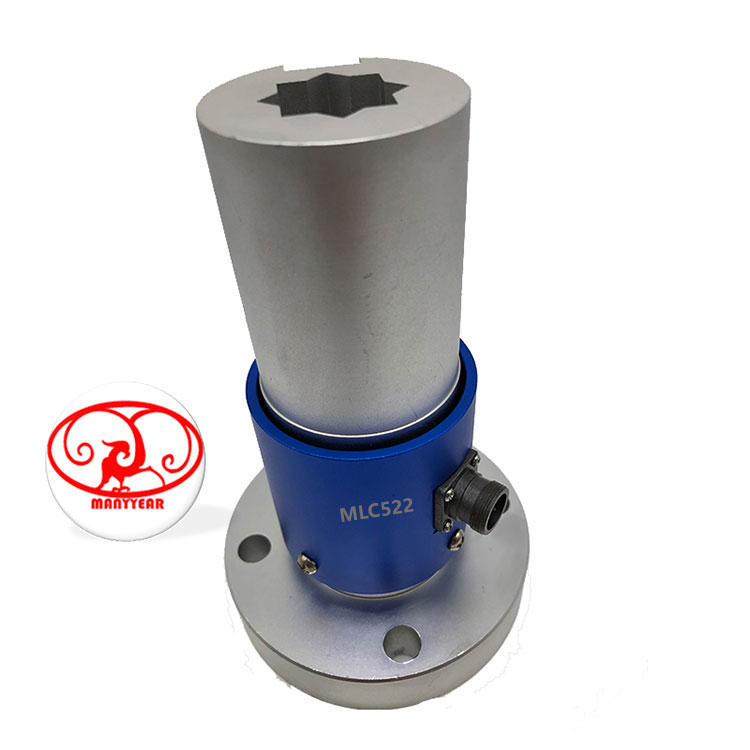

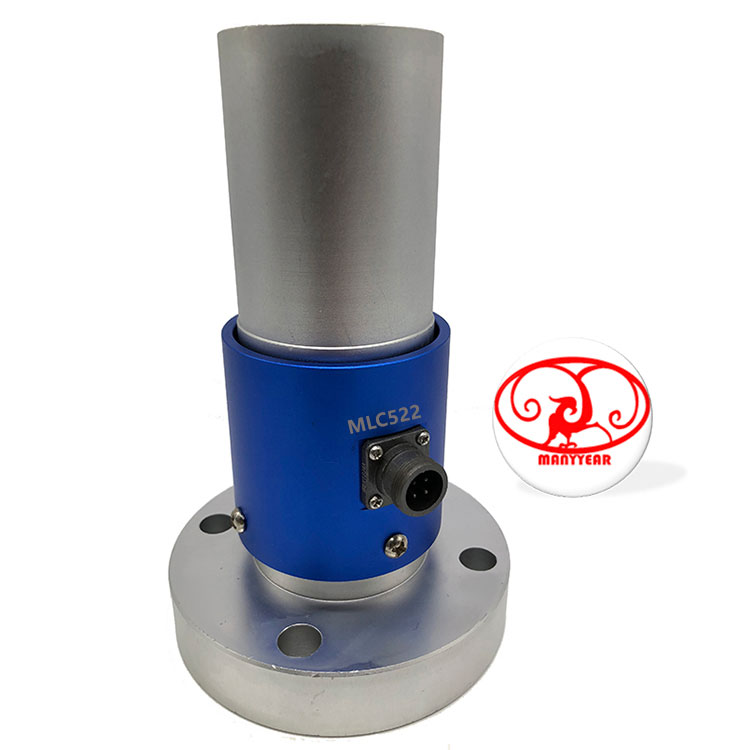

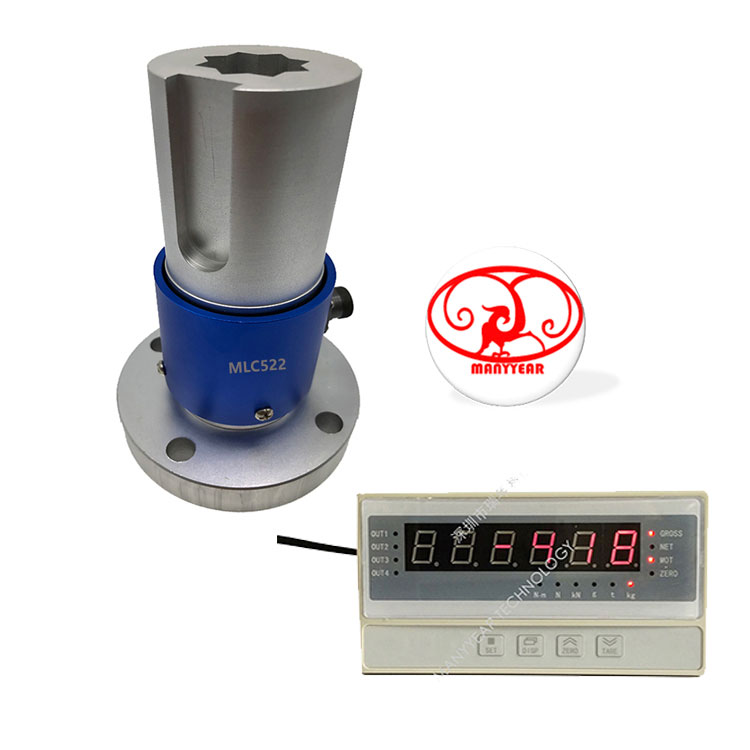

Product Picture Reference

MLC522 Engineering torque sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC522 gearbox torque sensor

Range0-1,2,5,10KNmResonant Frequency100μS
Rated Output1.5±10% mV / Vinsulation≥5000MΩ/ 100VDC
Zero Output±1% F.S.Work voltage10VDC(9-15VDC)
Nonlinearity±0.1,0.3% F.S.Compensated Temp.-10 ~ 60℃
Hysteresis≤±0.05% F.S.operating Temp.-20 ~ 65℃
Repeatability≤±0.05% F.SSafty overload150% F.S.
Creep≤±0.03% F.S/30minUltimate overload200% F.S.
Ratedoutput drift by temp.0.03% F.S. / 10℃WireØ5.2×3m
Zero drift by temp.0.03% F.S. / 10℃Electric connectRED/E+,BLK/E-,GRN/S+,WHT/S-
Input resistance350,750±10ΩMaterialaluminium,stainless steel or alloy steel
Input resistance350,700±5ΩOthers Customizabler

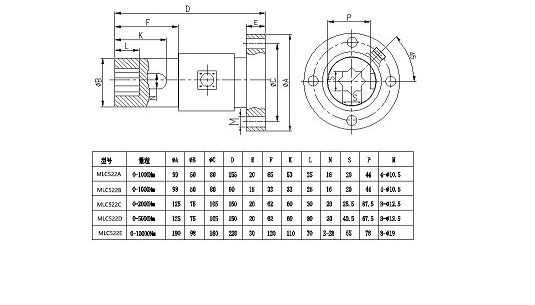

Product Dimension

MLC522 Engineering torque sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC522 Engineering torque sensor-MANYYEAR TECHNOLOGY

MLC522 Engineering torque sensor-MANYYEAR TECHNOLOGY

Static torque sensor installation

Product Application

MLC522 Engineering torque sensor-MANYYEAR TECHNOLOGY

APF-torque testing machine

MLC522 Engineering torque sensor-MANYYEAR TECHNOLOGY

APF-Mechanical Torque

MLC522 Engineering torque sensor-MANYYEAR TECHNOLOGY

APF-Viscometer
