MLC532 Torque wrench torque sensor

Static torque sensor, the pump torque sensor, the gearbox torque load cell, torque wrench sensor

Model MLC532
Category Torque sensor
Range 0~20,50,100, 200,300,500Nm
Material alloy steel
Signal output mv/v, 0-10vdc, 4-20mA, RS485
Application: Static torque sensor, mechanical torque sensor, Engineering torque sensor, Torque testing machine torque sensor, torque wrench torque sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

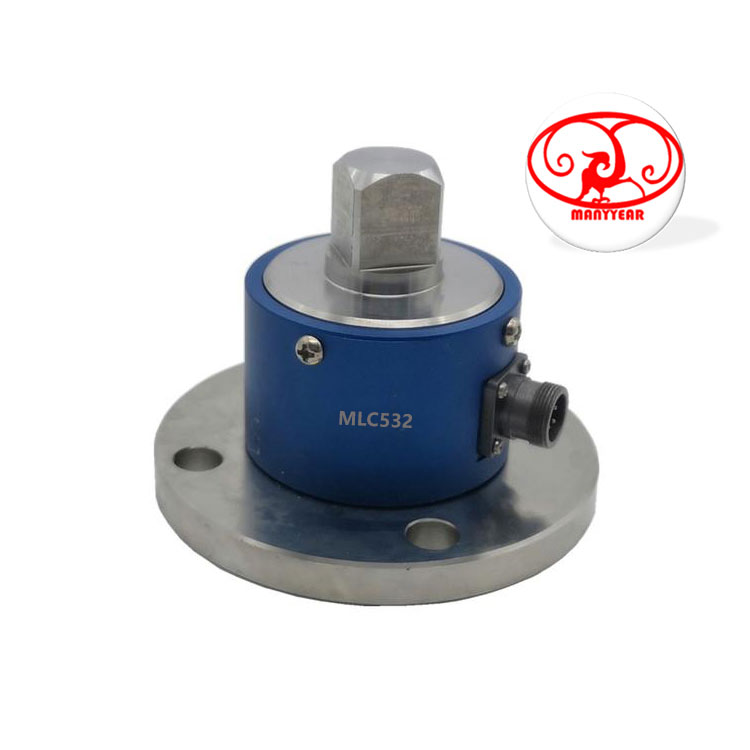

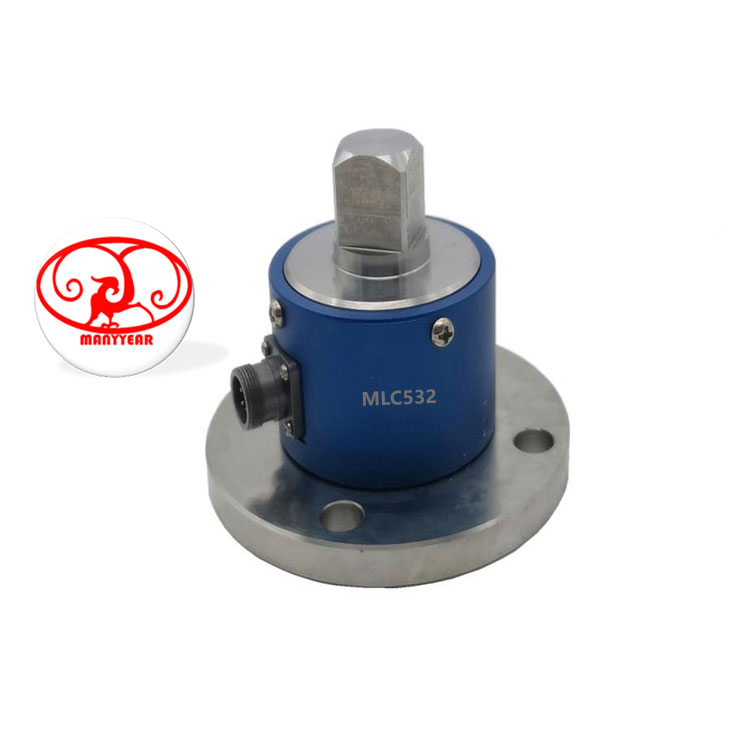

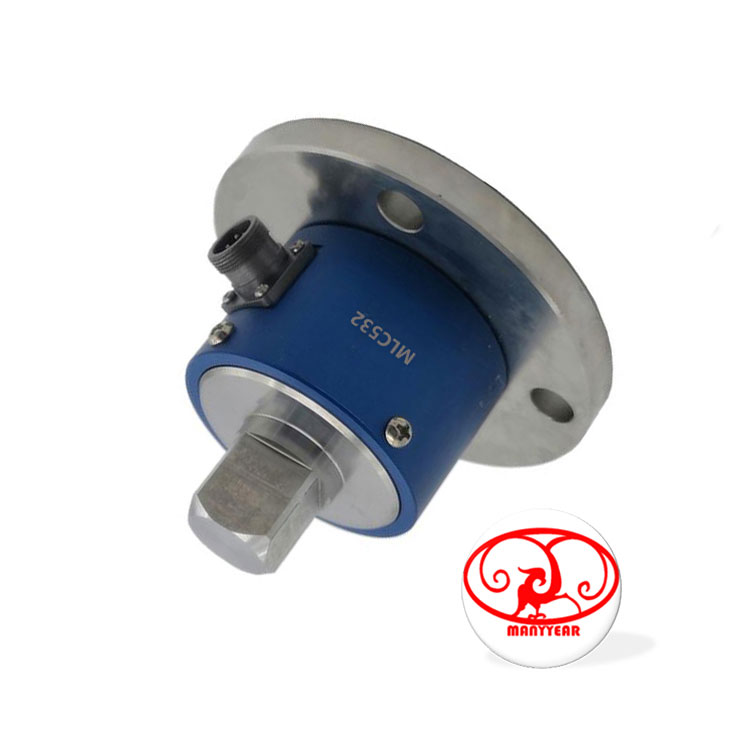

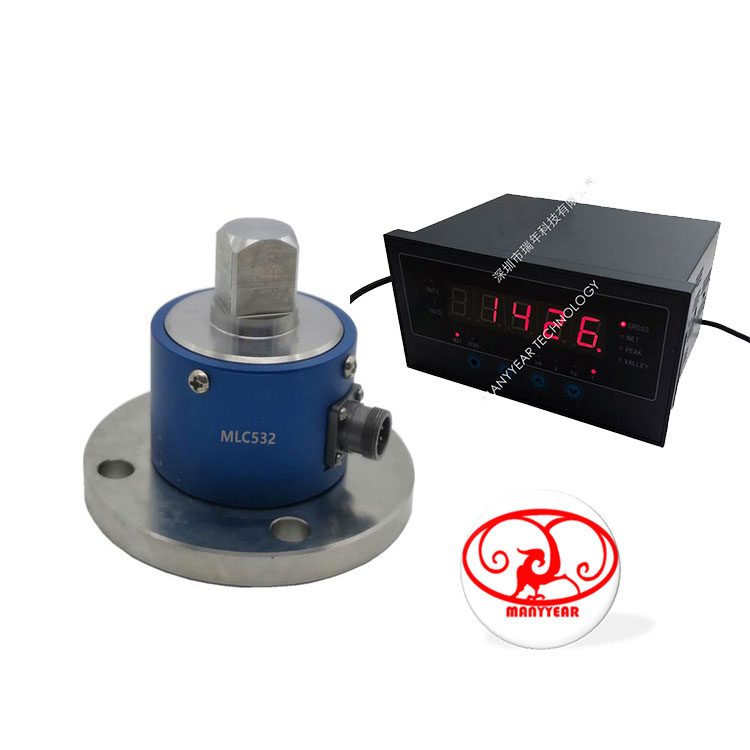

Product Picture Reference

MLC532 Torque wrench torque sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC532 Torque wrench torque sensor

Range0~20,50,100,200,300,500NmResonant Frequency100μS
Rated Output1.5±10% mV / Vinsulation≥5000MΩ/ 100VDC
Zero Output±1% F.S.Work voltage10VDC(9-15VDC)
Nonlinearity±0.1,0.3% F.S.Compensated Temp.-10 ~ 60℃
Hysteresis≤±0.05% F.S.operating Temp.-20 ~ 65℃
Repeatability≤±0.05% F.SSafty overload150% F.S.
Creep≤±0.03% F.S/30minUltimate overload200% F.S.
Ratedoutput drift by temp.0.03% F.S. / 10℃WireØ5.2×3m
Zero drift by temp.0.03% F.S. / 10℃Electric connectRED/E+,BLK/E-,GRN/S+,WHT/S-
Input resistance350,750±10ΩMaterialstainless steel or alloy steel
Input resistance350,700±5ΩOthers Customizabler

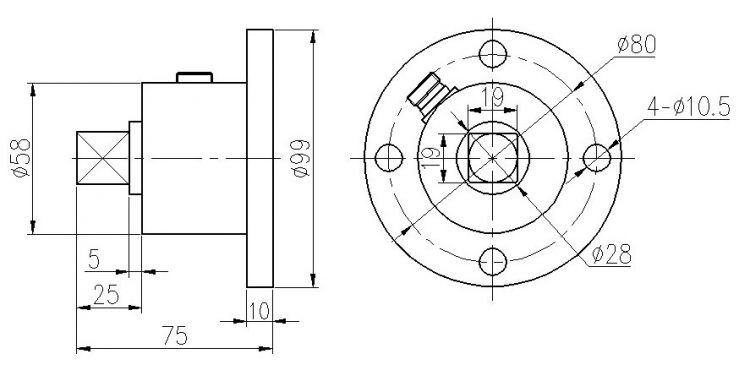

Product Dimension

MLC532 Torque wrench torque sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MLC532 Torque wrench torque sensor-MANYYEAR TECHNOLOGY

MLC532 Torque wrench torque sensor-MANYYEAR TECHNOLOGY

Static torque sensor installation

Product Application

MLC532 Torque wrench torque sensor-MANYYEAR TECHNOLOGY

APF-Mechanical Torque

MLC532 Torque wrench torque sensor-MANYYEAR TECHNOLOGY

APF-torque testing machine

MLC532 Torque wrench torque sensor-MANYYEAR TECHNOLOGY

APF-torque wrench
