MLC5106 Dynamic torque speed sensor MLC5106 Dynamic torque speed sensor
MLC5106 Dynamic torque speed sensor

MLC5106 Dynamic torque speed sensor

Dynamic torque load cell, torque speed sensor, machinery motor torque sensor

Model MLC5106
Category Torque sensor
Range 0.2, 0.3, 0.5, 10, 200, 500, 200, 5000Nm
Material alloy steel
Signal output mv/v, 0-10vdc, 4-20mA, RS485
Application:Dynamic torque load cell, torque speed sensor, machinery motor torque sensor


  Product selection reference

Online Sales

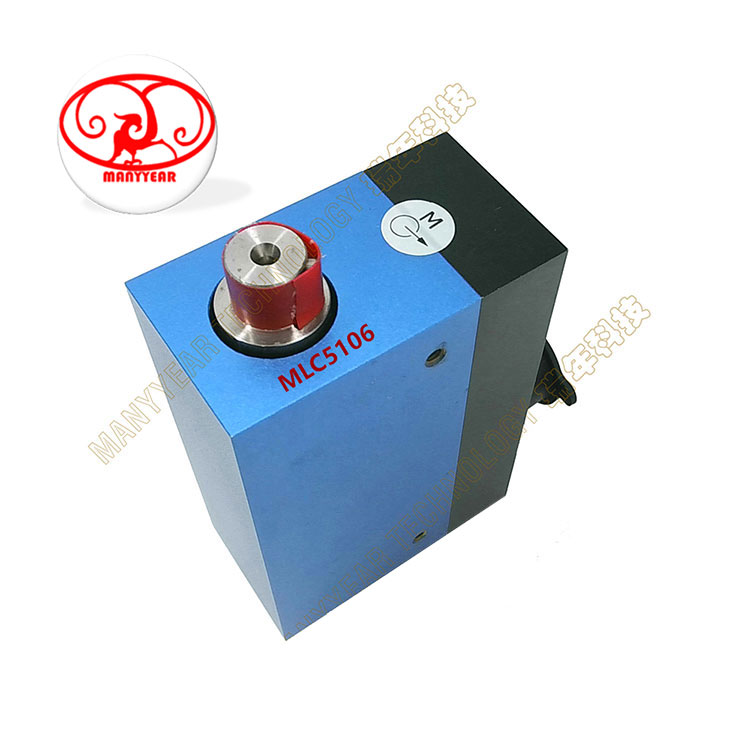

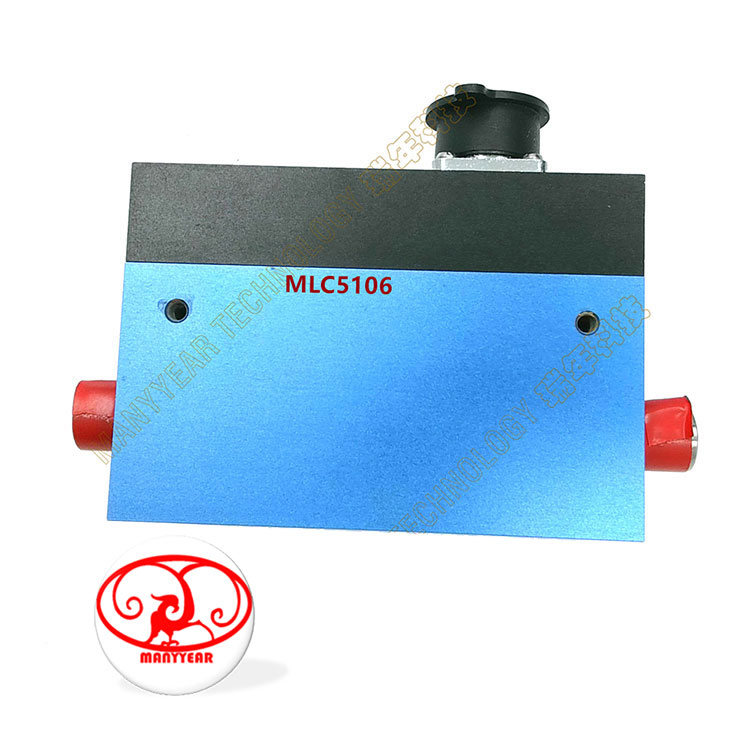

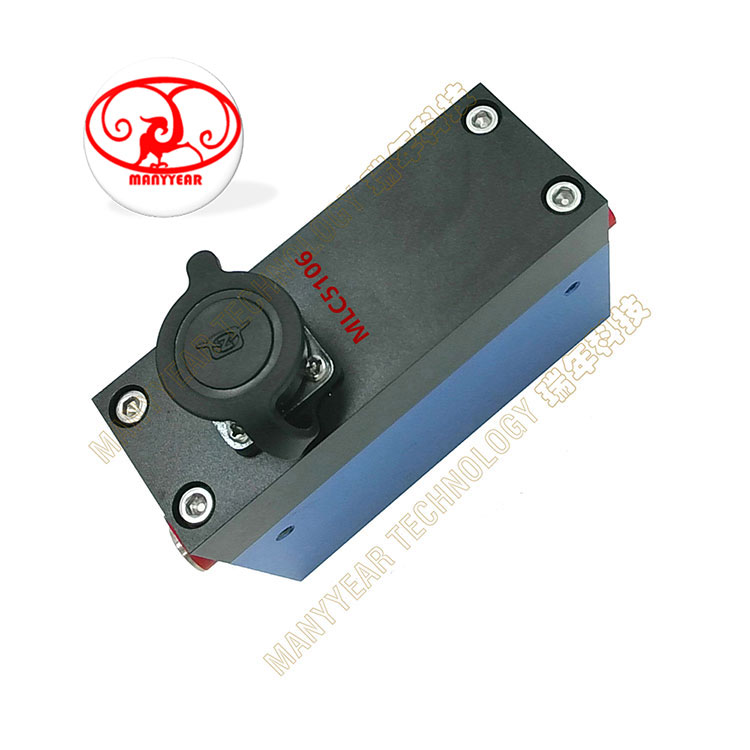

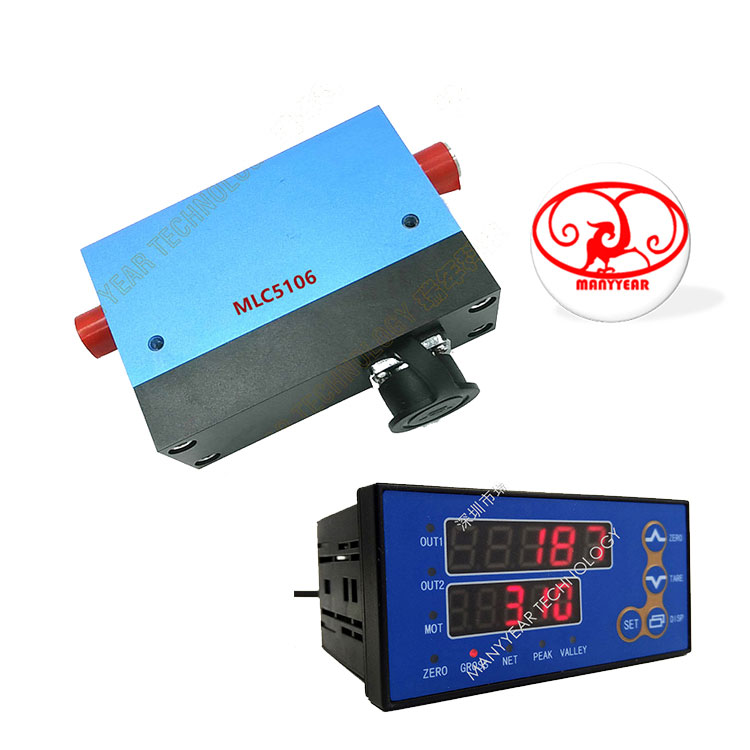

Product Picture Reference

MLC5106 Dynamic torque speed sensor-MANYYEAR TECHNOLOGY

MLC5106 Dynamic torque speed sensor

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MLC5106 Dynamic torque sensor speed sensor

Range0.2,0.3,0.5,10,200,500,200,5000NmResonant Frequency100μS
Rated Output1.5±10% mV / Vinsulation≥5000MΩ/ 100VDC
Zero Output±1% F.S.Work voltage10VDC(9-15VDC)
Nonlinearity±0.1,0.3% F.S.Compensated Temp.-10 ~ 60℃
Hysteresis≤±0.05% F.S.operating Temp.-20 ~ 65℃
Repeatability≤±0.05% F.SSafty overload150% F.S.
Creep≤±0.03% F.S/30minUltimate overload200% F.S.
Ratedoutput drift by temp.0.03% F.S. / 10℃WireØ5.2×3m
Zero drift by temp.0.03% F.S. / 10℃Electric connectRED/E+,BLK/E-,GRN/S+,WHT/S-
Input resistance350,750±10ΩMaterialaluminium,stainless steel or alloy steel
Input resistance350,700±5ΩOthers Customizabler

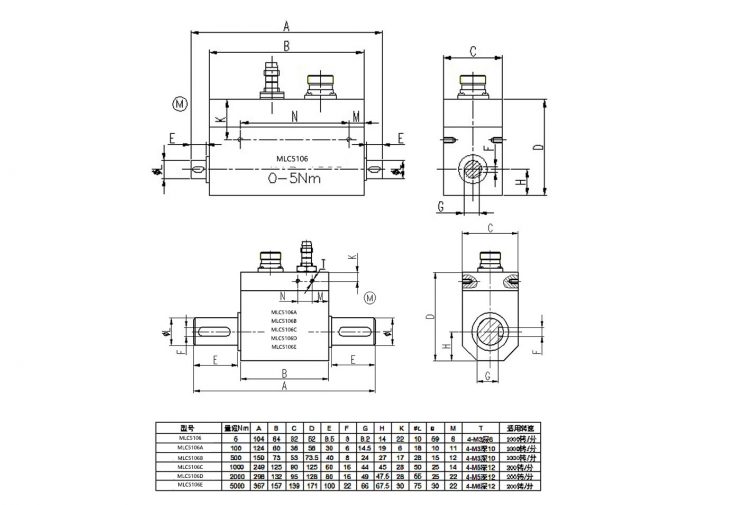

Product Dimension

MLC5106 Dynamic torque speed sensor-MANYYEAR TECHNOLOGY

MLC5106 Dynamic torque speed sensor

Force Structure & Assembly Reference

MLC5106 Dynamic torque speed sensor-MANYYEAR TECHNOLOGY

MLC5106 Dynamic torque speed sensor-MANYYEAR TECHNOLOGY

dynamic torque sensor installation

Product Application

MLC5106 Dynamic torque speed sensor-MANYYEAR TECHNOLOGY

APF-Mechanical Torque

MLC5106 Dynamic torque speed sensor-MANYYEAR TECHNOLOGY

APF-Motor Torque-2

MLC5106 Dynamic torque speed sensor-MANYYEAR TECHNOLOGY

APF-Micro Motor Torque-1
