MLC204FA bolt-type force load cell, diaphragm capsule, 1-200kg, 2 sizes, dual materials, precision for micro dynamometers & testers.
Model: MLC204FA
Category: Button load cell
Range: 1kg,2kg,3kg,5kg,10kg,20kg,50kg,100kg,200kg

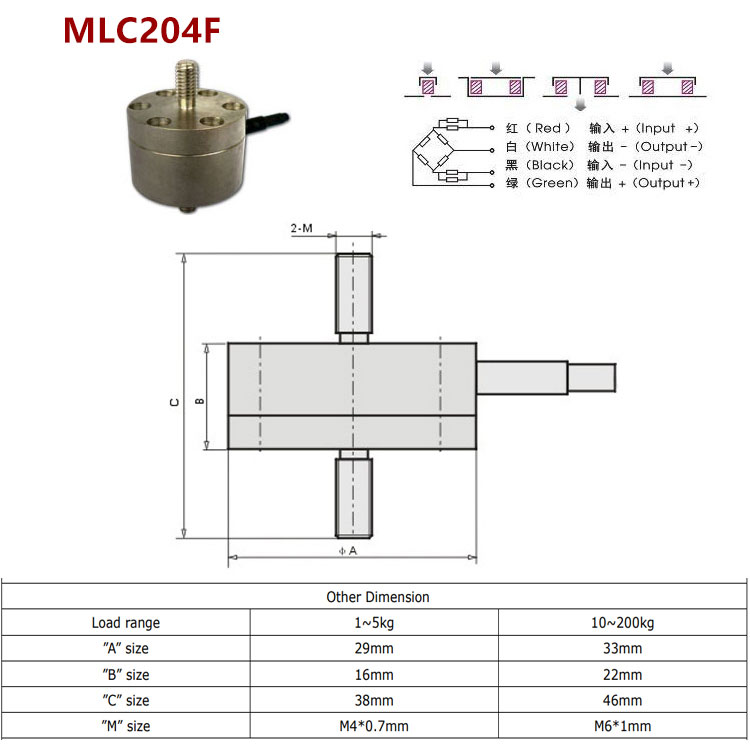

Dimension: 29*38mm;33*46mm
Material: alloy steel,stainless steel
Characteristic: compression and tension load cell,miniature compression force load cell, miniature tension force sensor
| Technical specifications | |||
| Comprehensive error: | 0.2%FS | Output resistance: | 350±10Ω , 700±5Ω |
| Rated output: | 1±0.15 mV/V | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.2%FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.2%FS | Compensation temperature: | -10~+40ºC |
| Repeatability: | 0.1%FS | Operating temperature: | -20~+55ºC |
| Creep: | 0.03%FS/10min | Effect of Temp. on zero point: | 0.05%FS/10ºC |
| Zero Balance: | ±5%FS | Effect of Temp. on sensitivity: | 0.05%FS/10ºC |
| Input resistance: | 350±10Ω , 700±5Ω | Protection level: | IP66 |
