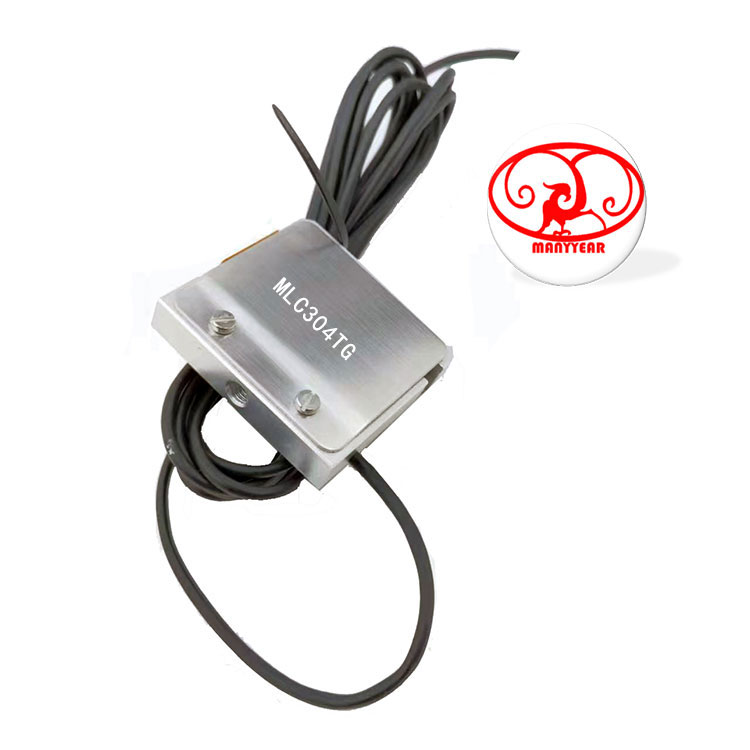

MLC304TG micro tension sensor, S-type aluminum, 1-10kg, compact size, for winding, textile, 3D printing and robot arm force measurement.
Model: MLC304tg
Category: S-type load cell
Range: 1,2,5,10kg

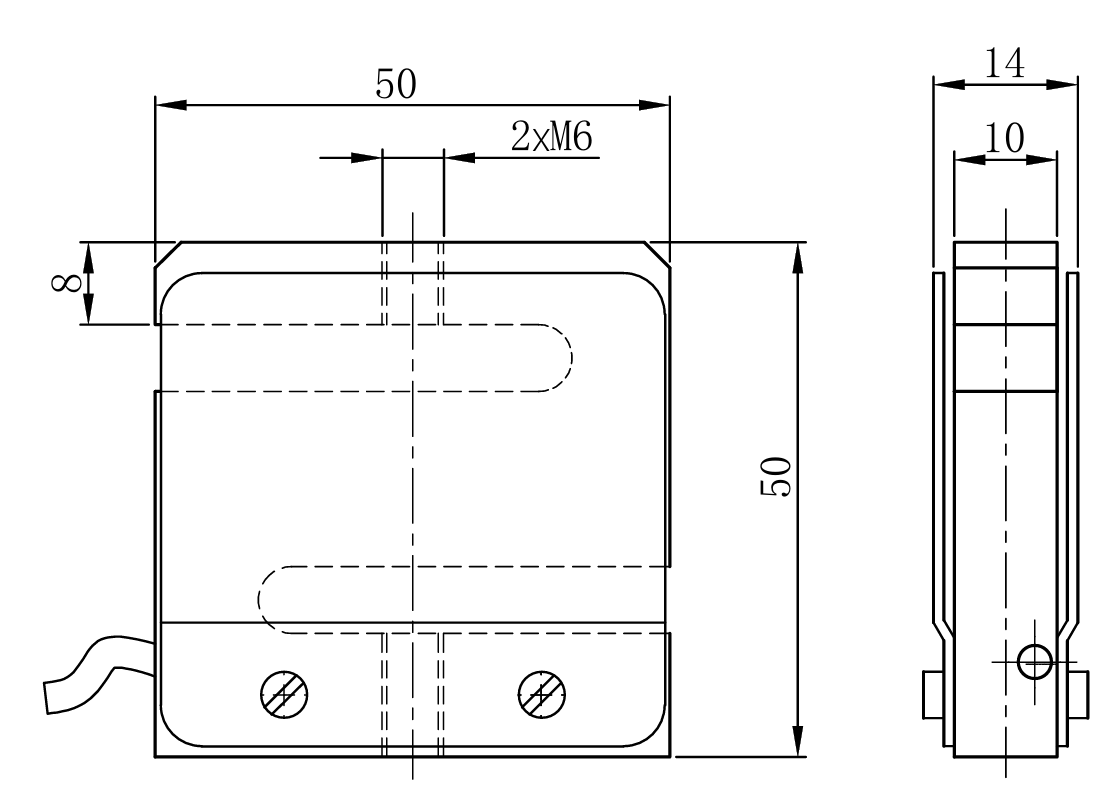

Size: 50x50x14mm
Material: Alloy aluminium
Applications: Wire tension measurement, textile tension measurement, 3D printing force measurement, robotic arm force measurement
| Technical specifications | |||
| Comprehensive error: | 0.017%FS | Output resistance: | 350±5Ω |
| Rated output: | 1±0.002mv/v | Insulation resistance: | ≥5000MΩ(100VDC) |
| Nonlinearity: | 0.017%FS | Operating Voltage: | 9~12VDC |
| Lag: | 0.017%FS | Compensation temperature: | -10~+40ºC |
| Repeatability: | 0.01%FS | Operating temperature: | -20~+65ºC |
| Creep: | 0.016%FS/10Min | Effect of Temp. on zero point: | 0.017%FS/10ºC |
| Zero balance: | 0+-0.002mv/v | Effect of Temp. on sensitivity: | 0.017%FS/10ºC |
| Input resistance: | 420±5Ω | Protection level: | IP66 |
