MLC302-S type force sensor

2021/11/04 Force Load Cell MLC300 Tension Load Cells 1308 0

S type force sensor, tension force sensor, compression force sensor

Model: MLC302
Category: Tension load cell
Range: 1kg,5kg,10kg,50kg,100kg,150kg,500kg
Dimension: 70*10*60/50.8*12.7*63.5/64*23*82mm
Material: Alloy steel,stainless steel
Application: S type force sensor,tension force sensor, compression force sensor

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Technical Documents

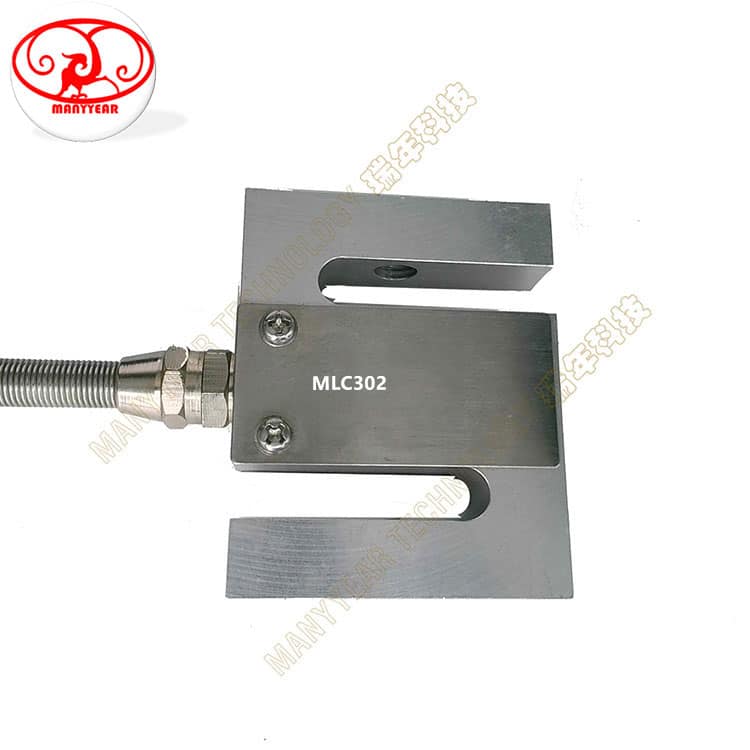

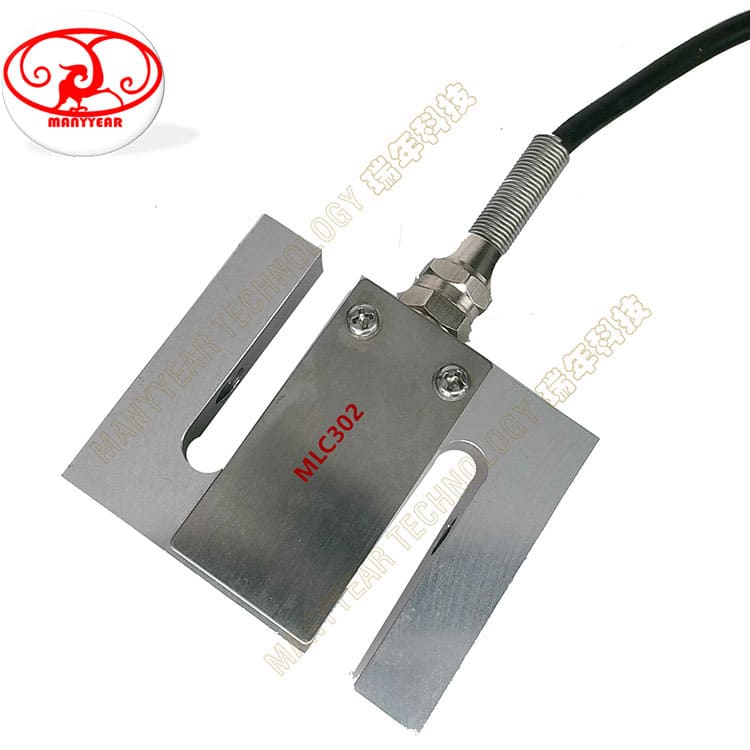

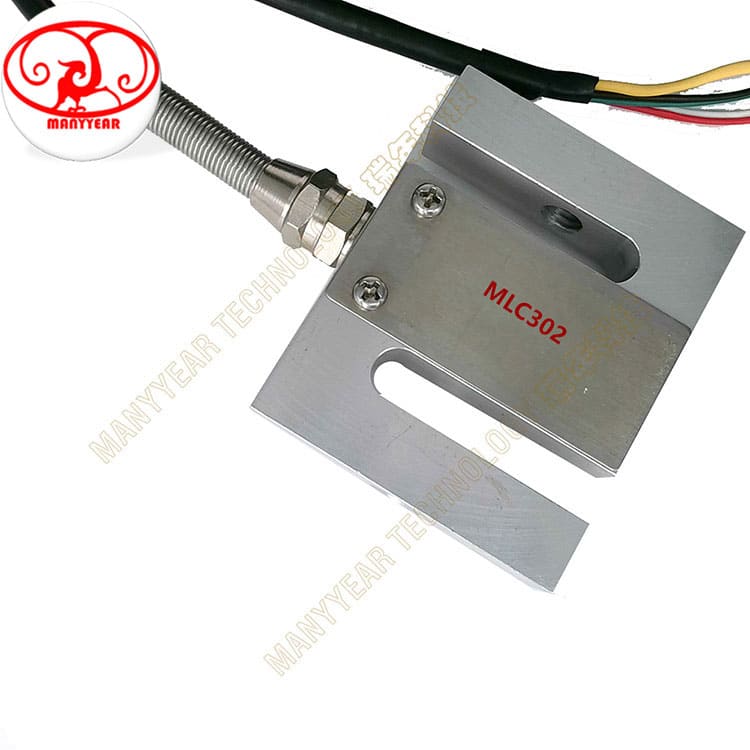

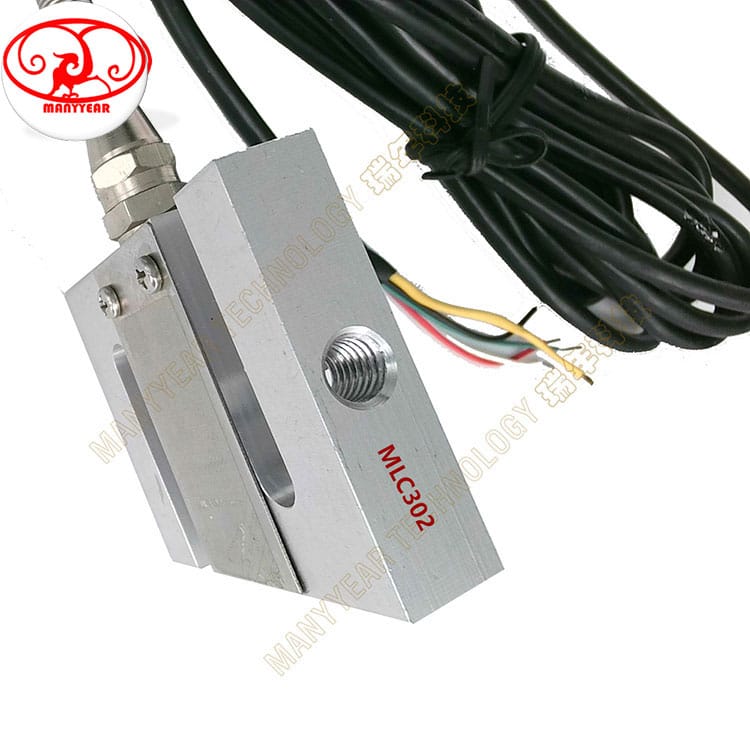

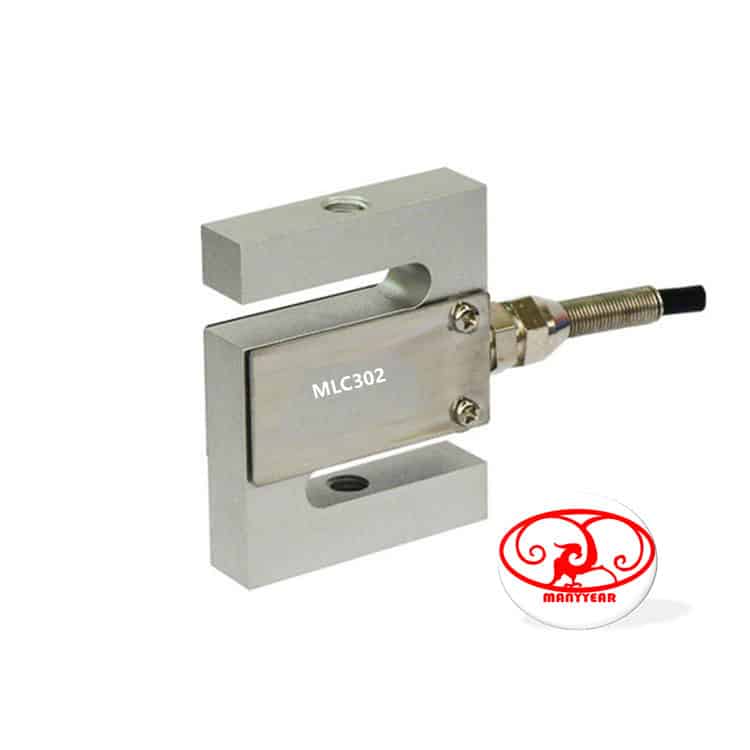

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC302-Micro crane scale weight sensor 500kg

Model: MLC302 Category: Tension load cell Range: 1~5kg,10~50kg,100kg,150~500kg Material: Aluminum-alloy Dimension: 701060/50.812.763.5/642382mm Application: hanging scales, crane scale, tension and compression test Characteristic: micro tension sensor, micro compression sensor

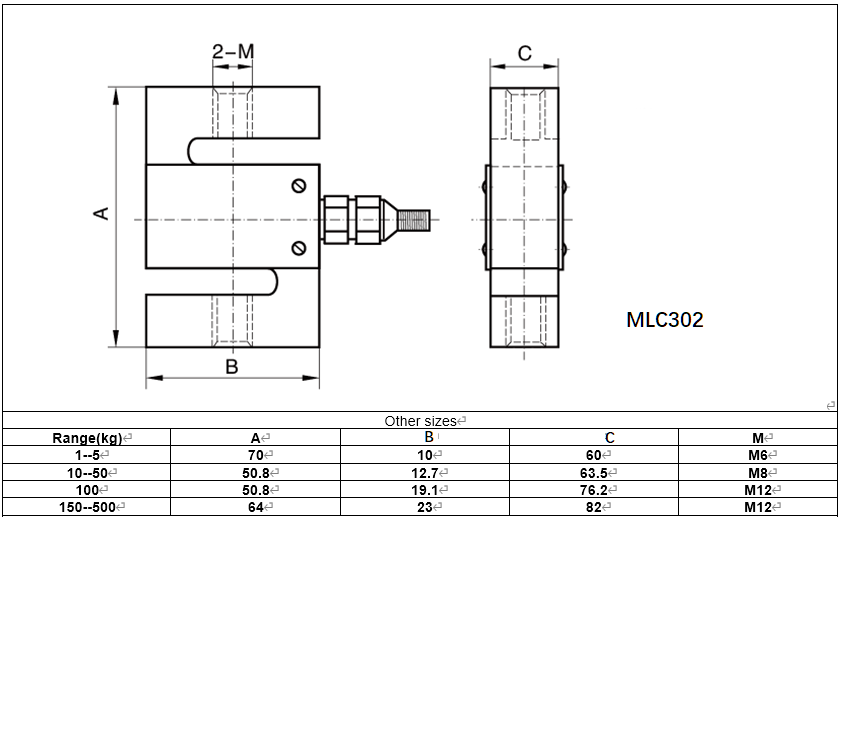

Other Dimension
Load range(kg)	A		B		C		M
1--5	70		10		60		M6
10--50	50.8		12.7		63.5		M8
100	50.8		19.1		76.2		M12
150--500	64		23		82		M12
Specification
Comprehensive error:		0.03%FS		Output resistance:		350±5Ω
Rated output:		2±0.02mv/v		Insulation resistance:		≥5000MΩ(100VDC)
Non-linearity:		0.03%FS		Excitation voltage:		9~12VDC
Hysteresis:		0.03%FS		Compensated temp:		-10~+40ºC
Repeatability:		0.02%FS		Use temperature:		-20~+65ºC
Creep:		0.03%FS/10Min		Temp effect on zero:		0.03%FS/10ºC
Zero balance:		±1%FS		Temp effect on span:		0.02%FS/10ºC
Input resistance:		350±5Ω		Defend grade:		IP66

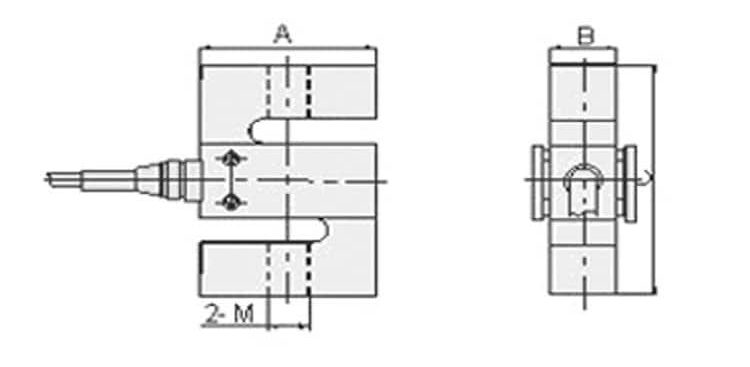

Product Dimension

Force Structure & Assembly Reference
