MLC303–S type crane scale load cell

2021/11/04 Force Load Cell MLC300 Tension Load Cells 2220 0

hanging scale,hopper scale,crane scale load cell,S type load cell

Model: MLC303
Category: Tension load cell
Range: 0.5t,1t,2t,3t,4t,5t
Dimension: 86*32*92mm; 86*36*92mm; 86*50*92mm
Material: Alloy steel,stainless steel
Application: hanging scale,hopper scale,crane scale load cell,S type load cell

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Product Introduction Product Parameters

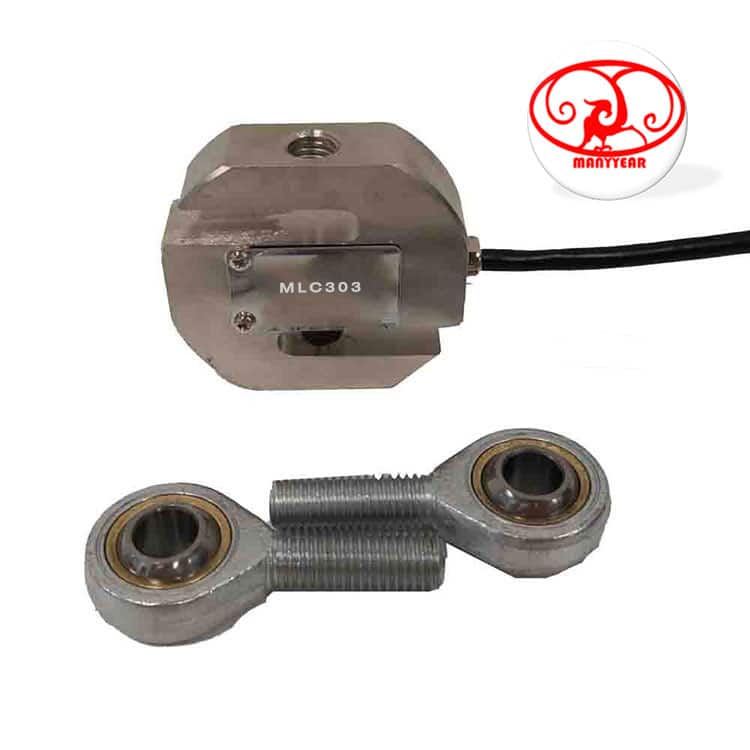

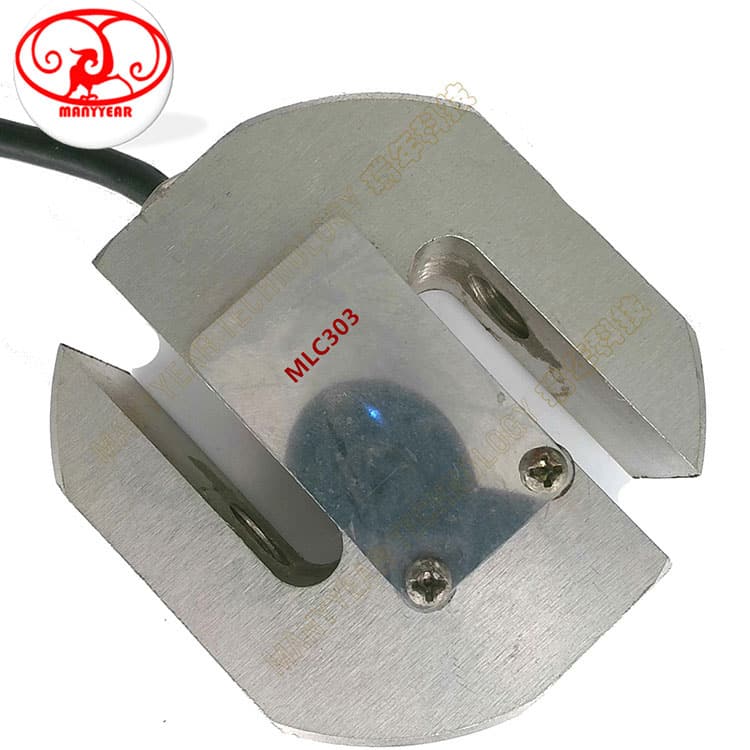

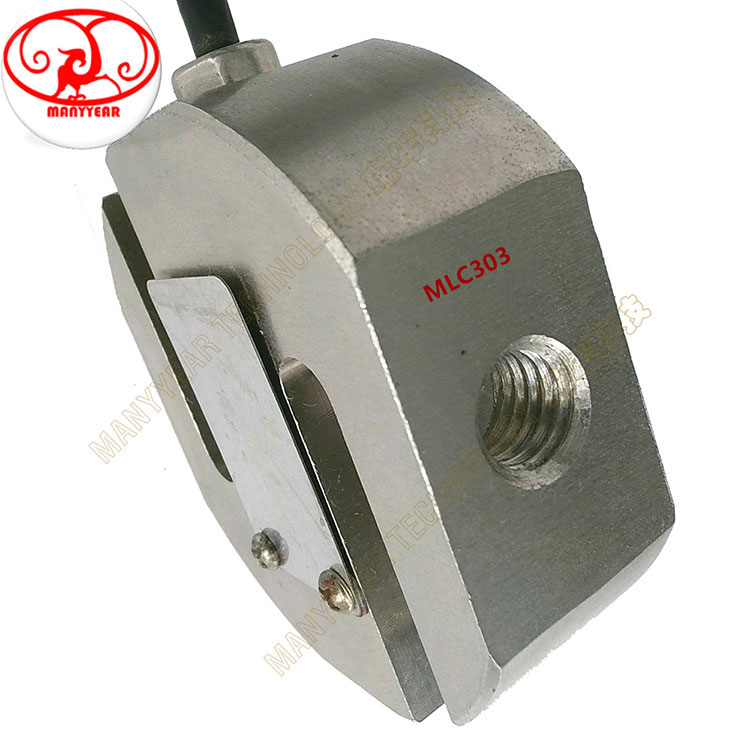

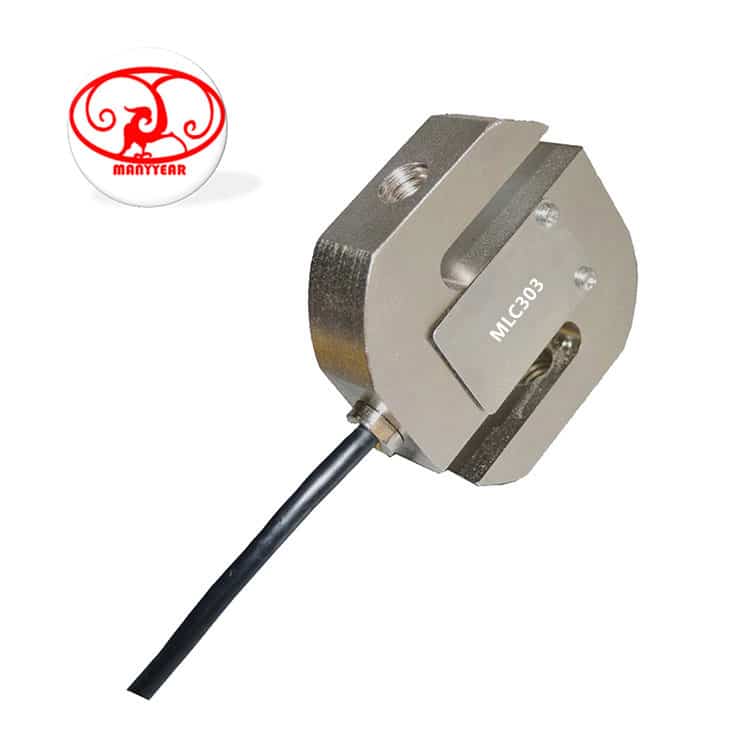

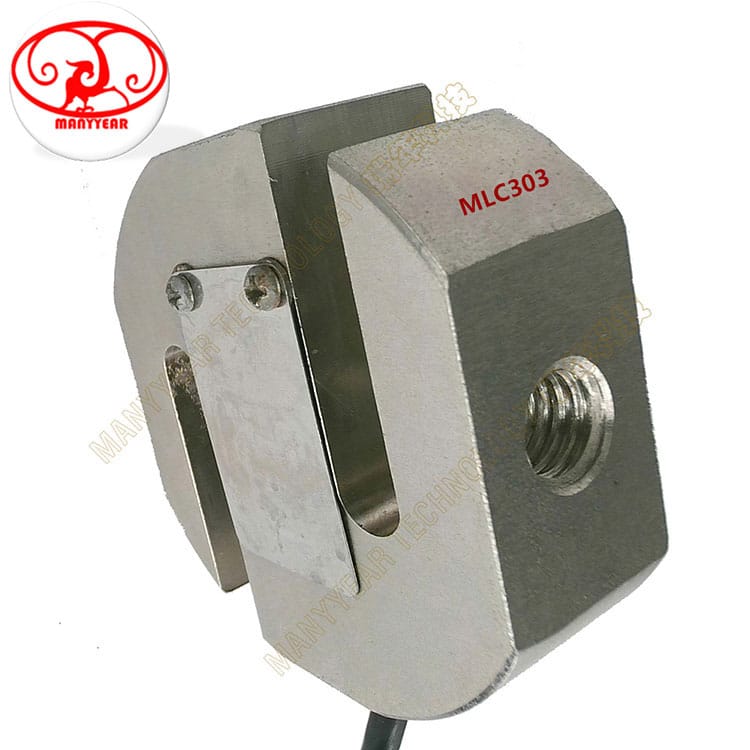

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MLC303–S type hopper scale load cell

Model: MLC303 Category: Tension load cell Range: 0.5t,1t,2t,3t,4t,5t Dimension: 863292/863692/865092mm Material: Alloy steel, stainless steel Application: hanging scale, hopper scale, tension or compression test

Other Dimension
Load range	0.5kg		1kg	2kg		3kg	4kg		5kg
M	M12*1.74		M12*1.74	M20*2.5		M20*2.5	M20*2.5		M24*3
D	32		32	32		32	36		50
Specification
Comprehensive error:		0.03%FS			Output resistance:			350±5Ω
Rated output:		2±0.002mv/v			Insulation resistance:			≥5000MΩ(100VDC)
Non-linearity:		0.03%FS			Excitation voltage:			9~12VDC
Hysteresis:		0.03%FS			Compensated temp:			-10~+40ºC
Repeatability:		0.02%FS			Use temperature:			-20~+65ºC
Creep:		0.03%FS/10Min			Temp effect on zero:			0.03%FS/10ºC
Zero balance:		±1%FS			Temp effect on span:			0.02%FS/10ºC
Input resistance:		350±5Ω			Defend grade:			IP68

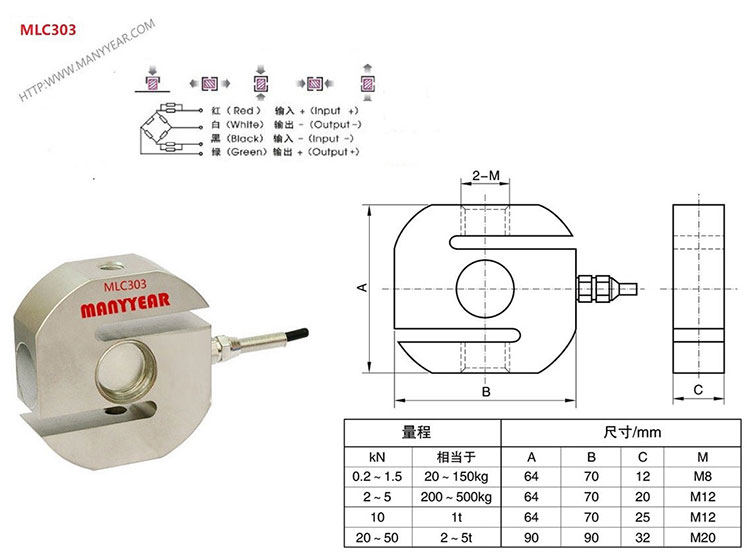

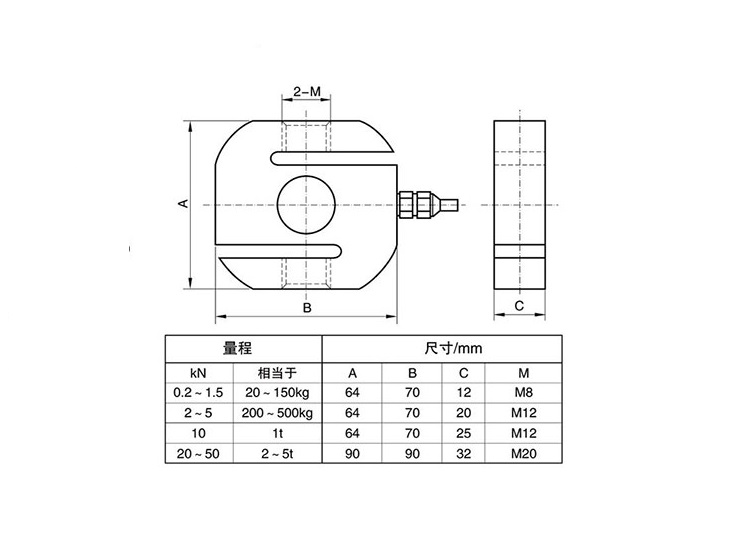

Product Dimension

Force Structure & Assembly Reference
