digital weight transmitter, weight indicator, weight controller, belt scale weighing controller

Model Number: MEP500B3
Category: weight controller
Power Supply: AC 220V ±20%, 30W, 50Hz/60Hz
Modbus Interface :RS232<=1.5m RS485<=1000m
Display Type:LCD/VFD
Working temperature:-10-50℃
apply: digital weight transmitter, weight indicator, weight controller, belt scale weighing controller

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales



Product Picture Reference

MEP500B3 belt scale weighing controller-MANYYEAR TECHNOLOGY

digital instrument

digital instrument

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

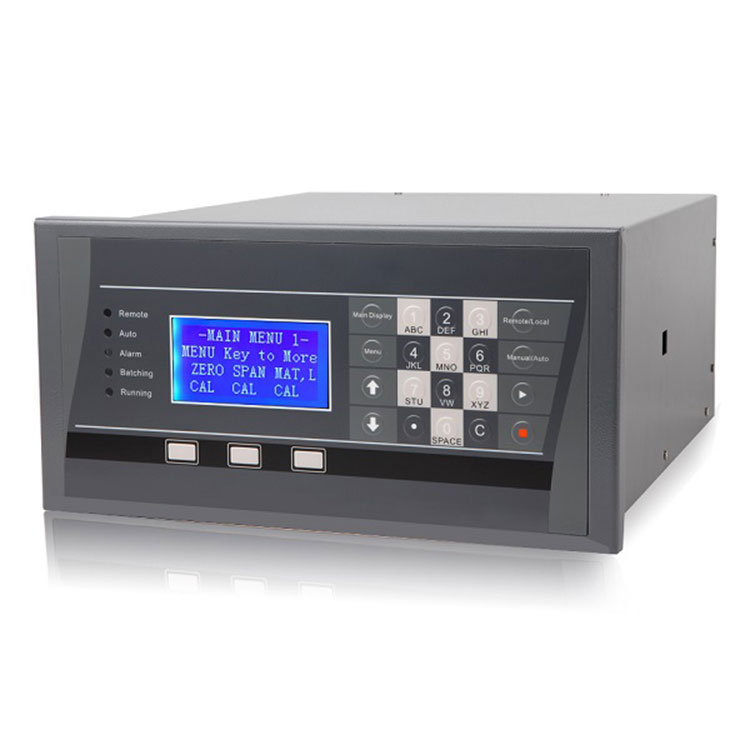

MEP500B3-Belt scale digital weighing controller indicator

-Use DCS to actualize teleoperation.

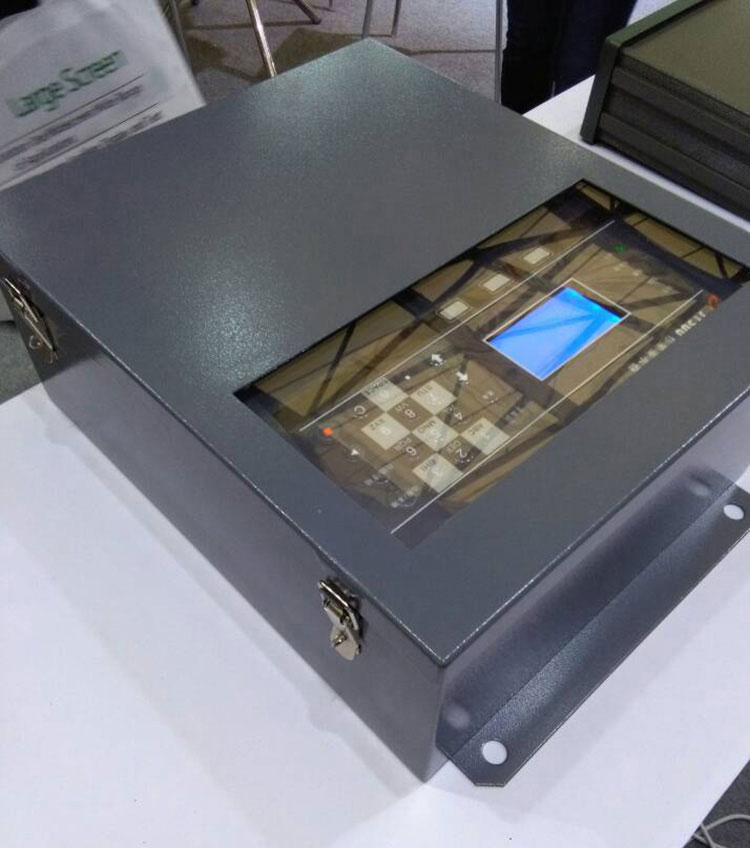

-Two kinds of screen to choose, LCD or VFD, wall-mounted type or embedded type to adopt different environment.
-Corrects zero point, belt dead weight, belt speed and totalization automatically.
-Adopts all-digital and parameter input setting mode, practicality and analog calibration mode.
-Functions of malfunction hint, malfunction signal purview choice and stop when alarm.
-Functions of signal collection, error correction, state judgement, running display, PID regulation, DCS communication and so on.
-Adopts flash mode to access data, can save all process parameters automatically when losing power supply, when turn on the
equipment again, the equipment will keep running in the original process parameters that before losing power supply.
-Adopts high credible elements, combine with advanced anti-jamming technology, stand against highly in static, spark,
electromagnetic interference.

Ext.Power supply

AC 220V ±20%, 30W, 50Hz/60Hz

Working temperature

-10-50℃
Humidity≤95%RH
Dimension315(W)x 148(D)x 380(H)
Weight2.5 Kg
linearity0.01FS
Accuracy0.10%
Tolerance0-99999900 t
Flux0.0020-99999.9 t/h
Division0.001kg,0.01kg,0.1kg,1kg,0.1t,1t…
Speed pulse0-3000Hz, 0-24V
Belt width500-1600mm
Load cell sensitivity2.0-3.0 mV/VLoad cell excitationLoad cell excitation
Load cell excitationDC 9V ±1%, 200mA, can connect 4 load cells
Speed sensor modelPhotoelectricity /electromagnetism/Hall sensor/approach switch
Speed sensorDC ≤24V, 50mA
Max.net signal input≤20mV
Display128*64 VFD Screen
Modbus InterfaceRS232<=1.5m RS485<=1000m
Default baud rate9600(Baud rate and Communication format optional)
Analog Input0-20mA, Telecontrol setting the flow signal by DCS interface
Analog Output

(DCS interface) 0-20mA, 2 Ports, Port 1 for measure signal, ( Flow, speed, load signal optional ), Port 2 for control signal

Digital Input

DC 24V, 3 routes Passive touch signal,Programmable input

Digital Output

AC 240V, 7A, 3 routes, Touch Capacity signal,Programmable output

Protected class

IP54

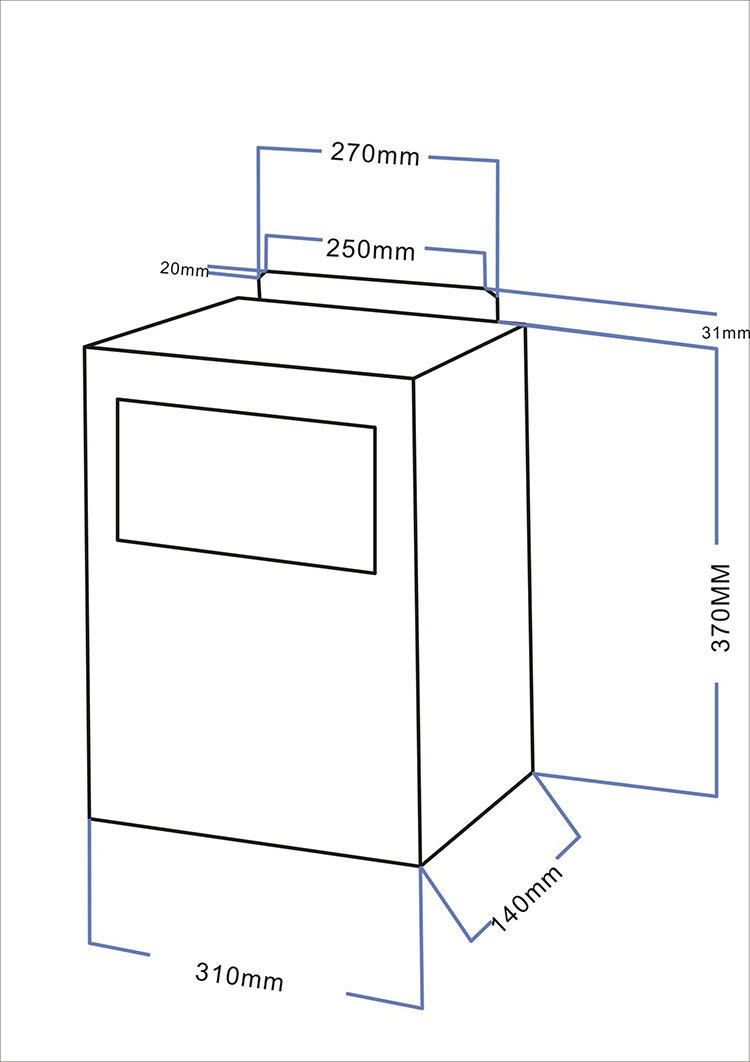

Product Dimension
