MEP500B1 belt scale weight controller MEP500B1 belt scale weight controller
MEP500B1 belt scale weight controller

MEP500B1 belt scale weight controller

Digital load cell, digital weight sensor

Model: MEP500B1
Category: weight controller
Power Supply: 220VAC/24VDC
Display: LED
Controll port: analog I/O, digital I/O
Apply: digital weight transmitter, weight indicator, weight controller, belt scale weight controller


  Product selection reference

Online Sales

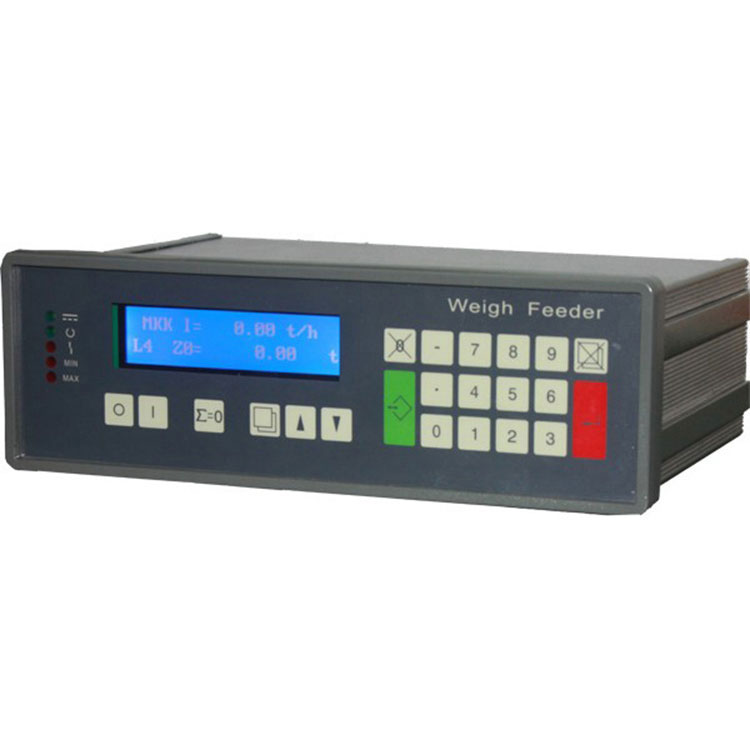

Product Picture Reference

MEP500B1 belt scale weight controller-MANYYEAR TECHNOLOGY

MEP500B1 belt scale weight controller

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

                                                       MEP500B1-Belt scale digital weighing instrument indicator & controller

Mainly apply to bulk measurement in various industries.
Such as power generation,coal industry, metallurgy, mining, harbor, chemical and building material industry Feedrate Measurement and Control for Conveyor Belt Scale and Weigh Feeder.
1 Analog Input.
2 Analog Output
3 Digital Input
7 Digital Relay Output
1 Pulse Output
Modbus Communication ( Independent RS232 and RS485 Port)
AC220V Power Supply. DC24V Power Supply is Optional
VFD Display. LCD Display is Optional
Language Selective. English is Default, Second language can be Chinese
Integrated Diagnostics and Self-testing Functions Digital Electronics.
Provide Accurate, Drift-free Performance

Ext.Power supply

AC 220V (175-285V), 30W, 50Hz
Working temperature-10-50°C
Humidity≤90%RH

Dimension

288(W)x 190(D)x 95(H)mm
Weight2.5 Kg
linearity0.01FS
Accuracy0.10%
Tolerance0-99999900 t
Feed rate0.0020-99999.9 t
Max.net signal input≤30mV
Display160*32 VFD Screen 110x30mm
Load cell excitationDC 9V, 250mA
Speed sensorDC ≤24V, 50mA
Speed pulse0-3000Hz, 0-24V
Modbus Interfacem RS485<=1000m Default baud rate: 9600 (Baud rate and Communication farmat optional)
Analog Input0-20mA, Long-distance setting the flow signal by DCS interface
Analog Output0-20mA, 2 Ports 1 Port for measure signal ( Flow, speed, load signa optional ) 2 Port for control signal
Digital OutputTouch Capacity AC 220V, 3A
Digital InputDC 24V,
4 routes Passive touch signal
1 route: external error acknowledge,
2 route: external control for stop signal,
3 route:external control for start signal,
4 route: control for speed pulse input signal
Protected classIP54
Division0.001kg,0.01kg,0.1kg,1kg,0.1t,1t…

Product Dimension

Force Structure & Assembly Reference

MEP500B1 belt scale weight controller-MANYYEAR TECHNOLOGY

MEP500B1 belt scale weight controller

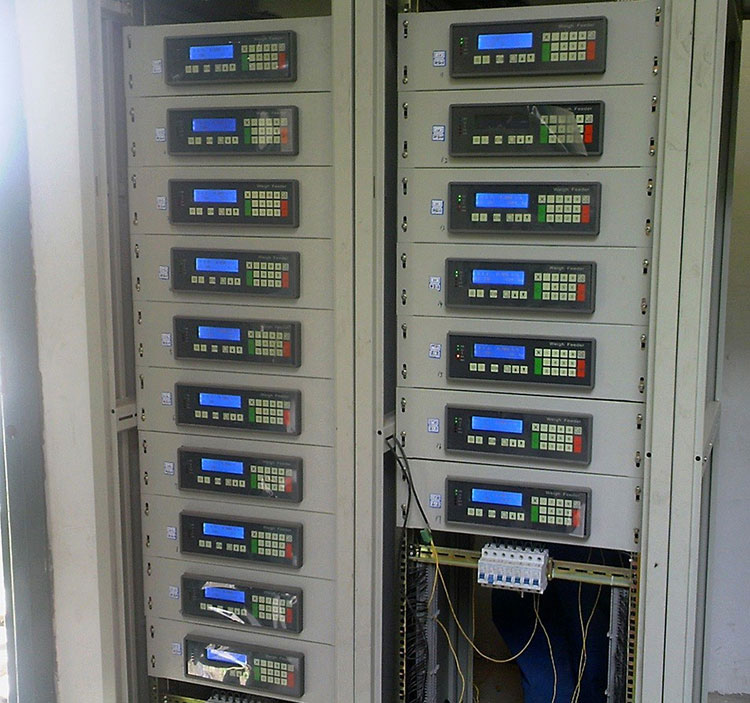

Product Application

MEP500B1 belt scale weight controller-MANYYEAR TECHNOLOGYMEP500B1 belt scale weight controller-MANYYEAR TECHNOLOGYMEP500B1 belt scale weight controller-MANYYEAR TECHNOLOGY
