ADS301 Multichannel digital weighing system

Digital load cell, digital weight sensor, Multichannel digital weighing system, digital weight transmitter

Model: ADS301
Channel : 1-8 Channel
Work voltage: 9-24vdc
Signal output: RS485/RS232/Wireless
Application: Digital load cell, digital weight sensor, digital weighing system, digital weight transmitter

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

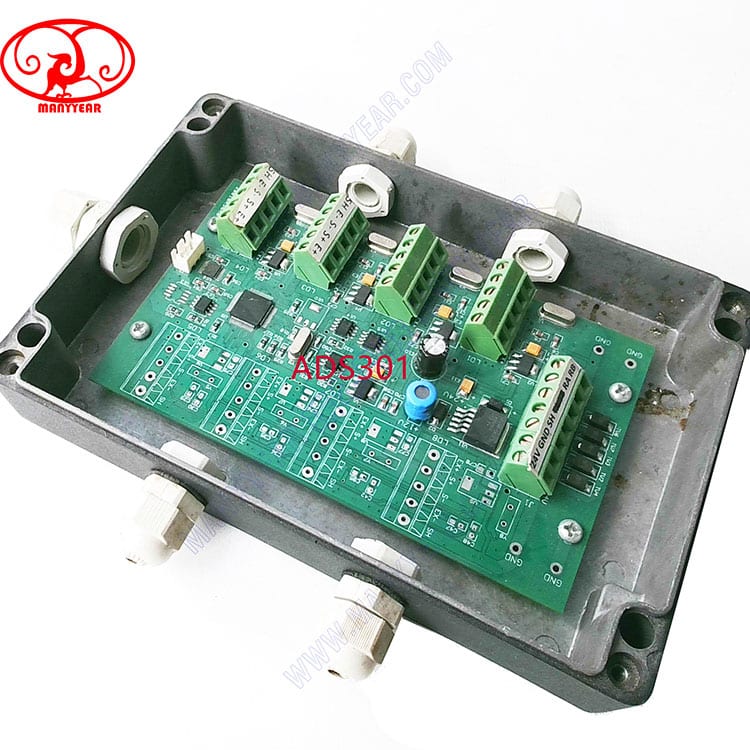

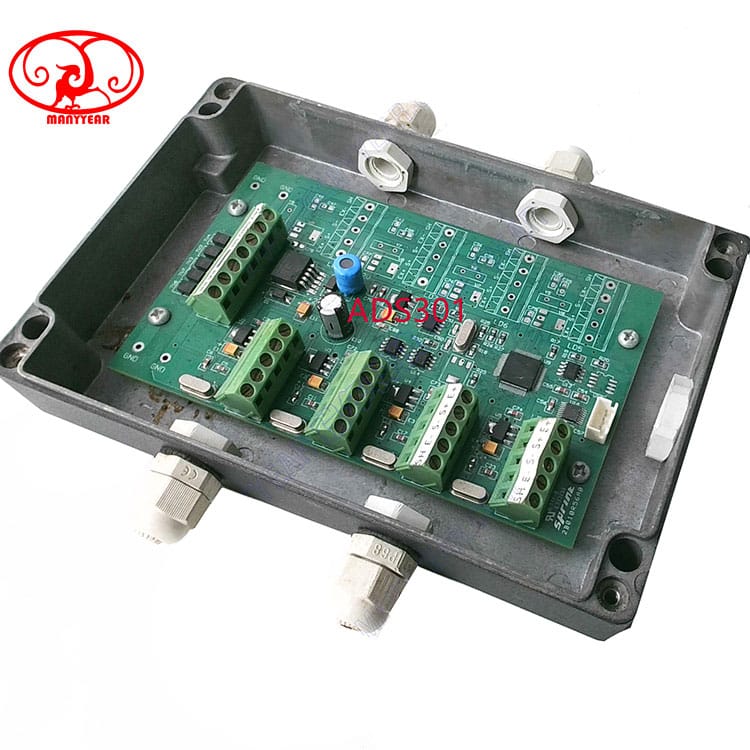

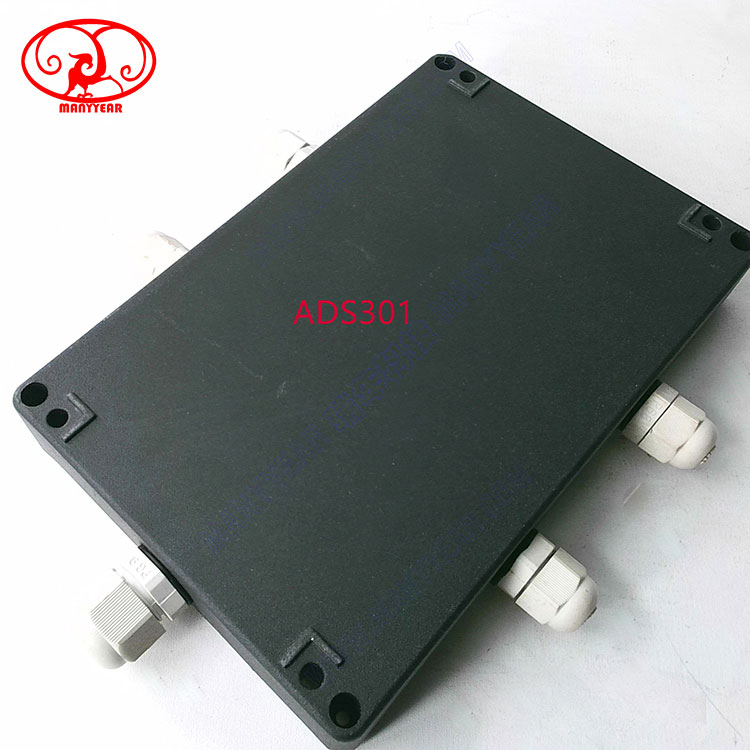

Product Picture Reference

ADS301 Multichannel digital weighing system-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

                                                                    ADS301-Multi channel digital weighing system & digital weighing junction box

1. Working power supply: 6.5-12VDC
2. Digital filtering wave;
3. Digital calibration and calibration;
4. Characteristic parameters ofnon-lose memory;
5. Measurement rate optional;
6. All of the settings through the serial port to complete the work;
7. Zero tracking range of ± 2%;
8. Open automatically zero range of ± 2% ... ± 20%;
9. Linear amend points optional (4-8 points);
10. Automatic temperature correction, amendment time interval adjustable;
11. Output measurements faster convergence and stability;
12. it can set the features of anti- shake intensity (0% ... 100%);
13. Application software can be upgraded through the serial port
14.4-10 Road A/ D conversion module
15.Apply to multi channel digital weighing system, multi channel force measure, multi channel digital weight transmitter, digital platform scale, digital floor scale, digital weighbridge, digital truck scale


Max signal range:

±10mV ~±5V

Each A / D measurement of the highest resolution:

100000 / mV (12.5Hz)
Measurement speed (depending on the output format and baud rate):100Hz, 50Hz, 25Hz, 12.5Hz, 6.25Hz, 3.125Hz, 2Hz, 1Hz (optional)
Filtering methods:the standard low-pass filter and FIR filter
Non-linear:± 0.001% FS
Temperature characteristics:<± 5ppm /
Transfer method:full-duplex RS-485
Baud Rate:1200bps, 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps (optional)
Operating voltage:6.5V ... 12V DC
Each A / D operating current (AD-S module only):<38 mA (typical) <40mA (maximum);
Use temperature range:, -40 ~ +70 ;
Stock temperature range:,-60ºC+90ºC
Junction Box Dimensions (mm):223 × 147 × 60 (L × W × H);
Weight:about 478g



Product Dimension

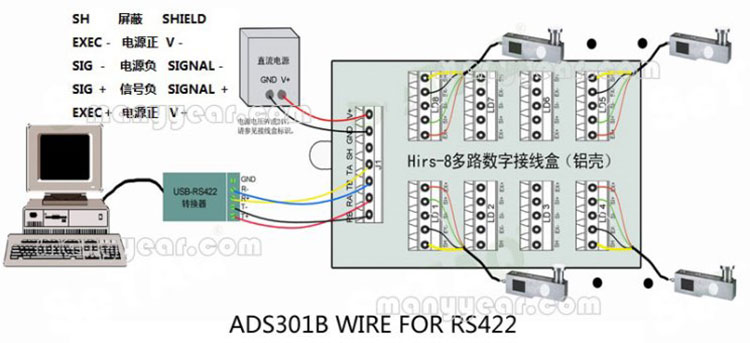

Force Structure & Assembly Reference

ADS301 Multichannel digital weighing system-MANYYEAR TECHNOLOGY

ADS301 Multichannel digital weighing system

Product Application

ADS301 Multichannel digital weighing system-MANYYEAR TECHNOLOGYADS301 Multichannel digital weighing system-MANYYEAR TECHNOLOGYADS301 Multichannel digital weighing system-MANYYEAR TECHNOLOGY
