ADS105 Digital display weighing transmitter ADS105 Digital display weighing transmitter
ADS105 Digital display weighing transmitter

ADS105 Digital display weighing transmitter

Digital load cell, digital weight sensor, digital weighing system, digital display weighing transmitter

Model: ADS105
Catalog: weight transmitter
Channel : 1-8 Channel
Work voltage: 9-24vdc
Signal output: RS485/RS232/Wireless
Application: Digital load cell, digital weight sensor, digital weighing system, digital display weighing transmitter.

  Product selection reference

Online Sales



Product Picture Reference

ADS105 Digital display weighing transmitter-MANYYEAR TECHNOLOGY

ADS105 Digital display weighing transmitter

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

                                                ADS105-Digital weight transmitter & modbus digital weight transmitter

1.Digital filter.
2.digital demarcate:
3.characteristic parameter store.
4.sample rate option.
5.set all item by series port.
6.zero track range.±2%
7.zero adjust range when power on.±2%~±20%
8.linearity correct point option(4~8).
9.temperature correct, adjust time can be option .
10.short response time of measure.
11.Prevent versatility intension option

1.Max signal range:

±10mV ~±5V.

2.A/D resolution :

2000k/mV(12.5Hz).
3.A/D sampling speed:6.25Hz,25Hz, 50Hz ,100Hz ,200Hz,(option).
4.Filter mode:standard low-filter and FIR filter.
5.Nor-linearity:±0.001%F·S
6.Temperature characteristic:<±1ppm/ºC
7.Communication mode:RS232/RS485/MODBUS/WIRELESS
8.Baudrate:1200,2400,4800,9600,19200 ,38400 bps (option).

9.Power supply:

16V~24V DC.
10.Current:< 30 mA < 35mA (MAX).
11.Work temperature range:, -20ºC~+60ºC.
12.Stock temperature range:,-40ºC~+80ºC.
13.Indicator6 bits LED
14. Keyboard5 keys
15. output voltage (for load cell)5vdc
16. analog signal output4-20MA, 0-5vdc, 0-10vdc (option)
17 install mode35mm standard guid rail
18. Prevent Thunder Strike dimension(mm):100*75*25(L×W×H).
16. Weight47g

Product Dimension

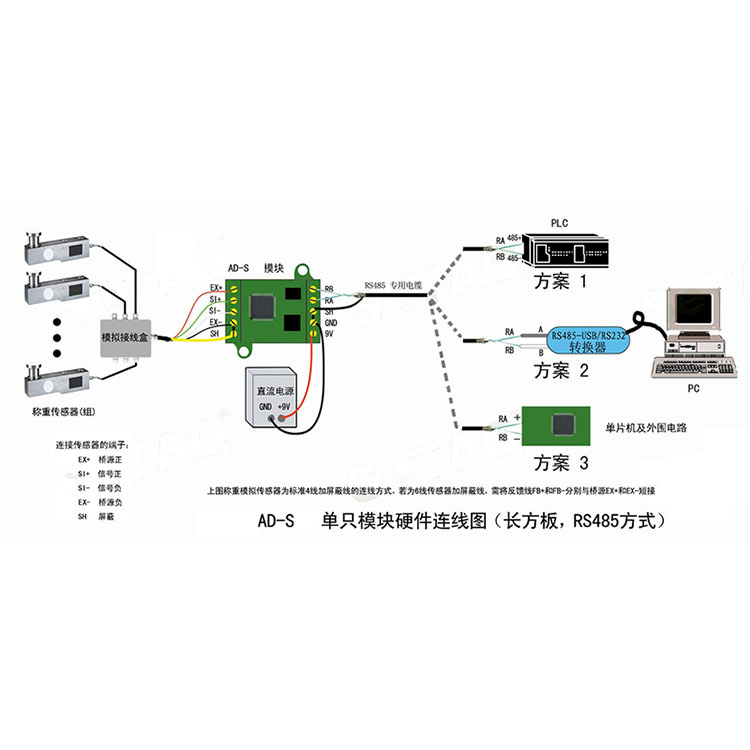

Force Structure & Assembly Reference

ADS105 Digital display weighing transmitter-MANYYEAR TECHNOLOGY

ADS105 Digital display weighing transmitter

Product Application

ADS105 Digital display weighing transmitter-MANYYEAR TECHNOLOGYADS105 Digital display weighing transmitter-MANYYEAR TECHNOLOGYADS105 Digital display weighing transmitter-MANYYEAR TECHNOLOGY
