Model: AAS 1-8 channel
Catalog: weight transmitter
Power supply: 9~24VDC
Signal input: 0-40mv
Signal output: mv,0-5vdc, 0-10vdc, 4-20mA
Channel quantity: 1/2/4/6/8 Port
Application: weight transmitter, weighing transmitter, analog weighing junction box, Multichannel weighing system.

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

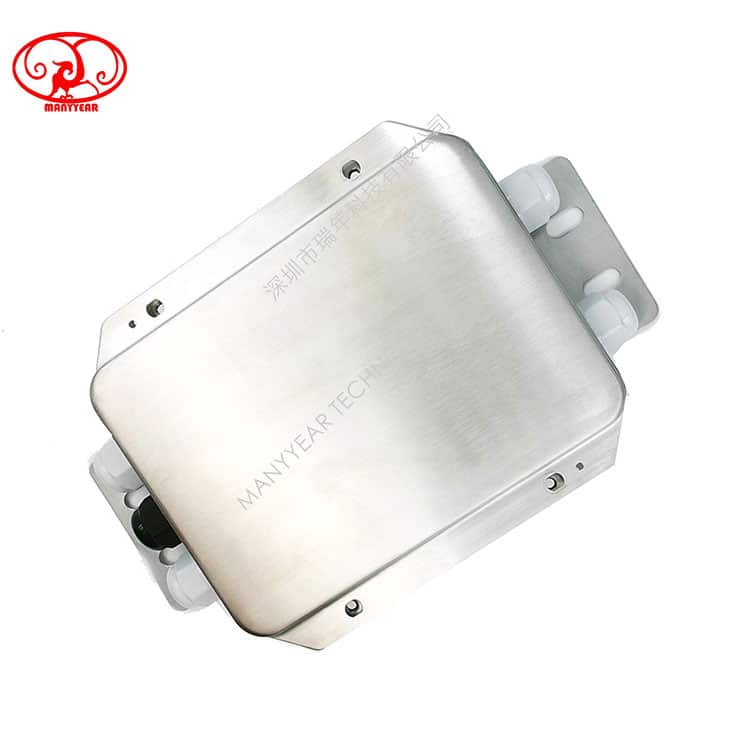

Product Picture Reference

AAS-2/4/6/8CH weighing junction box-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
                      AAS 8 channel - 4-20mA analog weight transmitter & weighing junction box

Power supply: 9~24VDC

Signal input: 0-40mv

Signal output: mv,0-5vdc, 0-10vdc, 4-20mA

Channel quantity: 1/2/4/6/8 PORT

Load range: 350OHM, 700OHM, 1000OHM.
House material: stainless steel, housing, aluminum housing, Plastic housing
1) Function
It allows indicator to connect with several load cells by outputting signal to indicator.
4-wire, 6-wire,8-wire can receive the signals from 4 load cells, 6 load cells, 8 load cells correspondingly.
The potentiometer inside the junction box can adjust the excitation of the load cell thus can make each load cell output the same signal.
Load cell 350 ohm as example: serial mode about 5%; parallel mode about 3%

Load cell 700 ohm as example: serial mode about 3%; parallel mode about 2%

- Customized for 10 wire
2) Connection method
A. The “OUT” connection point is the output which send signal to the indicator.

Connection point “A/B/C/D/E/F/G/H” is the input which receive signal from the load cell.(The input quantity varieties according to the quantity of the load cell it can connect). For example, if the junction box is 6-wire, the connection point is “A/B/C/D/E/F”.

B. Below each connection point, there is mark for connection.  the detail information for each mark is as following:
“E+”: + excitation for load cell;
“E-”: - excitation for load cell;
“≡”:Shielded cable;
“IN+”:+ signal from load cell;
“IN-”: - signal from load cell;
3) Adjust method
A. Adjust the junction box when there is no power supply. The resistance of each potentiometer should be adjusted to 10 om. (Contrarotate the potentiometer,the resistance will be smaller while turn the potentiometer clockwise, the resistance will be bigger).To get the resistance of each potentiometer, for example A point, then put one end of the multimeter at “E+” of “OUT” connection point, the other end at “E+” of “A”, you can get resistance of “A+” potentiometer; if put one end of the multimeter at “E-” of “OUT” connection point, the other end at “E-” of “A”, you can get resistance of “A-” potentiometer;
B. Turn on the power of the indicator, calibrate by enlarging 10 times( for example, the actual weight is 10KG, then calibrate to 100KG). If the indicator has inner code display, then calibrate to the actual weight, then go to the inner code display.
C. Put the weight with 1/3 value of the full range at each location of the load cell,record the display of the indicator. Adjust the potentiometer inside the junction box until the display difference of each load cell is less than 0.2E, please adjust as following: If the display of one load cell is too big, turn the two potentiometers of this load cell clockwise; if the display is too small, contrarotate of the two potentiometers of this load cell. Attention: The two potentiometers should have the same increase or decrease.For example, now the connection point is A, then after adjust the voltage, you can test the voltage at A+ and A-.Just put one end of the multimeter at “E+” of “OUT” connection point, the other end at “E+” of “A”, you can get voltage of “A+” potentiometer; put one end of the multimeter at “E-” of “OUT” connection point, the other end at “E-” of “A”, you can get voltage of “A-” potentiometer
D. After adjust, then calibrate again.
