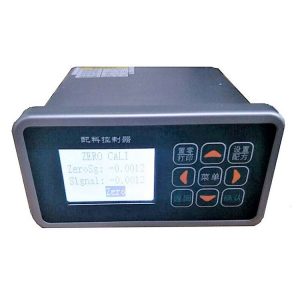

| MEP500A11-Batching scale weighing instrument & indicator controller 1,Integrating weighing, display, communication, printing and proportioning into one unit.
2,Incorporated switch power supply, which can be normally used within the voltage flotation range of 40%.
3,Available of simulation and digital filtration functions.
4,Automatic fault diagnosis for easy troubleshooting.
5,Complete material proportioning control functions.
6,Automatic/manual proportioning available.
7,The proportioning operation can be paused at any time and the operation will continue after restarting.
8,Automatic zero position tracing function.
9,Automatic 9 return-to-zero after electrifying.
10,Automatic return-to-zero after starting of proportioning operation.
11,9 formulas available for automatic selection.
12,6 kinds of charge can be controlled.
13,Automatic charging control for all kinds of charge with inching compensation function.
14,The formulas can be modified and printed at your will.
15,Proportioning batch can be freely set for convenient rationing production.
16,9 report printing formats available.
17,Automatic charge consumption accumulation and the accumulation result can be printed out.
18,Provided with automatic impetus delay function.
19,Provided with manual/automatic setting fall correcting function.
20,Provided with code authority power setting function for easy management.
21,Zero setting range, tare reduction range, overload range and tolerance, filtration times can be set.
22,Date, time display and setting function. Power supply | AC220V±20%,50HZ±2% | | Power consumption | ≤10W | | Temperature for working environment | -10°C~40°C | | Humidity for working environment | ≤90%RH(none coagulate water) | | Capacity for control contact | AC220V/5A | | Instrument keyboard | 4 soundable key in total | | Display mode | 13 numeric bits | | Display of measuring range | 0~59999 | | Display of graduation quantity | ≤15,000 | | Display of graduation value | 1,2,5,10,20,50 optional | | Internal resolution | ≤500,000 | | Sampling speed | ≤200 Hz | | Temperature coefficient | ≤0.005% | | Non-linear error | ≤0.01%FS | | Input sensitivity | ≥0.5μν | | Excitation power supply for sensor | ≤DC8V,200mA | | Input impedance for sensor interface | ≥20MΩ | | Zero point voltage range for sensor | -2 mA~+16 mA |
|
