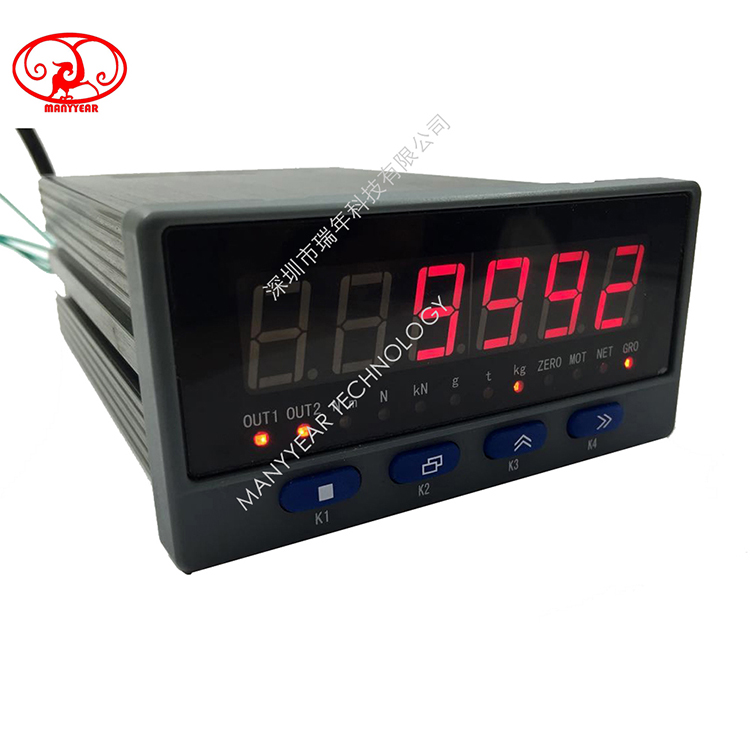

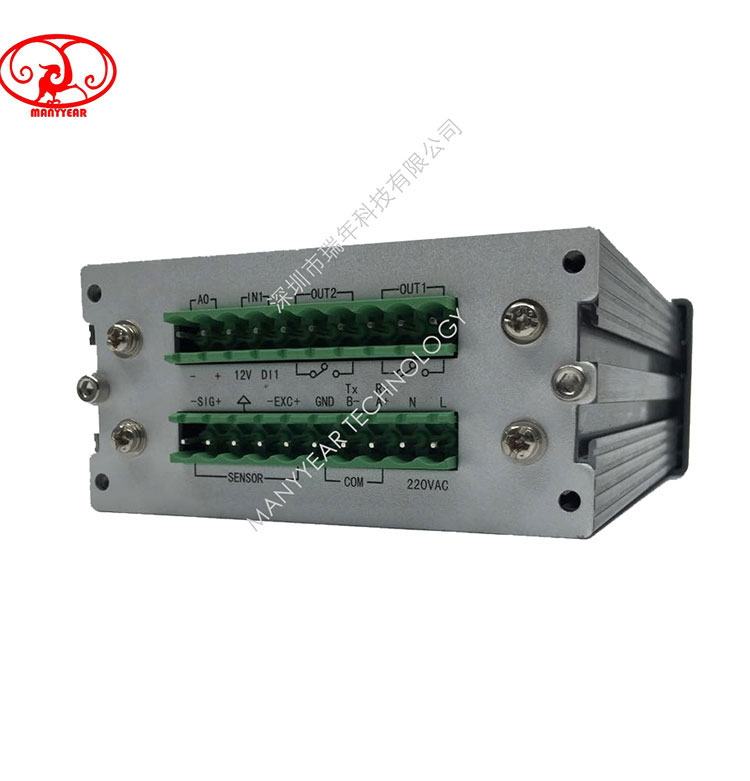

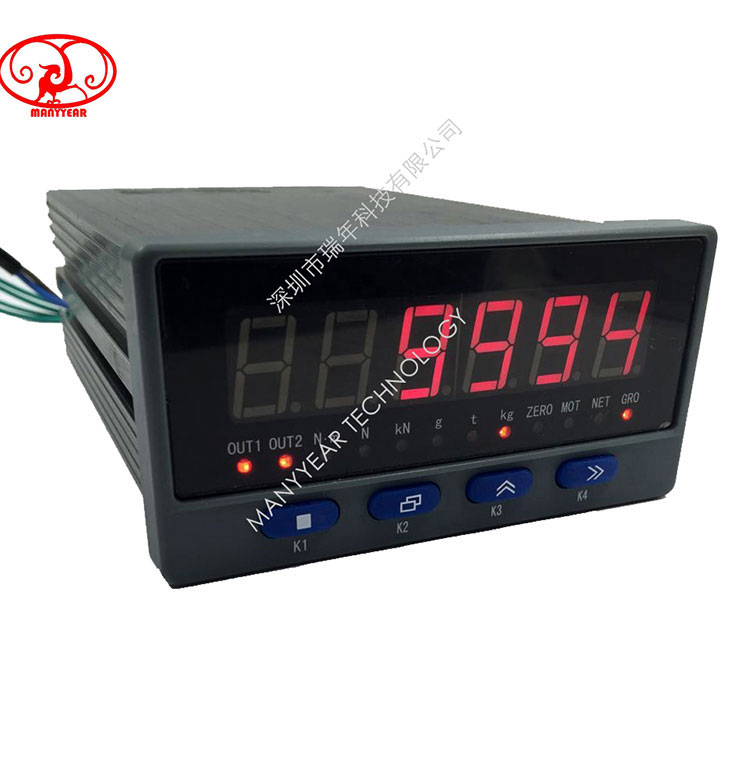

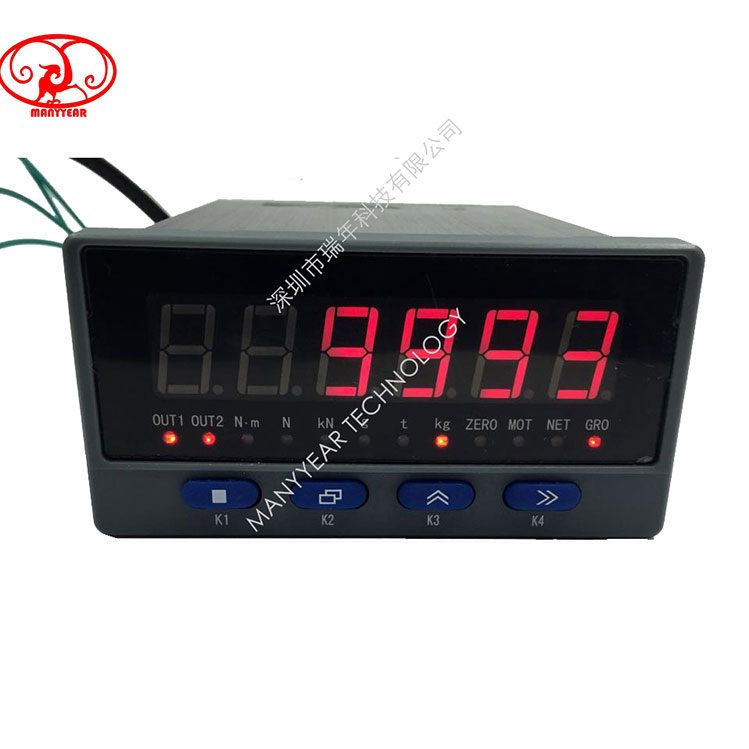

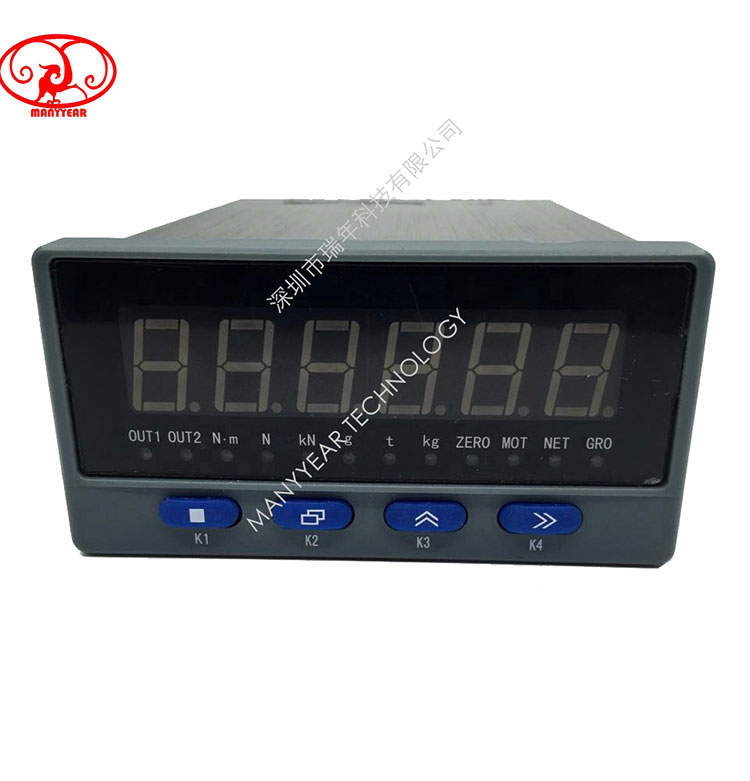

MEP-B5CH Weighing control instruments

Product Description

0.05 -level measurement accuracy, display range -199999~999999

Ratio measurement, with 4 -wire strain sensor

10 -point broken line correction function

10 times / second or 80 times / second measurement and control speed, equipped with strain sensor

Net weight, gross weight, peak value, valley value processing and switching display

1 -point input, different functions can be selected (clear, tare, allow output of comparison value, display lock or clear peak and valley values)

Optional transmission and communication functions

Aluminum shell


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales



Product Picture Reference

MEP-B5CH Weighing controller and force controller-MANYYEAR TECHNOLOGY

digital instrument

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
                                 MEP-B5CH Weighing controller and force controller

Product Description

0.05 -level measurement accuracy, display range -199999~999999

Ratio measurement, with 4 -wire strain sensor

10 -point broken line correction function

10 times / second or 80 times / second measurement and control speed, equipped with strain sensor

Net weight, gross weight, peak value, valley value processing and switching display

1 -point input, different functions can be selected (clear, tare, allow output of comparison value, display lock or clear peak and valley values)

Optional transmission and communication functions

Aluminum shell

Basic Specifications



projectSpecification
voltageAC power100 ~ 240V AC 50/60Hz
Power consumptionAC powerBelow 10W
Allowable voltage range90%~110% of power supply voltage
Insulation resistance≥100 MΩ (500V DC MEGA reference)
Dielectric strength2000V AC (test condition: 50/60Hz, 1 minute)
Anti-jammingIEC61000-4-2 (electrostatic discharge), level Ⅲ

IEC61000-4-4 (electrical fast transient burst), level Ⅲ

IEC61000-4-5 (surge), level Ⅲ

degree of protection160 × 84 size instrument: IP65 (product front panel protection) (GB/T42-2008)
operating environmentambient temperature-10~55°C (storage: -25~65°C)
environment humidity35 ~ 85 %R•H , no condensation
installation locationIndoor, height < 2000m

input specifications

projectSpecification
sensor power supplyDC 10V ± 2% , 20 0mA (MAX)
input resistance> 10MΩ
conversion methodSigma-Delta
Measurement and control speed10 times/s or 80 times/s (set by parameter)
nonlinear0.01 %F•S
gain drift< 10ppm /℃
Highest Display Accuracy1/100000 _ _
input signalRatio measurement , with 4-wire strain sensor
contact input1 point external switch input, can be used for zero clearing, tare, allow comparison output, etc.

Optional specifications

projectSpecification
compare outputR296 × 49.5 meters , optional 2-point relay output,250V AC/3A

resistive load

R4 / R8160 × 84 size instrument , optional 4 / 8 point relay output,
Analog outputA 1Current output (4~20)mA, (0~10)mA, (0~20)mAPhotoelectric isolation, resolution: 1/3000, load capacity: 600Ω
A 2Voltage output (1~5)V, (0~5)V
A3Voltage output (0~10)V
A4Voltage output (±5)V
A5Voltage output (±10)V
Communication InterfaceS 1RS232 interface, TC ASCII protocolOptical isolation

Response time: 500 μS (measured value)

S 2RS485 interface, TC ASCII protocol
M1 _RS232 interface, Modbus-RTU protocol
M2 _RS485 interface, Modbus-RTU protocol
Power SpecificationsV01 00 ~ 240V AC ( 50 /60Hz)



Code description

contentcode description
MEP-B5-0.05-level measurement accuracy, 80 measurement and control speeds per second
DimensionsAH160×84×113.5 Hole size: 152×76
CH98×49.5×162.5 Hole size: 92×45
Panel Specifications6-digit LED, display range (-199999~999999)
input signalProportional measurement, with 4-wire force sensor. Suitable for 0.4 ~ 4.0mV/V
contact inputK11 point external switch input
Alarm (option)R22 relay outputs, 250V AC/3A, resistive load (CH only)
R44 relay outputs, 250V AC/3A, resistive load (AH only)
External power supply10V±2%, 30ppm 150mA
Transmitter (option)A1Current output (4-20) mA, (0-10) mA, (0-20) mA
(Resolution: 1/3000; current output load≦600Ω, voltage output load≧100KΩ )A2Voltage output (1-5) V, (0-5) V
Communication (option)S1TC ASCII protocol RS232
(Communication rate: 2400, 4800, 9600, 19200, 38400, 57600, 115200)S2TC ASCII protocol RS485
(Communication address: 0~99)M1Modbus-RTU protocol RS232
M2Modbus-RTU protocol RS485
Power SpecificationsV0100-240V AC 50/60Hz
