MEP-SE pressure temperature controller
Model: MEP-SE
Name: Pressure Control Instrument
Input signal: thermal resistance, thermocouple, 0-5v, 4-20mA, MV/V
Analog output: 0-10V, 0-5V, 4-20MA
Digital output: RS232/RS485
Control output: Relay relay
Display: 1 LED
Test speed: 5 times per second
Application: Measurement and control of pressure, temperature, flow rate, stress, etc.
Keywords: digital instrument, pressure controller, temperature controller
Description
The MEP-SE pressure control instrument is a high-precision and high-efficiency measurement device suitable for various measurement and control applications, including pressure, temperature, flow rate, and stress. Its precision of 0.05 level and measurement and control speed of 5 times per second provide guarantee for its high-precision and high-efficiency measurement in various situations.

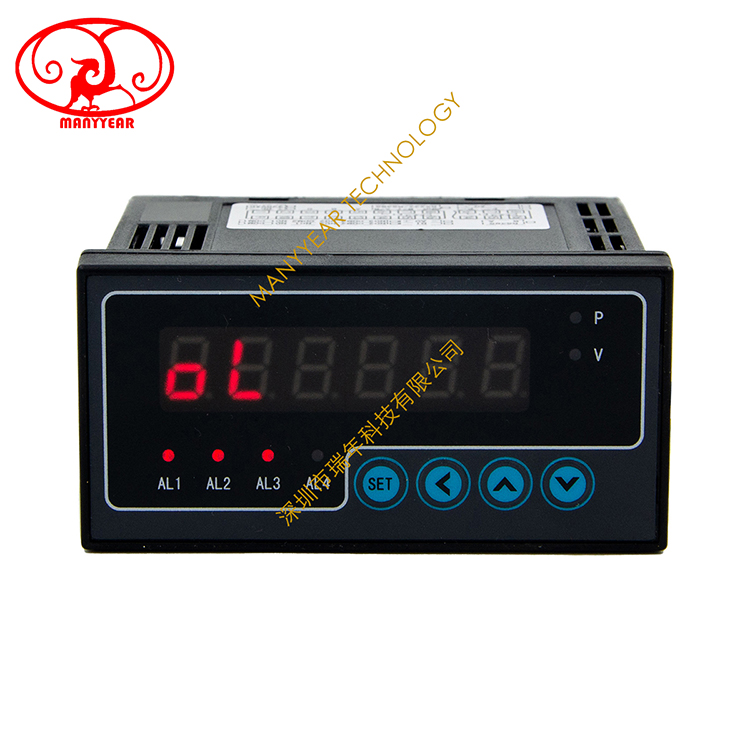

This instrument is equipped with one LED display, which can display the measured values in real time. Its display range is -19999 to 45000, which can display a large range of values.
The MEP-SE pressure control instrument has a 16 segment line correction function, which can be corrected as needed to improve measurement accuracy. In addition, it also has various optional functions, including 1 to 4 point alarm output, 5 optional external power supplies, as well as communication, transmission, and printing functions. These functions can meet the needs of different users and improve measurement accuracy and control effectiveness.
In addition, the instrument also has various alarm functions, including five basic alarm modes: upper limit of measured value, lower limit of measured value, upper limit of deviation, lower limit of deviation, and absolute value of deviation, as well as five standby alarm modes corresponding to these five basic alarm modes. These functions can remind users to take timely measures in case of abnormal situations.
Overall, the MEP-SE pressure control instrument is a versatile, high-precision, and user-friendly pressure and temperature controller suitable for various measurement and control applications.
