MEP-SW pressure temperature controller
Model: MEP-SW
Name: Pressure Control Instrument
Input signal: thermal resistance, thermocouple, 0-5v, 4-20mA MV/V
Analog output: 0-10V, 0-5V, 4-20MA
Digital output: RS232/RS485
Control output: Relay relay
Display: 2-way LED
Test speed: 10 times per second
Application: Measurement and control of pressure, temperature, flow rate, stress, etc.
Keywords: digital instrument, pressure controller, temperature controller
Product description
the MEP-SW pressure control instrument is a powerful device with multiple input signals, analog outputs, digital outputs, and control outputs, suitable for measurement and control applications such as pressure, temperature, flow, and stress. Its 0.2 level accuracy and 10 measurement and control speeds per second make it an ideal choice for high-precision and high-efficiency measurements.

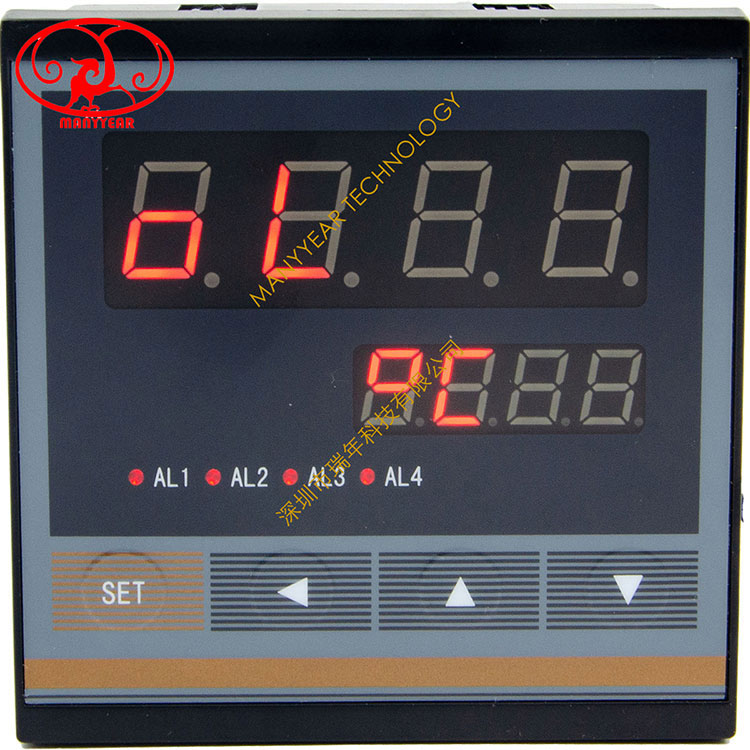

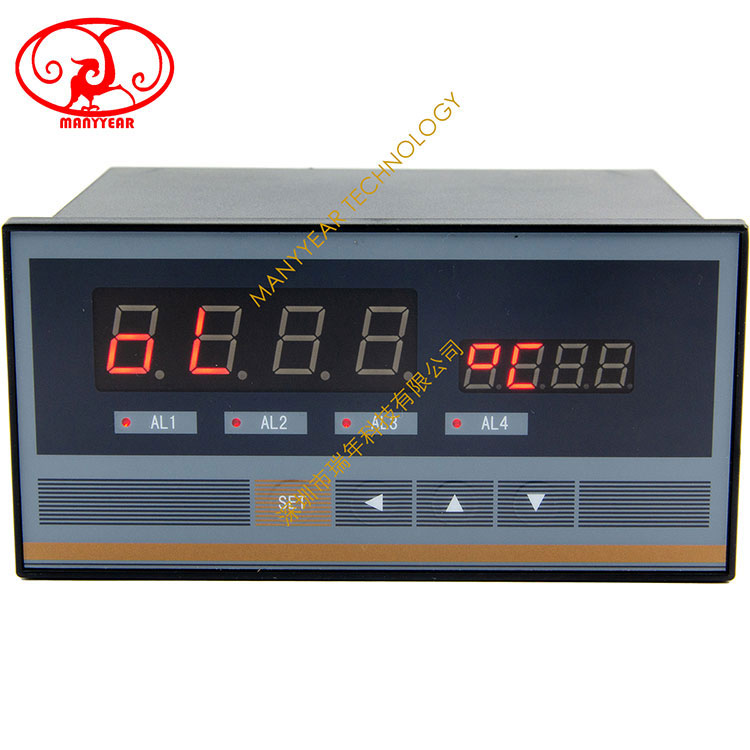

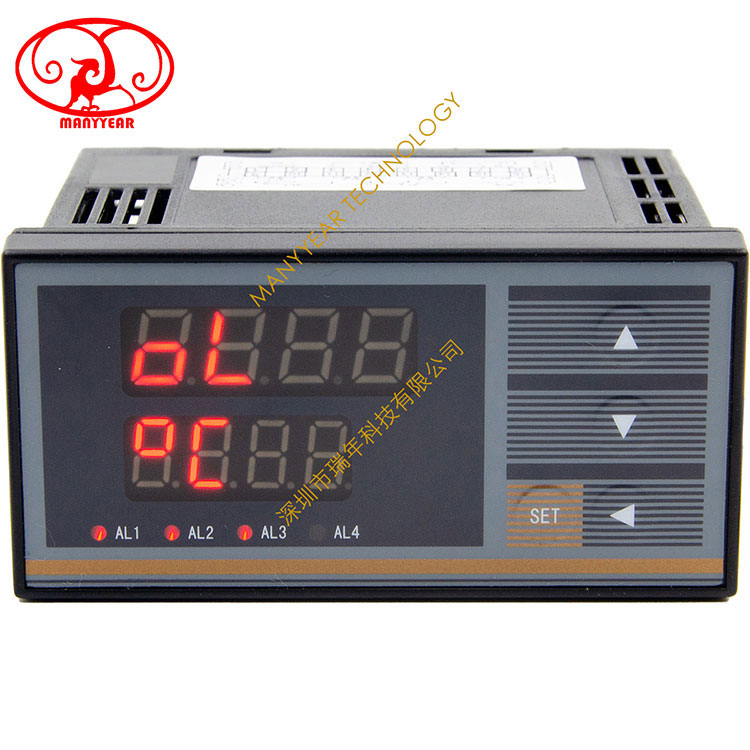

This instrument is equipped with a dual four digit digital tube display (main display+second display), where the second display can display information such as engineering quantity units and alarm values. This makes it easier for users to view measured values and related information.
The MEP-SW pressure control instrument has an analog universal input, and different input signals such as thermal resistance, thermocouple, 0-5V or 4-20mA MV/V can be selected through settings. In addition, it also supports digital output, but specific information is not provided in this description.
This instrument has multiple alarm functions, with optional 1-4 point alarm outputs. It has 10 alarm modes, including seven basic alarm modes: upper (lower) limit of measurement value, upper (lower) limit of deviation, upper (lower) limit of absolute deviation value, fault alarm, and standby upper (lower) limit and standby deviation upper (lower) limit. These functions can remind users to take timely measures in case of abnormal situations.
The MEP-SW pressure control instrument also has a 10 segment line correction function, which can be corrected as needed to improve measurement accuracy. In addition, it also supports optional communication and transmission output to meet different needs.
Overall, the MEP-SW pressure control instrument is a versatile, high-precision, and user-friendly pressure and temperature controller suitable for various measurement and control applications.
