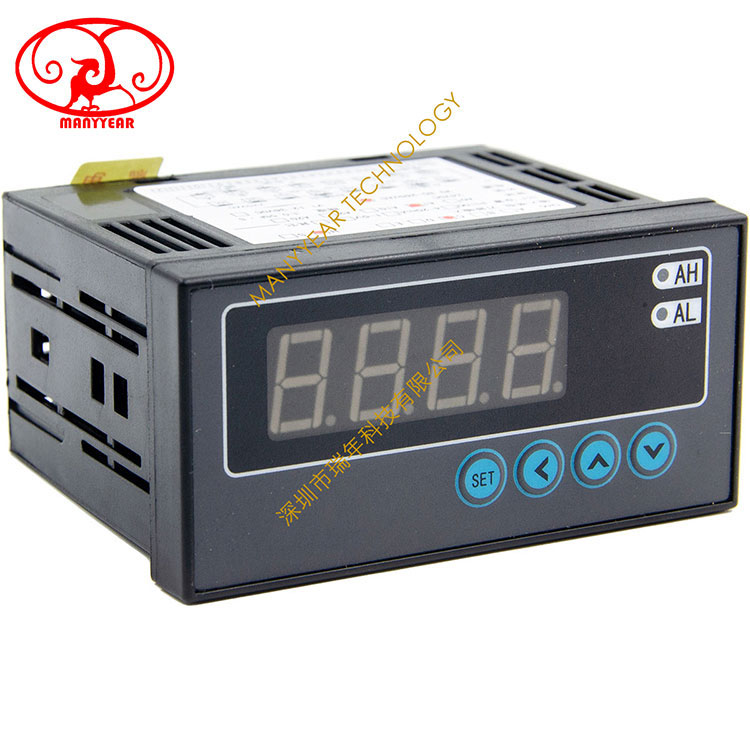

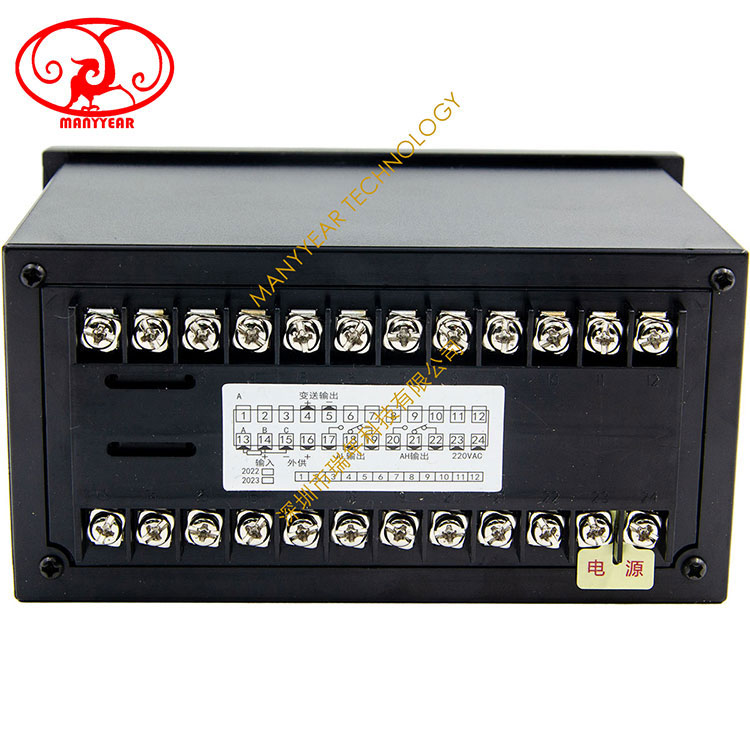

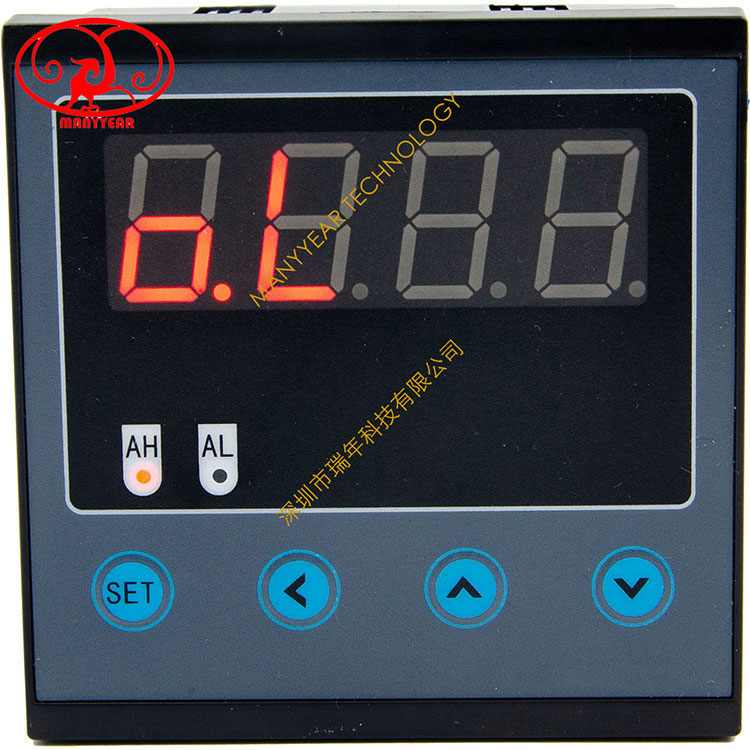

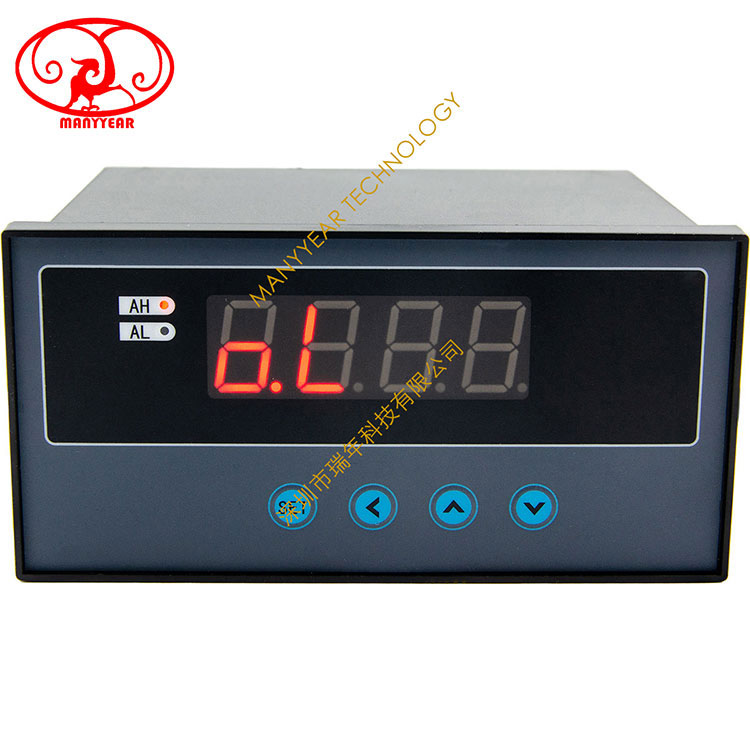

MEP-CH6 pressure temperature digital instrument MEP-CH6 pressure temperature digital instrument
MEP-CH6 pressure temperature digital instrument
MEP-CH6 pressure temperature digital instrument-MANYYEAR TECHNOLOGY
MEP-CH6 pressure temperature digital instrument-MANYYEAR TECHNOLOGY
MEP-CH6 pressure temperature digital instrument-MANYYEAR TECHNOLOGY
MEP-CH6 pressure temperature digital instrument-MANYYEAR TECHNOLOGY

MEP-CH6 pressure temperature digital instrument

MEP-CH6 pressure temperature digital instrument

Model: MEP-CH6
Name: Pressure Control Instrument
Input signal: thermal resistance, thermocouple, 0-5v, 4-20mA MV/V
Analog output: 0-10V, 0-5V, 4-20MA
Digital output: NA
Control output: Relay relay
Display: LED
Test speed: 5 times per second
Application: Measurement and control of pressure, temperature, flow rate, stress, etc.
Keywords: digital instrument, pressure controller, temperature controller




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales



Product Picture Reference

MEP-CH6 pressure temperature digital instrument-MANYYEAR TECHNOLOGY

digital instrument

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MEP-SHBW PID operator regulator controller

Product Description

MEP-SHBW PID operator regulator s, as supporting products for PID regulators or DCS systems, are used for manual adjustment or as backup instruments. The output signal is a current and voltage signal with positive and negative effects.

One channel regulation input signal is used to receive signals transmitted by systems such as PID regulators or DCS. Can be matched with DC current and DC voltage.

The main display window displays the operation output value, while the auxiliary display window can display the adjustment input signal, operation output value, or manual/automatic status through parameter selection.

The signal output can be directly operated through button operation. The operation output has upper and lower limit limiting functions.

Optional 1-2 alarm output function.

Optional 1-point manual/automatic status signal output function.

Optional 1 external signal input for switching between manual/automatic states.

Optional tracking/transmission output function.

Optional communication interface for reading data.



Basic Specifications

contentCode Description price
MEP-SHBW-Dual 4-position LED display; 0.2 level display accuracy; Measurement and control speed 0.1 seconds
Overall dimensionsAH160 × 80 × 125mm, horizontal opening size: 152 × 76mm
AS80 × 160 × 125mm, vertical opening size: 152 × 76mm
B96 × 96× 112, Hole size: 92 ×92mm
CH96 × 48 × 82mm, horizontal opening size: 92 × 45mm
CS48 × 96 × 82mm, vertical opening size: 92 ×45mm
Operation outputQ1Current output (4-20) mA, (0-10) mA, (0-20) mAOptoelectronic isolation,
Q2Voltage output (0-5) V, (1-5) VResolution: 1/10000, current output load ≤ 600 Ω, voltage output load ≥ 100K Ω
Q3Voltage output (0-10) V
Alarm (option)A sizeT1~T21-2 alarm relay outputs, both normally open and normally closed double contacts
(250V AC/3A, resistive load)B sizeT1~T21-2 alarm relay outputs, all single normally open contacts
C sizeT1~T21-2 alarm relay outputs, all single normally open contacts
Status signal output (option)D1 point manual/automatic status relay output, single normally open contact, 250VAC/3A, resistive load
External signal input (option)K1 point external passive contact switch signal for controlling manual/automatic status
Communication (option)
(Photoelectric isolation, response time: less than 500 μ S (measured value)MS1RS232 interface; Select TCASCII or Modbus RTU communication protocol through software.
MS2RS485 interface; Select TCASCII or Modbus RTU communication protocol through software.
Tracking/transmission output (option)A1Current output (4-20) mA, (0-10) mA, (0-20) mA
(Photoelectric isolation, resolution: 1/10000; current output load ≤ 600 Ω, voltage output load ≥ 100K Ω)A2Voltage output (0-5) V, (1-5) V
Note ① A3Voltage output (0-10) V
Power specificationsV0100-240V AC 50/60 Hz
V110~24V AC 50/60 Hz; 10~24V DC

Note : External signal input, communication, and tracking/transmission output functions share terminals, so only one of three can be selected.



Product Dimension

Product Application

MEP-CH6 pressure temperature digital instrument-MANYYEAR TECHNOLOGY

app-injection-molding-machine

MEP-CH6 pressure temperature digital instrument-MANYYEAR TECHNOLOGY

app-high-and-low-temperature-test-chamber

MEP-CH6 pressure temperature digital instrument-MANYYEAR TECHNOLOGY

APP-High temperature heat pump dryer
