MEP-CTB6F High Speed Weighing Force Control Instrument

Model: MEP-CTB6
Category: weight controll
Power Supply: 100~240 V AC , 10-24V AC
Display Type: LED
Alarm Output:Two output channel of Open Collector, ≤100mA
Communication:RS485/RS232
apply: digital weight transmitter, weight indicator, weight controller,force controller

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

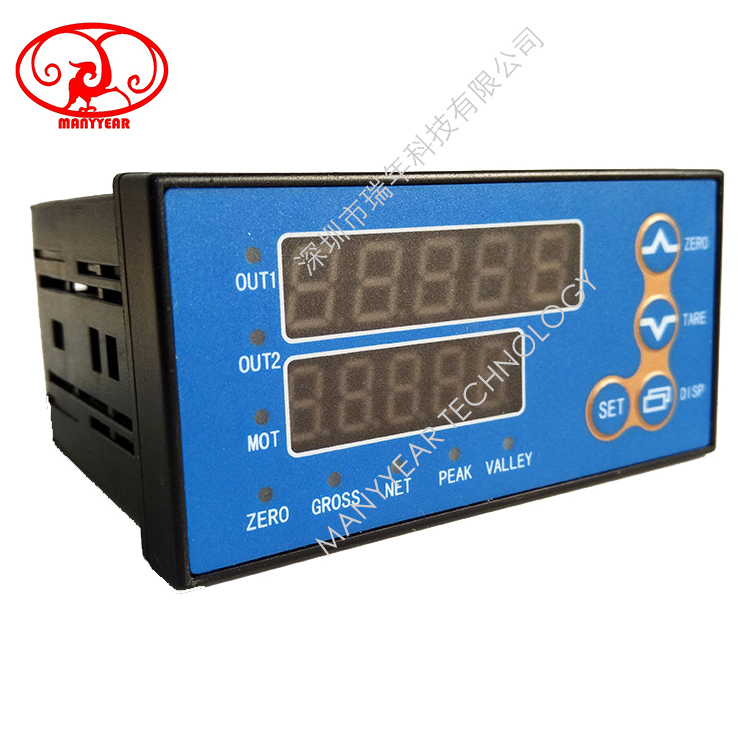

Product Picture Reference

MEP-CTB6 force indicator-MANYYEAR TECHNOLOGY

MEP-CTB6 force indicator

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
                                               MEP-CTB6-Batching scale weight controller & programmable force controller

Four wire proportional measurement: When the sensor power supply is 5V, it has the function of identifying broken wires, and the nonlinear error does not exceed ± 0.05% F · S (under the condition of measuring and controlling 15 times per second).
LED digital tube display: You can choose between single 6-bit or dual 5-bit display.
Display resolution: 1/100000.
Measurement and control speed: can choose from 15, 120, 240, 480, 960, or 1920 times per second.
Communication speed: selectable from 2400bps to 115200bps.
The transmission output rate is synchronized with the measurement.
Equipped with 10 point disconnection correction function.
It has peak and valley functions.
Communication, transmission, and intelligent modules can only choose two of them.



Basic Specifications

projectSpecification
voltageV0100 ~ 240V AC 50/60Hz
V110~24V AC 50/60Hz; 10~24V DC
Power consumptionV0Below 10W
V1AC: below 6 VA; DC: below 5W
Allowable voltage range90%~110% of power supply voltage
Insulation resistance≥100 MΩ (500V DC MEGA reference)
Dielectric strength2000V AC (test condition: 50/60Hz, 1 minute)
Anti-jammingIEC61000-4-2 (electrostatic discharge), level Ⅲ

IEC61000-4-4 (electrical fast transient burst), level Ⅲ

IEC61000-4-5 (surge), level Ⅲ

degree of protectionIP65 (product front panel protection) (GB/T42-2008)
operating environmentambient temperature-10~50°C (storage: -25~65°C)
environment humidity35 ~ 85 %R•H , no condensation
installation locationIndoor, height < 2000m
compare output2 points OC gate output, 100mA (MAX)

Input specifications

projectSpecification
sensor power supplyB1DC 10V ± 2% , 20 0mA (MAX)
B2DC 5 V ± 2% , 1 0 0mA (MAX)
input resistance> 10MΩ
conversion methodSigma-Delta
Measurement and control speed15, 120 times/second (B6 series)

240, 480 , 960, 1920 times /s (B6F series)

nonlinear± 0. 05 %F•S (measurement and control 15bps)

(The higher the measurement and control speed, the worse the nonlinearity)

gain drift< 10ppm /℃

(Matching terminal connectors must be used when connecting the sensor, otherwise the temperature drift characteristics will be deteriorated)

Highest Display Accuracy1/100000 _
input signalRatio measurement , with 4-wire strain sensor
contact input1 point external switch input, can be used for zero clearing, tare, allow comparison output, etc.

Optional specifications

projectSpecification
Analog outputA 1Current output (4~20)mA, (0~10)mA, (0~20)mAOptical isolation, resolution: 1/12000, load capacity: 600Ω
A 2Voltage output (1~5)V, (0~5)V
A3Voltage output (0~10)V
quick transferfNote: When the model is selected as B 6F, the transmission output has this letter
Communication InterfaceS 1RS232 interface, Modbus-RTU and TC ASCII protocolOptical isolation

Response time: 500 μS (measured value)

S 2RS485 interface, Modbus-RTU and TC ASCII protocol

Code description

contentcode description
CTB6F-Standard 1 point open input, 2 points OC door output, sensor power supply.
Dimensions96×48×82 hole size: 92×45
Panel SpecificationsCH1Single 6-bit LED, display range -199999~999999
Dual 5-digit LED (main display window + second display window), display range -19999~99999
input signalRatio measurement, with 4-wire strain sensor
Input (active)1 point external switch input, can be used for zero clearing, tare, allow comparison output, etc.
Call the police2 points OC gate output, 100mA (MAX)
Sensor power supplyB1DC 10V±2%, 200mA (MAX) Note①
B2DC 5V±2%, 100mA (MAX)
Transmitter (option) (photoelectric isolation, resolution: 1/3000; current output load≦600Ω, voltage output load≧100KΩ)A1FCurrent output (4-20) mA, (0-10) mA, (0-20) mA
A2FVoltage output (1-5) V, (0-5) V
A3FVoltage output (0-10)V
A4FVoltage output ±5V
A5FVoltage output ±10V
Communication (option) (photoelectric isolation)MS1RS232 interface   TCASCII or Modbus-RTU can be selected by software setting
MS2RS485 interface can choose TCASCII or Modbus-RTU through software setting
Intelligent module (option)TSSmart Module Interface
Power SpecificationsV0100~240V AC 50/60Hz
V110~24V AC 50/60Hz; 10~24V DC

Note ①: B2 is recommended for this instrument
