MEP-SH digital PID operator regulator

MEP-SH digital PID operator regulator is an PID operator with manual/automatic switching function. Generally connected between the regulating device and the actuator (valve).

When in automatic mode, the valve opening is controlled by adjusting the input signal, and when in manual mode, the valve opening is controlled by the operating amount given by the instrument panel.

One channel regulation signal input, matched with DC current or DC voltage signal.

One measurement signal or valve feedback signal input. It can be equipped with potentiometer signals (valve feedback), DC current, DC voltage, thermal resistance, thermocouples, etc.

There are two types of operation output signals for actuators (valves): current output and relay output,

Used for actuators that receive 4-20mA signals and valves that directly control opening through forward/reverse rotation.

Operate the upper and lower limit limiting functions of the output.

Power on status setting function.

Adjust the input signal disconnection processing function.

Optional manual/automatic external switch control function.

Optional external transmitter power supply.

Optional manual/automatic status output, alarm output, tracking, and transmission output functions.

Optional communication interface, in addition to reading data, control output and manual/automatic switching can be achieved through the communication interface.




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

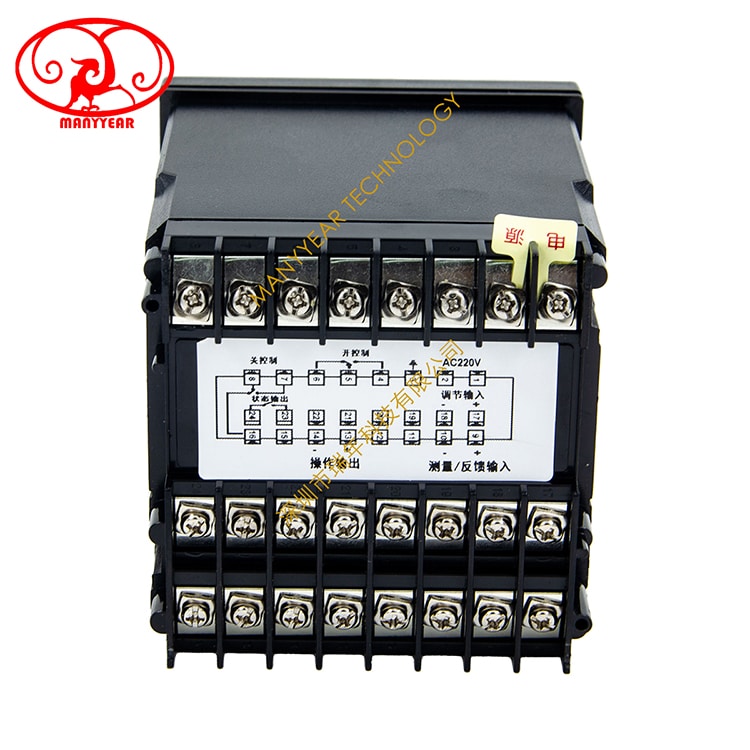

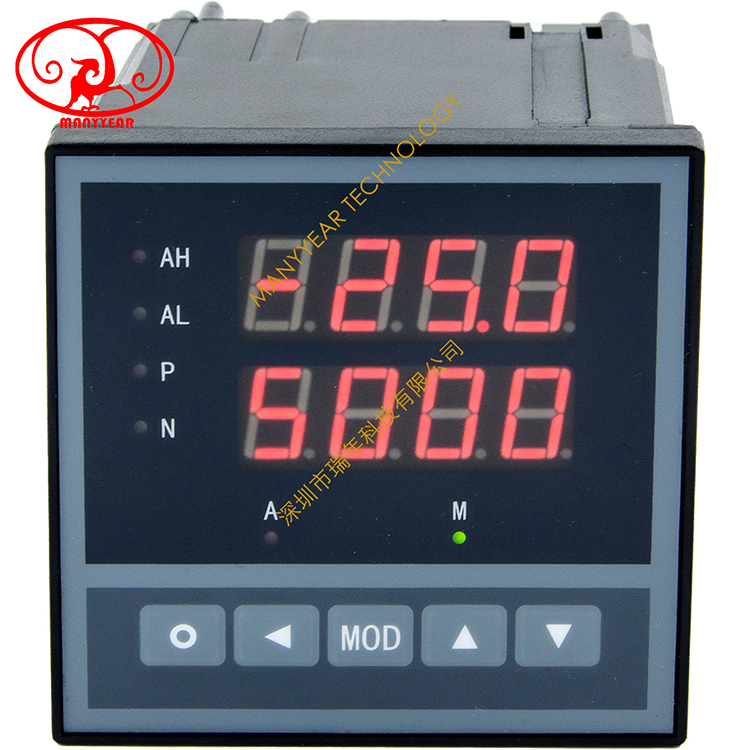

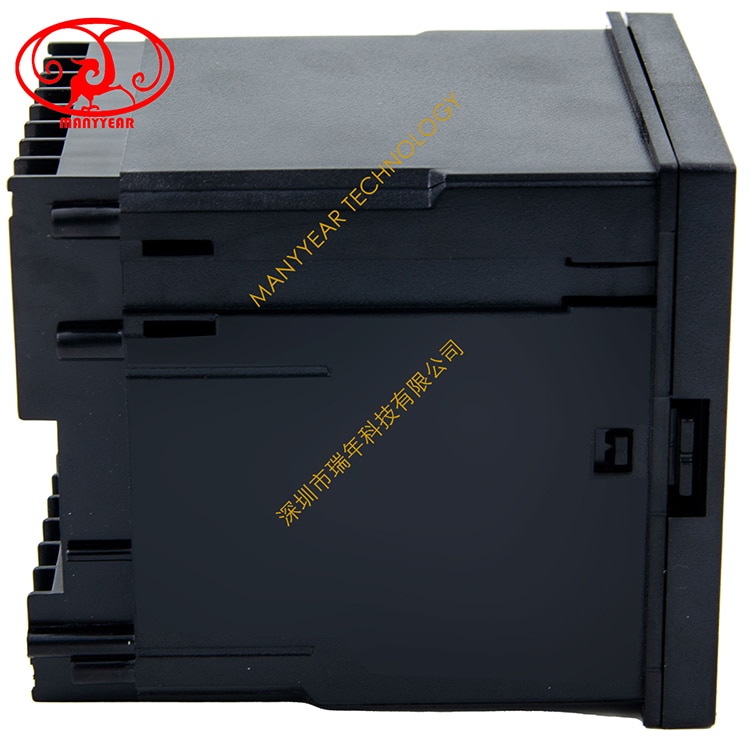

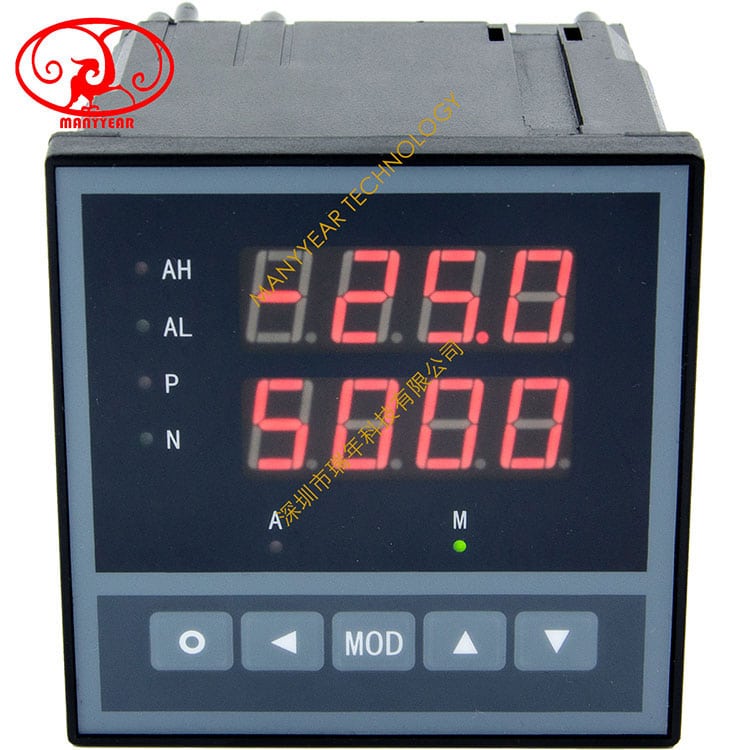

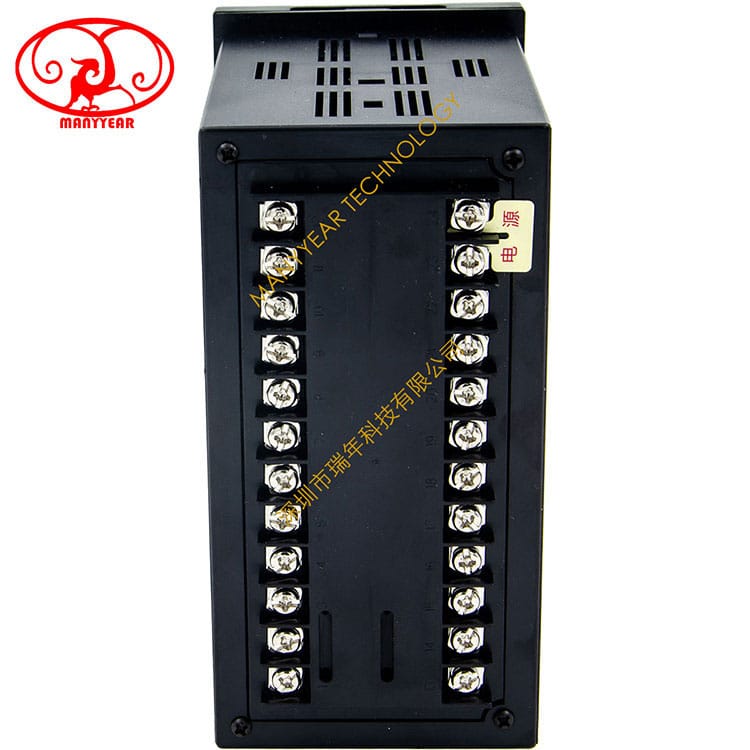

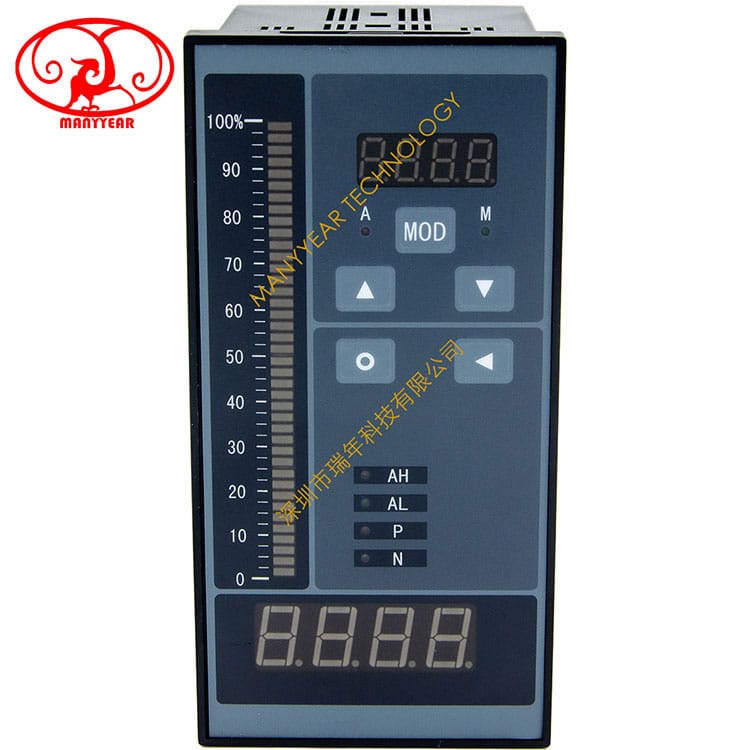

Product Picture Reference

MEP-SH digital PID operator regulator-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MEP-SH digital PID operator regulator

Product Description

MEP-SH digital PID operator regulator is an PID operator with manual/automatic switching function. Generally connected between the regulating device and the actuator (valve).

When in automatic mode, the valve opening is controlled by adjusting the input signal, and when in manual mode, the valve opening is controlled by the operating amount given by the instrument panel.

One channel regulation signal input, matched with DC current or DC voltage signal.

One measurement signal or valve feedback signal input. It can be equipped with potentiometer signals (valve feedback), DC current, DC voltage, thermal resistance, thermocouples, etc.

There are two types of operation output signals for actuators (valves): current output and relay output,

Used for actuators that receive 4-20mA signals and valves that directly control opening through forward/reverse rotation.

Operate the upper and lower limit limiting functions of the output.

Power on status setting function.

Adjust the input signal disconnection processing function.

Optional manual/automatic external switch control function.

Optional external transmitter power supply.

Optional manual/automatic status output, alarm output, tracking, and transmission output functions.

Optional communication interface, in addition to reading data, control output and manual/automatic switching can be achieved through the communication interface.



Basic Specifications

contentCode Description
MEP-SH-4-digit LED (measurement/feedback value)+4-digit LED (adjustment input value) display; 0.2 level display accuracy; Measurement and control speed 0.4 seconds
Overall dimensionsAS80 × 160× 125, Hole size: 76 ×152
B96× 96× 112, Hole size: 92 ×92
Measurement/feedback input signalEThermocouples K, S, E, T
RThermal resistance Pt100
IDC current (4-20) mA, (0-10) mA, (0-20) mA
VDC voltage (0-5) V, (1-5) V, (0-10) V
Wpotentiometer
Adjusting the input signalIDC current (4-20) mA, (0-10) mA, (0-20) mA
VDC voltage (0-5) V, (1-5) V
Operation output signal (current output resolution 1/3000; current output load ≤ 600 Ω, voltage output load ≥ 100K Ω)ICurrent output (4-20) mA, (0-10) mA, (0-20) mA
R2-point relay output, forward/reverse control
QBoth current output and relay output have
Alarm (option) (250V AC/3A, resistive load)T1~22-point relay alarm output (limited to operating output signal for Type I instrument)
External power supply (option)B124V ± 5% below 50mA
B1G24V ± 5% below 100mA
B2Below 12V ± 5% 50mA
B2GBelow 12V ± 5% 100mA
B3Precision power supply, generally 10V ± 2%, 30ppm, below 100mA
Communication (option) (communication rates: 2400, 4800, 9600, 19200)S1TC ASCII protocol RS232
(Mailing address: 0-99)S2TC ASCII protocol RS485
Switching input control (option)D1 point external switch input control manual/automatic status
Manual/automatic status output (option)K1 point relay output, 250V AC/3A, resistive load
Tracking/transmission output (option)G1Current output (4-20) mA, (0-10) mA, (0-20) mA
(Resolution: 1/3000; current output load ≤ 600 Ω, voltage output load ≥ 100K Ω)G2Voltage output (1-5) V, (0-5) V, (0-10) V
Power specificationsV0100-240V              AC 50/60 Hz
Product Dimension

Product Application

MEP-SH digital PID operator regulator-MANYYEAR TECHNOLOGY

app-injection-molding-machine

MEP-SH digital PID operator regulator-MANYYEAR TECHNOLOGY

app-high-and-low-temperature-test-chamber

MEP-SH digital PID operator regulator-MANYYEAR TECHNOLOGY

APP-High temperature heat pump dryer
