MEP-SC8 intelligent PID regulator operator

Digital Instrument 905 0

MEP-SC8 intelligent PID regulator operator

The PID regulator has a precision of 0.2 level, a measurement and control speed of 10 times per second, and a display range of -1999 to 9999.

Adopting advanced PID intelligent control algorithm, with anti overshoot function and self tuning (AT) function.

Simulate universal input and select through settings. Please note ②

Optional with 1 to 3 point alarm output. There are 10 basic alarm methods: upper limit (lower limit) of measured value, upper limit (lower limit) of deviation, upper limit (lower limit) of absolute deviation, upper limit (lower limit) of standby and upper limit (lower limit) of standby deviation.

Optional communication or transmission function.




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

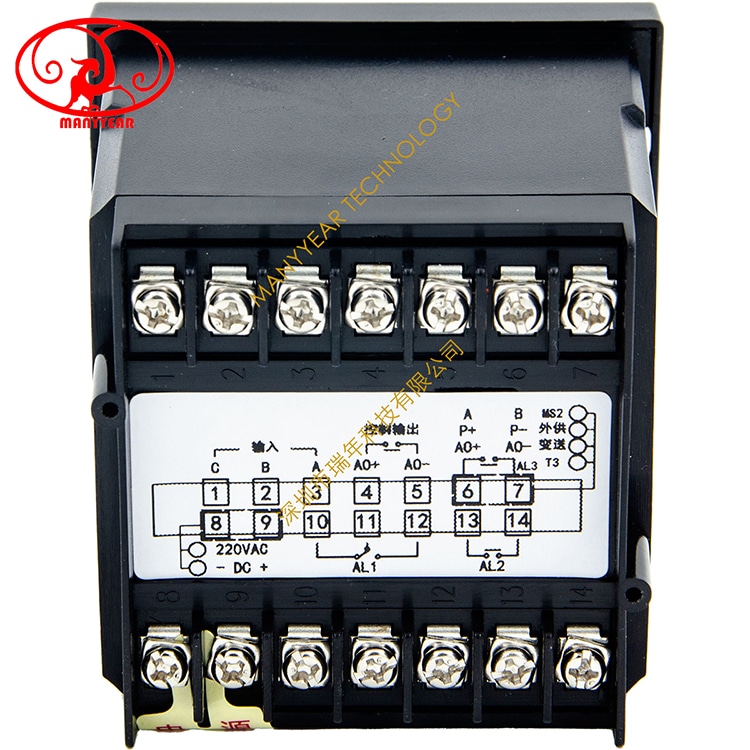

Product Picture Reference

MEP-SC8 intelligent PID regulator operator-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
   MEP-SC8 intelligent PID regulator operator

Product Description

The PID regulator has a precision of 0.2 level, a measurement and control speed of 10 times per second, and a display range of -1999 to 9999.

Adopting advanced PID intelligent control algorithm, with anti overshoot function and self tuning (AT) function.

Simulate universal input and select through settings. Please note ②

Optional with 1 to 3 point alarm output. There are 10 basic alarm methods: upper limit (lower limit) of measured value, upper limit (lower limit) of deviation, upper limit (lower limit) of absolute deviation, upper limit (lower limit) of standby and upper limit (lower limit) of standby deviation.

Optional communication or transmission function.



Basic Specifications

contentCode Description
MEP-SC8-Dual 4-bit LED display, universal analog input, 0.2 level display accuracy, 10 measurement and control speeds per second;
appearanceAH160 ×80 × 125mm, horizontal opening size: 152 ×76mm
sizeAS80× 160 × 125mm, vertical opening size: 152 ×76mm
B96×96 × 76mm, hole size: 92 × 92mm
CH96× 48× 82mm, horizontal opening size: 92 × 45mm
CS48× 96× 82mm, vertical opening size: 92 × 45mm
D72×72× 75mm, hole size: 68 ×68mm
E48× 48 × 108mm, hole size: 45.5 × 45.5mm
Alarm (option)Limit AT1~T31-3 alarm relay outputs, both normally open and normally closed double contacts
(250V AC/3A, resistive load)Limit BT1~T21-2 alarm relay outputs, both normally open and normally closed double contacts
T33 point alarm relay outputs, all single normally open contacts
Limit CT1-T31-3 point alarm relay outputs are all single normally open contacts. When selecting external supply, T3 cannot be selected
Limit DT1~T21-2 alarm relay outputs, 1 point normally open+normally closed dual contact; 1 point single normally open contact
T33 point alarm relay output, 1 point is a normally open+normally closed double contact, and the other 2 points are a single normally open contact.
When selecting this model, external power supply, transmission, or communication cannot be selected;
Limit ET1~T21-2 alarm relay outputs, 1 point is a normally open+normally closed contact, and the other point is a normally open contact.
Control outputCA1Current output (4-20) mA, (0-20) mA
CA2Voltage output (0-5) V, (1-5) V
CA3Voltage output (0-10) V
CRRelay output (single normally open) (250V AC/3A)
CQControl solid-state relay output (SSR) (12V DC/21mA)
External power supply (option)B124V ± 5% below 50mA
For details, please refer to Note B2Below 12V ± 5% 50mA
Transmission (option) (resolution: 1/3000; current output load ≤ 600 Ω, voltage output load ≥ 100K Ω);A1The current output is (4-20) mA, (0-10) mA, and (0-20) mA.
Communication (option) (optional through parameters: Modbus RTU or TC-ASCII protocol) (communication address: 0-99)
For details, please refer to Note ②A2Voltage output (1-5) V, (0-5) V
A3Voltage output (0-10) V
MS1RS232 interface (limited to A, B, and C sizes)
MS2RS485 interface
Power specificationsV0100~240V AC 50/60 Hz
V110~24V AC 50/60 Hz; 10~24V DC

The size of E is limited by the number of terminals, and when the second alarm is selected, external power supply cannot be selected.

It is not possible to install both transmission and communication functions simultaneously:

The size of D is limited by the number of terminals, and when external supply or the third alarm is selected, transmission or communication cannot be selected.

Note ③: MEP-SC8 input signal and range comparison table:

Input signal Range range Input signal Range range Input signal Range range Input signal Range range
Pt100 -200~850 ℃G53 -50~150 ℃N -270~1300 ℃Tungsten 5-Tungsten Rhenium 260-2310 ℃
Cu100 -50~150 ℃K -270~1372 ℃E -270~1000 ℃DC current 0-10mA, 0-20mA
Cu50-50~150 ℃S -50~1768 ℃J -210~1200 ℃4-20mA
BA1 -200~650 ℃R -50~1768 ℃T-270~400 ℃Millivolt 0-5V, 1-5V
BA2 -200~650 ℃B 250~1820 ℃Tungsten Rhenium 3-Tungsten Rhenium 250-2310 ℃Millivolt-100-100mV





Product Dimension

Product Application

MEP-SC8 intelligent PID regulator operator-MANYYEAR TECHNOLOGY

app-injection-molding-machine

MEP-SC8 intelligent PID regulator operator-MANYYEAR TECHNOLOGY

app-high-and-low-temperature-test-chamber

MEP-SC8 intelligent PID regulator operator-MANYYEAR TECHNOLOGY

APP-High temperature heat pump dryer
