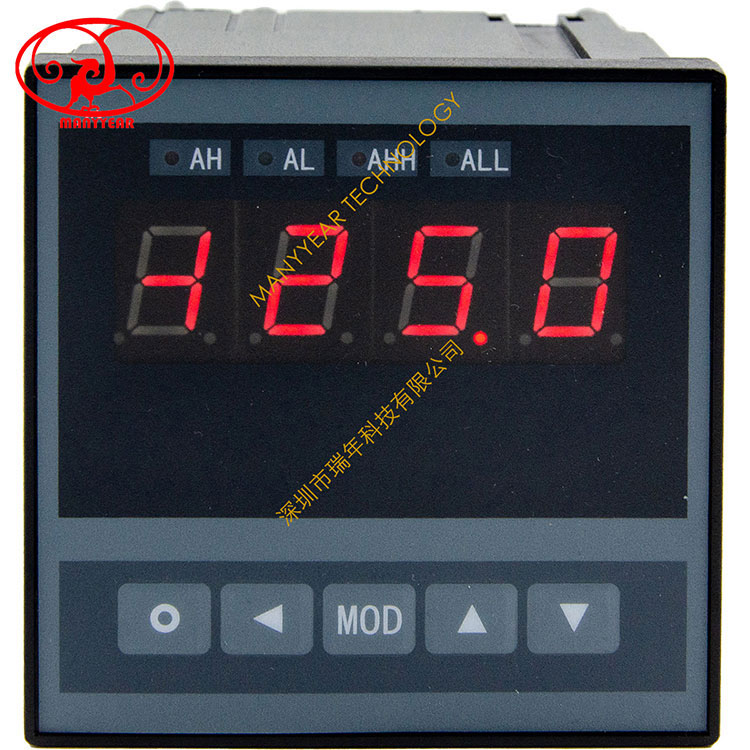

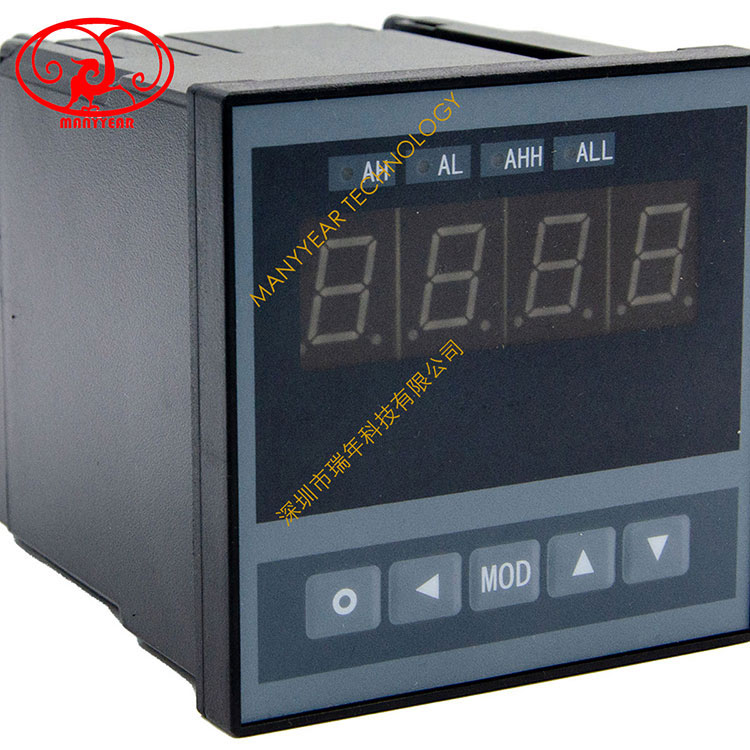

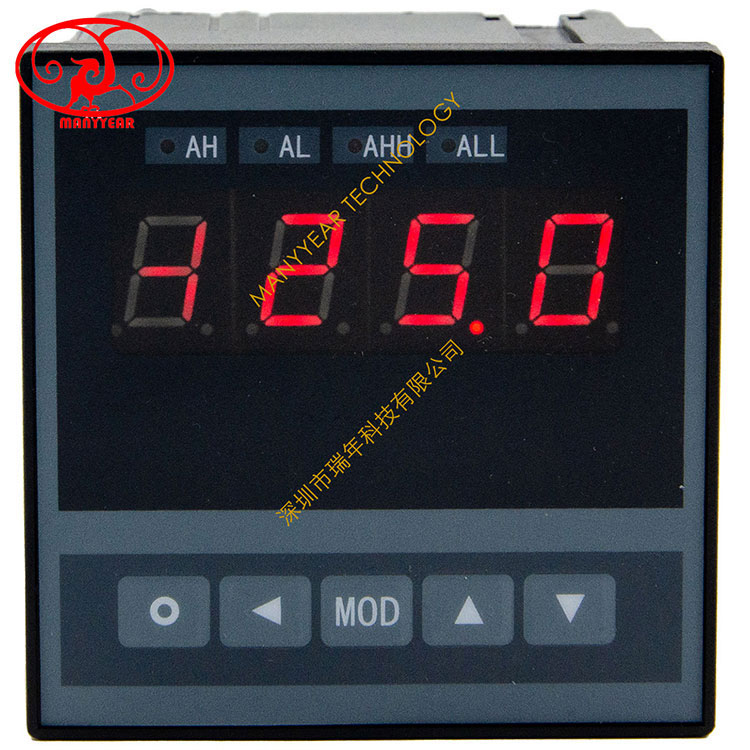

MEP-JS Programmable intelligent cycle timer, digital display timer
The programmable intelligent cycle timer is equipped with a 4-bit or 8-bit LED display screen. The smallest timing unit is 0.01 seconds, and the longest timing time is 9999 hours, 59 minutes, and 59 seconds.

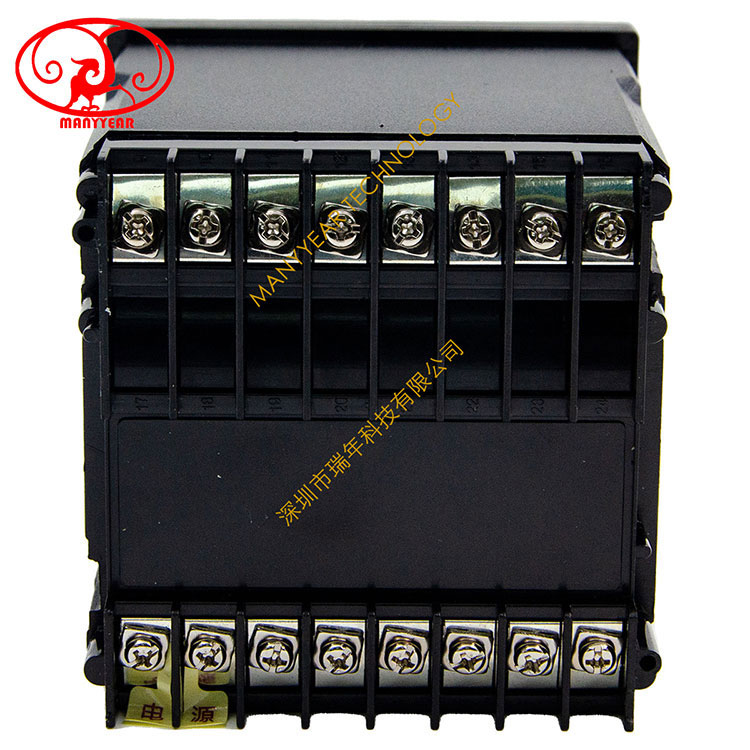

The standard three point switch input is used to start timing, stop timing, and reset the timing value controlled by external switches.
The panel controls the functions of starting timing, stopping timing, and resetting timing values, and these functions can be turned on or off through parameter settings to prevent misuse.
Equipped with power down retention function, when the instrument is powered off, the timing will stop, but the timing value will not be lost.
This includes automatic power start timing, button or external start, external switch control, and other timing methods.
Configurable timing value modes for automatic reset and manual reset.
Optional with 2 preset time outputs.
