This device can be connected to various photoelectric switches, proximity switches, grating rulers, incremental rotary encoders, and other pulse output sensors to achieve counting functions. It can also measure displacement, length, and angle.

This device supports single-phase pulse or two-phase orthogonal pulse input, with a maximum counting frequency of 10kHz. Its counting range is wide, from 0.0001 to 45.000.

This device has 2 preset outputs and 2 output modes. It can set delayed recovery and automatic reset functions. In addition, it can also achieve range alarm and automatic quantitative (fixed length) control.

The device also supports a 3-point switch input, which can achieve external control functions such as zero clearing, counting up/down, and display locking.

In terms of display, the device can choose between 7-bit display and 5-bit display:

-7-digit display: display range is -99999999~9999999

-5-digit display: display range from -1999 to 45000

The 5-bit display can also be equipped with transmission output function.

In addition, the device also has communication and printing functions.




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

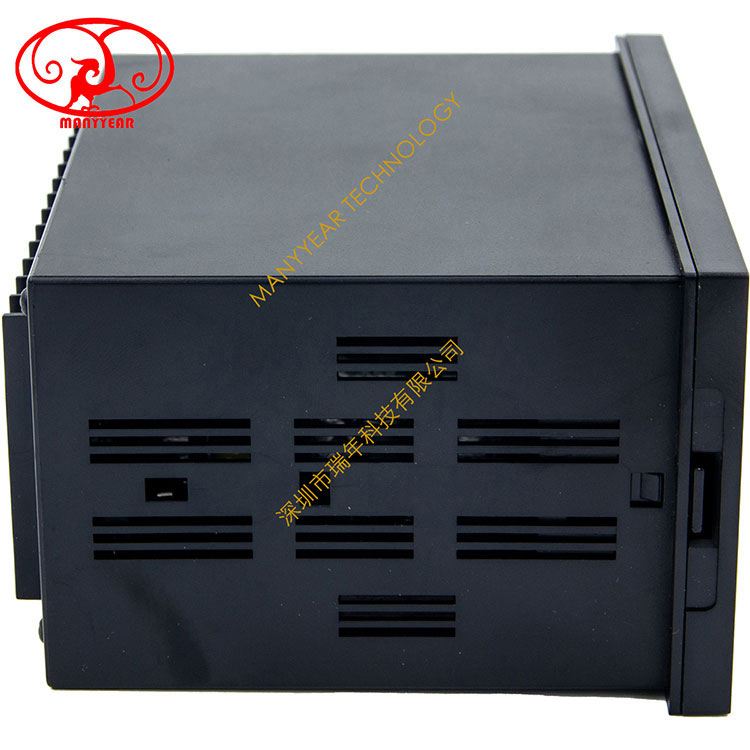

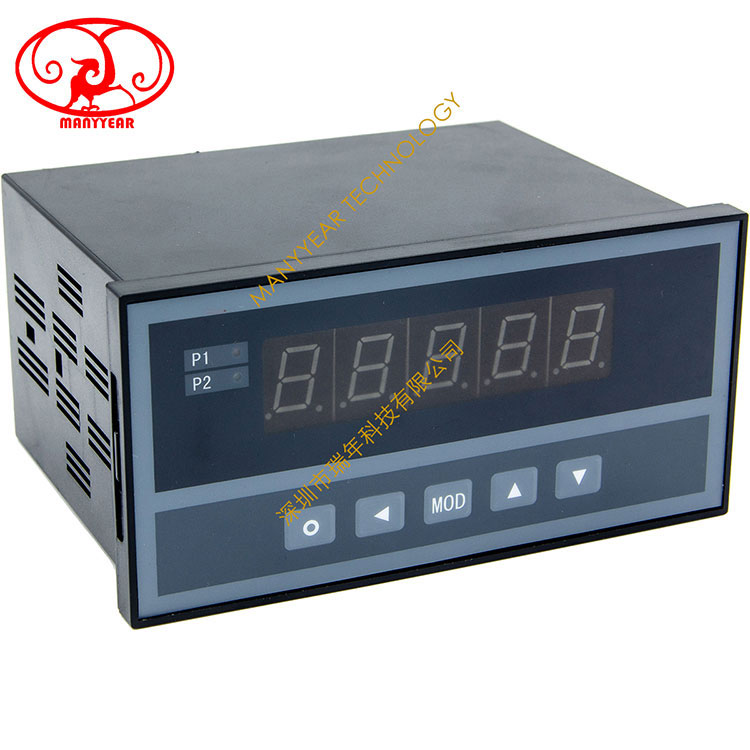

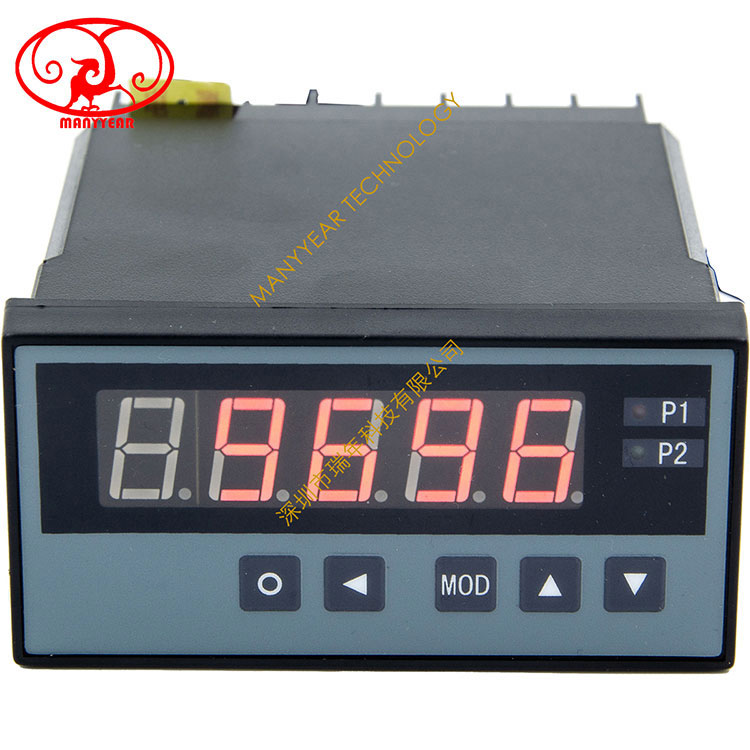

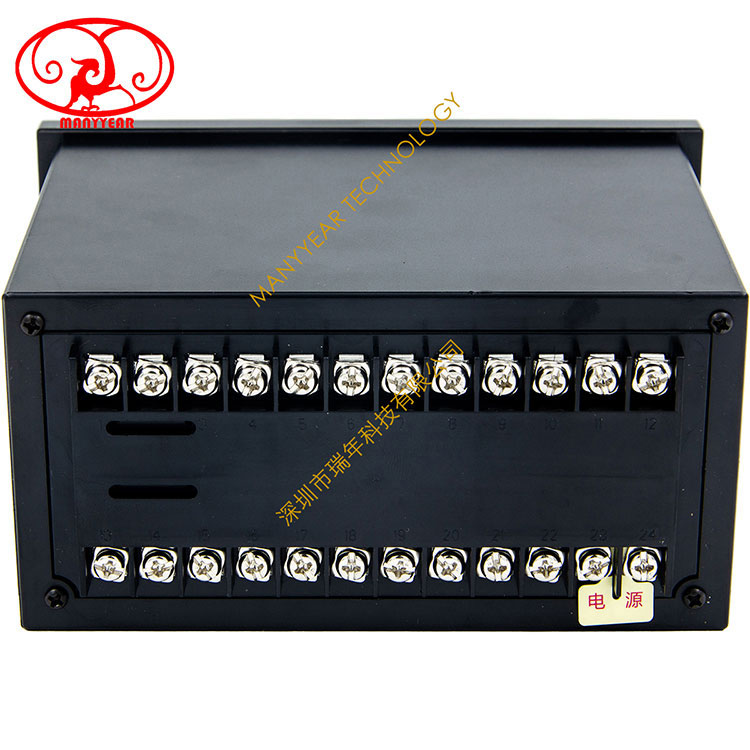

Product Picture Reference

MEP-SN digital instrument intelligent counter-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
            MEP-SN digital instrument intelligent counter

Product Descriptionr

This device can be connected to various photoelectric switches, proximity switches, grating rulers, incremental rotary encoders, and other pulse output sensors to achieve counting functions. It can also measure displacement, length, and angle.

This device supports single-phase pulse or two-phase orthogonal pulse input, with a maximum counting frequency of 10kHz. Its counting range is wide, from 0.0001 to 45.000.

This device has 2 preset outputs and 2 output modes. It can set delayed recovery and automatic reset functions. In addition, it can also achieve range alarm and automatic quantitative (fixed length) control.

The device also supports a 3-point switch input, which can achieve external control functions such as zero clearing, counting up/down, and display locking.

In terms of display, the device can choose between 7-bit display and 5-bit display:

-7-digit display: display range is -99999999~9999999

-5-digit display: display range from -1999 to 45000

The 5-bit display can also be equipped with transmission output function.

In addition, the device also has communication and printing functions.

Basic Specifications

contentcode description
 MEP-SN-5-digit or 7-digit counting value display; the highest counting frequency is 10kHz
DimensionsAH160×80×125, hole size: 152×76
 CH96×48×112, hole size: 92×45
Panel SpecificationsS5 LEDs
 L7 LEDs (AH, CH only)
input signal1Single-phase pulse input (above 20mV)
2Two-phase quadrature pulse input, which can identify forward and reverse motion (when selecting this item, you must choose external supply)
D.Single-phase pulse input below 10Hz, suitable for low-speed counting, anti-jitter input signal
Alarm (option)T1~22 relay preset outputs; (250V AC/3A, resistive load)
Digital input (option)K1External control back to zero
K2External control zero return, plus/minus
K3External control zero return, plus/minus, lock (AH only)
Transmitter (option)A1Current output (4~20) mA, (0~10) mA, (0~20) mA.
(Resolution: 1/3000; current output load≦600Ω, voltage output load≧100KΩ ) (only for S-type instruments)A2Voltage output (1~5) V, (0~5) V
A3Voltage output (0 ~ 10) V
A4Voltage output (-5V~+5V)
A5Voltage output (-10V~+10V)

External power supply (option)B124V±5% below 50mA
B212V±5% below 50mA
B35V±5% below 50mA
Communication (option)S1TC ASCII protocol RS232
(Communication rate: 2400, 4800, 9600, 19200) (Communication address: 0~99)S2TC ASCII protocol RS485
M1Modbus-RTU protocol RS232
M2Modbus-RTU protocol RS485
Print interface (option)P
count ratio methodC1Single Count Ratio Method
Power SpecificationsV0100-240V AC 50/60Hz
V110-24VAC 50/60Hz; 10-24VDC (CH only)
