| Model: MPY900 Catalog: pressure controller Input signal: MV,DC,DA,R, J, K... Output signal: 0-10vdc, 0-5vdc, 4-20mA Application:PID control instrument,pressure controller, PID temperature controller, pressure indicator, force indicator MPY900 apply to PID control instrument,pressure controller, PID temperature controller, pressure indicator, force indicator. support to MV,DC,DA,R, J, K signal input and 0-10vdc, 0-5vdc, 4-20mA, RS232/485 signal output. |

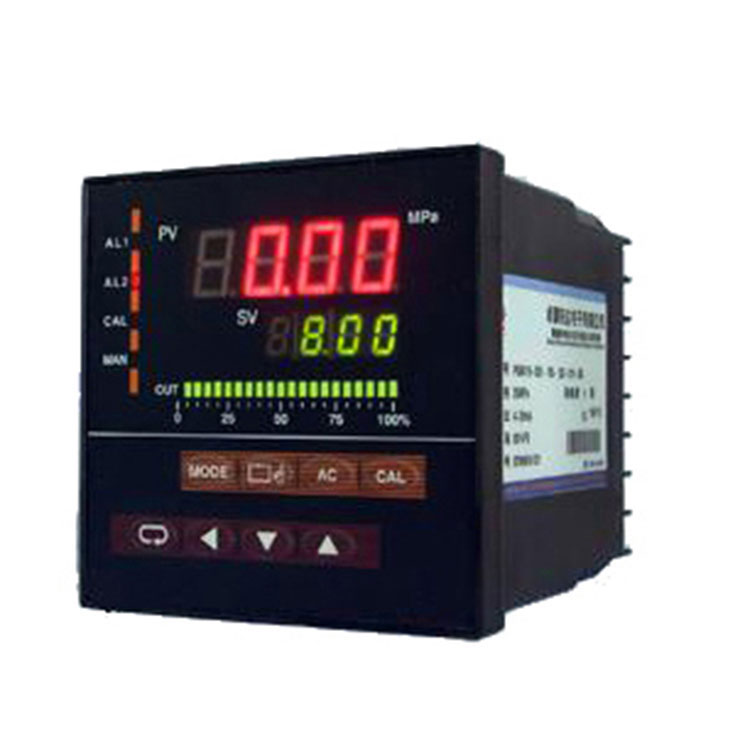

| REF PIC |
| (1) Display Unit : double row structure with four LED digital bit, higher row for PV( measuring value) and lower row for SV( set value) . |
| (2) Inner Divided Ratio : 32000 |
| (3) Outer Divided Ratio : 0.01MPa, 0.02MPa and 0.05MPa; |
| (4) No linearity : 0.05%+/-1 bit |
| (5) Alarm Setting : 0 ~ 99.99MPa with two ways |
| (6) Set Value of Relay : 250V AC, 5A |
| (7) Working Atmosphere : -10 ~ +50’C, <=99%RH |
| (8) Power Supply : 120V ~ 250V AC |
| (9) Outer Dimension : 90-90-110 mm |
| MODEL FUNCTION OPTION |
| Contents | Explanation |
| MPY500 | Pressure controller |
| MPY600 | Pressure and temperature controller |
| MPY900 | Pressure controller with PID |
| Size | A- | NA |
| B- | 96×96×112（W×H×L） |
| C- | oblong96×48×112（W×H×L） |
| D- | 72(W)×72(H)×112(L) |
| E- | 48(W)×48(H)×112(L) |
| Panel（ Annotation 1） | H | oblong Display Digital Display（green） |
| S | Upright, Display Digital Display（green） |
| G | upright double digital + double light beams (only for 2-channel meter, 1 channel green, 2 channels red) |
| Channels | 1 | 1-channel meter |
| 2 | 2-channel meter |
| 3 | NA |
| 4 | NA |
| Input Signals | E | Thermocouple, Radiation Thermometer |
| R | Thermoresistance, resistance |
| I | DC |
| V | DV |
| M | mV DC mV |
| W | potentiometer |
| L | Long-Distance Pressure Gauge |
| Number of Alarm points | T | T0: no alarm T1~T8: 1-8 points alarm |
| Transforming Output | A0 | no Output |
| A1 | Current Output（4~20）mA |
| A2 | Voltage Output（0~5）V、（1~5）V |
| A3 | Voltage Output（0~10）V |
| A4 | other Output |
| A5 | double outputs |
| External Power Supply | B0 | no external power supply |
| B1 | External Power Supply of 24V DC |
| B2 | External Power Supply of 12V DC |
| B3 | external power of precise voltage |
| B4 | external power of precise constant current |
| B5 | others |
| Communication Interface | S0 | Communication Interface |
| S1 | RS-232 Interface |
| S2 | RS-485 Interface |
| S3 | RS-422 Interface |
| S4 | BCD Interface（only for A and B） |
| Work voltage | V0 | 220V AC |
| V1 | 24V DC |
| V2 | 12V DC |
| V3 | others |
| Printing | P | Printing supported, non essential |
| Memory Unit | R | N |
| Nonstandard Function | NA | |
