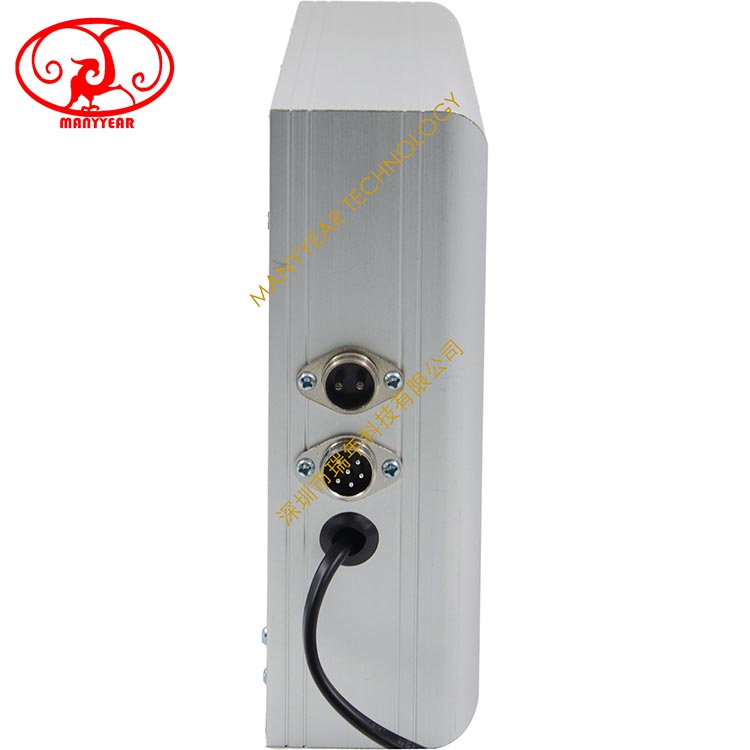

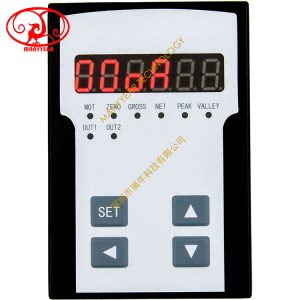

Product Description ADS-DM102 F-ZT is a handheld digital weight transmitter configurator. It has a 6-digit configuration panel for displaying values, viewing and modifying module parameters without a display screen. The configurator is equipped with a digital tube display with a display range of 199999 to 999999. This means that it can display large numbers and provide sufficient accuracy and readability. In addition, the ADS-DM102 F-ZT can also be connected to two modules, ADS-DM102C and ADS-DM113C. These modules may be digital weight transmitters or other related devices, and by connecting to the configurator, the parameters of these modules can be viewed and modified. In summary, ADS-DM102 F-ZT is a powerful digital weight transmitter configurator that features a 6-digit digital display panel, digital tube display, and the ability to connect to specific modules, providing users with convenient operation and flexible configuration options. Basic Specifications | name | illustrate | | display window | In the measurement state, different measurement values are displayed In the setting state, the parameter symbol and parameter value are displayed Æ When the module is powered on, it is in the measurement state. At this time, the total value is displayed, and the display content can be switched by pressing the button. | | state indicator light | MOT | When it is on, it means that the force value is changing | | ZERO | When it is on, it means that the measured value is zero | | GROSS | The corresponding relationship between the current display content and the status indicator is as follows:
displaying the total value: the GROSS light
is on to display the net value : the NET light
is on to display the peak value: the PEAK light
is on to display the valley value: the VALLEY light
is on to display the peak-valley value: the PEAK and VALLEY lights are onDisplay peak process volume: GROSS and PEAK lights on
Display valley process volume: GROSS and VALLEY lights on | | NET | | PEAK | | VALLEY | | SET key | In the measurement state, press and hold for more than 2 seconds to enter the setting state In the setting state, when the parameter symbol is displayed: press and hold for more than 2 seconds without releasing to enter the next set of parameters In the setting state, when the parameter symbol is displayed: switch to the next parameter When modifying the parameter value: save the modified parameter value | | left button | In the measurement state, short press to cycle through the display content (see the description of the status indicator above for details) Press and hold for more than 2 seconds to clear peak and valley values and process values In the setting state, when the parameter symbol is displayed: call out the original parameter value, and the flashing bit is the modified bit When modifying the parameter value: move the modification bit | | up key | In the measurement state, clear zero, clear peak and valley values and process volume In the setting state, when the parameter symbol is displayed: switch to the previous parameter When modifying the parameter value: increase the value of the parameter | | down key | In the measurement state, the tare In the setting state, when the parameter symbol is displayed: switch to the next parameter When modifying the parameter value: reduce the value of the parameter |
Parameter setting method Press and hold the SET key for more than 2 seconds to enter the setting state, and the configurator displays the password 99 oA. Press the left button to enter the parameter modification state, and modify it to the required password value through the cooperation of the left button, up button and down button. Press the SET key to save and enter the corresponding parameter group, at this time the configurator displays the first parameter symbol of the corresponding parameter group. Find the parameter to be modified by pressing the up and down keys and long press the SET key, and press the left key to enter the parameter modification state. Press the left key, up key and down key to modify the parameter to the desired value, and then press the SET key to save the current parameter. If you need to exit the current modified parameters without saving, you can press and hold the SET key until the configurator displays ESc , then release it, then press the left key to exit without saving, the display returns to the parameter selection state, and the next parameter symbol is displayed. Finally, in the state of displaying the parameter symbol, press and hold the SET key to exit the setting state. Æ The password is divided into parameter password and backup password. The parameter password can be modified by parameter Lo A c . The factory default is 01 111 , and the backup password is fixed at 02 027 . Æ After entering the setting state, if there is no key operation for more than 1 minute, the configurator will automatically exit the setting state. Code description | content | code description | | ADS-DM102F - ZT | Standard connecting cable |
|
