MEP-SM speed measuring and controlling instrument MEP-SM speed measuring and controlling instrument
MEP-SM speed measuring and controlling instrument
MEP-SM speed measuring and controlling instrument-MANYYEAR TECHNOLOGY
MEP-SM speed measuring and controlling instrument-MANYYEAR TECHNOLOGY
MEP-SM speed measuring and controlling instrument-MANYYEAR TECHNOLOGY
MEP-SM speed measuring and controlling instrument-MANYYEAR TECHNOLOGY

MEP-SM speed measuring and controlling instrument

MEP-SM speed measuring and controlling instrument

Product Description

It can be connected with various photoelectric switches, proximity switches, magnetoelectric sensors, and rotary encoders.

Based on the frequency of the measured input signal, it is used for the measurement of rotational speed, line speed, frequency, etc. in conjunction with the parameters that can be set by the instrument.

Measurement frequency range 0.3Hz ~ 25kHz . When it is less than 0.3Hz, it is processed as 0 .

Frequency measurement basic error

0.300 ~ 45.000Hz range, less than 0.01Hz

45.00 ~ 450.00Hz range, less than 0.02Hz

450.0 ~ 4500.0Hz range, less than 0.2Hz

In the range of 4500 ~ 25000Hz , less than 2Hz

Measurement control period: 0.5 seconds (when the signal frequency is >3Hz ).

Display range: -19999 ~ 45000 , the position of the decimal point can be set.

Optional 1-4 point alarm output. It includes five basic alarm modes of upper limit of measured value, lower limit of measured value, upper limit of deviation, lower limit of deviation and absolute value of deviation, and five standby alarm modes corresponding to the five basic alarm modes.

(Standby alarm mode: when the instrument is powered on, it will not alarm even if it is in the alarm zone. When the measured value enters the non-alarm zone, the standby condition will be established, and then it will alarm normally).

2 optional external power sources.

Optional communication, transmission and printing functions.


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

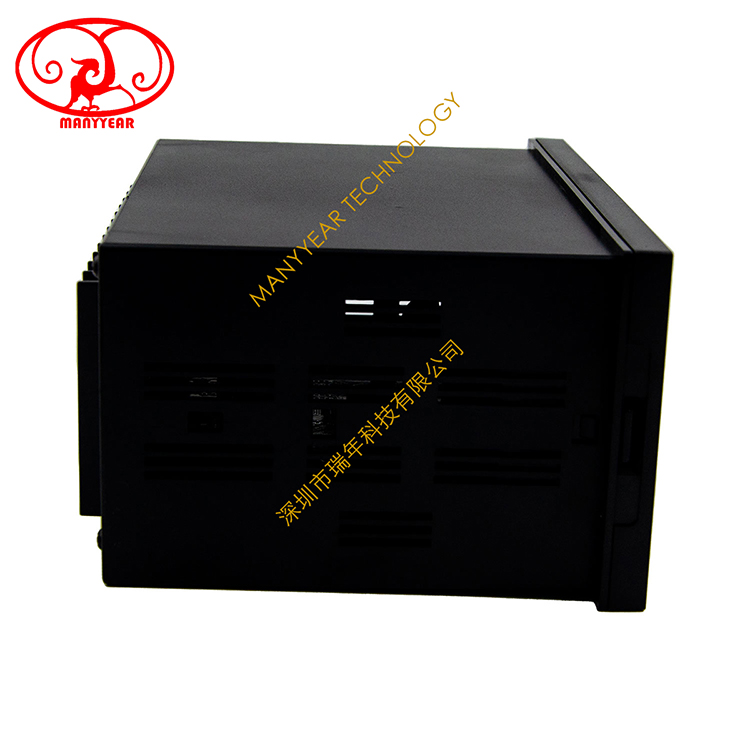

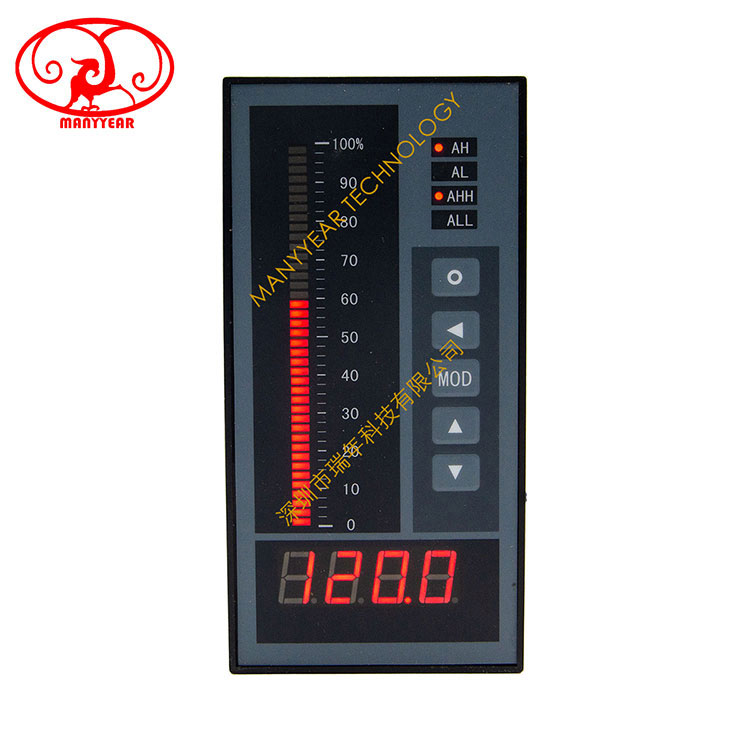

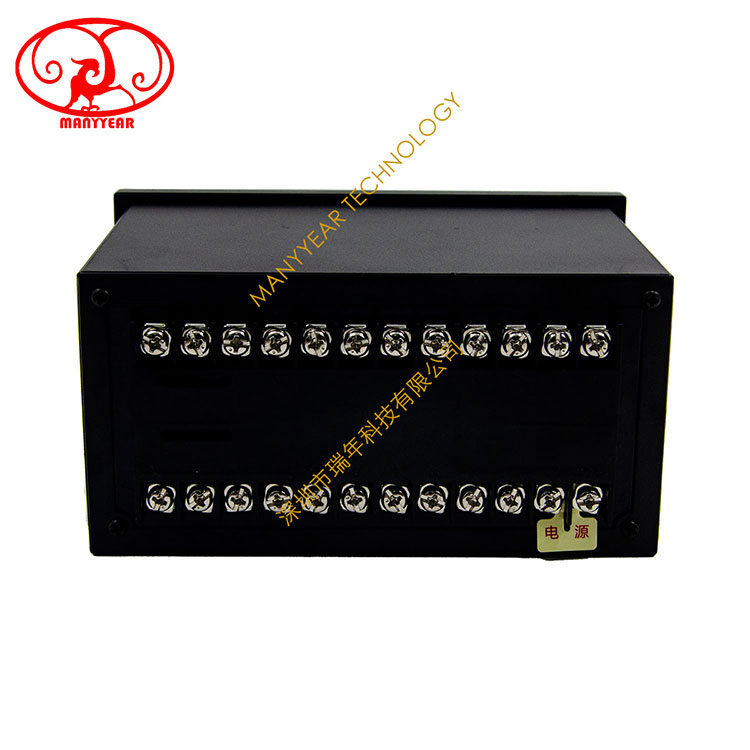

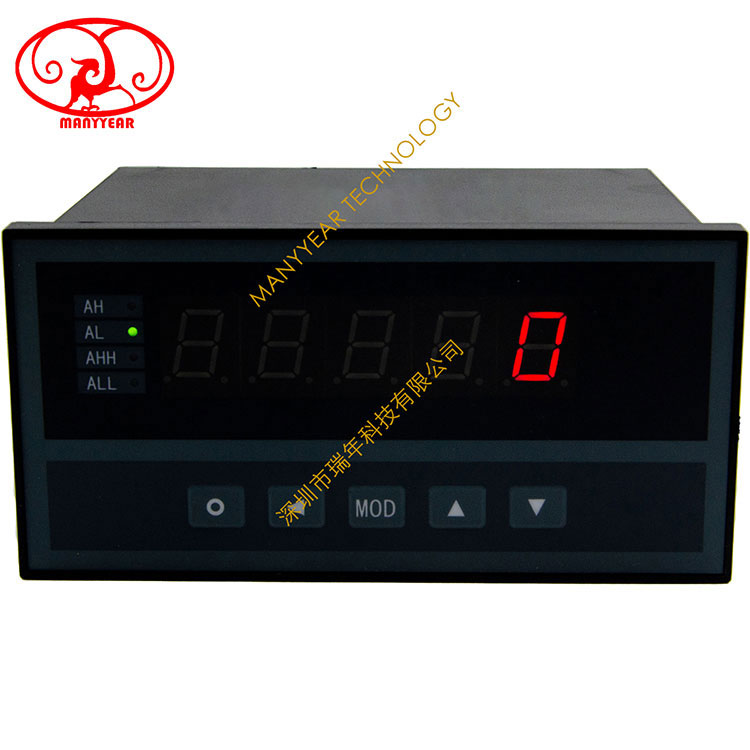

Product Picture Reference

MEP-SM speed measuring and controlling instrument-MANYYEAR TECHNOLOGY

digital instrument

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
                                       MEP-SM speed measuring and controlling instrument (can be used to measure the instantaneous flow of pulse input)

Product Description

It can be connected with various photoelectric switches, proximity switches, magnetoelectric sensors, and rotary encoders.

Based on the frequency of the measured input signal, it is used for the measurement of rotational speed, line speed, frequency, etc. in conjunction with the parameters that can be set by the instrument.

Measurement frequency range 0.3Hz ~ 25kHz . When it is less than 0.3Hz, it is processed as 0 .

Frequency measurement basic error

0.300 ~ 45.000Hz range, less than 0.01Hz

45.00 ~ 450.00Hz range, less than 0.02Hz

450.0 ~ 4500.0Hz range, less than 0.2Hz

In the range of 4500 ~ 25000Hz , less than 2Hz

Measurement control period: 0.5 seconds (when the signal frequency is >3Hz ).

Display range: -19999 ~ 45000 , the position of the decimal point can be set.

Optional 1-4 point alarm output. It includes five basic alarm modes of upper limit of measured value, lower limit of measured value, upper limit of deviation, lower limit of deviation and absolute value of deviation, and five standby alarm modes corresponding to the five basic alarm modes.

(Standby alarm mode: when the instrument is powered on, it will not alarm even if it is in the alarm zone. When the measured value enters the non-alarm zone, the standby condition will be established, and then it will alarm normally).

2 optional external power sources.

Optional communication, transmission and printing functions.

Basic Specifications



contentcode description
 MEP-SM-5-digit LED display; measurement frequency range 0.3-25kHz; 0.02-level measurement accuracy; measurement and control speed 0.5 seconds (when the signal frequency is > 3Hz)
DimensionsAH160×80×125, hole size: 152×76
CH96×48×112, hole size: 92×45
input signalGThe standard type is suitable for NPN, PNP type voltage pulse, (4-20) mA 2-wire pulse, TTL pulse, etc.
mmV type is suitable for magnetic proximity switches
Alarm (option)T1~44-point relay output (maximum 2-point relay output for CH size instrument) (250V AC/3A, resistive load)
A1Current output (4-20) mA, (0-10) mA, (0-20) mA
A2Voltage output (1-5) V, (0-5) V
A3Voltage output (0-10) V
External power supply (option)B124V±5% below 50mA
B212V±5% below 50mA
Communication (option)S1TC ASCII protocol RS232
(communication rate: 2400, 4800, 9600, 19200) (communication address: 0-99)S2TC ASCII protocol RS485
M1Modbus-RTU protocol RS232
M2Modbus-RTU protocol RS485
Print interface (option)P
Power SpecificationsV0100-240V AC 50/60Hz
V110-24V AC 50/60 Hz; 10-24V DC (CH only)





Product Dimension

Product Application

MEP-SM speed measuring and controlling instrument-MANYYEAR TECHNOLOGY

MEP-SM speed measuring and controlling instrument-MANYYEAR TECHNOLOGY

apw-force-test-7

MEP-SM speed measuring and controlling instrument-MANYYEAR TECHNOLOGY

apw-force-test-6
