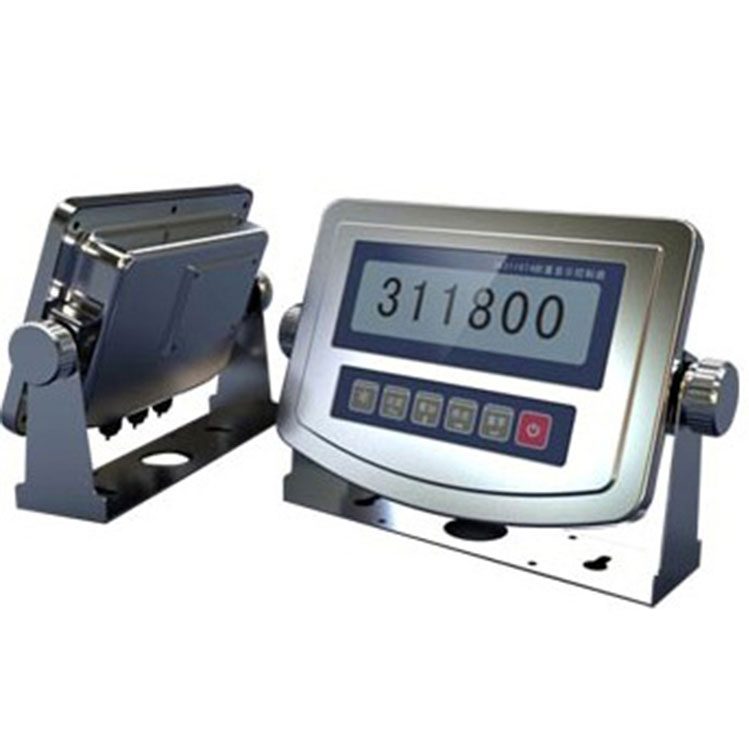

MEP-T4 Platform scale weight indicator

2021/12/03 Digital Instrument Weight Controller 1876 0

weight indicator, weight controller, livestock scale weight indicator, platform scale weighing indicator

Model: MEP-T4
Category: weight controll
Power Supply: 0-36VDC, 2 pcs AA batteries;used for about 80 hours.
Display Type:LCD
Signal Input Range:-16mV~+18mV
Supply bridge Voltage of load cell: DC 3.3V
Apply: weight indicator, weight controller, livestock scale weight indicator, platform scale weighing indicator

we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Online Sales

Product Introduction Technical Documents

Product Picture Reference

MEP-T4 Platform scale weight indicator

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MEP-T4-Platform scale weight indicator & Livestock scale weighing instrument

Main functions:weighing,counting,accumulating,livestock scales,power-saving mode.
Apply to :weight indicate, weighing scale indicator, platform scale, floor scale, weighbridge, truck scale, counting scale,
weighing instrument.

1. A/D Conversion: Δ-Σ technique, 80 times per second at most

2. Input Sensitivity: ≥1.5uV/e

3. Supply bridge Voltage of load cell: DC 3.3V.

4. Suggest connecting a 1000Ω strain gauge load cell;

5. 6 pcs 350Ω strain gauge load cell can be connected at most.

6. Signal Input Range: -16mV~+18mV

7. Connection with load cell: 4-wire for standard connection; (6-wire long line auto-compensation can be customized; Compensation distance ≤30 meters)

8. Division value: 1/2/5/10/20/50 optional

9. Power Supply: 2 pcs AA batteries;used for about 80 hours.

10. power-saving mode: connect 1 pcs 1000Ω strain gauge load cell)

11. Operation Temperature: 0oC~40oC,relative humidity≤85%RH.

12. Storage Temperature: -20oC~60oC, relative humidity≤95%RH.

Product Dimension

MEP-T4 Platform scale weight indicator

Force Structure & Assembly Reference

MEP-T4 Platform scale weight indicator
