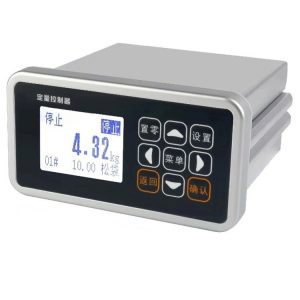

MEP500C7 Packing scale weight controller MEP500C7 Packing scale weight controller
MEP500C7 Packing scale weight controller

MEP500C7 Packing scale weight controller

digital weight transmitter, weight indicator, weight controller, packing scale weight controller

Model: MEP500C7
Category: Weight controller
Power Supply: AC 220V(AC175-245V),50Hz/60Hz
Display Type:LCD/LED
Unit of weight: gram, kilogram,ton
Weight divisions: 10000
Apply: digital weight transmitter, weight indicator, weight controller, packing scale weight controller

  Product selection reference

Online Sales



Product Picture Reference

MEP500C7 Packing scale weight controller-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

                                        MEP500C7-Packing scale weighing controller instrument & weight indicator

1) LCD/OLED displays in English with a nice interface, easy to control and also with user friendly design.

2) Filling mode can be configured with single hopper or double hopper.

3) Three-level feeding flow control (fast, middle and fine), fine feeding can be configured manual or auto mode.

4) Can pre-save 11 groups of quantitative control parameters.

5) Can be configured several quantitative control operation for one bagging.

6) Various time delay functionality for avoid joggling.

7) Available to select the function of automatic zero-setting (with hopper) and automatic taring (no-hopper).

8) Inputs could be configured as material level detection function.

9) Outputs could be configured as clamping and vibrating (Drop/flag) function.

10) 20 I/O (8 inputs/12 outputs), and the port functions can be programmed (pre-assigned).

11) Input may be normally open or close by user configuration.

12) Can be selected pre-act auto adjustment.

13) Set the packaging batch number so that the machine automatically stops when reaching the preset batch.

14) It has a filling accumulative function, and the result of accumulation can be output from the print output interface.

15) It has a sew mechanism controlling function.

16) It has a non-object calibration function.

17) It has I/O test function so that trouble shooting of the electric circuit.

18) Switching power supply and over-voltage protection circuit are used for adapting to a large power supply variation.

Basic parameters
Display window128*64LCD/OLED English character display
Scale interval1, 2, 5, 10
Max number of scale interval10000
Decimal place0, 0.0, 0.00, 0.000
Unit of weightg, kg, t (gram, kilogram and ton)

Overall dimensions

165(W)x 172(D)x 92(H)mm
Product weightAbout 1.2 kg
Performance index
Static accuracy classOIML R76 Class III
Maximum signal input range-3.6mV/V ~ 3.6 mV/V
Maximum sensitivity1.5μV/d (the weakest filter) or 0.75μV/d (the strongest filter)
Input-end noise≤0.5μVp-p (the weakest filter) or ≤0.25μVp-p (the strongest filter)
Zero drift≤0.05μV(@ 0.02mV/V)
Temperature coefficient≤10ppm/°C
Input impedance at load cell interface≥20MΩ
Non-linear error≤0.002%FS
A/D conversion rate100 SPS(samples per second)
Working parameters
Type of interfaceRS485
functioncommunication
Communication distance≤1000m
Baud rate2400/4800/9600/19200/38400/57600/115200/256000

Byte structure

1 start + 8 datum + 1 verification +1 stop
Parity checkConfigurable
Data formatMODBUS-RTU protocol
Type of load cellresistor strain type weight sensor
Excitation voltage of load cellDC 5V, 100mA, max to 4 350Ω analog load cells.
On-off output (contact) capacityRelay AC 220V /1A
On-off input voltage (rated value)DC 24V
On-off input current4--6mA
Working condition
Power supply rangeAC 220V(AC175-245V),50Hz/60Hz
Power Consumption≤10W
Operating temperature-10°C~40°C
Humidity range≤90% relative humidity (non-condensing)



Product Dimension

MEP500C7 Packing scale weight controller-MANYYEAR TECHNOLOGY

MEP500C7 Packing scale weight controller



Force Structure & Assembly Reference

MEP500C7 Packing scale weight controller-MANYYEAR TECHNOLOGY

Product Application

MEP500C7 Packing scale weight controller-MANYYEAR TECHNOLOGY

apw-platform-scale-1

MEP500C7 Packing scale weight controller-MANYYEAR TECHNOLOGY

apw-packing-scale

MEP500C7 Packing scale weight controller-MANYYEAR TECHNOLOGY

apw-batching-scale-2
