ADS-DM318 Multi channel signal acquisition digital control module

ADS-DM318 Multi channel signal acquisition digital control module

The ADS-DM318 multi-channel signal acquisition digital control module has 1 to 8 optional channels, which can be selected from AO (analog output), DO (switch output), or DI (switch input). The total number of channels for AO, DO, and DI cannot exceed 8.
This module achieves isolation between various channels, with each channel isolated from communication and module power supply.
The module uses RS485 communication protocol and Modbus RTU protocol (slave mode).
The power supply range is 10VDC to 32VDC, and the power consumption is less than 8W.


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

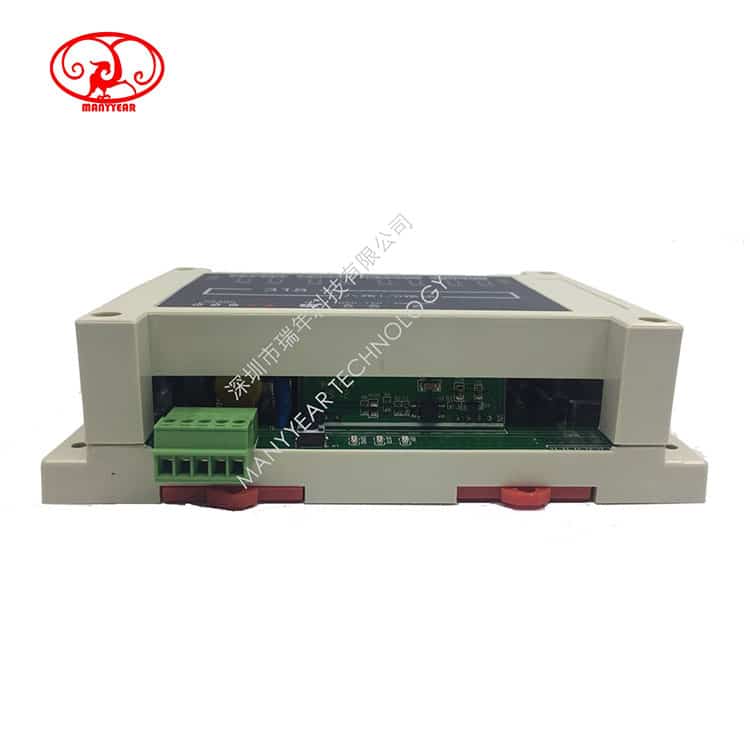

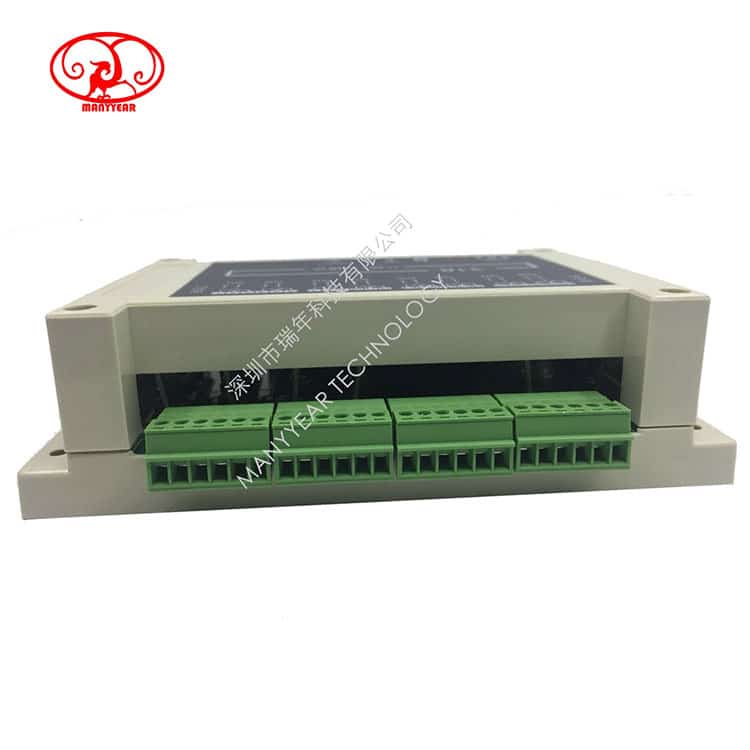

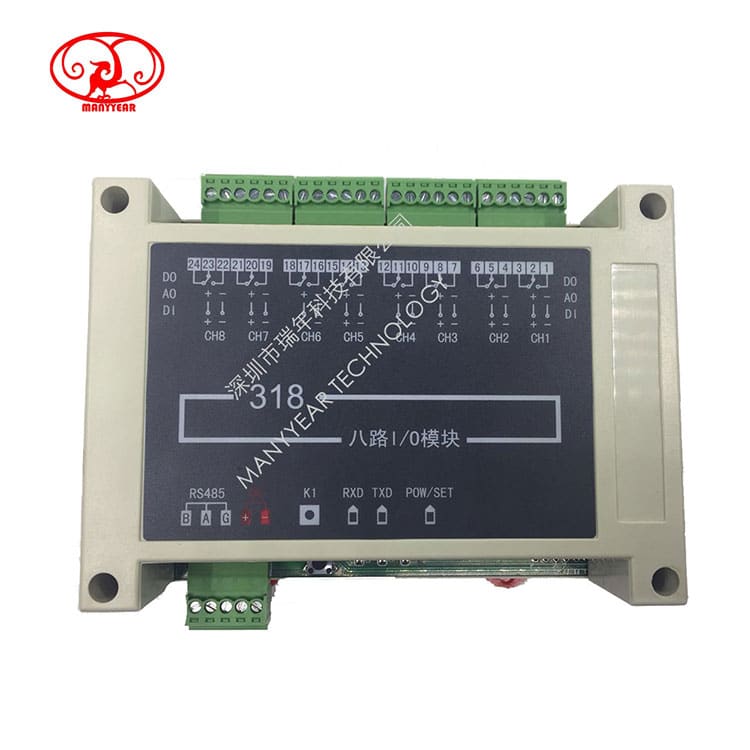

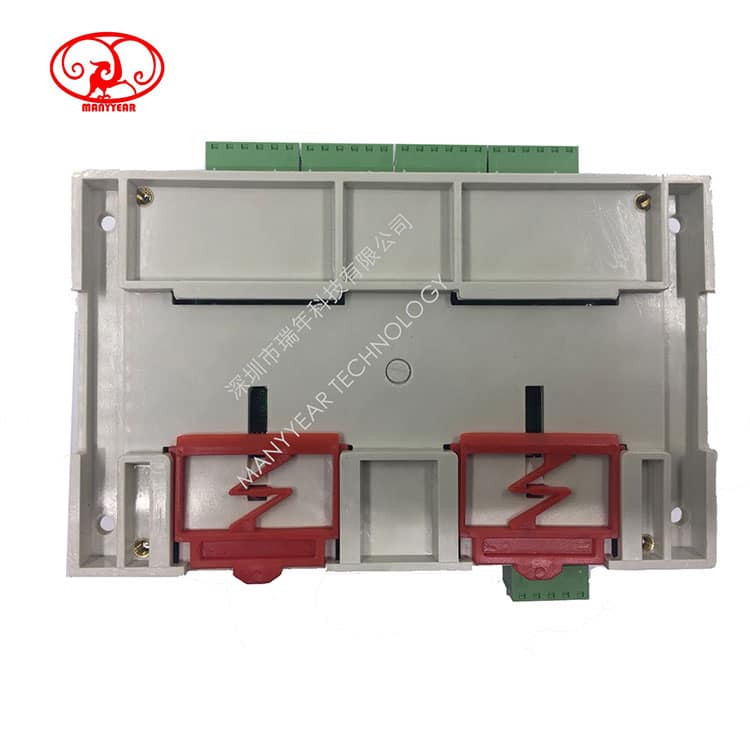

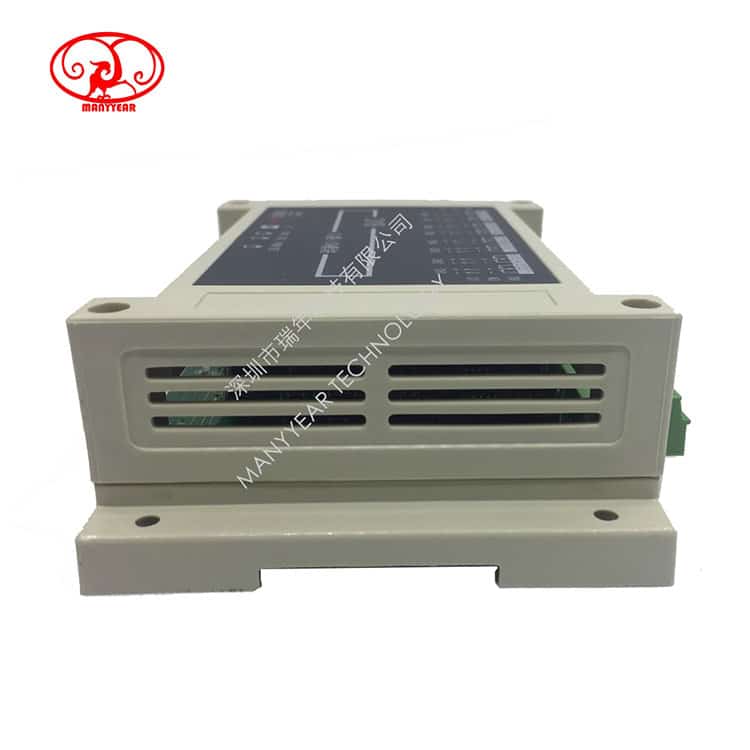

Product Picture Reference

ADS-DM318 Multi channel signal acquisition digital control module-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
ADS-DM318 Multi channel signal acquisition digital control module

The ADS-DM318 multi-channel signal acquisition digital control module has 1 to 8 optional channels, which can be selected from AO (analog output), DO (switch output), or DI (switch input). The total number of channels for AO, DO, and DI cannot exceed 8.
This module achieves isolation between various channels, with each channel isolated from communication and module power supply.
The module uses RS485 communication protocol and Modbus RTU protocol (slave mode).
The power supply range is 10VDC to 32VDC, and the power consumption is less than 8W.

Basic Specifications

Power supply voltage: 10~32VDC

Power consumption: less than 8 W

Environmental temperature: -10~55 ℃ (storage: -25~65 ℃)

Environmental humidity: 35~85% RH, no condensation

Absolute humidity: MAX. W. C 29.3 g/m3 dry air at 101.3kPa

Installation location: indoor, height<2000m

Insulation resistance: ≥ 100M Ω (500V DC MEGA reference)

Insulation strength: 1000V AC (test conditions: 50/60Hz, 1 minute)

Anti interference: IEC61000-4-2 (electrostatic discharge), Class III

IEC61000-4-4 (Electrical Fast Transient Pulse Group), Class III

IEC61000-4-5 (surge), Class III

Optional specifications

Number of output channels: 1-8 channels, selectable from AO (analog output), DO (switching output), or DI (switching output)

Input). The total number of channels for AO, DO, and DI cannot exceed 8 channels.

Analog output: photoelectric isolation, resolution: 1/10000, load capacity: 600 Ω

The output signal is set by parameters, please refer to [Analog Output] for details

Switching output: relay output, 250V AC/3A, resistive load

Switching input: The external high-level input is effective at 10~30V DC.

Isolation: Channel to channel isolation

Channel and communication, module power supply isolation

Communication specifications

Communication interface: RS485

Isolation:       isolated from output (input) channels and module power supply

Communication protocol: Modbus RTU protocol (slave mode)

Module address: 1-255 optional

Baud: 2400 / 4800 / 9600 / 19200 / 38400 bps / 57600 bps / 115200 bps / 230400 bps

Data format: 1-bit start bit, 8-bit data bit, 1-bit Parity bit, 1-bit or 2-bit stop bit optional

Parity check: optional Check digit (odd check/even check/no check)

Synchronization method: Start stop synchronization method

Transmission mode: bidirectional half duplex multipoint connection, 1: N (N=1-32)

Communication distance: ≤ 1.2km, requiring the use of compliant cables and matching resistors, preferably twisted pair cables



Code Description



content Code Description
ADS-DM318-8-channel IO module, 1-8 channels, can choose from analog output, switch output, or switch input
Relay output (option)□ T0T represents no relay output, 1T-8T represents 1-8 relay outputs, and all 8 points are normally open+normally closed contacts.
(250V AC/3A, resistive load)
Switching input (option)□ K0K represents no switching input, and 1K-8K represents 1-8 external switching inputs
Number of analog output channels (option)□ A0A represents no analog output, while 1A to 8A represents 1-8 analog outputs
(Universal input, selecting input signals through parameter settings)
Analog output type (option)1Current output (4-20) mA, (0-20) mA, (0-10) mA
(Resolution: 1/10000; current output load ≤ 600 Ω, voltage output load ≥ 100K Ω)2Voltage output (0-5) V, (1-5) V
3Voltage output (0-10) V





contentCode Description
ADS-DM318-8-channel IO module, 1-8 channels, can choose from analog output, switch output, or switch input
Relay output (option)□ T0T represents no relay output, 1T-8T represents 1-8 relay outputs, and all 8 points are normally open+normally closed contacts.
(250V AC/3A, resistive load)
Switching input (option)□ K0K represents no switching input, and 1K-8K represents 1-8 external switching inputs
Number of analog output channels (option)□ A0A represents no analog output, while 1A to 8A represents 1-8 analog outputs
(Universal input, selecting input signals through parameter settings)
Analog output type (option)1Current output (4-20) mA, (0-20) mA, (0-10) mA
(Resolution: 1/10000; current output load ≤ 600 Ω, voltage output load ≥ 100K Ω)2Voltage output (0-5) V, (1-5) V
3Voltage output (0-10) V



The IO module only has a maximum of 8 channels, so the total number of channels for relay output, switch input, and analog output cannot exceed 8 channels. For example:

Example 1: When 8 analog outputs are selected and the analog output type is 4-20mA, the model is ADS-DM318-0T0K8A1.

Example 2: Select 4 relay outputs and 4 analog outputs. If the analog output type is 4-20mA, the model is ADS-DM318-4T0K4A1.

Example 3: Select 2-point relay output, 2-point switch input, and 4-way analog output. If the analog output type is 0-5V, the model is ADS-DM318-2T2K4A2.



Product Dimension

Product Application

ADS-DM318 Multi channel signal acquisition digital control module-MANYYEAR TECHNOLOGY

apw-force-test-6

ADS-DM318 Multi channel signal acquisition digital control module-MANYYEAR TECHNOLOGY

apw-force-test-7

ADS-DM318 Multi channel signal acquisition digital control module-MANYYEAR TECHNOLOGY

APF-torque testing machine
