ADS-DM206 multi-channel digital transmitter analog signal acquisition module

The ADS-DM206 6-channel isolated analog signal acquisition box is a versatile device that can be utilized in various applications, including digital weighing systems, digital force measuring systems, and digital temperature measurement.
One of its key features is the 6-channel isolated universal input, which allows for the simultaneous measurement of multiple signals without interference. This makes it ideal for use in environments where accurate and reliable data acquisition is crucial.
In terms of performance, the sampling rate of the ADS-DM206 is set at 0.1s, ensuring that the measured signals are captured quickly and accurately. Additionally, the input signal measurement accuracy is level 0.2, providing precise and reliable results.
To ensure compatibility with different systems, the ADS-DM206 features an isolation RS485 interface that supports the Modbus RTU protocol. This enables seamless communication between the transmitter and other devices, making it easy to integrate into existing systems or build new ones.
Powering the ADS-DM206 is a range of 10VDC to 32VDC, with an input power requirement of less than 1W. This ensures that it can be easily powered by a variety of sources, making it a convenient choice for different applications.
Overall, the ADS-DM206 Universal Input 6 channel Isolation digital transmitter offers a reliable and versatile solution for digital weighing systems, digital force measuring systems, and digital temperature measurement. Its advanced features and specifications make it a valuable addition to any system requiring accurate and reliable data acquisition


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

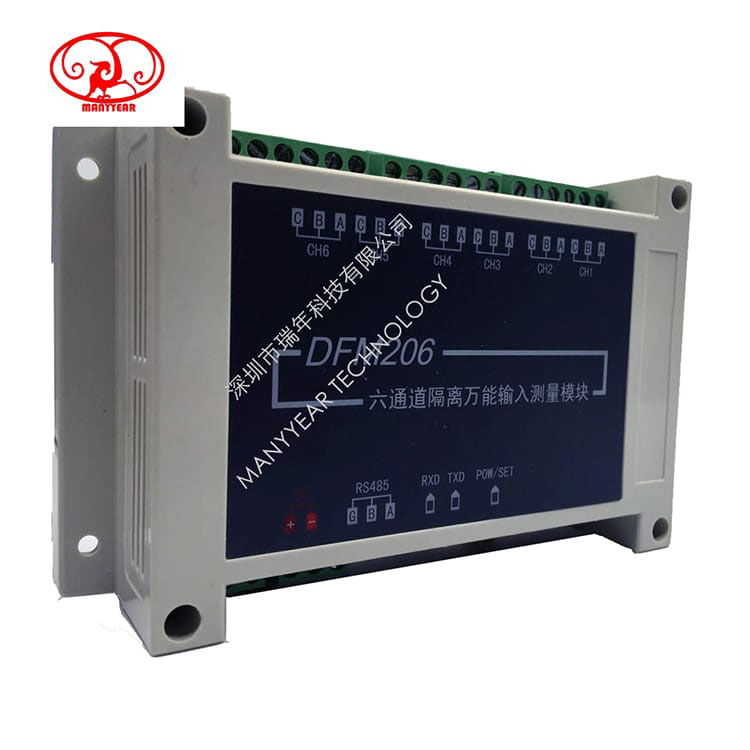

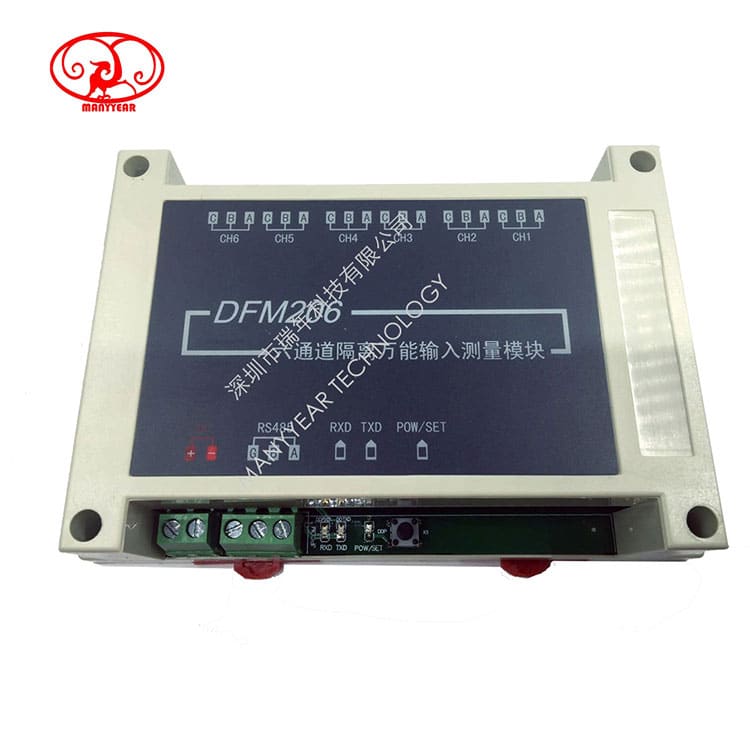

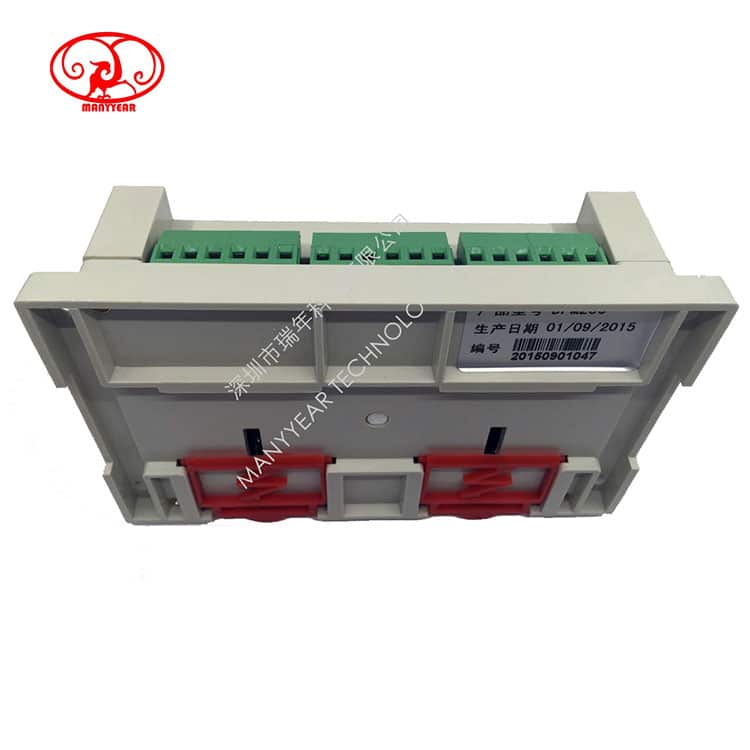

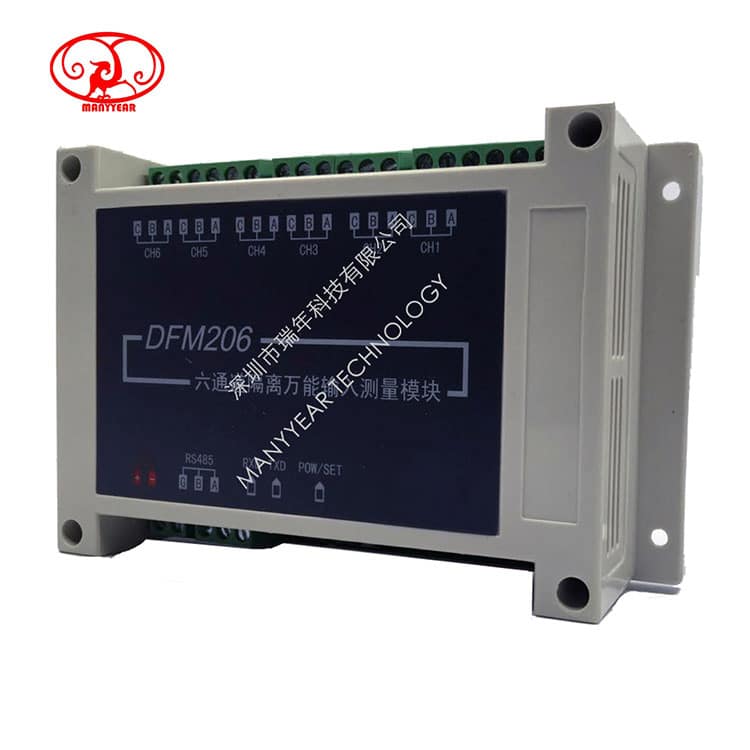

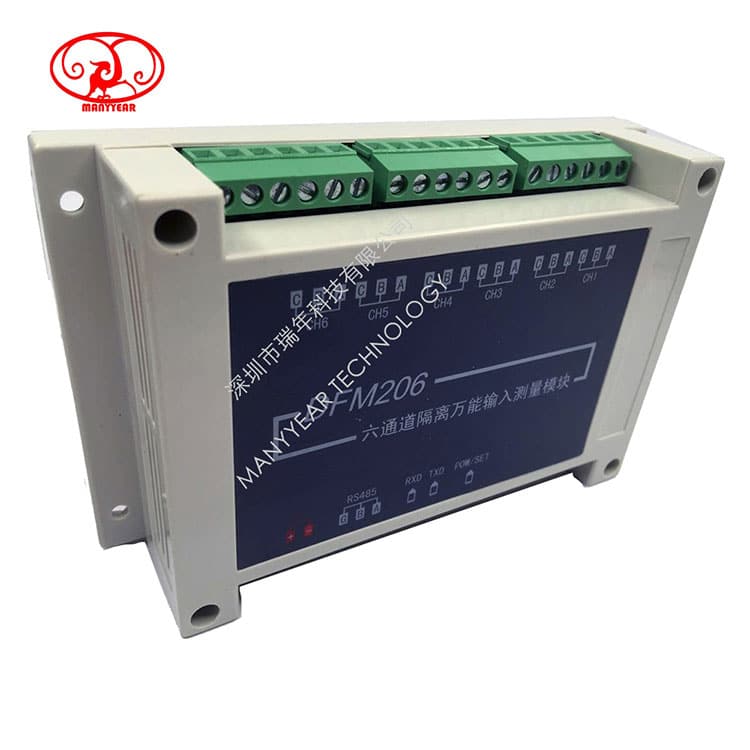

Product Picture Reference

ADS-DM206 6-channel isolated analog signal acquisition box-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
The ADS-DM206 6-channel isolated analog signal acquisition box

The ADS-DM206 6-channel isolated analog signal acquisition box is a versatile device that can be utilized in various applications, including digital weighing systems, digital force measuring systems, and digital temperature measurement.
One of its key features is the 6-channel isolated universal input, which allows for the simultaneous measurement of multiple signals without interference. This makes it ideal for use in environments where accurate and reliable data acquisition is crucial.
In terms of performance, the sampling rate of the ADS-DM206 is set at 0.1s, ensuring that the measured signals are captured quickly and accurately. Additionally, the input signal measurement accuracy is level 0.2, providing precise and reliable results.
To ensure compatibility with different systems, the ADS-DM206 features an isolation RS485 interface that supports the Modbus RTU protocol. This enables seamless communication between the transmitter and other devices, making it easy to integrate into existing systems or build new ones.
Powering the ADS-DM206 is a range of 10VDC to 32VDC, with an input power requirement of less than 1W. This ensures that it can be easily powered by a variety of sources, making it a convenient choice for different applications.
Overall, the ADS-DM206 Universal Input 6 channel Isolation digital transmitter offers a reliable and versatile solution for digital weighing systems, digital force measuring systems, and digital temperature measurement. Its advanced features and specifications make it a valuable addition to any system requiring accurate and reliable data acquisition.



Basic Specifications

The ADS-DM206 6-channel isolated analog signal acquisition box is a versatile device that can be utilized in various applications, including digital weighing systems, digital force measuring systems, and digital temperature measurement.



One of its key features is the 6-channel isolated universal input, which allows for the simultaneous measurement of multiple signals without interference. This makes it ideal for use in environments where accurate and reliable data acquisition is crucial.



In terms of performance, the sampling rate of the ADS-DM206 is set at 0.1s, ensuring that the measured signals are captured quickly and accurately. Additionally, the input signal measurement accuracy is level 0.2, providing precise and reliable results.



To ensure compatibility with different systems, the ADS-DM206 features an isolation RS485 interface that supports the Modbus RTU protocol. This enables seamless communication between the transmitter and other devices, making it easy to integrate into existing systems or build new ones.



Powering the ADS-DM206 is a range of 10VDC to 32VDC, with an input power requirement of less than 1W. This ensures that it can be easily powered by a variety of sources, making it a convenient choice for different applications.



Overall, the ADS-DM206 Universal Input 6 channel Isolation digital transmitter offers a reliable and versatile solution for digital weighing systems, digital force measuring systems, and digital temperature measurement. Its advanced features and specifications make it a valuable addition to any system requiring accurate and reliable data acquisition.

Measurement input

Number of input channels:    6 channels

Input signal type:     Universal input, selectable through parameter settings

Measurement cycle:        0.1 seconds

Measurement range and accuracy:     (Under standard operating conditions, temperature 20 ± 2 ℃, humidity 55% ± 10% RH, preheating for at least 30 minutes after turning on the power, and other conditions will not have adverse effects on operation)



Input signal typeMeasurable rangeBasic error of digital display

(Measurement accuracy)

Resolution
DC voltage± 20mV-22.00~22.00mV± 0.2% F.S10 µ V
± 50mV-52.00~52.00mV± 0.2% F.S
± 100mV-110.00~110.00mV± 0.2% F.S
0-5V0.000-5.200V± 0.2% F.S1mV
1-5V0.800-5.200V± 0.2% F.S
DC current



*1

0-10mA0.000-10.400mA± 0.2% F.S1μA
0-20mA0.000-20.800mA± 0.2% F.S
4-20mA3.200~20.800mA± 0.2% F.S
thermocouple

(TC)

(excluding cold end compensation accuracy)









*2 * 3

R-50.0~1760.0 ℃± 2 ℃0.1 ° C
S-50.0~1760.0 ℃± 2 ℃
B250.0~1820.0 ℃± 2 ℃
K-200.0~1370.0 ℃± 1 ℃
E-200.0~800.0 ℃± 1 ℃
J-200.0~1050.0 ℃± 1 ℃
T-200.0~400.0 ℃± 1 ℃
N0.0~1300.0 ℃± 1 ℃
WR3250.0~2315.0 ℃± 2 ℃
WR5260.0~2315.0 ℃± 2 ℃
Thermal resistance

(RTD)







*4 *5

Pt100-200.0~650.0 ℃± 0.4 ℃0.1 ° C
Cu50-50.0~150.0 ℃± 0.4 ℃
Cu100-50.0~150.0 ℃± 0.4 ℃
G53-50.0~150.0 ℃± 0.4 ℃
BA1-200.0~650.0 ℃± 0.4 ℃
BA2-200.0~650.0 ℃± 0.4 ℃
Remote pressure gauge

*5

400 Ω0.0~400.0 Ω± 0.2% F.S

*1: The measurement of DC current requires the use of a 250 Ω external shunt resistor (accuracy level 0.1%, 1/4W, temperature drift of 25ppm/℃).

Without calibration, the basic error of DC current digital display also requires an additional accuracy error of external shunt resistor

*2: Thermocouple signal: When B-type is less than 400 ℃ and WR325/WR526 type is less than 100 ℃, accuracy is not guaranteed

*3: Thermocouples comply with: GB16839 1-1997, GB168392-1997, IEC584-1 (1995), DIN IEC584, JIS C1602-1995

*4: Thermal resistance in accordance with JB/T8622-1997, JB/T8623-1997, JIS C1604-1997, IEC751-1995, DIN IEC751-1996

*5: The measurement excitation current of resistance type signals is 0.5mA

Communication function

Communication interface:            RS485

Communication protocol:             Modbus RTU protocol (slave mode)



General specifications

Power supply voltage:            10-32VDC, input power less than 1W

Rated voltage 24VDC

Environmental temperature:         0-50 ℃

Environmental humidity:               10~90% RH, no condensation

Absolute humidity: MAX W. C 29.3 g/m3 dry air at 101.3kPa

Set environmental conditions:     indoor use

Height < 2000m

Material:             ABS plastic

Communication specifications

Communication protocol:             Modbus RTU communication protocol (slave mode)

Baud:           2400 / 4800 / 9600 / 19200 / 38400bps

Data format:             1-bit start bit, 8-bit data bit, 1-bit Parity bit, 1-bit stop bit

Parity check:             optional Check digit (odd check/even check/no check)

Synchronization method:              Start stop synchronization method

Transmission mode:        bidirectional half duplex multipoint connection, 1: N (N=1-32)

Communication distance:             ≤ 1.2km, requiring the use of compliant cables and matching resistors, preferably twisted pair cables

In the above figure, Rt is the terminal resistance, usually 120 Ω





Product Dimension

Product Application

ADS-DM206 6-channel isolated analog signal acquisition box-MANYYEAR TECHNOLOGY

apw-force-test-6

ADS-DM206 6-channel isolated analog signal acquisition box-MANYYEAR TECHNOLOGY

apw-force-test-7

ADS-DM206 6-channel isolated analog signal acquisition box-MANYYEAR TECHNOLOGY

APF-torque testing machine
