ADS-DM218 multi-channel digital transmitter analog signal acquisition module, and its signal acquisition module is an 8-channel non isolated universal input module.

ADS-DM218A is an 8-channel non isolated potentiometer input module.

The sampling rates of the ADS-DM218 module are 1 second (50/60Hz), 90 milliseconds (50Hz), and 75 milliseconds (60Hz), all of which can be set, with a measurement accuracy of 0.2 level.

The sampling rate of the ADS-DM218A module is only 1 second (50/60Hz), and the measurement accuracy is also 0.2 level.

In addition, the device also has an isolated RS485 interface and Modbus RTU protocol.

The power supply range is 10VDC to 32VDC, and the power consumption is less than 1.2W.


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales

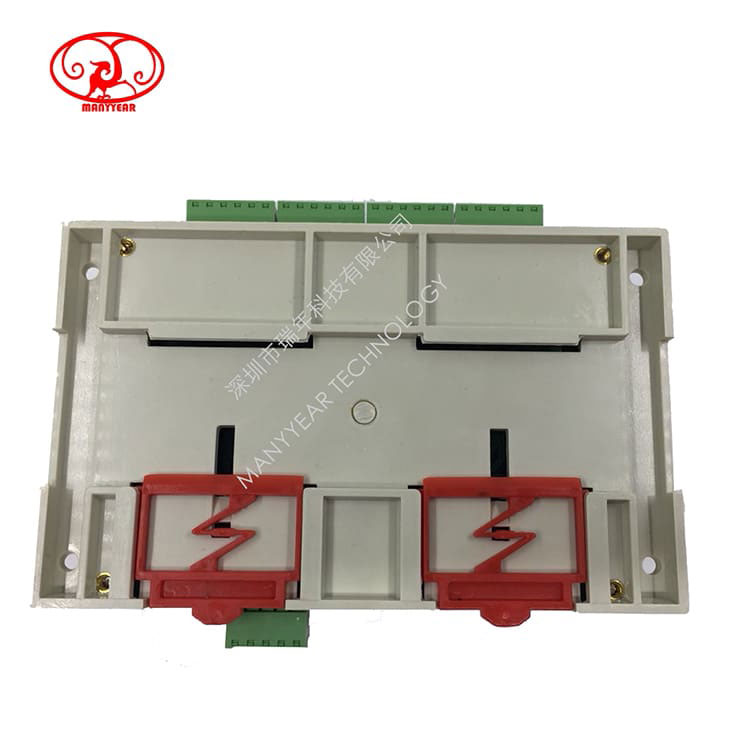

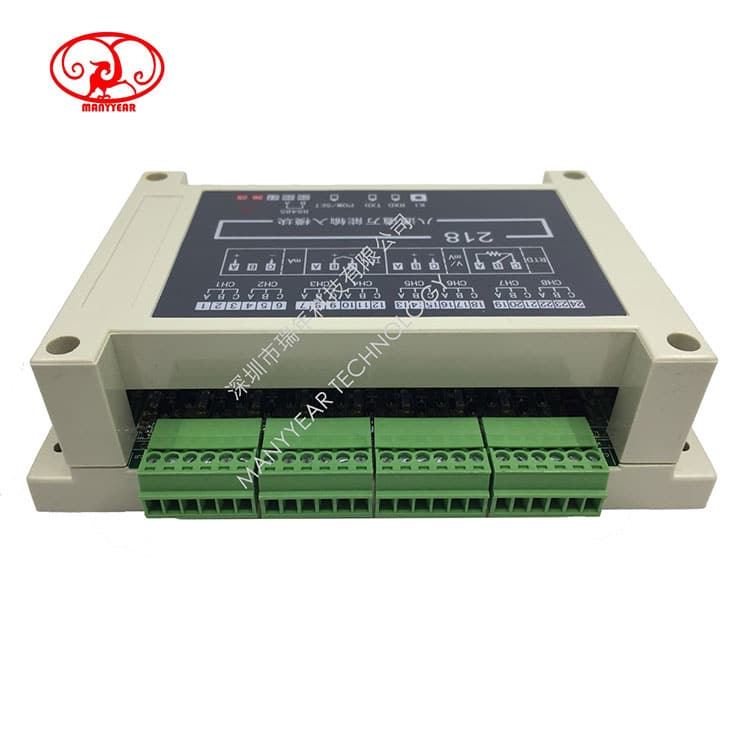

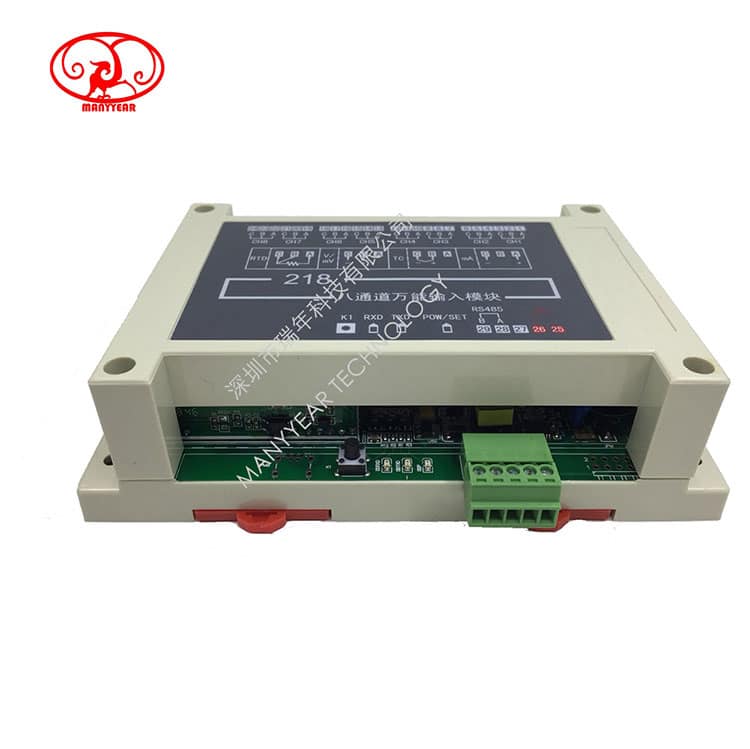

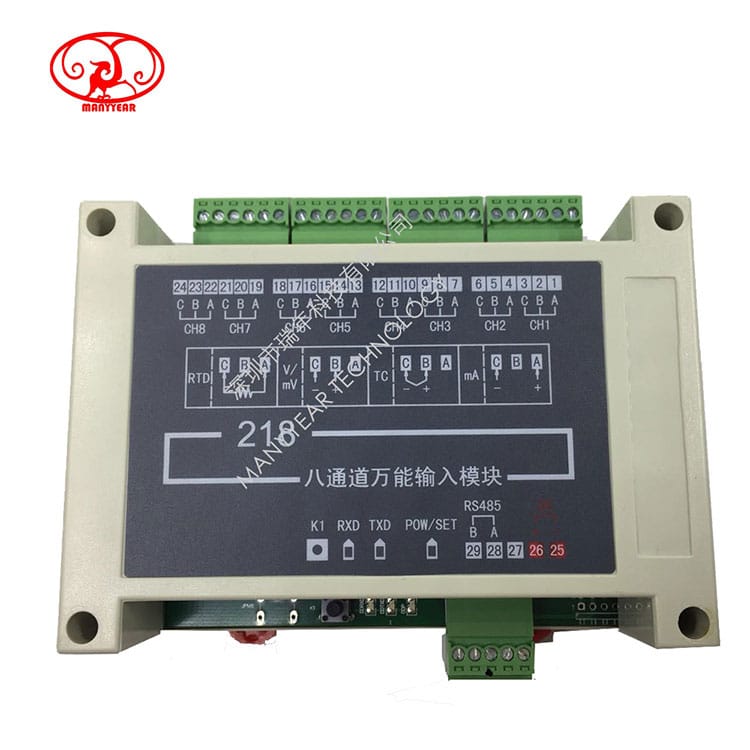

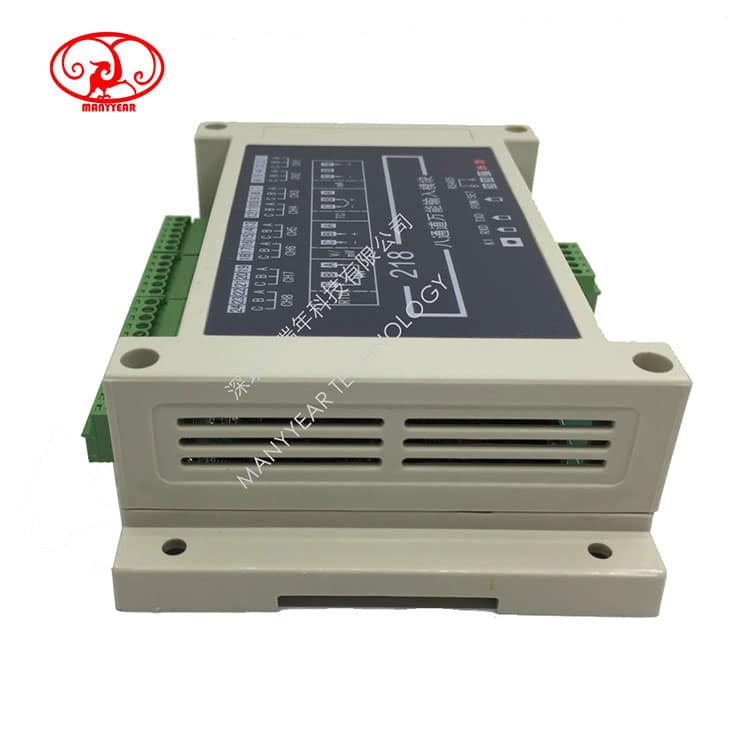

Product Picture Reference

ADS-DM218 multi-channel digital transmitter analog signal acquisition module-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
ADS-DM218 multi-channel digital transmitter analog signal acquisition module

Product Description

ADS-DM218 multi-channel digital transmitter analog signal acquisition module, and its signal acquisition module is an 8-channel non isolated universal input module.

ADS-DM218A is an 8-channel non isolated potentiometer input module.

The sampling rates of the ADS-DM218 module are 1 second (50/60Hz), 90 milliseconds (50Hz), and 75 milliseconds (60Hz), all of which can be set, with a measurement accuracy of 0.2 level.

The sampling rate of the ADS-DM218A module is only 1 second (50/60Hz), and the measurement accuracy is also 0.2 level.

In addition, the device also has an isolated RS485 interface and Modbus RTU protocol.

The power supply range is 10VDC to 32VDC, and the power consumption is less than 1.2W.



Basic Specifications



Power supply voltage: 10~32VDC

Power consumption: less than 1.2W

Environmental temperature: -10~55 ℃ (storage: -25~65 ℃)

Environmental humidity: 35~85% RH, no condensation

Absolute humidity: MAX. W. C 29.3 g/m3 dry air at 101.3kPa

Installation location: indoor, height<2000m

Insulation resistance: ≥ 100M Ω (500V DC MEGA reference)

Insulation strength: 1000V AC (test conditions: 50/60Hz, 1 minute)

Anti interference: IEC61000-4-2 (electrostatic discharge), Class III

IEC61000-4-4 (Electrical Fast Transient Pulse Group), Class III

IEC61000-4-5 (surge), Class III

Input specifications

Measurement input: All channels are universal inputs, and the input signal is set by parameters.

Please refer to [Input Signal] for input signal description,

Number of input channels: 8 channels, enabled by parameter settings.

Isolation: No isolation between channels, not suitable for application sites with common mode voltage between channels.

Set as a voltage input channel, when the input signal is too large and exceeds approximately 5.5V DC, the input channel enters a protected state and will affect all measurement channels, but will not damage the module input circuit. After the voltage signal returns to normal, the module also returns to its normal measurement state.

Input is isolated from communication and module power supply.

Measurement cycle: can be set through parameters, with a factory default setting of 1 second (8 channels)

The measurement speed is also influenced by the input signal selection parameters of each channel and the digital filtering time constant.

Basic error: ± 0.2% F • S

When the input signal is selected as a B-type thermocouple, accuracy is not guaranteed when it is less than 400 ℃.

Cold junction compensation accuracy: it is related to the cold junction compensation mode, the Thermal equilibrium at the terminal and the cold junction compensation coefficient.



Communication specifications

Communication interface: RS485

Isolation:       isolated from input channels and module power supply

Communication protocol: Modbus RTU protocol (slave mode)

Module address: 1-255 optional

Baud: 2400 / 4800 / 9600 / 19200 / 38400 bps / 57600 bps / 115200 bps / 230400 bps

Response time: 500 μ S (measured value)

Data format: 1-bit start bit, 8-bit data bit, 1-bit Parity bit, 1-bit or 2-bit stop bit optional

Parity check: optional Check digit (odd check/even check/no check)

Synchronization method: Start stop synchronization method

Transmission mode: bidirectional half duplex multipoint connection

Communication distance: ≤ 1.2km, requiring the use of compliant cables and matching resistors, preferably twisted pair cables



Code Description

content Code Description
ADS-DM2188-channel non isolated universal input with 0.2 level accuracy;
ADS-DM218A8-channel non isolated Potentiometer input, 0.2 class precision;
