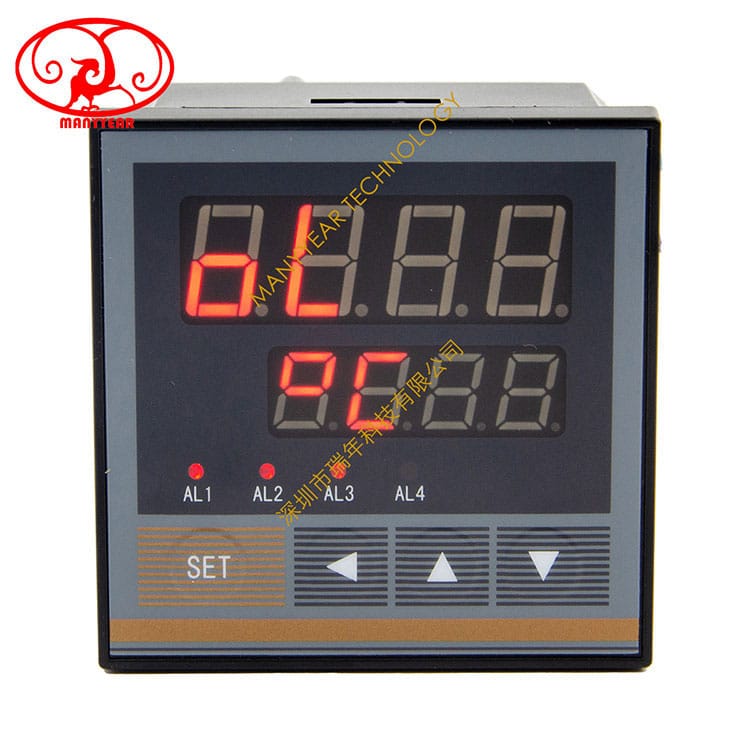

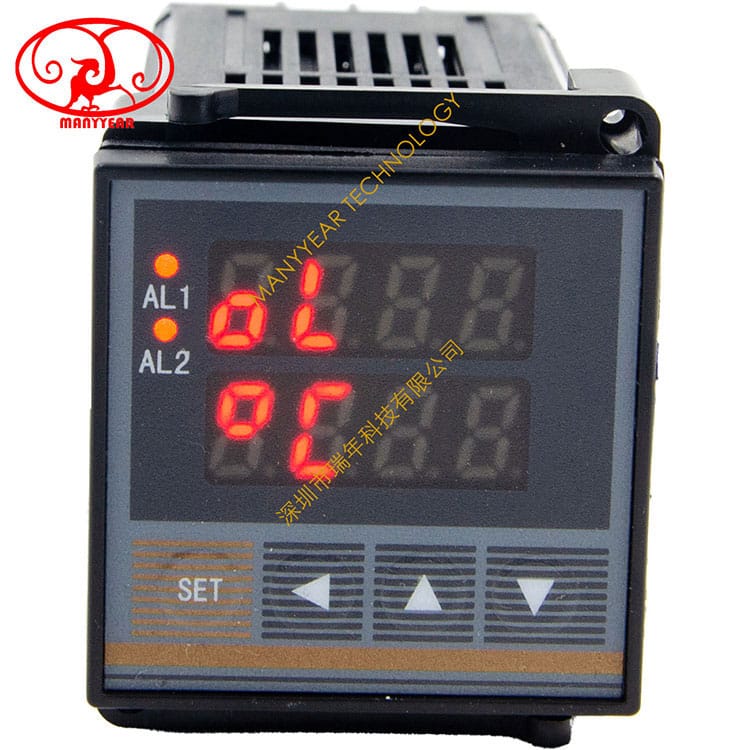

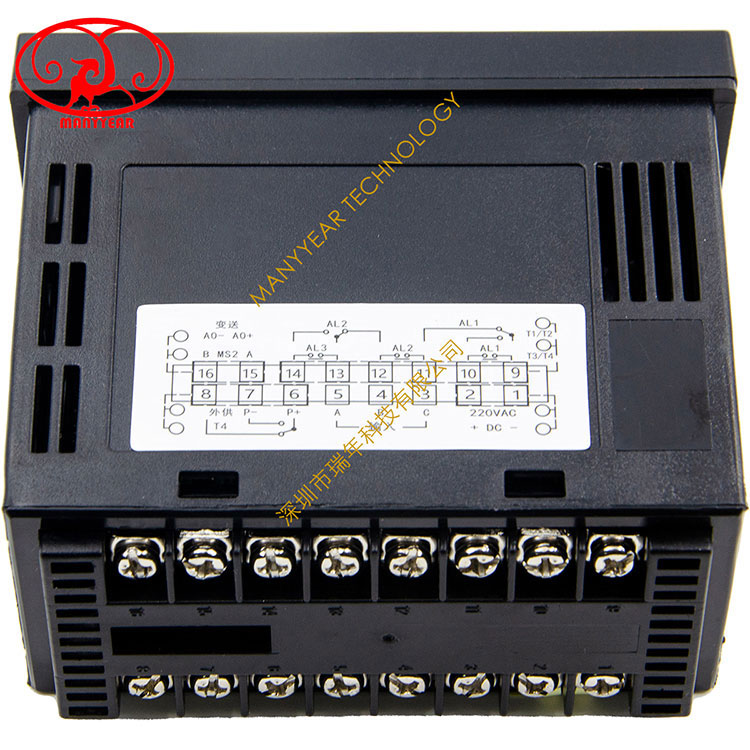

MEP-SHCW simple PID controller is divided into Q-type operators and D-type operators. The Q-type operator adopts a continuous output mode for analog signals, and can also set positive and negative effects; The D-type operator has forward and reverse switch output modes, and can be manually positioned or directly controlled for forward and reverse rotation. Suitable for manual positioning control of various actuators.

One input signal for measuring process signals or measuring valve opening position. It can be equipped with DC current, DC voltage, thermal resistance, thermocouples, etc. Dual display windows display measurement/feedback signals and operation output values respectively.

Signal output can be directly operated through button operation. The operation output has upper and lower limit limiting functions.

Optional external power supply.

Optional alarm output function

Optional measurement feedback transmission output function.

Optional communication interface for reading data




we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

  Product selection reference

Online Sales



Product Picture Reference

MEP-SHCW simple PID controller-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MEP-SHCW simple PID controller

Product Description

MEP-SHCW simple PID controller is divided into Q-type operators and D-type operators. The Q-type operator adopts a continuous output mode for analog signals, and can also set positive and negative effects; The D-type operator has forward and reverse switch output modes, and can be manually positioned or directly controlled for forward and reverse rotation. Suitable for manual positioning control of various actuators.

One input signal for measuring process signals or measuring valve opening position. It can be equipped with DC current, DC voltage, thermal resistance, thermocouples, etc. Dual display windows display measurement/feedback signals and operation output values respectively.

Signal output can be directly operated through button operation. The operation output has upper and lower limit limiting functions.

Optional external power supply.

Optional alarm output function

Optional measurement feedback transmission output function.

Optional communication interface for reading data.



Basic Specifications

contentCode Description
MEP-SHCW-4-digit LED (measurement/feedback value)+4-digit LED (operation output) display; 0.2 level display accuracy; Measurement and control speed 0.1 seconds
Overall dimensionsAH160 × 80 × 125mm, horizontal opening size: 152 ×76mm
AS80 × 160 × 125mm, vertical opening size: 152 × 76mm
B96× 96 × 112, Hole size: 92 ×92mm
CH96× 48× 82mm, horizontal opening size: 92 × 45mm
CS48× 96 × 82mm, vertical opening size: 92 ×45mm
SV operation outputD1Relay output (single normally open) (250V AC/3A)D-type operator
D2Control solid-state relay output (SSR) (12V DC/21mA)
Q1Current output (4-20) mA, (0-10) mA, (0-20) mAQ-type operator
Q2Voltage output (0-5) V, (1-5) V(Photoelectric isolation, resolution: 1/10000, current output load ≤ 600 Ω, voltage output load ≥ 100K Ω)
Q3Voltage output (0-10) V
Alarm (option)AH, AST1~T21-2 alarm relay outputs, both normally open and normally closed double contacts
(250V AC/3A, resistive load)BT1~T21-2 alarm relay outputs, all single normally open contacts
 CH, CST1~T21-2 alarm relay outputs, all of which are single normally open contacts (see Note ①)
External power supply (option)B124V ± 5% below 50mA
B2Below 12V ± 5% 50mA
Communication (option)MS1RS232 interface
(Photoelectric isolation, response time: less than 500 μ S (measured value)MS2RS485 interface
Communication protocol selected through software (TCASCII or Modbus RTU)A1Current output (4-20) mA, (0-10) mA, (0-20) mA
PV transmission output (option)A2Voltage output (0-5) V, (1-5) V
(Photoelectric isolation, resolution: 1/10000; current output load ≤ 600 Ω, voltage output load ≥ 100K Ω)A3Voltage output (0-10) V
Power specifications100-240V AC 50/60 Hz
10~24V AC 50/60 Hz; 10~24V DC



contentCode Description
MEP-SHCW-4-digit LED (measurement/feedback value)+4-digit LED (operation output) display; 0.2 level display accuracy; Measurement and control speed 0.1 seconds
Overall dimensionsAHone hundred and sixty × eighty × 125mm horizontal opening size: 152 × seventy-six
ASeighty × one hundred and sixty × 125mm vertical opening size: 152 × seventy-six
Bninety-six × ninety-six × 112 Hole size: 92 × ninety-two
CHninety-six × forty-eight × 82mm horizontal opening size: 92 × forty-five
CSforty-eight × ninety-six × 82mm vertical opening size: 92 × forty-five
SV operation outputD1Relay output (single normally open) (250V AC/3A)D-type operator
D2Control solid-state relay output (SSR) (12V DC/21mA)
Q1Current output (4-20) mA, (0-10) mA, (0-20) mAQ-type operator

(Photoelectric isolation, resolution: 1/10000, current output load ≤ 600 Ω, voltage output load ≥ 100K Ω)


Q2Voltage output (0-5) V, (1-5) V
Q3Voltage output (0-10) V
Alarm (option)

(250V AC/3A, resistive load)

AH, AST1~T21-2 alarm relay outputs, both normally open and normally closed double contacts
BT1~T21-2 alarm relay outputs, all single normally open contacts
CH, CST1~T21-2 alarm relay outputs, all of which are single normally open contacts (see Note ①)
External power supply (option)B124V ± 5% below 50mA
B2Below 12V ± 5% 50mA
Communication (option)

(Photoelectric isolation, response time: less than 500 μ S (measured value)

Communication protocol selected through software (TCASCII or Modbus RTU)

PV transmission output (option)

(Photoelectric isolation, resolution: 1/10000; current output load ≤ 600 Ω, voltage output load ≥ 100K Ω)

MS1RS232 interface
MS2RS485 interface
A1Current output (4-20) mA, (0-10) mA, (0-20) mA
A2Voltage output (0-5) V, (1-5) V
A3Voltage output (0-10) V
Power specificationsV0100-240V AC 50/60 Hz
V110~24V AC 50/60 Hz; 10~24V DC

Note ①: The second point of C-size alarm, external supply, communication, and PV transmission output share the same output terminal, so the T2 alarm, external supply, communication, and PV transmission output functions can only be selected from one of four.
