Pressure Sensor Pressure Switch 3439 0

comon pressure switch, water pressure switch, oil pressure switch, air pressure switch

Model: MPT303
Category:common pressure switch
Range:0-300bar
temperature:-40~120c
signal output:4~20mA,0.5~4.5VDC,0~5VDC,0~10VDC
Application: digital pressure switch, water pressure switch, air pressure switch, oil pressure switch, smart pressure switch, pressure controller


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

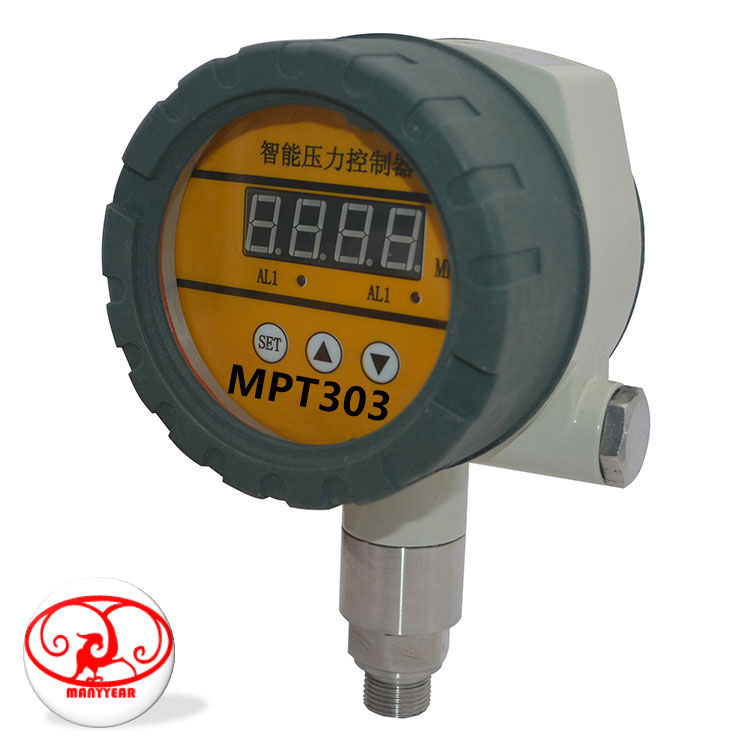

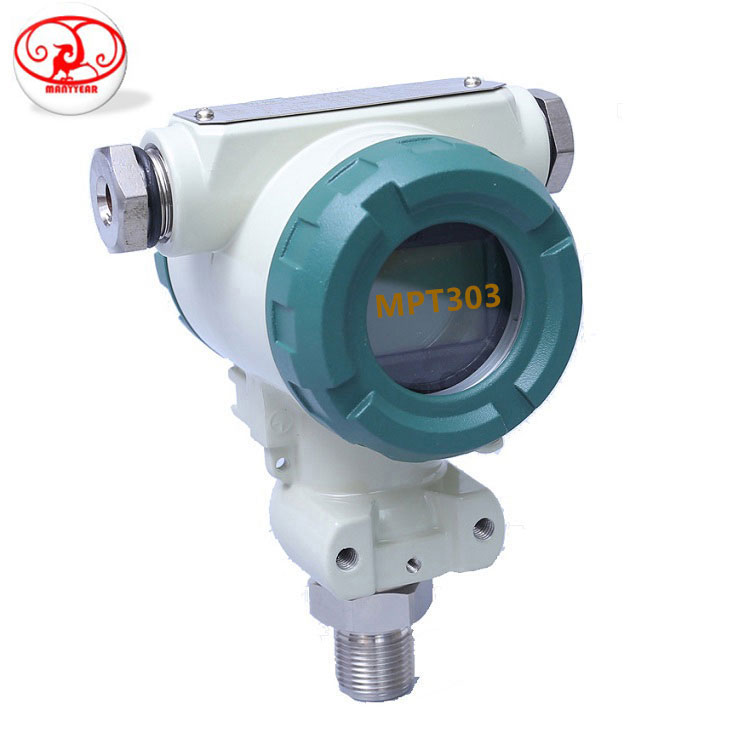

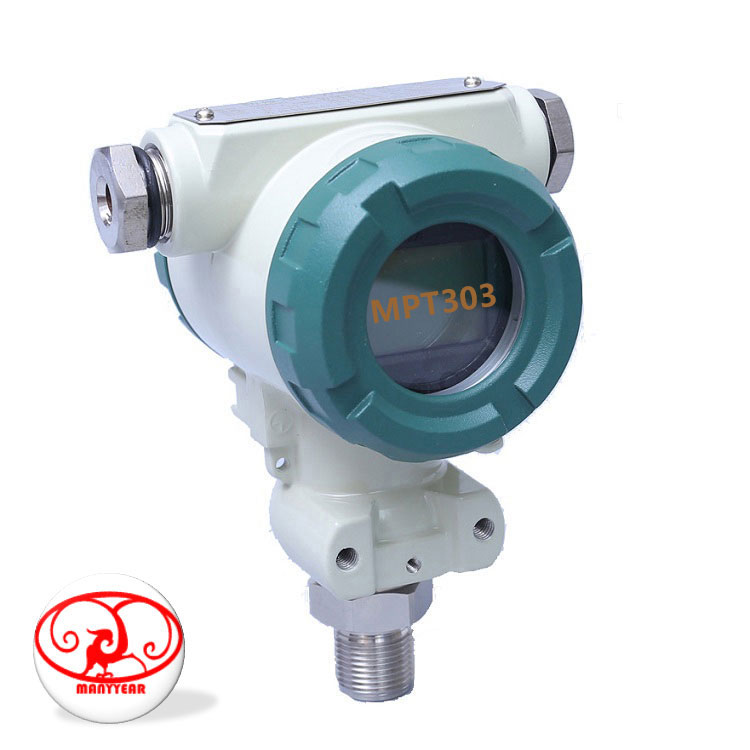

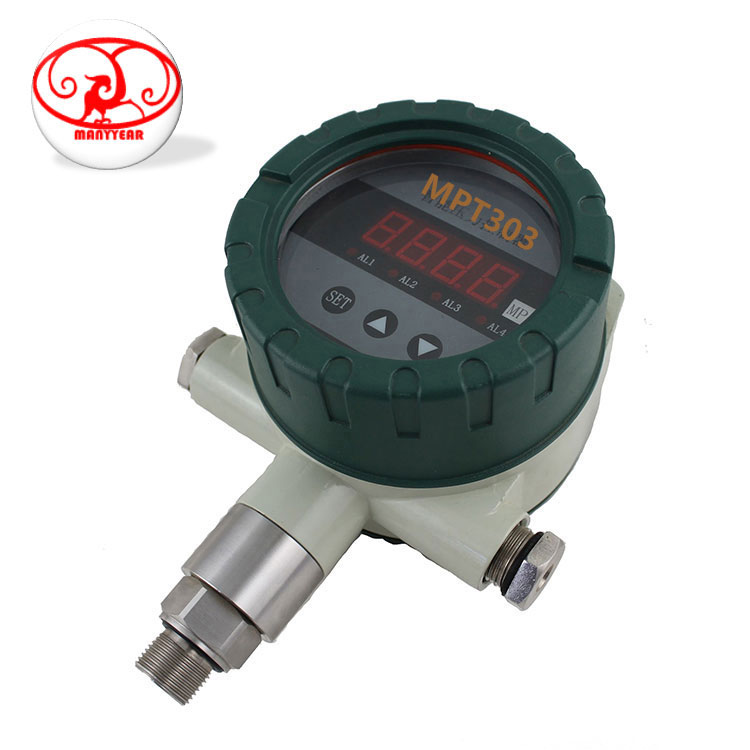

Product Picture Reference

MPT303 digital pressure switch-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT303 Automobile pressure sensor

Measurement Range-0.1...0~0.01...~100MPa
Proof pressure≤1.5X rated pressure
Pressure typeGauge, absolute ,sealed gauge
Accuracy±0.25%(typical)  ±0.5%(Max.)
Long stability±0.3%F.S/year
Temperature Error- Zero±0.03%F.S/℃(≤100KPa)   ±0.02%F.S/℃(>100KPa)
Temperature Error -Span±0.03%F.S/℃(≤100KPa)   ±0.02%F.S/℃(>100KPa)
OperatingTemperatureRange-20℃~80℃
Storage Temperature  Range-40℃~120℃
Power supply24VDC或220VAC
Output signalAnalog output :4~20mA;Digital output :RS485
Pressure portM20×1.5  G1/2 or customize
Relay control1~4 way relay control AC220V/3A
Life of contact pointMore than 100000 times
Display-1999~9999
Housing material1Cr18Ni9Ti stainless steel
Diaphragm material316L
O ringFluororubber
CablePolyethylene
Insulation resistance100MΩ  100VDC
ProtectionIP65

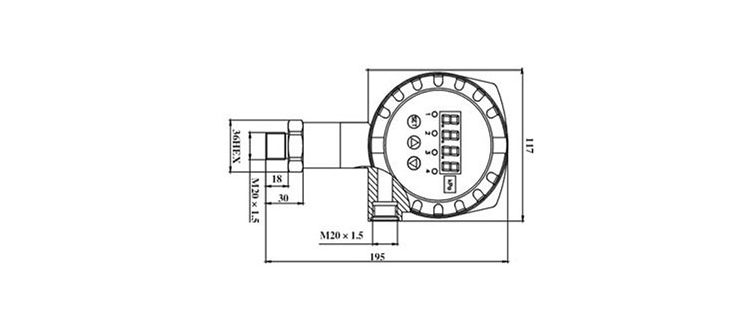

Product Dimension

MPT303 digital pressure switch-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT303 digital pressure switch-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT303 digital pressure switch-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT303 digital pressure switch-MANYYEAR TECHNOLOGY

app-Drinking water production

MPT303 digital pressure switch-MANYYEAR TECHNOLOGY

app-level-measurement

MPT303 digital pressure switch-MANYYEAR TECHNOLOGY

water pressure sensor for Building water supply
