MPT412 sea water level sensor

sea water level sensor, anti-corrosion level sensor, oil level sensor,polyethylene level sensor

Model: MPT412
Category: level sensor
Range: 0-200m H2O
temperature: ,-30~+120c
signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485
Application: sea water level sensor, anti-corrosion level sensor, oil level sensor,polyethylene level sensor


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

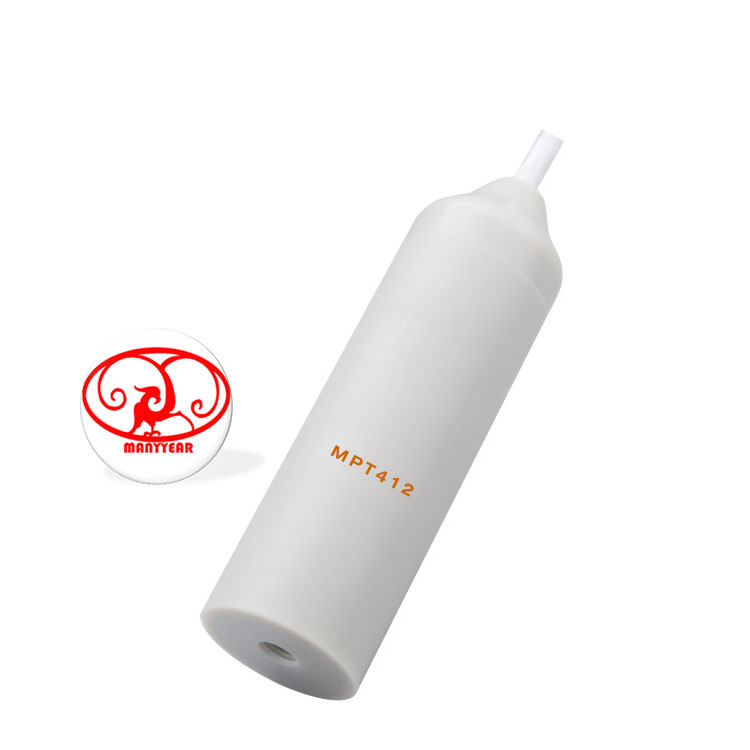

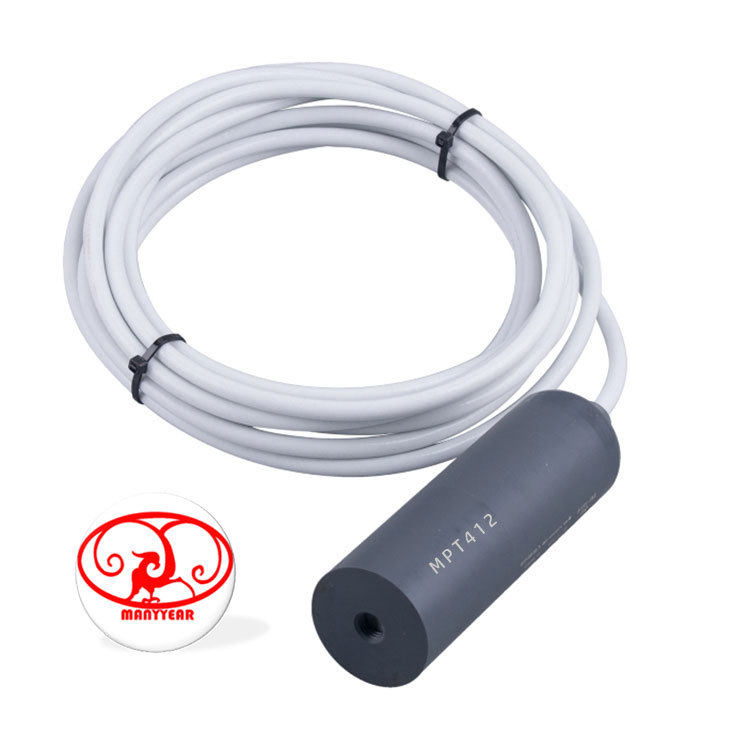

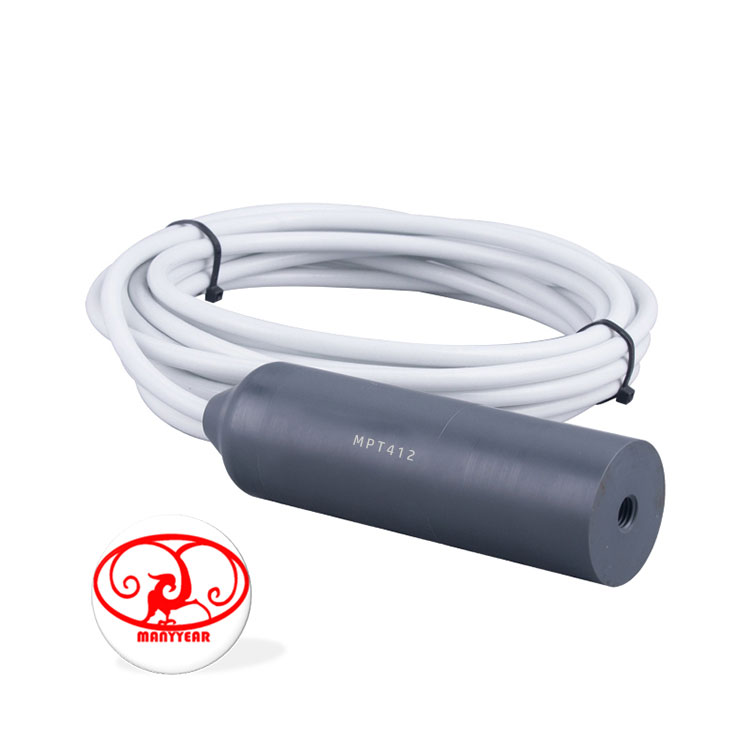

Product Picture Reference

MPT412 sea water level sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT412 ultra antisepsis liquid transmitter

Model:    MPT412

Category: level sensor

Range:    0-200m H2O

temperature:    ,-30~+120

signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485

Application:    sea water level, anti-corrosion level, oil level measure

Characteristic: sea water level sensor, anti-corrosion level sensor

reference picture

Ref pic

Technology parameter:
capability range0 ~0.5 ~5 …… 200 m
pressure typeGauge pressure, Absolutely pressure
signal output(mA/v)Pressure transducer: 0~5V; 0~10V; 4~20Ma.

Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V

Full load output(mV)30~60~120
Zero point output(mV)≤20
Precision0.1, 0.2, 0.3
sluggish repeat (nor-linearity)(%FS)≤0.1, ≤0.2, ≤0.3
excursion at zero point (%FS/4h)≤0.1, ≤0.2, ≤0.3
temperature excursion(zero & delicacy)(%FS/ºC)≤0.01, ≤0.02, ≤0.03
long term stability(%FS/year)≤±0.1;≤±0.3
execute voltage(VDC)24v (9~36v)
temperature compensate(ºC)0~+80
work temperature(ºC).-30~+120
Overload(%)300
life>1X108pressure cycle(25ºC)
load resistance (Ω)R=(U-12.5)/0.02-RD resistance
response time(ms)≤1
measure mediumcompatible with Fluorin4 ethane medium
Filmceramics
HouseFluorin4 ethane
connector threadSubmersible
explosion proof gradeNA
Dimension

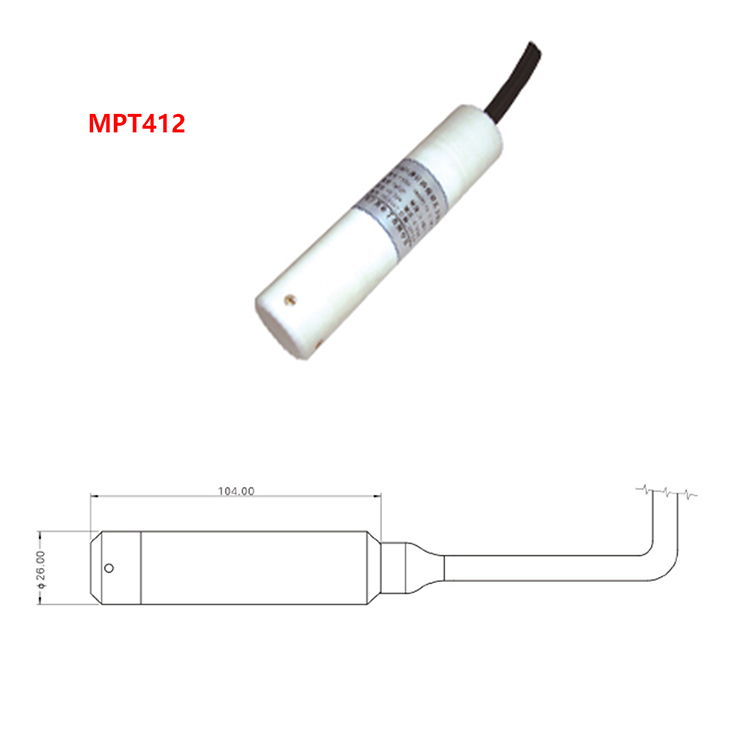

Product Dimension

MPT412 sea water level sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT412 sea water level sensor-MANYYEAR TECHNOLOGY

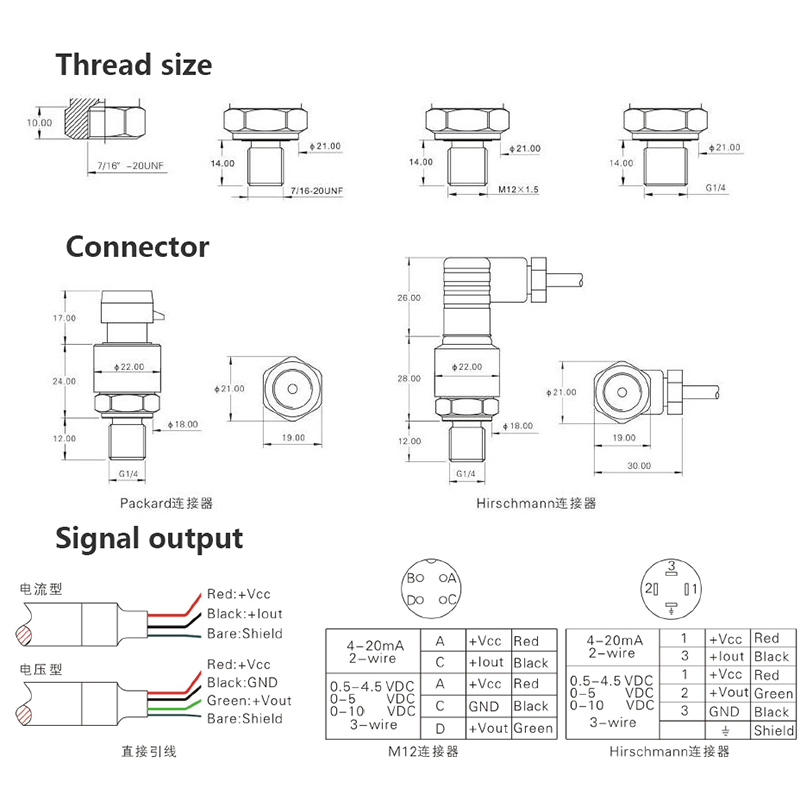

pressure sensor signal output







Product Application

MPT412 sea water level sensor-MANYYEAR TECHNOLOGYMPT412 sea water level sensor-MANYYEAR TECHNOLOGYMPT412 sea water level sensor-MANYYEAR TECHNOLOGY
