Model: MEP-ST
Catalog: pressure controller
Input signal: MV,DC,DA,R, J, K...
Output signal: 0-10vdc, 0-5vdc, 4-20mA, RS232/485.
Application: pressure controller, temperature controller, pressure indicator, force indicator
Apply to pressure controller, temperature controller, pressure indicator, force indicator. support to MV,DC,DA,R, J, K signal input and 0-10vdc, 0-5vdc, 4-20mA, RS232/485 signal output. |

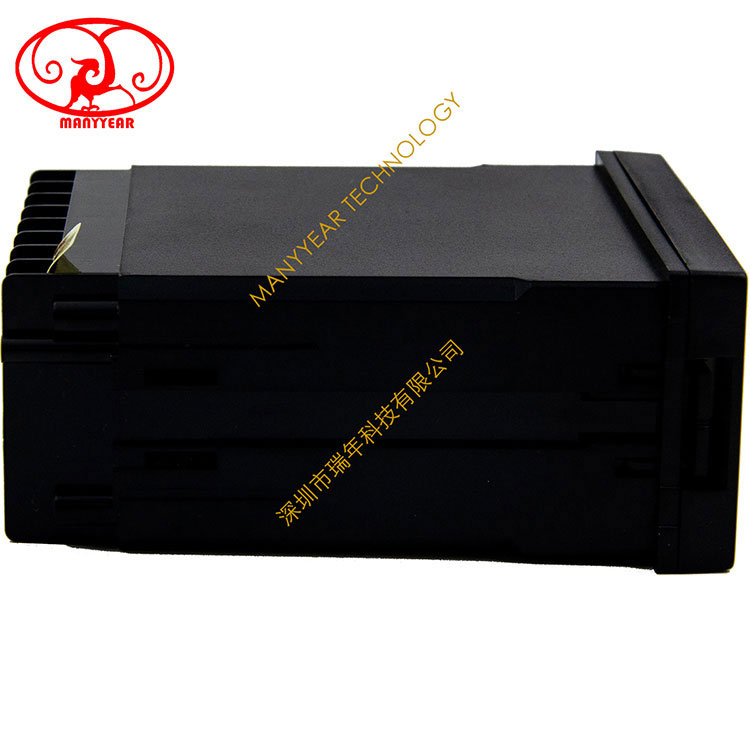

| REF PIC |
| 1:Dimensions （W×H×L） | A:160×80×125 or 80×160×125 |
| B:96×96×112 |
| C:96×48×112 or 48×96×112 |
| D:72×72×112 |
| E:318×104×300 Panel Mounted or Desktop Use |

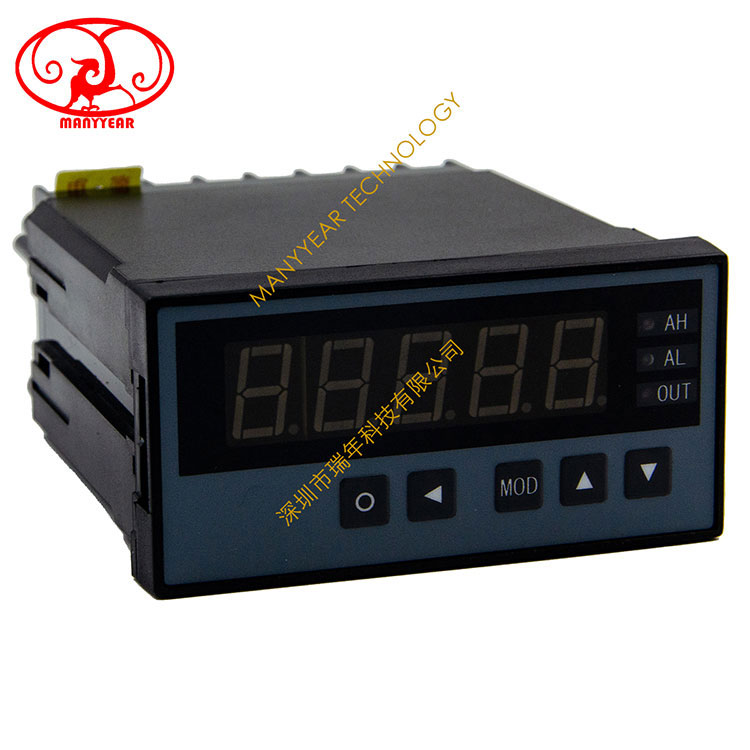

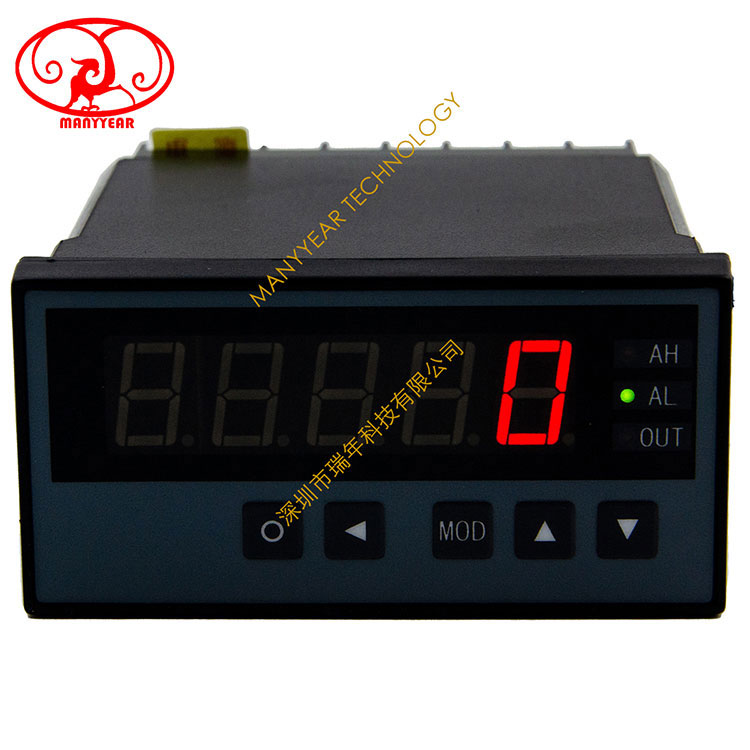

| 2:Faceplate Types | H:Horizontal Type |
| S:Vertical Type |

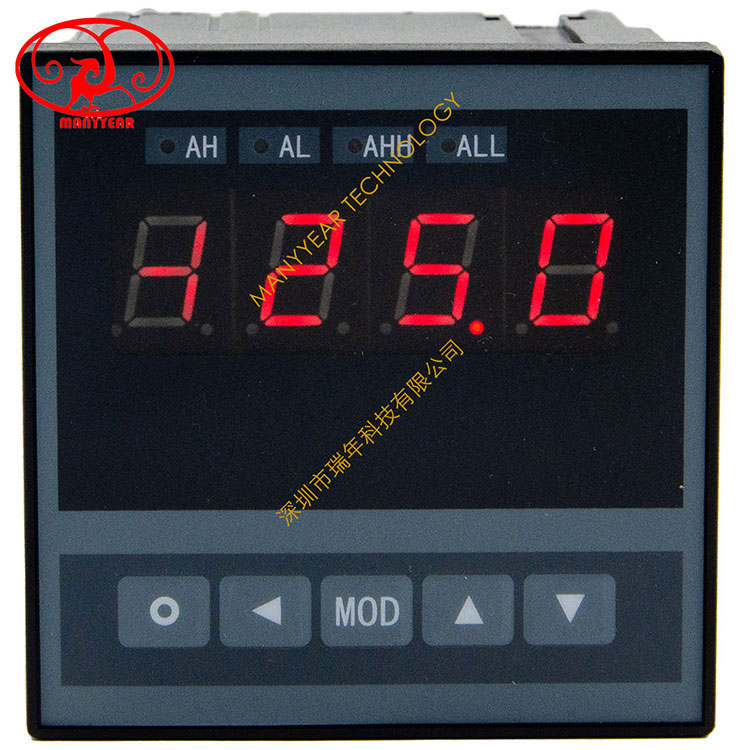

| F:Square Type |
| 3:Display Types: | 1:Measured Value（Green） |
| 2:Measured Value（Green）+ Set Value（Red） |
| 3:Measured Value（Green）+ Measured Value Light Bar（Green） |
| 4:Measured Value（Green）+ Measured Value Light Bar（Green）+Set Value Light Bar（Red） A-S Type only |
| 5:Measured Value（Green）+ Measured Value Light Bar（Green）+ Set Value（Red） A-S Type only |
| Y:LCD A-H Type & B Type only |
| The color of LED is selectable according to order requirements. |
| 4:Input Signal | E:Thermocouple or Radiation Thermometer |
| R:RTD or Resistance |
| I: DC Current |
| V:DC Voltage |
| M:mV |
| W:Potentiometer |
| L:Pressure Gauges with Resistance Transmitter |
| 5:The Number of Alarm Outputs | T0:No Alarm |
| T1~T8:1~8 Alarm Outputs |
| C type limit: 3- Alarm Outputs |
| D type limit: 2- Alarm Outputs |
| B type limit: 4- Alarm Outputs |
| A type: when exceeding 4-points , 250mm in length |
| 6:Re-Transmitted Output | A0:No Output |
| A1:DC Current Output（4 mA ~20 mA）,（0 mA ~10 mA）or（0 mA ~20 mA） |
| A2:DC Voltage Output（0 V ~5 V）, （1 V ~5 V） |
| A3:DC Voltage Output（0 V ~10 V） |
| A4:Other Outputs |
| 7:Power Supply Output | B0:No |
| B1:24V DC |
| B2:12V DC |
| B3:Precise Constant Voltage Source |
| B4:Precise Constant Current Source |
| B5:Others |
| 8:Communication Interface | S0:No |
| S1:RS 232 |
| S2:RS 485 |
| S3:RS 422 |
| S4:BCD code（A, B type only） |
| 9:Power Supply | V0:220V AC |
| V1:24V DC |
| V2:12V DC |
| V3:Others |
| 10:Print Function: | P(Print)，N/A (without P) （A, B type only） |
| 11:Recording Unit: | R(Recording Unit)，N/A (without R) （A, B type only） |
| 12:N(Non-standard): | Order requirements. |
