MPT304 smart pressure switch MPT304 smart pressure switch
MPT304 smart pressure switch

MPT304 smart pressure switch

Pressure Sensor Pressure Switch 1549 0

digital pressure switch, smart pressure switch,water pressure switch, air pressure switch, oil pressure switch

Model MPT304
Category: Pressure switch
Range: ,-1bar-0-1000bar
Temperature: ,-20 to 80c;
Analog output: 0-5vdc, 4-20mA,RS485
Control output: 1~4CH Relay/24VDC或220vac
Application: digital pressure switch, smart pressure switch,water pressure switch, air pressure switch, oil pressure switch


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

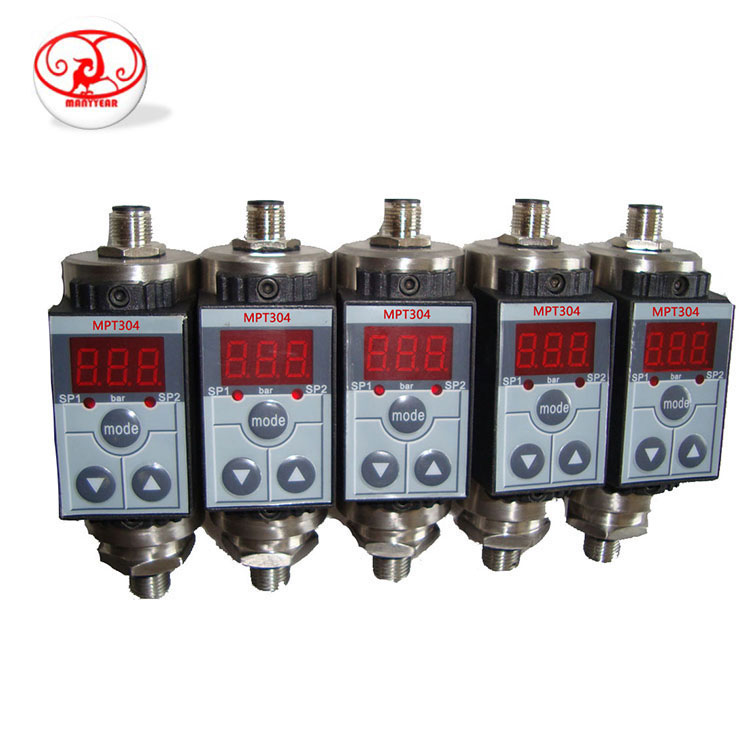

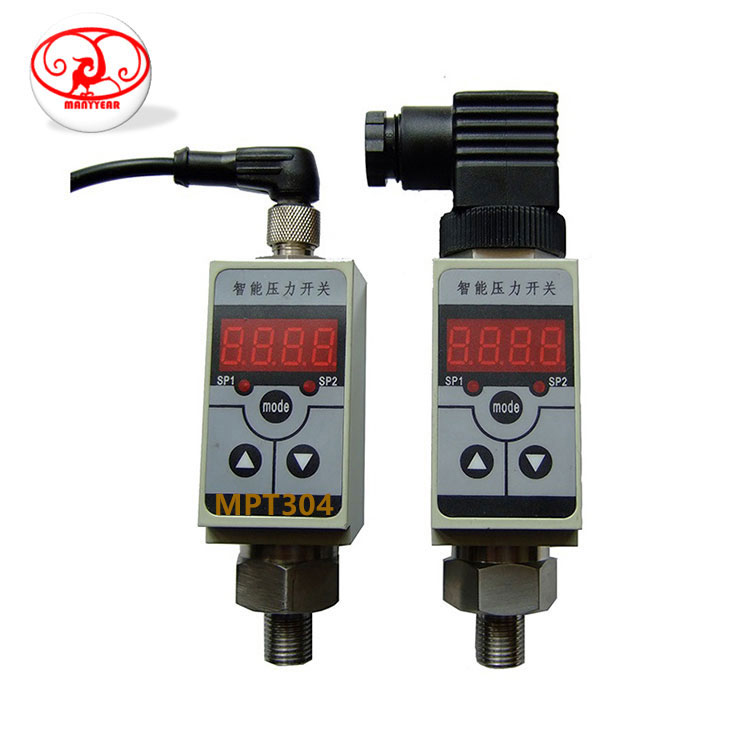

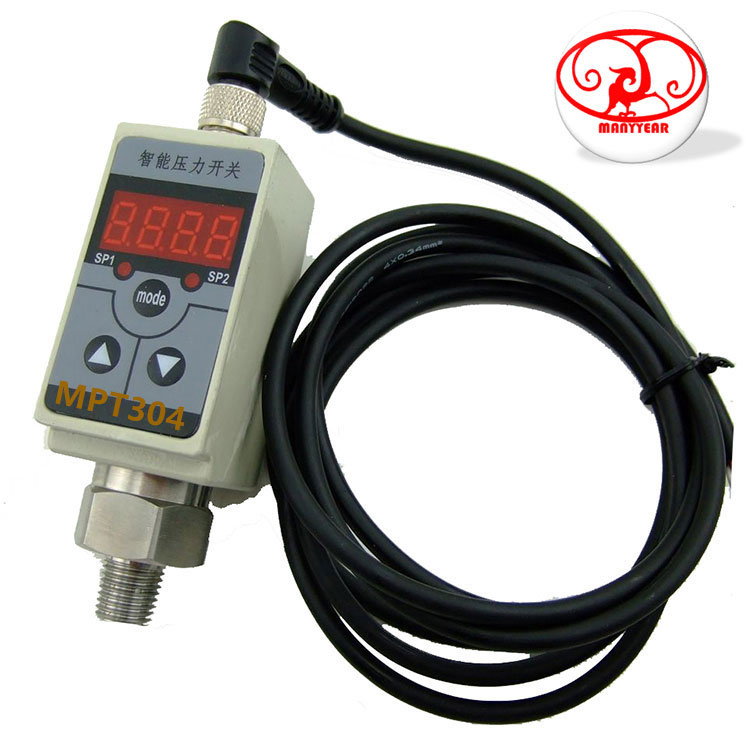

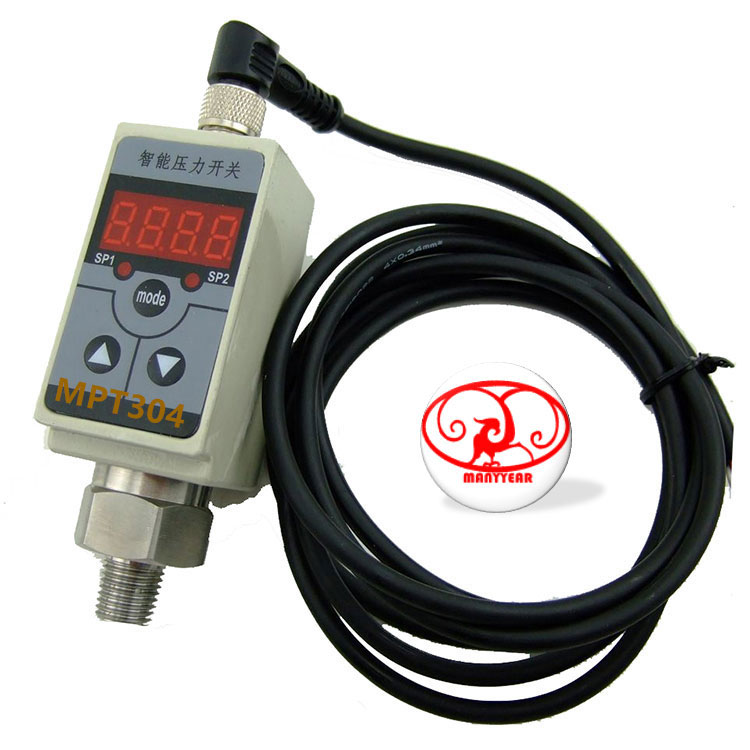

Product Picture Reference

MPT304 smart pressure switch-MANYYEAR TECHNOLOGY

MPT304 smart pressure switch

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT304 Digital Pressure Switch MPT304

Measurement Range-0.1...0~0.01...~100MPa
Proof pressure≤1.5X rated pressure
Pressure typeGauge, absolute ,sealed gauge
Accuracy±0.25%(typical)  ±0.5%(Max.)
Long stability±0.3%F.S/year
Temperature Error- Zero±0.03%F.S/℃(≤100KPa)   ±0.02%F.S/℃(>100KPa)
Temperature Error -Span±0.03%F.S/℃(≤100KPa)   ±0.02%F.S/℃(>100KPa)
OperatingTemperatureRange-20℃~80℃
Storage Temperature  Range-40℃~120℃
Power supply24VDC或220VAC
Output signalAnalog output :4~20mA;Digital output :RS485
Pressure portM20×1.5  G1/2 or customize
Relay control1~2 way relay control or electron switch value control
Life of contact pointMore than 100000 times
Display-1999~9999
Housing material1Cr18Ni9Ti stainless steel
Diaphragm material316L
O ringFluororubber
CablePolyethylene
Insulation resistance100MΩ  100VDC
ProtectionIP65

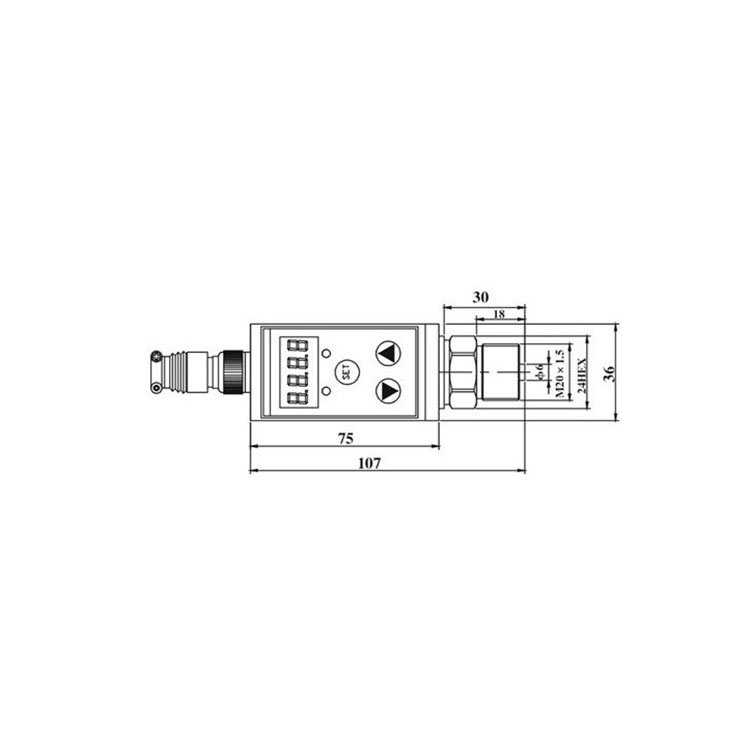

Product Dimension

MPT304 smart pressure switch-MANYYEAR TECHNOLOGY

MPT304 smart pressure switch

Force Structure & Assembly Reference

MPT304 smart pressure switch-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT304 smart pressure switch-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT304 smart pressure switch-MANYYEAR TECHNOLOGY

app-Drinking water production

MPT304 smart pressure switch-MANYYEAR TECHNOLOGY

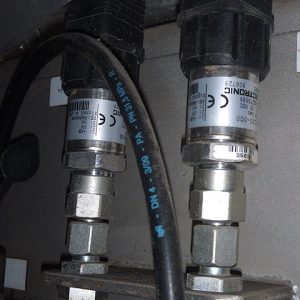

water pressure sensor

MPT304 smart pressure switch-MANYYEAR TECHNOLOGY

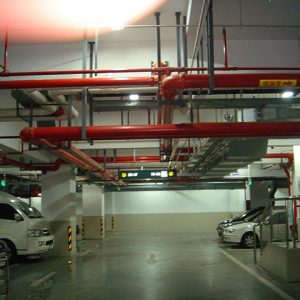

water pressure sensor for Building water supply
