MPT301 pressure switch MPT301 pressure switch
MPT301 pressure switch
MPT301 pressure switch-MANYYEAR TECHNOLOGY
MPT301 pressure switch-MANYYEAR TECHNOLOGY

MPT301 pressure switch

Pressure Sensor Pressure Switch 2719 0

pressure switch, air pressure control, oil pressure control,pressure control

Model: MPT301
Category:common pressure switch
Range:0-1000bar
temperature:-40~120c
signal output:relay
Application: pressure switch, air pressure control, oil pressure control,pressure control


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

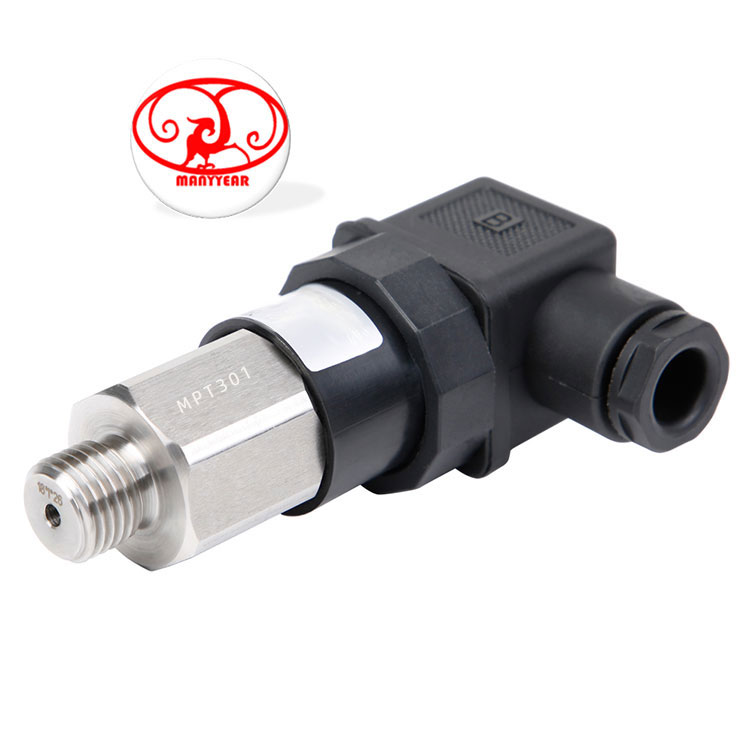

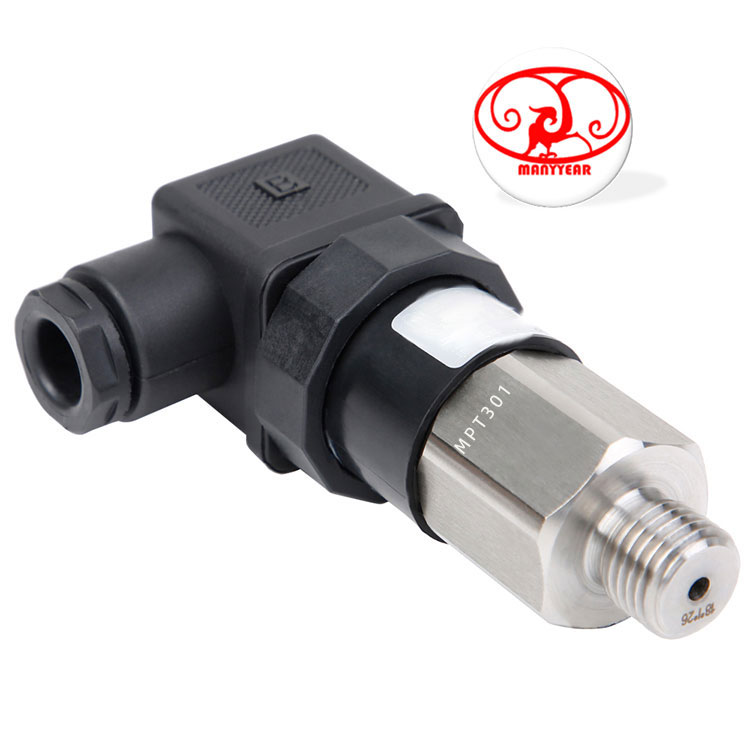

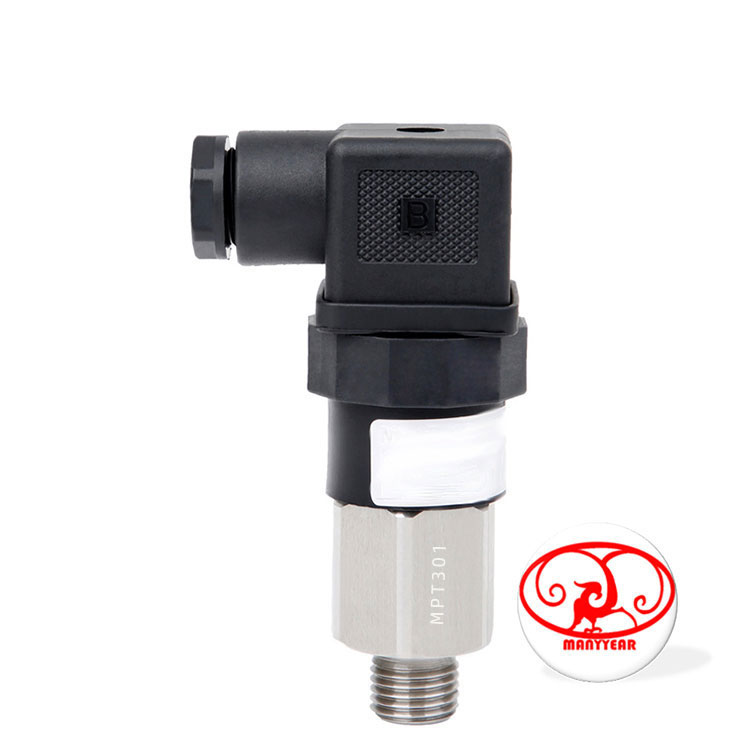

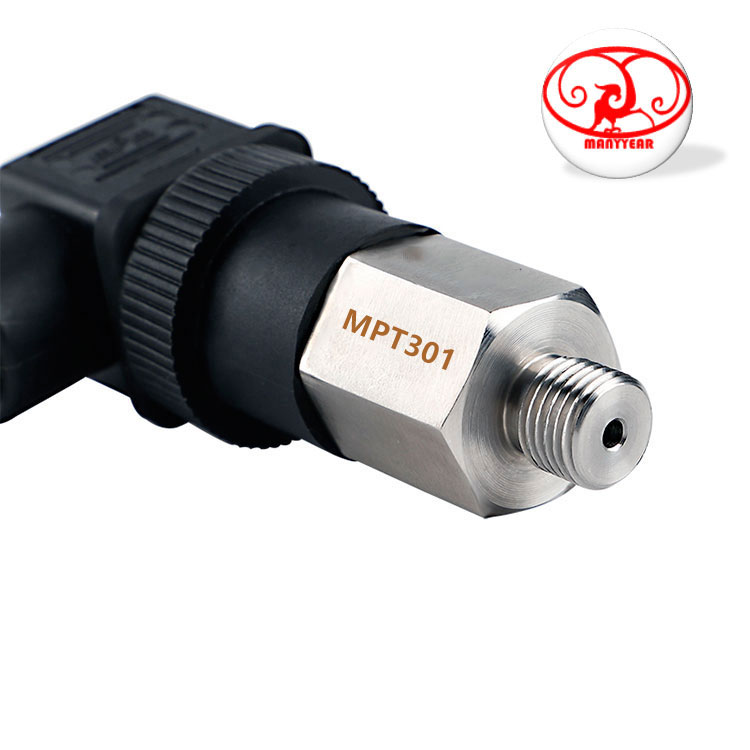

Product Picture Reference

MPT301 pressure switch-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT301 common pressure switch

Measurement Range-0.1...0~0.01...~100MPa
Proof pressure≤1.5X rated pressure
Pressure typeGauge, absolute ,sealed gauge
Accuracy≤0.5%
Long stability±0.3%F.S/year
Operating Temperature Range-20℃~80℃
Storage Temperature  Range-40℃~120℃
Power supply24VDC
OutputOne-way switching value output:relay AC220V/1.2A  DC30V/1.2A
Pressure portM20×1.5 G1/2 customize
Housing material1Cr18Ni9Ti stainless steel
Diaphragm material316L
O ringFluoro rubber
CablePolyethylene
Insulation resistance100MΩ  100VDC

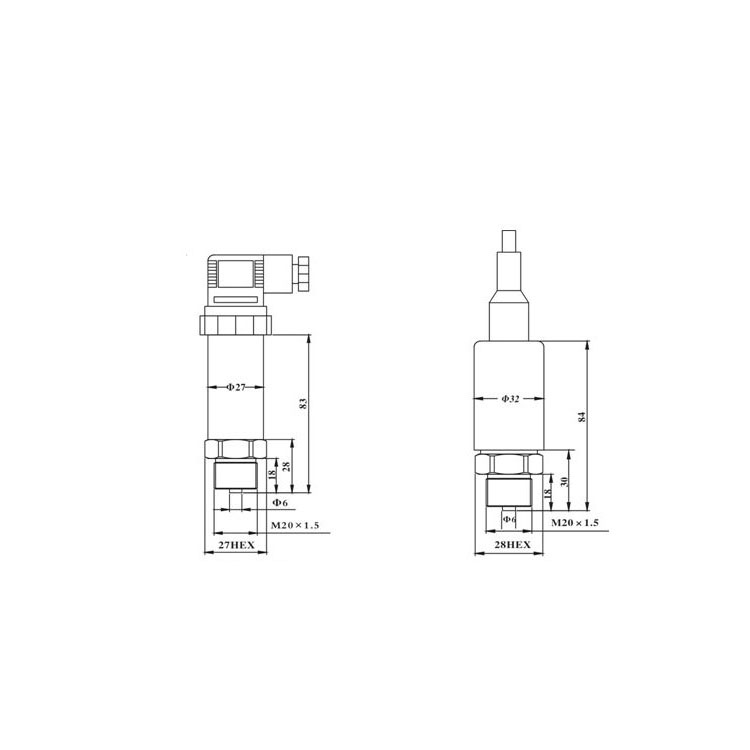

Product Dimension

MPT301 pressure switch-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT301 pressure switch-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT301 pressure switch-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT301 pressure switch-MANYYEAR TECHNOLOGY

app-Drinking water production

MPT301 pressure switch-MANYYEAR TECHNOLOGY

water pressure sensor

MPT301 pressure switch-MANYYEAR TECHNOLOGY

water pressure sensor for Building water supply
