MPT201 gauge pressure sensor

2023/04/19 Pressure Sensor Common Pressure Sensor 1507 0

air pressure sensor, gauge pressure sensor, absolute pressure sensor

Model: MPT201
Category:common pressure sensor
Range:0-2000bar
temperature:-20~80c
signal output:mv/v, 0-5vdc,4-20mA,Hart,Rs485
Application:air pressure sensor, water pressure sensor, liquid pressure sensor,oil pressure sensor, gauge pressure sensor, absolute pressure sensor.

This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

Product Introduction Technical Documents

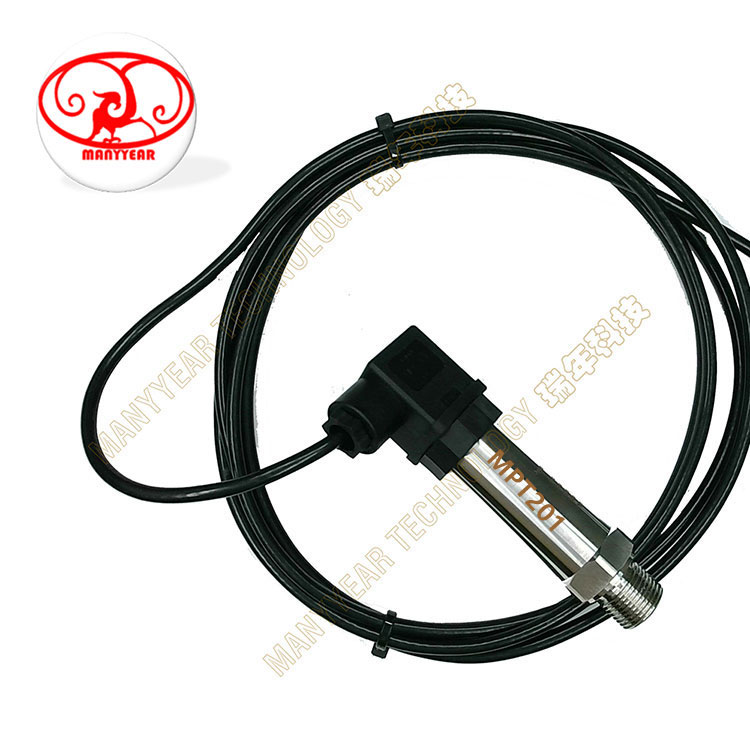

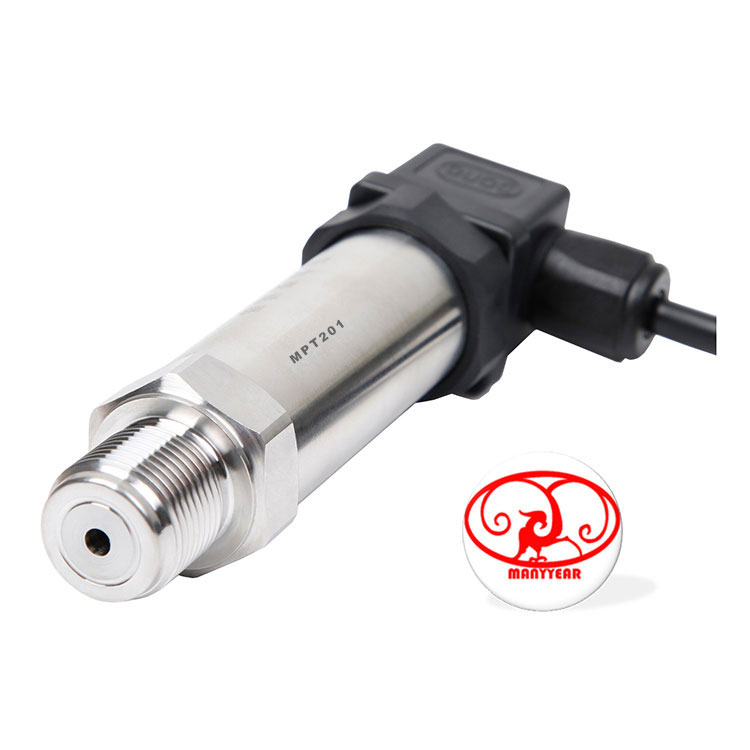

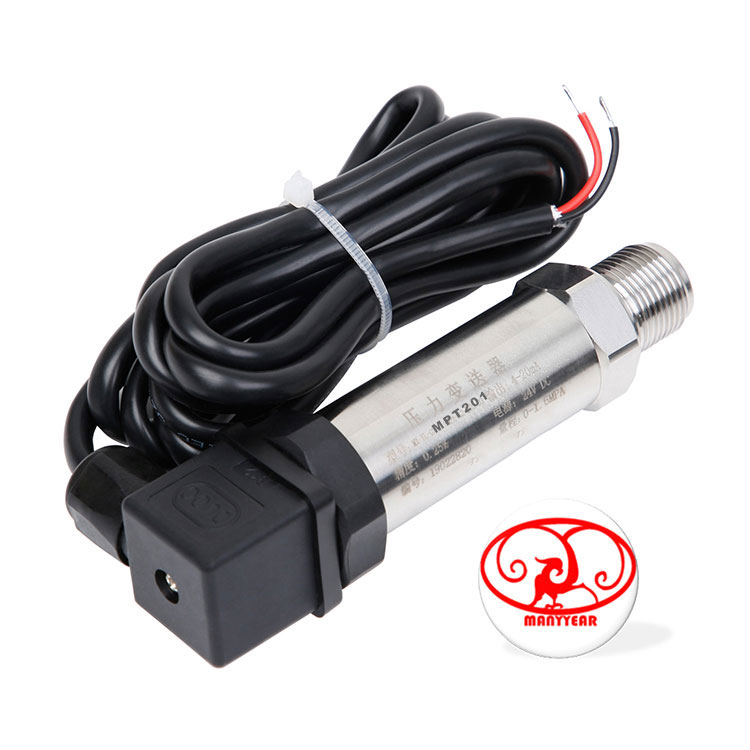

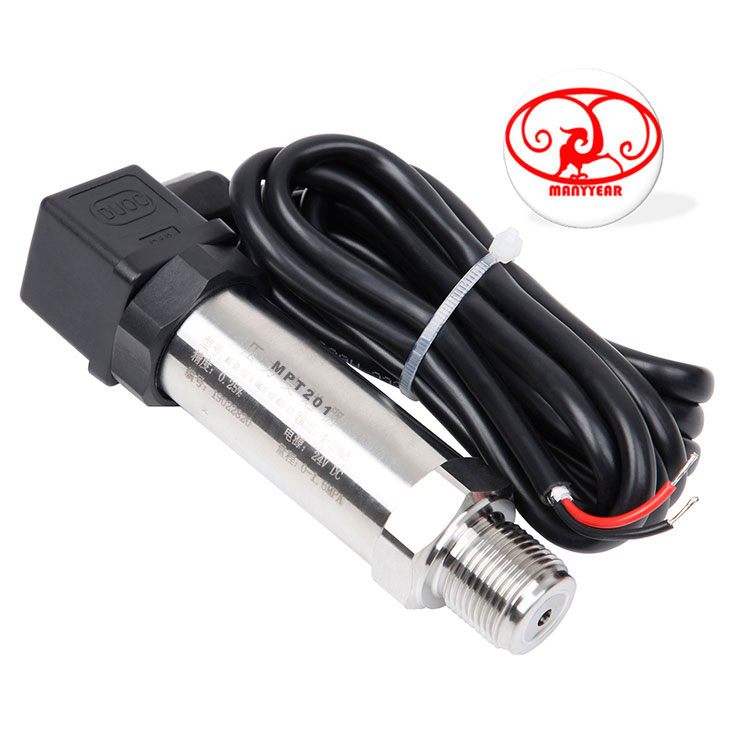

Product Picture Reference

MPT201 gauge pressure sensor

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MPT201A aire pressure sensor

Model: MPT201A Category: common pressure sensor Range: 0-2000bar temperature: .-20~80c signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485 Application: water pressure, oil pressure, air pressure measure, hydraulic pressure measure Characteristic: water pressure sensor,oil pressure sensor, air pressure sensor
reference picture
Technology parameter:
capability range	-1Bar-0-0.1Bar～10Bar～2000Bar(Optional)
pressure type	Gauge pressure, Absolute pressure（vacuum pressure）, negative pressure
signal output（mA/v）	0-5V;0-10V;0.5-4.5V;4~20mA.mv/v
Precision（%FS）	≤0.1/0.25/0.5%FS
sluggish repeat (nor-linearity)（%FS）	≤0.1～≤0.2
excursion at zero point（%FS/4h）	≤0.1～≤0.2
temperature excursion	≤0.01～≤0.02
long term stability（%FS/year）	≤0.1～≤0.3
execute voltage （V）	24VDC (9~36V)- For 4-20mA and 0-10V; 5VDC-For 0.5-4.5V; 12VDC-For 0-5V; 0-10V
temperature compensate （℃）	-20～＋60
environment temperature （℃）	-20～＋85
Medium temperature（℃）	-20～125
Overload （%）	150
load resistance （Ω）	R=（U-12.5）/0.02-RD U=POWER SUPPLY，RD=Wire resistance
response time（ms）	≤1
Measure medium	Oil, gas, water and so on
House	1Cr18Ni9Ti or 316SSL
Connect thread	M20×1.5,1/8NPT,1/2NPT or order by customer
explosion proof grade	EXIICT6/4 OPTION
water proof grade	IP65/66/67/68

Product Dimension

Force Structure & Assembly Reference

pressure sensor signal output

Product Application

app-Drinking water production

APP-Water pressure measurement

app-building-water-supply
