MPT124-111 high temperature melt pressure sensor MPT124-111 high temperature melt pressure sensor
MPT124-111 high temperature melt pressure sensor

MPT124-111 high temperature melt pressure sensor

high temperature melt pressure sensor, compression moulding machine pressure sensor,Plastic Extruder equipment pressure sensor, plastic injection molding pressure sensor

Model: MPT124-111
Category: Melt pressure sensor
Range: 0-2000bar
temperature: 0-450c
Signal output: mv/v, 0-5vdc, 0-10vdc, 4-20mA
Application: high temperature melt pressure sensor, compression moulding machine pressure sensor,Plastic Extruder equipment pressure sensor, plastic injection molding pressure sensor



Product selection reference

Sales Online

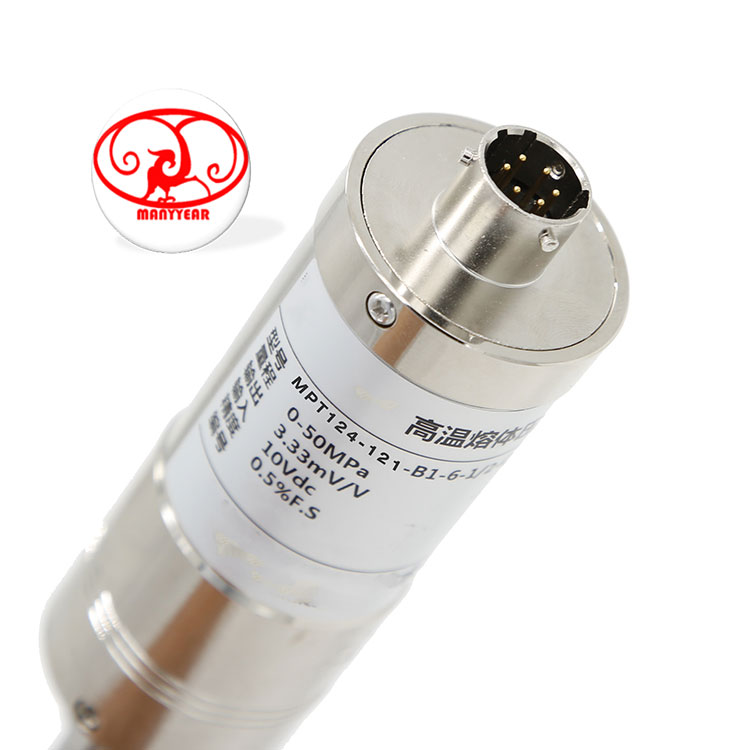

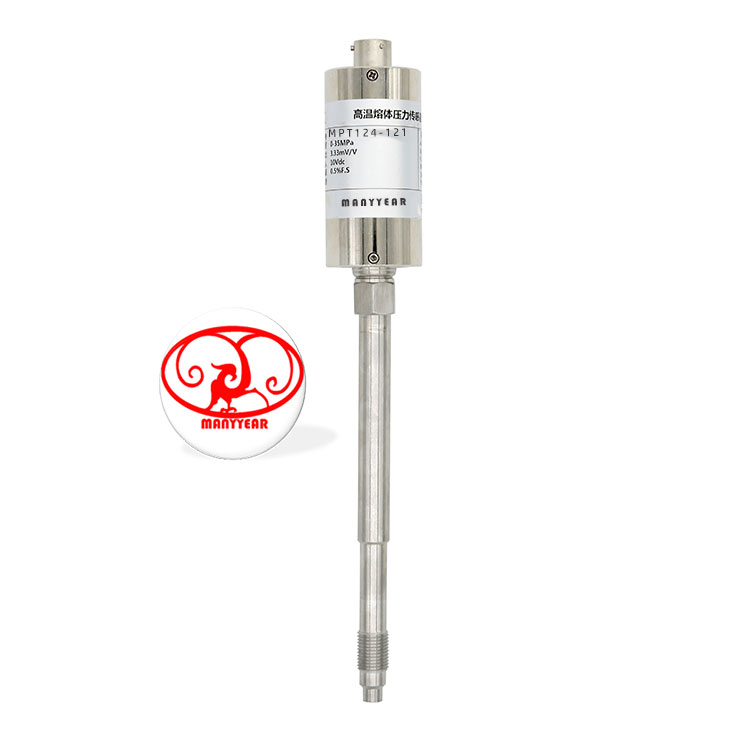

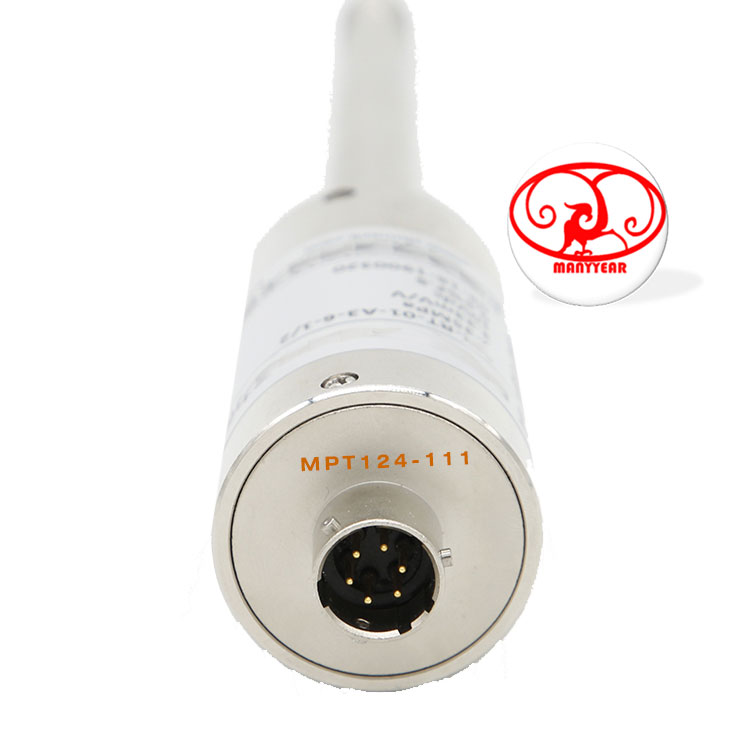

Product Picture Reference

MPT124-111 high temperature melt pressure sensor-MANYYEAR TECHNOLOGY

MPT124-111 high temperature melt pressure sensor

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT124-111 250c melt pressure sensor for plastic Extruder equipment

Model:  MPT124-111
Category:   Melt pressure sensor
Range: 0-2000bar
Dimension: ¢38*L mm
Material:    316L
Application: compression molding machine, Plastic Extruder equipment, plastic injection molding
Characteristic:  compression molding machine melt pressure sensor, Plastic Extruder equipment melt pressure sensor,
plastic injection molding melt pressure sensor
REF PIC
SPEC
Capability range:
0~5MPa~200MPa(Option )
Signal output:
Pressure transducer: 0~5V, 0~10V, 4~20Ma. Pressure Transducer: 2mV/V
Precision:
±0.5%FSO
Power supply:
Pressure transducer:24VDC (12~36)VDC, Pressure Transducer: 10VDC
Repetition:
±0.2%FSO
Electronic frame:
FST bridge
Bridge resistance:
350 ohms±10%
Thermocouple type
NA
Overload pressure:
2*FSO
Self-adjust:
80%±1%
Insulated resistance:
1000Megohms @50Vdc
Film max temperature:
400C
Electra-connector:
5Core pluger,Or order by customer
Port connector:
1/2″-20UNF, M14*1.5Or Design by customer
Material:
15-5PH stainless steel, coated
Zero drift by melt temp.:
<45psi/100℃
Ambient temp. of shell:
form -29℃ to 71℃
Temp. comp range:
form -1℃ to 71℃
Temp.effect on zero
<± 0.10% full scale/℃
Temp.effect on span
<±0.04% full scale/℃
Installation torque:
5n.m


AIR CONNECTOR



HSM CONNECTOR



Product Dimension

MPT124-111 high temperature melt pressure sensor-MANYYEAR TECHNOLOGY

MPT124-111 high temperature melt pressure sensor

Force Structure & Assembly Reference

MPT124-111 high temperature melt pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT124-111 high temperature melt pressure sensor-MANYYEAR TECHNOLOGY

High and low temperature test chamber

MPT124-111 high temperature melt pressure sensor-MANYYEAR TECHNOLOGY

Plastic ejector pressure transmitter

MPT124-111 high temperature melt pressure sensor-MANYYEAR TECHNOLOGY

injection molding machine pressure sensor
