MPT124-211 high temperature pressure gauge MPT124-211 high temperature pressure gauge
MPT124-211 high temperature pressure gauge
MPT124-211 high temperature pressure gauge-MANYYEAR TECHNOLOGY
MPT124-211 high temperature pressure gauge-MANYYEAR TECHNOLOGY
MPT124-211 high temperature pressure gauge-MANYYEAR TECHNOLOGY
MPT124-211 high temperature pressure gauge-MANYYEAR TECHNOLOGY
MPT124-211 high temperature pressure gauge-MANYYEAR TECHNOLOGY

MPT124-211 high temperature pressure gauge

high temperature pressure gauge,compression moulding machine pressure gauge,plastic injection molding pressure gauge

Model: MPT124-211
Category: Melt pressure gauge
Range: 0-160bar
temperature: 0-250c
Signal output: mv/v, 0-5vdc, 0-10vdc, 4-20mA
Application: high temperature pressure gauge,compression moulding machine pressure gauge,plastic injection molding pressure gauge


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

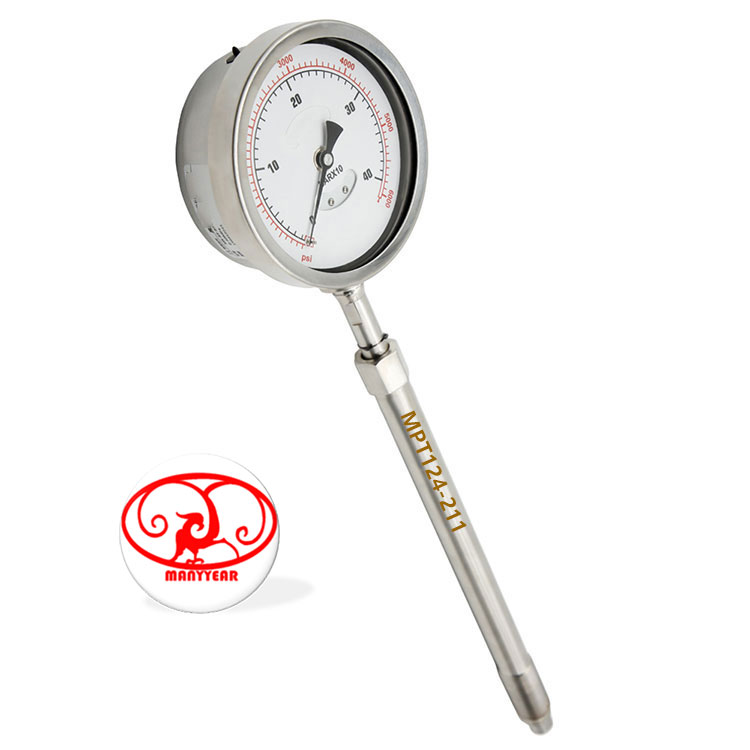

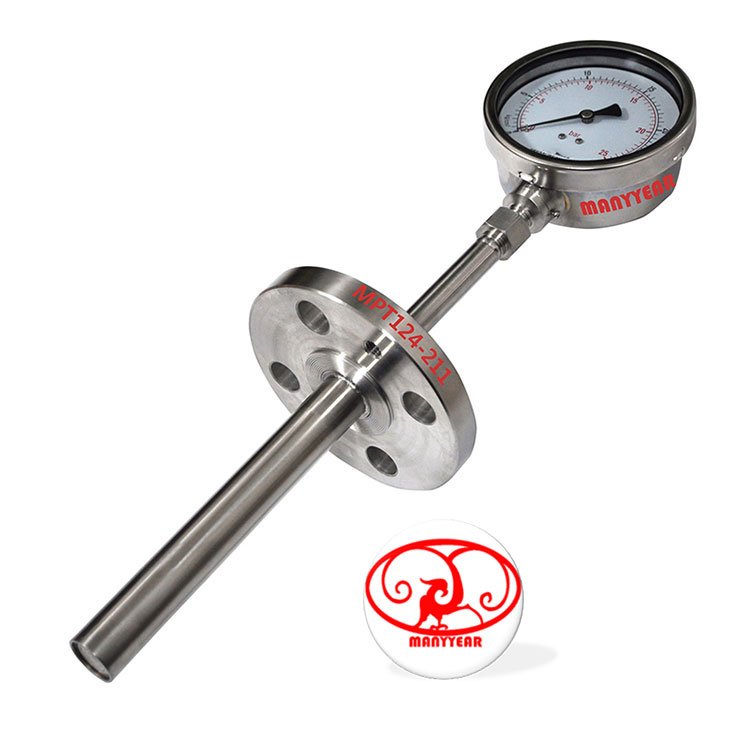

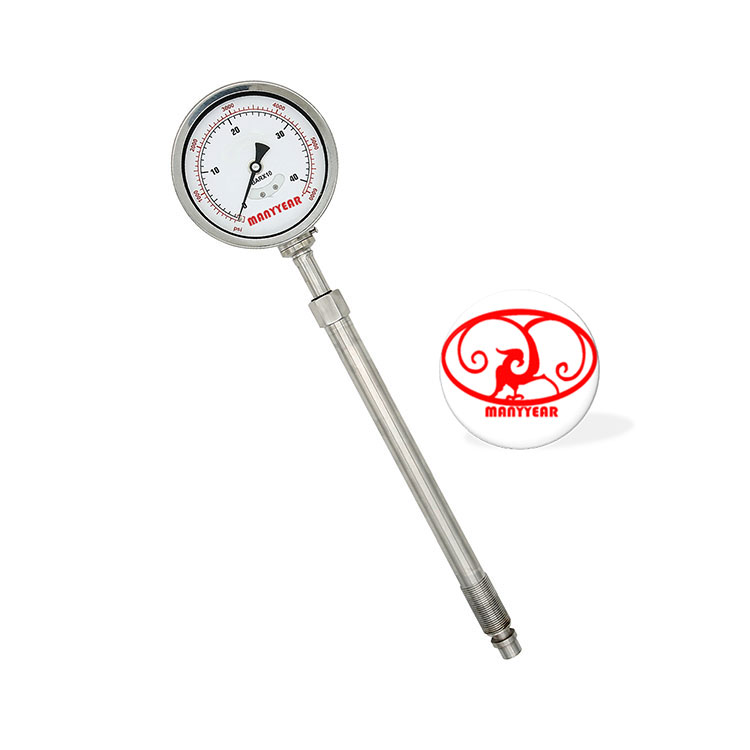

Product Picture Reference

MPT124-211 high temperature pressure gauge-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT124-211(Indication meter -Vertical tube)

Model:    MPT124-211

Category: Melt pressure gauge

Range:    0-150bar-700bar-1500bar

temperature: 0-250-400c

Application:  Plastic Extruder equipment, plastic injection molding

Characteristic: melt pressure meter, melt pressure gauge

pic
SPEC
Capability range:0-150bar-350bar-700bar-1500bar
Precision:±1.5%FS
Zero point adjust:±6%FS
Overload pressure:1.5*FS
Film temperature:750℉(400ºC)
Thermocouple type:PT100; K; E; J
Housing :Stainless steel and Safety glass
Port connector:1/2″-20UNF, M18*1.5( Especial )
Connector6 Core Plug or Hirschman connector
Signal output2.2mv/v 3.33mV/V, 4-20mA, 0-10V, 0-5V
MPT124-211



M[T124-212



MPT124-213

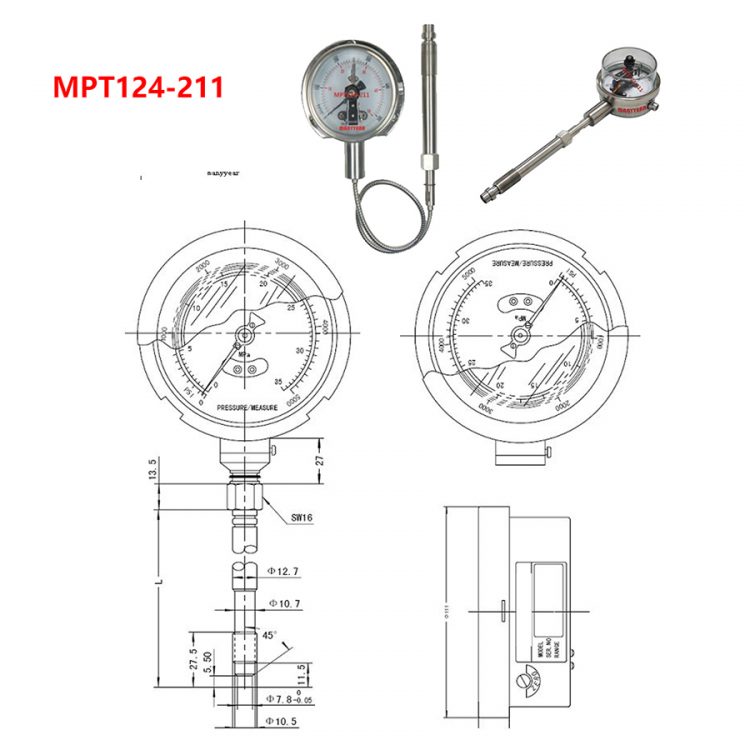

Product Dimension

MPT124-211 high temperature pressure gauge-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT124-211 high temperature pressure gauge-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT124-211 high temperature pressure gauge-MANYYEAR TECHNOLOGY

High and low temperature test chamber

MPT124-211 high temperature pressure gauge-MANYYEAR TECHNOLOGY

Plastic ejector pressure transmitter

MPT124-211 high temperature pressure gauge-MANYYEAR TECHNOLOGY

injection molding machine pressure sensor
