MPT202HT Water-cooled high temperature pressure sensor

Boiler pressure sensor,engine pressure sensor,high temperature pressure sensor

Model: MPT202HT
Category: common pressure sensor
Range: 0-2000bar
temperature: 0~200c-1200c
signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485
Application: Boiler pressure sensor,engine pressure sensor,high temperature pressure sensor.


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

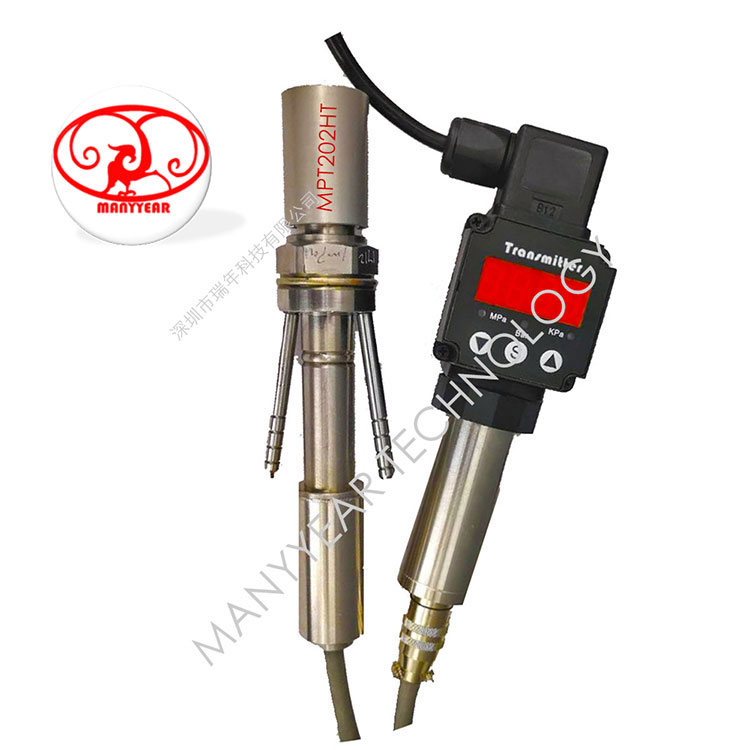

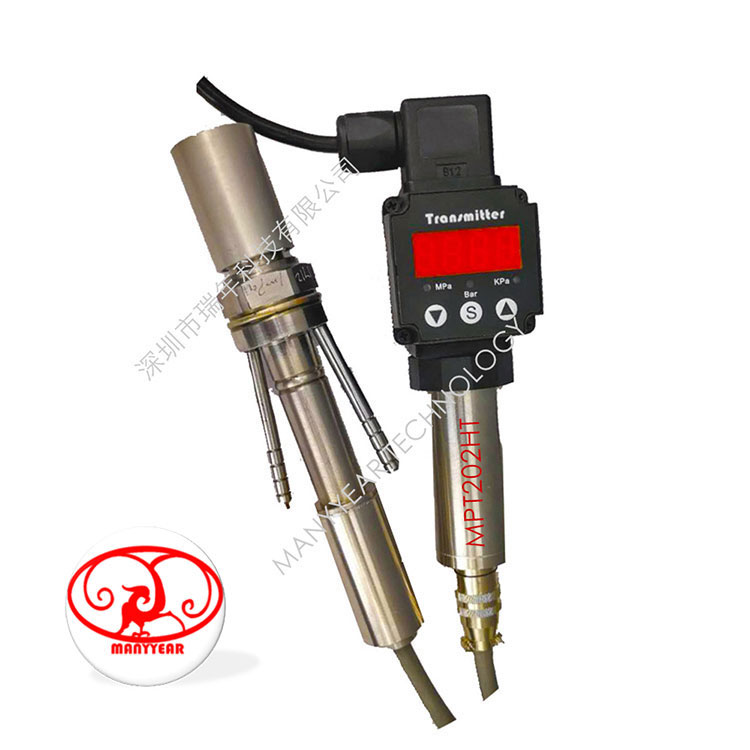

Product Picture Reference



MPT202HT Water-cooled high temperature pressure sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT202HT Ultra High Temperature Pressure Transducer

Model:       MPT202HT

Category:  common pressure sensor

Range:       0-2000bar

temperature:      0~200c-1200c-1600c

signal output:    mv/v, 0-5vdc,4-20mA,Hart,Rs485

Application:       oil pressure measure, air pressure measure, ualt high temperature pressure measure

Characteristic:    ultra high temperature pressure sensor, 1000c  pressure sensor

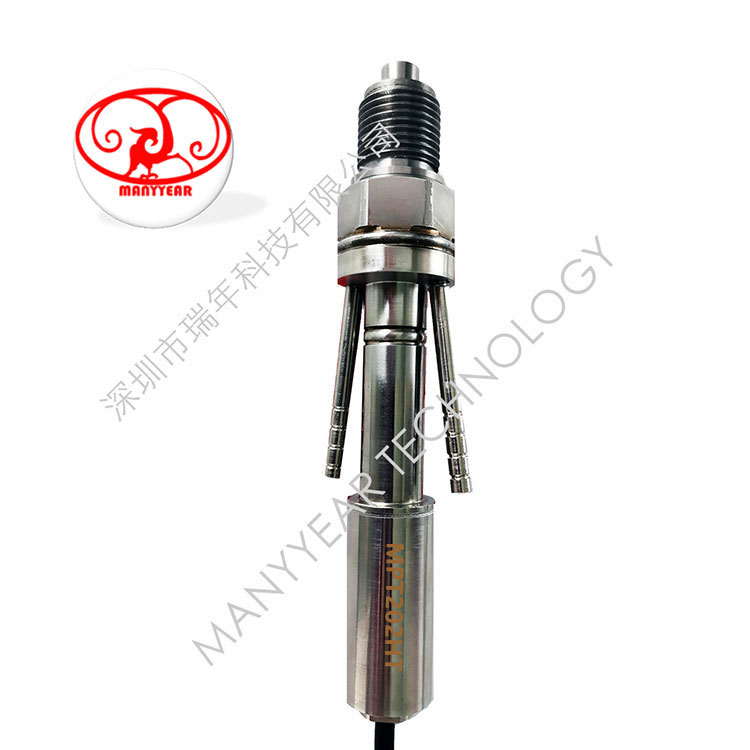

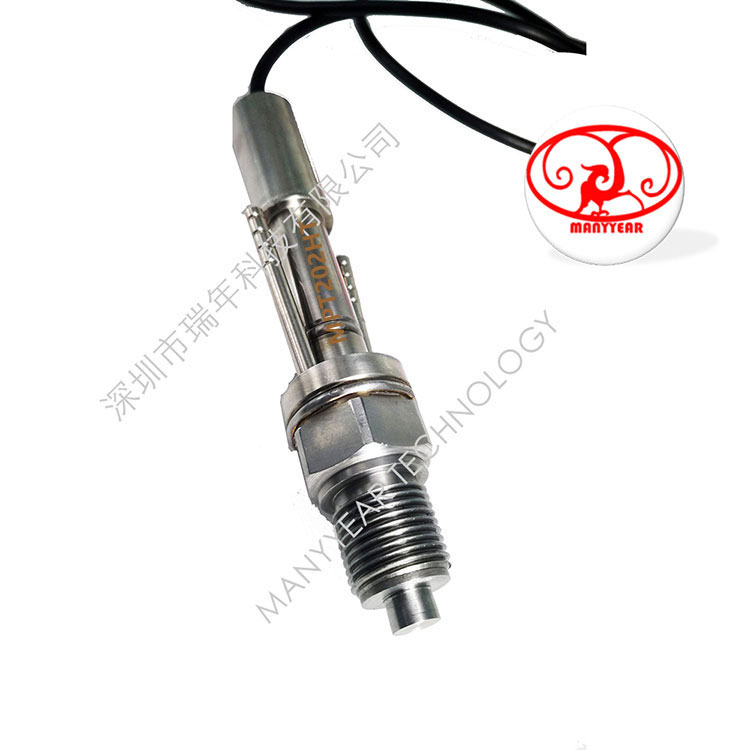

reference picture

Diameter:26mm

Technology parameter:
capability range0-10Bar~2000Bar(Optional)
pressure typeGauge pressure, Absolute pressure(vacuum pressure)
signal output1.5mv or 2.0mv/v,3.3mv, 0-5vdc, 0-10vdc, 4-20mA
Precision(%FS)0.5%FS
sluggish repeat (nor-linearity)(%FS) ≤0.1~≤0.2
excursion at zero point(%FS/4h)≤0.1~≤0.2
temperature excursion(zero & delicacy)(%FS/℃)≤0.01~≤0.02
long term stability(%FS/year)≤0.1~≤0.3
execute voltage (V)6-12vdc (12VDC)
temperature compensate (℃)0~150
environment temperature (℃)-20~+85 Celsius
Medium temperature(℃)0~200-400-800-1000-1200 Celsius
Overload (%)150
load resistance (Ω)R=(U-12.5)/0.02-RD     U=POWER SUPPLY,RD=Wire resistance
response time(ms)≤1
Measure mediumOil, gas, water and so on
House1Cr18Ni9Ti  or  316SSL
Connect threadM22×1.5, or by customer.
explosion proof gradeNA
water proof gradeIP67

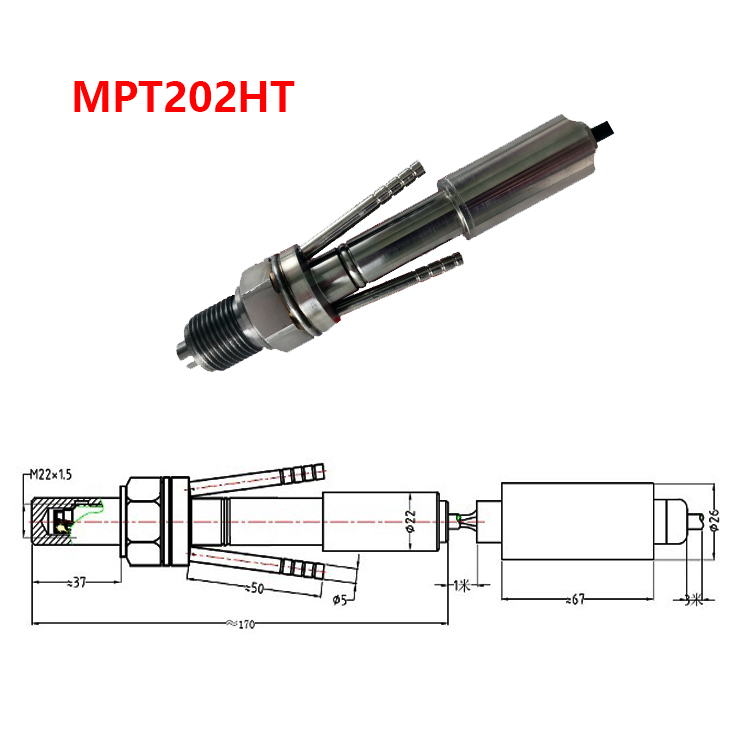

Product Dimension

MPT202HT Water-cooled high temperature pressure sensor-MANYYEAR TECHNOLOGY

MPT202HT Water-cooled high temperature pressure sensor-MANYYEAR TECHNOLOGY MPT202HT Water-cooled high temperature pressure sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT202HT Water-cooled high temperature pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT202HT Water-cooled high temperature pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor assembly

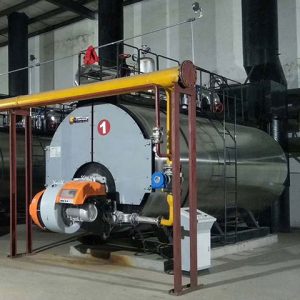

Product Application

MPT202HT Water-cooled high temperature pressure sensor-MANYYEAR TECHNOLOGYMPT202HT Water-cooled high temperature pressure sensor-MANYYEAR TECHNOLOGYMPT202HT Water-cooled high temperature pressure sensor-MANYYEAR TECHNOLOGY
