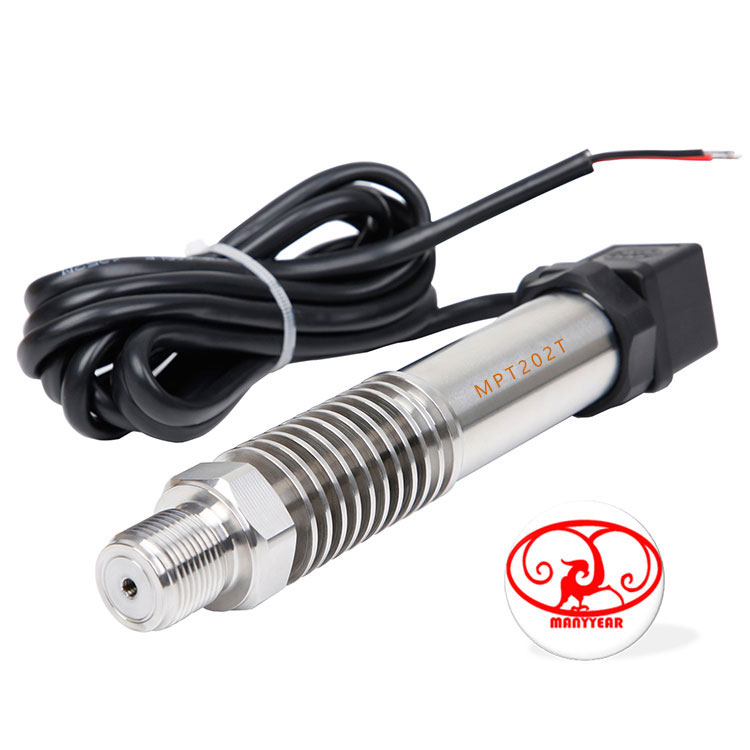

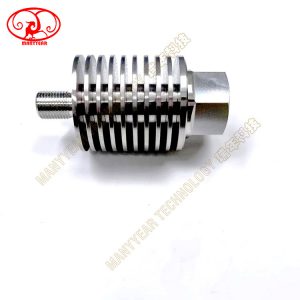

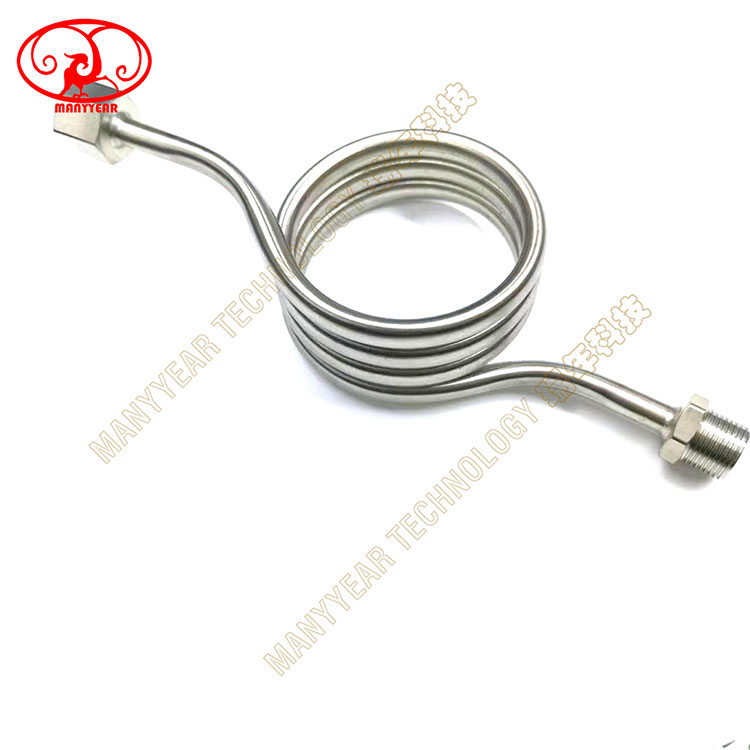

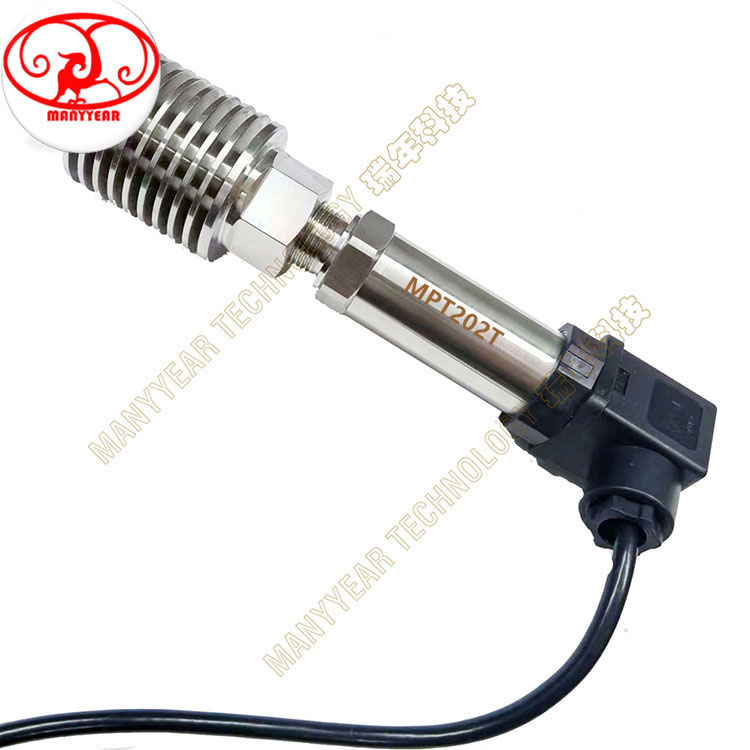

MPT202T High temperature pressure sensor with cooling ring
MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY
MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY
MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY
MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY
MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY

MPT202T High temperature pressure sensor with cooling ring

Boiler pressure sensor,engine pressure sensor,high temperature pressure sensor

Model: MPT202T
Category: common pressure sensor
Range: 0-2000bar
temperature: .-20 to 150,250c
signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485
Application: Boiler pressure sensor,engine pressure sensor,high temperature pressure sensor


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

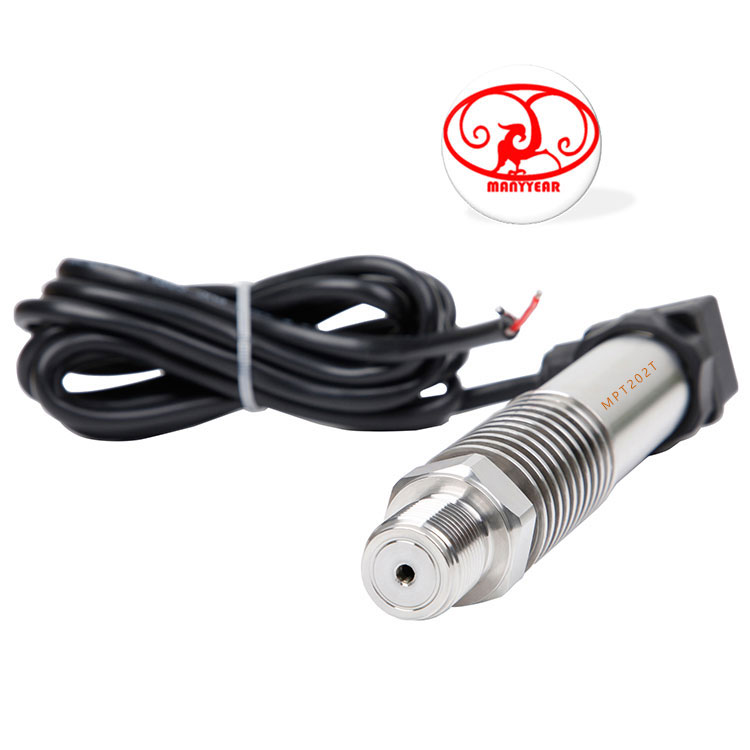

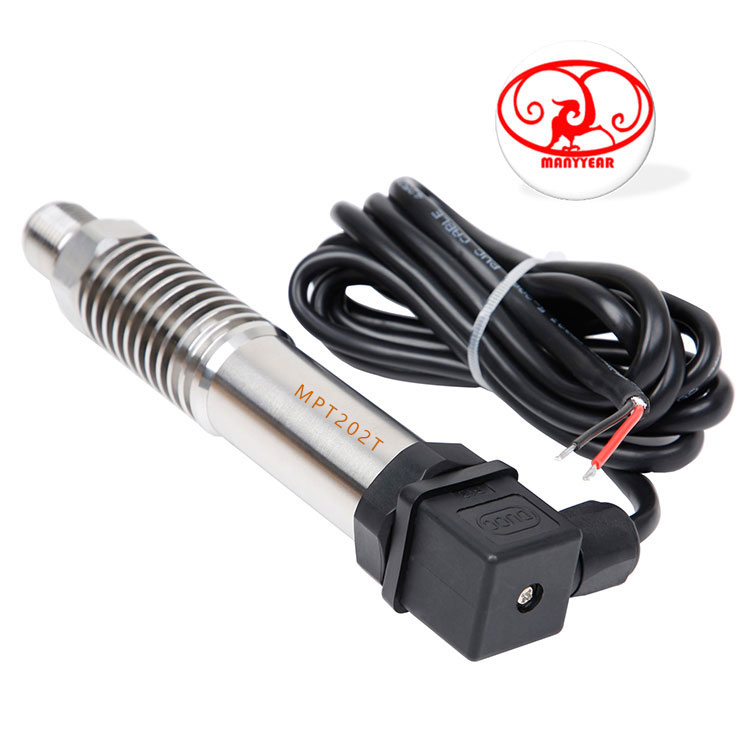

Product Picture Reference



MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT202T High temperature pressure sensor

Model:      MPT202T

Category: common pressure sensor

Range:     0-2000bar

temperature:     .-20~+150~250c

signal output:   mv/v, 0-5vdc,4-20mA,Hart,Rs485

Application:       liquid pressure, water pressure, oil pressure, air pressure measure

Characteristic:  high temperature pressure transmitter, high temperature pressure sensor

reference picture
Technology parameter:
capability range0-10Bar~2000Bar(Optional)
pressure typeGauge pressure, Absolute pressure, negative pressure
signal output(mA/v)0-5V;0-10V;0.5-4.5V;4~20mA and so on
Precision(%FS)≤0.25/0.5%FS
sluggish repeat (nor-linearity)(%FS) ≤0.1~≤0.2
excursion at zero point(%FS/4h)≤0.1~≤0.2
temperature excursion≤0.01~≤0.02
long term stability(%FS/year)≤0.1~≤0.3
execute voltage (V)24VDC (9~36V)- For 4-20mA and 0-10V; 5VDC----For 0.5-4.5V; 12VDC----For 0-5V
temperature compensate (℃)-20~+150c
environment temperature (℃)-20~+85c
Medium temperature(℃)-20~+150~250c(max 300c)
Overload (%)150
load resistance (Ω)R=(U-12.5)/0.02-RD     U=POWER SUPPLY,RD=Wire resistance
response time(ms)≤1
Measure mediumOil, gas, water and so on
House1Cr18Ni9Ti  or  316SSL
Connect threadM20×1.5, NPT, G1/2  or  order by customer
explosion proof gradeoptional
water proof gradeIP67

Product Dimension

MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY

app-Drinking water production

MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY

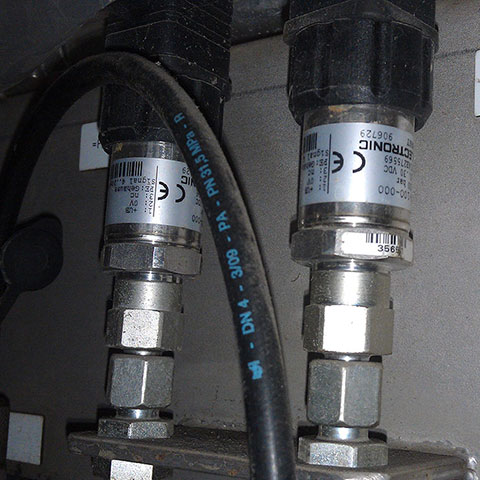

water pressure sensor

MPT202T High temperature pressure sensor with cooling ring-MANYYEAR TECHNOLOGY

water pressure sensor for Building water supply
