MPT213HP High pressure pressure sensor

high pressure pressure sensor, Large hydraulic machinery pressure sensor, Water jet machine pressure sensor,ceramic wire cuttin pressure sensor

Model: MPT213HP
Category: common pressure sensor
Range: 0-20000bar
temperature: .-40~125℃
signal output: mv/v, 0-5vdc,4-20mA
Application: high pressure pressure sensor, Large hydraulic machinery pressure sensor, Water jet machine pressure sensor,ceramic wire cuttin pressure sensor


we have prepared this form as below, hoping to help you.if you complete the sheet, please send to admin@manyyear.com. we will reply to you in 24Hr.

Product selection reference

Sales Online

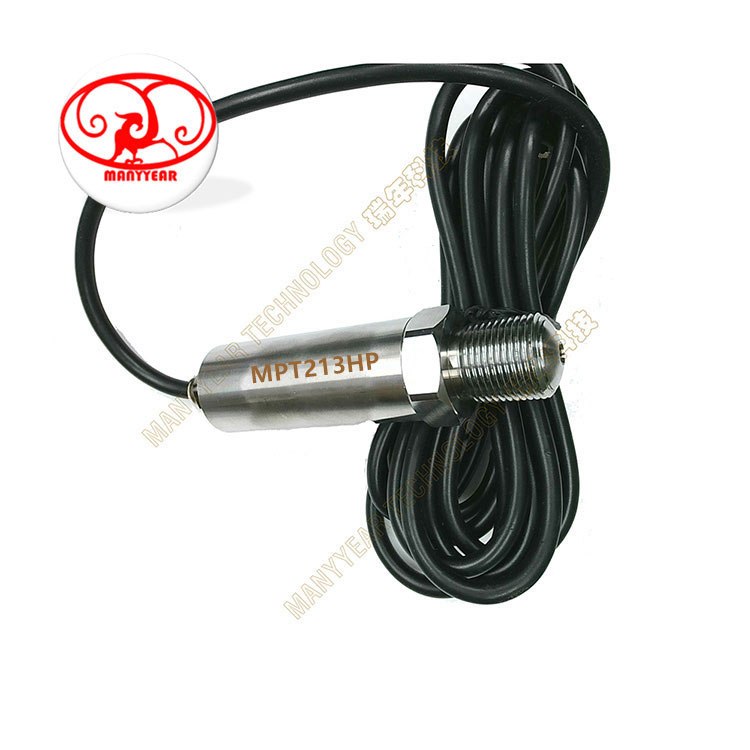

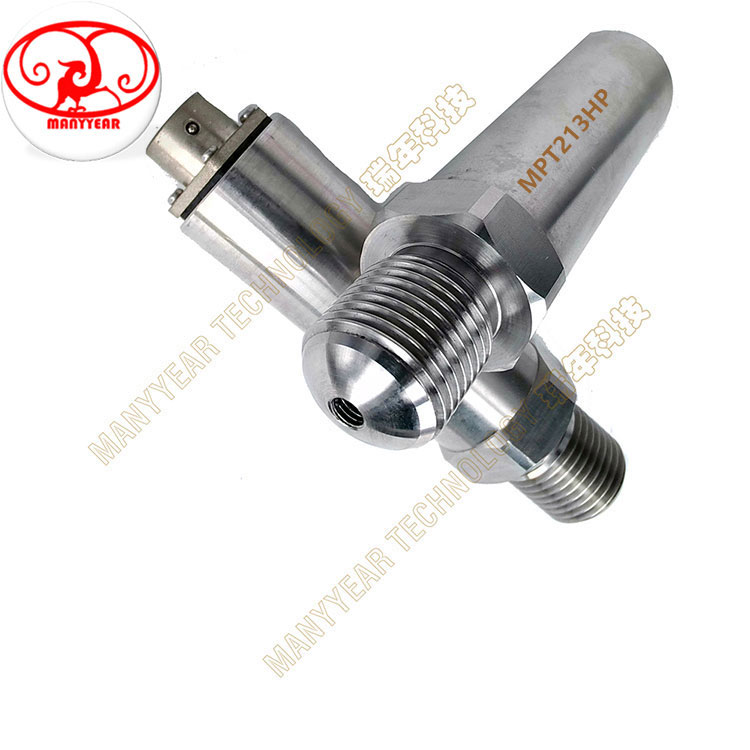

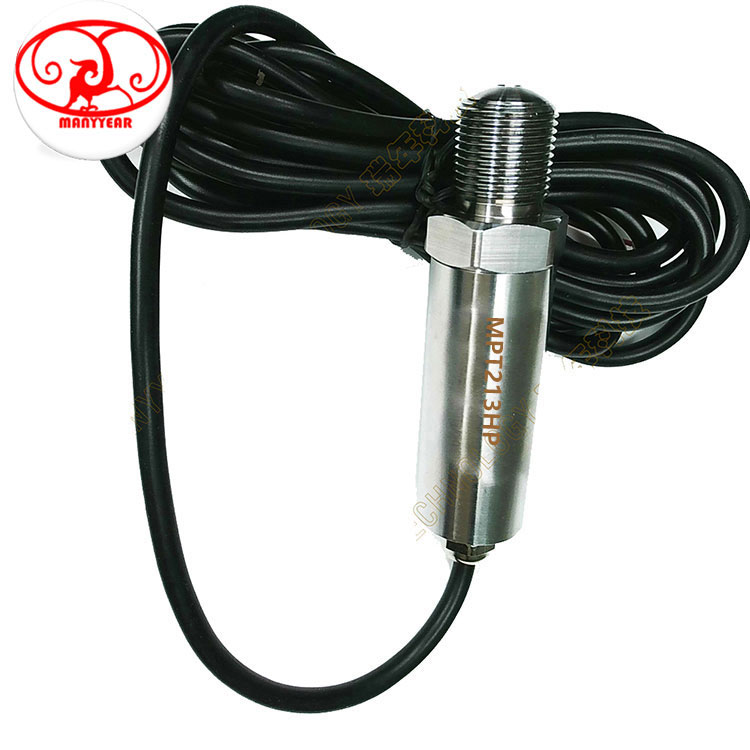

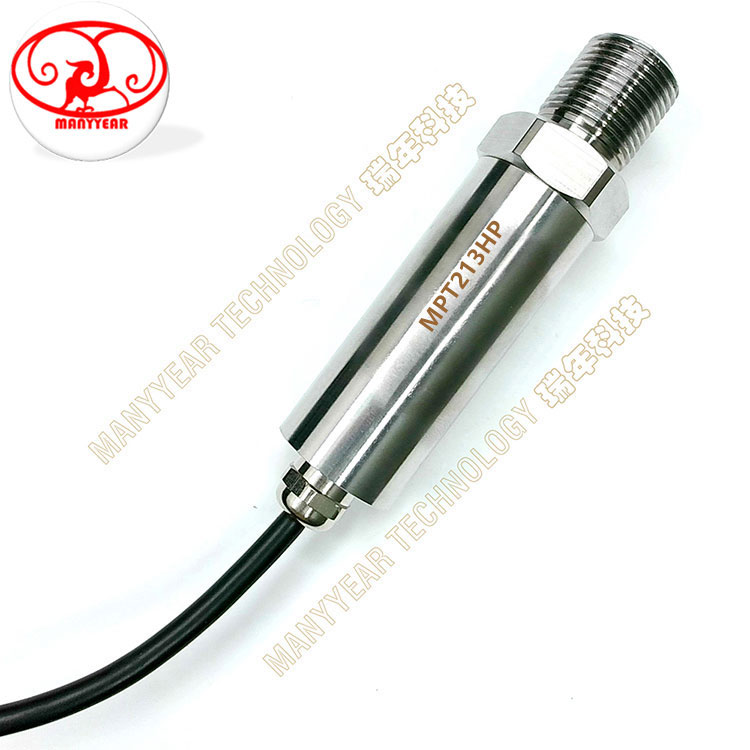

Product Picture Reference

MPT213HP High pressure pressure sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT213HP High Pressure Transduce

MPT213HP High Pressure Transduce

Model:      MPT213HP

Category: common pressure sensor

Range:     0-8000bar

temperature:     .-40~125℃

signal output:   mv/v, 0-5vdc,4-20mA

Application:       Large hydraulic machinery, Water jet machine, ceramic wire cutting machine

high pressure water pump, high pressure oil pump.

Characteristic: high pressure sensor, 8000bar pressure sensor

Ref. pic
Technology specification
Pressure range: (Bar)750,1000,1500,2000,2500,3000,4000,5000,6000,8000,10000 bar
Pressure typeGauge pressure
Signal Output4~20mA0.5~4.5VDC0~5VDC0~10VDC
Signal Line Specification2 Lines3 Lines3 Lines3 Lines
Power Voltage11~33VDC4.5~6VDC11~33VDC18~33VDC
Precision0.1% span, 0.25% span, 0.5% span
Zero Temperature Drift0.02% span /℃
Sensitivity Temperature Drift0.02% span /℃
Permanent Stability (1 Year)0.1% span
Response Frequency (-3dB)3.2KHZ
Temperature Compensation-20~85℃
Working Temperature-40~125℃
Storage Temperature-40~125℃
Overload Pressure200% span
Destructive Pressure500% span
Mechanical Vibration±20g
Impact (11ms)100g
Insulation Resistance100MΩ
Medium CompatibilityVarious media compatible with the 316L stainless steel
Protection GradeIP 65 (Cable Output)
Material17-4PH
Dimension
Reference for Pressure Connector Selection
Reference for Electric Connector Selection

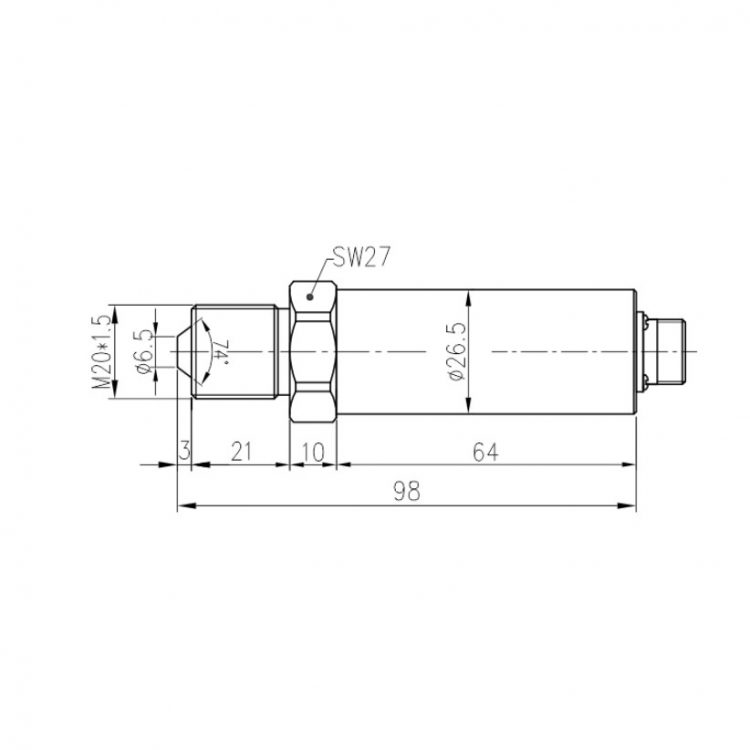

Product Dimension

MPT213HP High pressure pressure sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT213HP High pressure pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT213HP High pressure pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor assembly

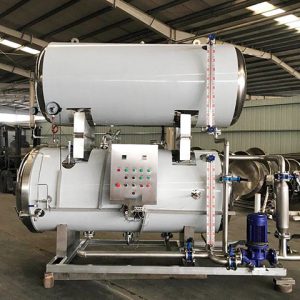

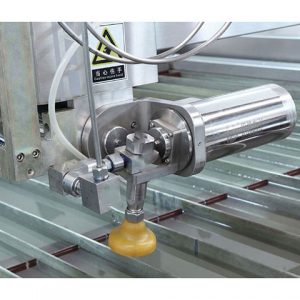

Product Application

MPT213HP High pressure pressure sensor-MANYYEAR TECHNOLOGYMPT213HP High pressure pressure sensor-MANYYEAR TECHNOLOGYMPT213HP High pressure pressure sensor-MANYYEAR TECHNOLOGY
