MPT243 flush diaphragm pressure transmitter with flange MPT243 flush diaphragm pressure transmitter with flange
MPT243 flush diaphragm pressure transmitter with flange
MPT243 flush diaphragm pressure transmitter with flange-MANYYEAR TECHNOLOGY
MPT243 flush diaphragm pressure transmitter with flange-MANYYEAR TECHNOLOGY
MPT243 flush diaphragm pressure transmitter with flange-MANYYEAR TECHNOLOGY

MPT243 flush diaphragm pressure transmitter with flange

water pressure sensor, oil pressure sensor, air pressure sensor

Model: MPT243
Category: common pressure sensor
Range: 0~0.6~2000Bar
temperature: -40~0~150~250c
signal output: mv/v, 0-5vdc,4-20mA
Application: flush diaphragm pressure transmitter, food product pressure transmitter, Medical production pressure transmitter,Flat diaphragm pressure transmitter


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

Product Picture Reference

MPT243 flush diaphragm pressure transmitter with flange-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT243 Flange Pressure Transducer

modelMPT243 Flange Pressure Transducer
reference picture
Apply:

Flange interface, insulate film, stainless steel; Apply to measuring and controlling pressure in food, sanitation, paper making… industry.

Technology parameter:
capability range0~0.6~200MPA
pressure typeGauge pressure, Absolutely pressure
execute voltage (V)pressure transducer:24VDC (9~36)VDC; Pressure Transducer: 10VDC(6~12V)
signal outputPressure transducer: 0~5V; 0~10V; 4~20Ma.

Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V

Precision(%FS)0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)≤0.05 ≤0.1 ≤0.2
temperature excursion(zero & delicacy)(%FS/ºC)≤0.01 ≤0.02 ≤0.03
long term stability(%FS/year)≤0.1;≤0.3
temperature compensate (ºC)-20~+60
work temperature (ºC)-20~+250
storage temperature-40~+125
Overload (%)200
Life>1×108pressure cycle(25ºC)
load resistance (Ω)R=(U-12.5)/0.02-RD     U=POWER SUPPLY,RD=Wire resistance
response time(ms)≤1
measuremediumCompatible with 316L. Causticity and nor-causticity medium.
House1Cr18Ni9Ti  and  aluminum alloy
Connect threadFlange connector
explosion proof gradeoption

Product Dimension

Force Structure & Assembly Reference

MPT243 flush diaphragm pressure transmitter with flange-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT243 flush diaphragm pressure transmitter with flange-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT243 flush diaphragm pressure transmitter with flange-MANYYEAR TECHNOLOGY

MPT243 flush diaphragm pressure transmitter with flange-MANYYEAR TECHNOLOGY

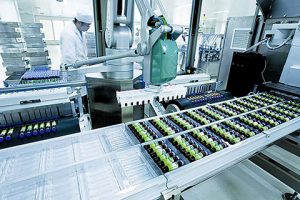

APP-Drug Production-1

MPT243 flush diaphragm pressure transmitter with flange-MANYYEAR TECHNOLOGY

app-level-measurement
