MPT291 Wireless Remote Digital Pressure Sensor

Product Model: MPT291
Product Category: General Pressure Sensor
Product range: 0-2000bar
Temperature: .-40~+125
Signal output: mv/v, 0-5vdc,4-20mA
Product applications: industrial process detection and control; automated detection systems; hydraulic and pneumatic control systems; pump stations and water treatment systems; industrial machinery manufacturing; water pressure, oil pressure, air pressure measurement, hydraulic pressure measurement
Product Keywords: digital pressure sensor, digital pressure sensor




The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

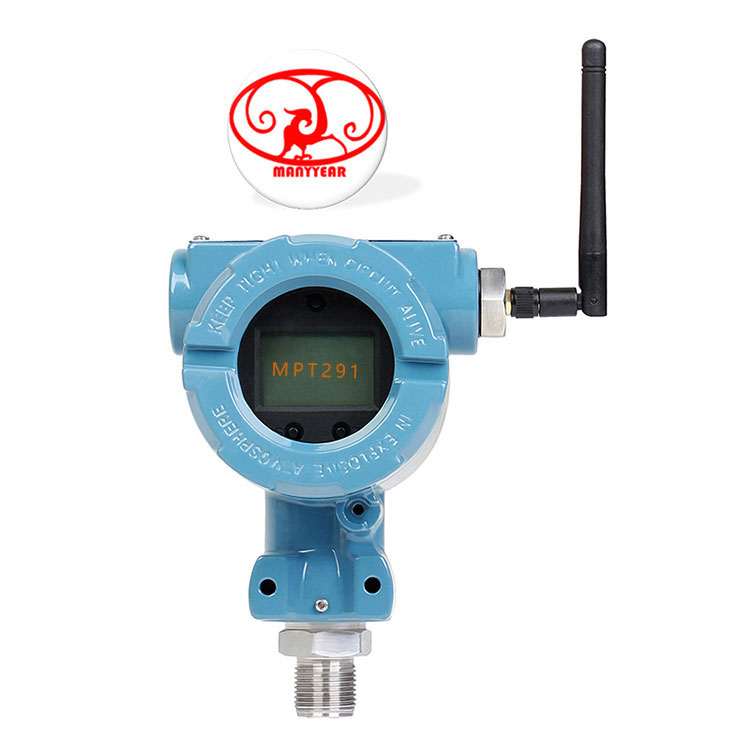

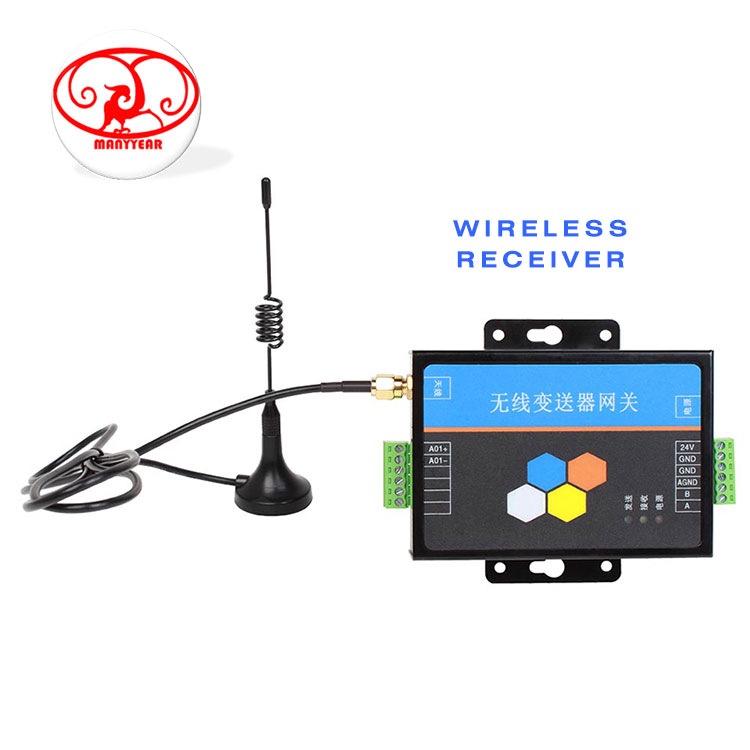

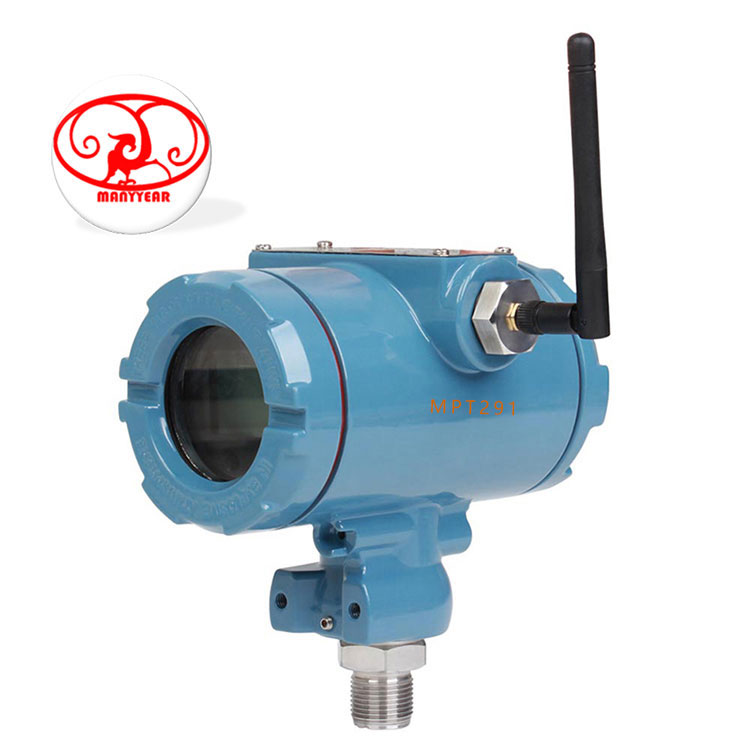

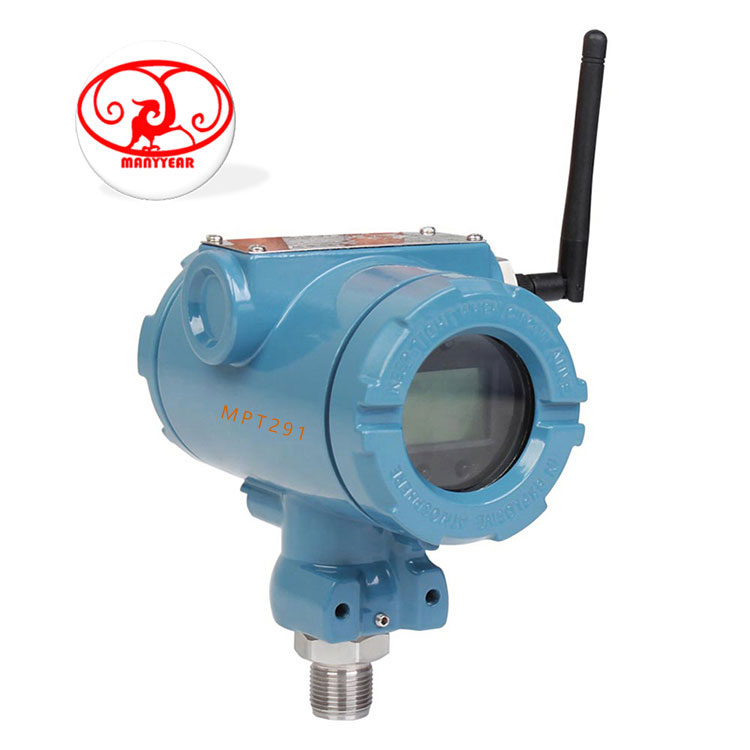

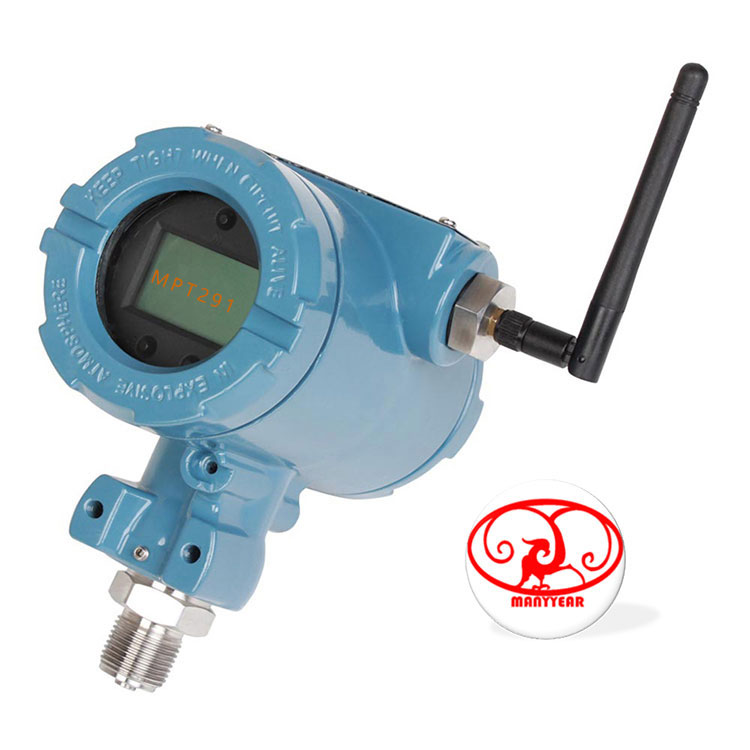

Product Picture Reference

MPT291 Wireless remote digital pressure sensor-MANYYEAR TECHNOLOGYMPT291 Wireless remote digital pressure sensor-MANYYEAR TECHNOLOGY



Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT2 91 Wireless Remote Digital Pressure Sensor

Product Model:       MPT2 91

Product Category: General Pressure Sensor

Product range:        0-2000bar

Temperature: .-40~+125

Signal output:          mv/v, 0-5vdc,4-20mA

Product applications:     industrial process detection and control; automated detection systems; hydraulic and pneumatic control systems; pump stations and water treatment systems; industrial machinery manufacturing; water pressure, oil pressure, air pressure measurement, hydraulic pressure measurement

Product Keywords:          digital pressure sensor, digital pressure sensor

reference picture
Technical specifications
Product Range0~10Kpa……100Mpa
Pressure TypeGauge pressure, absolute pressure
Analog signal outputM v/v, 0-5V;0-10V;0.5-4.5V;4~20mA
Digital signal outputRS232, RS485, HART, wireless
Control signal outputPNP, NPN, RELAY
On-site instructionsLCD, LED, Pointer
Signal output (mA/v)Pressure transmitter: 0~5V; 0~10V; 4~20Ma.

Pressure sensor : 1mV/V; 2mV/V, 2.5mV/V, 3.3mV/V , 10mv/v

Operating voltage (V)24VDC (9~36V)- For 4-20mA and 0-10V;

5VDC-For 0.5-4.5V;

12VDC-For 0-5V; 0-10V

Comprehensive accuracy (%FS)0.1, 0.2,0.3
Repeatability (non-linearity) (%FS)≤0.1 ≤0.2 ≤0.3
Zero drift (%FS/4h)≤0.05 ≤0.1 ≤0.2
Temperature drift (zero & delicacy) (%FS/ºC)≤0.005 ≤0.01 ≤0.02
Long-term stability (%FS/year)≤0.1;≤0.3
Temperature compensation (°C)-20~+60
Operating temperature (°C)-20~+85
storage temperature-40~+125
Safe overload (%)300
Product lifespan>1×108 pressure cycles (25°C)
Load resistance (Ω)R=(U-12.5)/0.02-RD U=power supply, RD=line resistance
Response time (ms)≤1
Measuring mediumCompatible with 316L
Material316L
ThreadM type: M20×1.5, NPT: 1/8NPT,1/2NPT , G: G1/2 or customized
Explosion-proofNA
Digital Display4-bit LED
sizeREFER TO SPECIFICATION

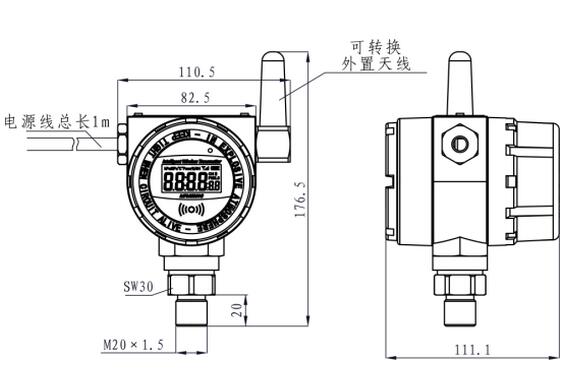

Product Dimension

MPT291 Wireless remote digital pressure sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT291 Wireless remote digital pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT291 Wireless remote digital pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT291 Wireless remote digital pressure sensor-MANYYEAR TECHNOLOGY

app-Drinking water production

MPT291 Wireless remote digital pressure sensor-MANYYEAR TECHNOLOGY

app-flow-measurement

MPT291 Wireless remote digital pressure sensor-MANYYEAR TECHNOLOGY

app-Water pressure measurement
