Product model: MPT763
Product category: Differential pressure sensor
Product range: 0-2100… 7000KPA
Temperature: -20 ℃~+85 ℃
Signal output: mv/v, 0-5vdc, 4-20 mA, Hart, RS485
Product application: Gas and liquid differential pressure measurement; HVAC, environmental pollution control, clean engineering, medical equipment, oven pressurization and furnace air pressure control, natural gas and gas pipeline network monitoring, underground ventilation and power plant air pressure monitoring, and other fields
Product keywords: flat film differential pressure sensor, intelligent differential pressure sensor, flange differential pressure sensor, explosion-proof differential pressure sensor






The selection of load cell products must be fully communicated and detailed solutions must be obtained. This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time. Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Online Sales

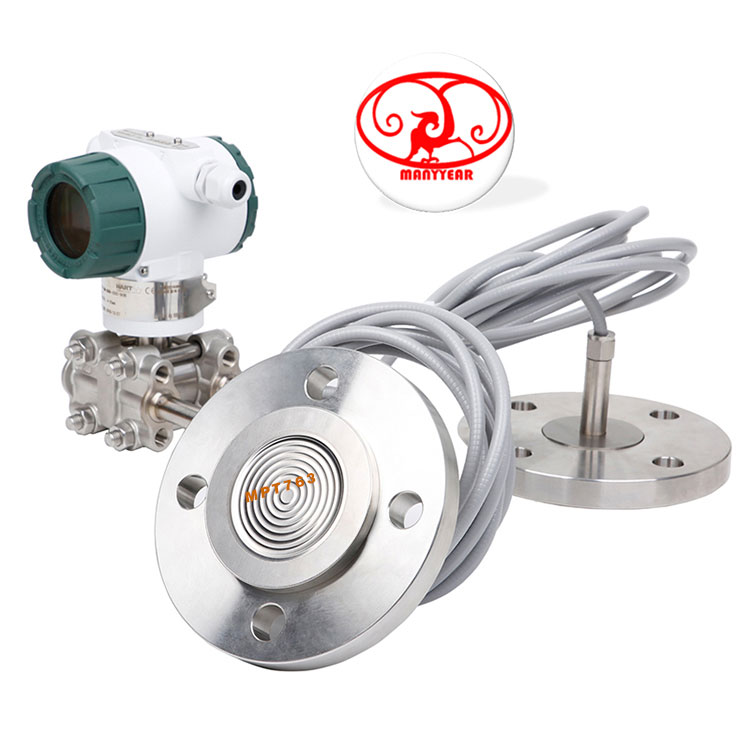

Product Picture Reference

MPT763 flange flat film intelligent differential pressure sensor transmitter-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT763 flange flat film intelligent differential pressure sensor transmitter
Product model: MPT763
Product category: Differential pressure sensor
Product range: 0-2100... 7000KPA
Temperature: -20 ℃~+85 ℃
Signal output: mv/v, 0-5vdc, 4-20 mA, Hart, RS485
Product application: Gas and liquid differential pressure measurement; HVAC, environmental pollution control, clean engineering, medical equipment, oven pressurization and furnace air pressure control, natural gas and gas pipeline network monitoring, underground ventilation and power plant air pressure monitoring, and other fields
Product keywords: flat film differential pressure sensor, intelligent differential pressure sensor, flange differential pressure sensor, explosion-proof differential pressure sensor
reference picture
Technology parameter:
capability range0~2 …… 7MPA
pressure typeDifferential pressure
signal output(mA/v)mv/v, 0-5vdc,4-20mA,Hart,Rs485
Precision(%FS)0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)≤0.01 ≤0.02 ≤0.03
temperature excursion≤0.01 ≤0.02 ≤0.03
long term stability(%FS/year)≤0.1;≤0.2
execute voltage (V)24v (9~36v)
temperature compensate (ºC)0~+60
environment temperature (ºC)-20~+85
Overload (%)200
Static pressure10~12
load resistance (Ω)R=(U-12.5)/0.02-RD;    U=POWER SUPPLY, RD=Wire resistance
response time(ms)≤1
measuremediumcompatible with 316L,causticity Gas, liquid
House1Cr18Ni9Ti
connector threadØ7.5,M12×1 or  order by customer
explosion proof gradeoption-able
water proof gradeIP65
Film316Lstainless steel

Product Dimension

MPT763 flange flat film intelligent differential pressure sensor transmitter-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

pressure sensor signal output



Product Application

MPT763 flange flat film intelligent differential pressure sensor transmitter-MANYYEAR TECHNOLOGY

wind differential pressure sensor

MPT763 flange flat film intelligent differential pressure sensor transmitter-MANYYEAR TECHNOLOGY

pharmaceutical-production

MPT763 flange flat film intelligent differential pressure sensor transmitter-MANYYEAR TECHNOLOGY

flow measurement
