MPT721 differential pressure sensor

2021/11/12 Pressure Sensor Differential pressure sensor 2462 0

air differential pressure sensor, water differential pressure measure, liquid differential pressure measure

Model: MPT721
Category: Differential pressure sensor
Range: 0~2,100…2000KPA
temperature: ,-20~+85
signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485
Application: air differential pressure measure, water differential pressure measure, liquid differential pressure measure

The selection of load cell products must be fully communicated and detailed solutions must be obtained. This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time. Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

Product Introduction Product Parameters

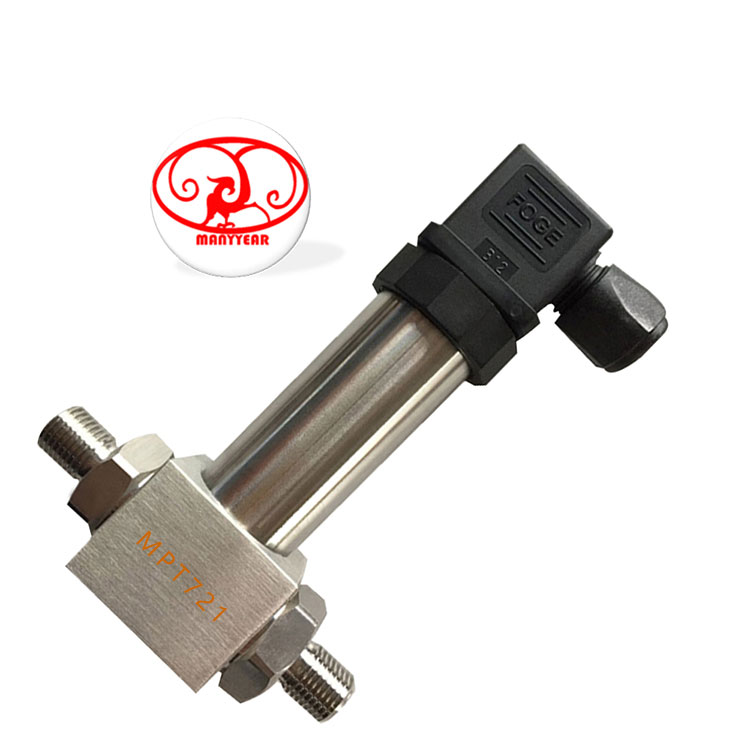

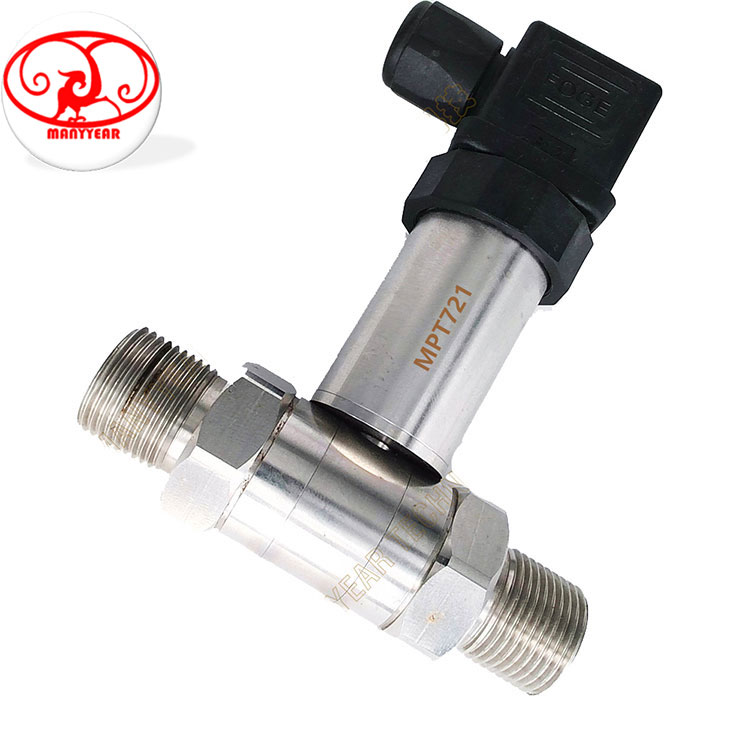

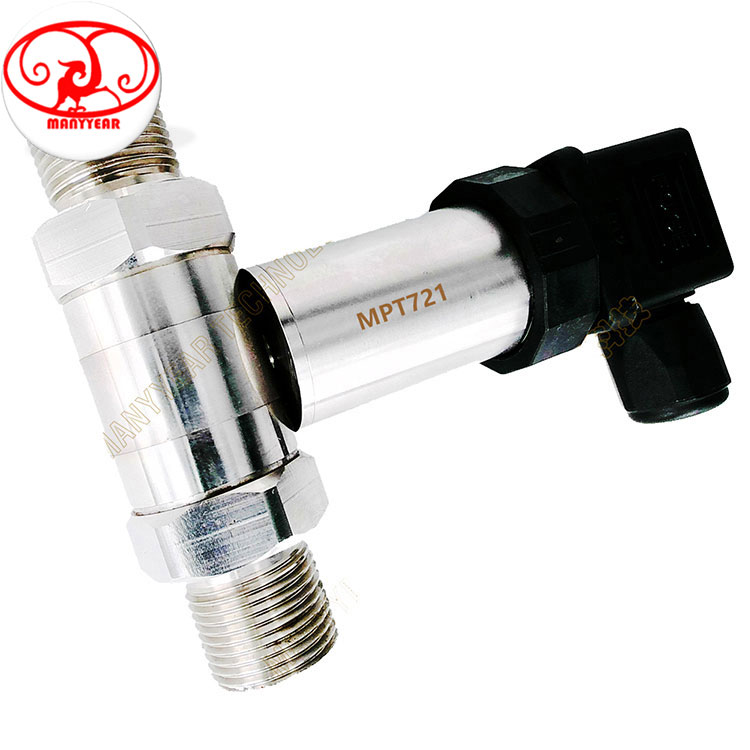

Product Picture Reference

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.

MPT721 insulate Differential pressure sensor Model: MPT721 Category: Differential pressure sensor Range: 0~2,100……2000KPA temperature: ,-20~+85 signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485 Application: Air differential pressure, water differential pressure, oil differential pressure Characteristic: liquid differential pressure sensor, oil differential pressure transducer

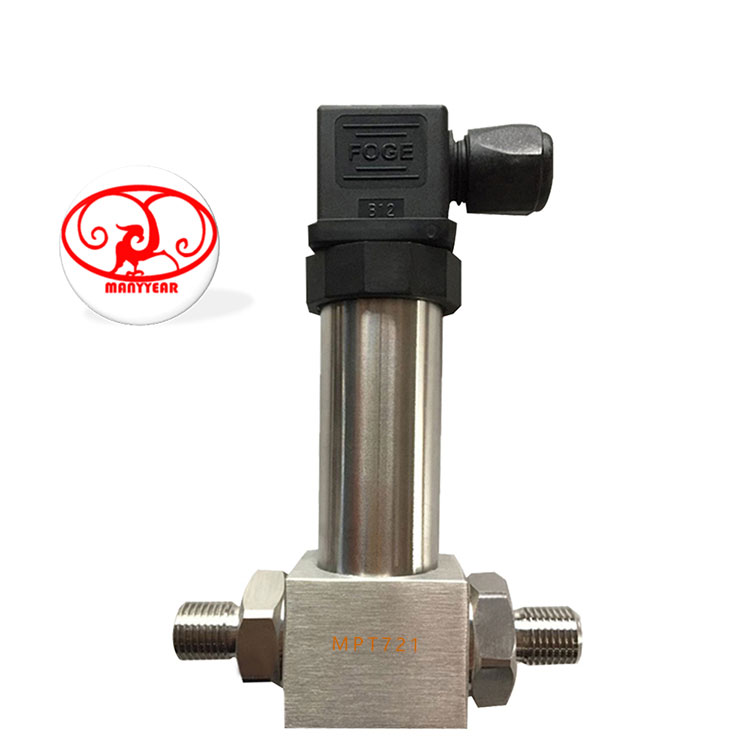

reference picture
Technology parameter:
capability range	0~2,100……2000KPA; 0~2,20……2MPA
pressure type	Differential pressure
signal output(mA/v)	mv/v, 0-5vdc,4-20mA,Hart,Rs485
Full load output(mV)	30~60~120
Zero point output(mV)	≤20
Precision(%FS)	0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)	≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)	≤0.01 ≤0.02 ≤0.03
temperature excursion(zero & delicacy)(%FS/ºC)	≤0.01 ≤0.02 ≤0.03
long term stability(%FS/year)	≤0.1;≤0.2
execute voltage (V)	24v (9~36v)
temperature compensate (ºC)	0~+70
environment temperature (ºC)	-20~+85
Overload (%)	200
Static pressure （type） BAR	10~12
load resistance (Ω)	R=(U-12.5)/0.02-RD; U=POWER SUPPLY, RD=Wire resistance
response time(ms)	≤1
measure medium	compatible with 316L,causticity Gas,liquid
House	1Cr18Ni9Ti
connector thread	Ø7.5,M12×1 or order by customer
explosion proof grade	option-able
water proof grade	IP65
Film	316Lstainless steel

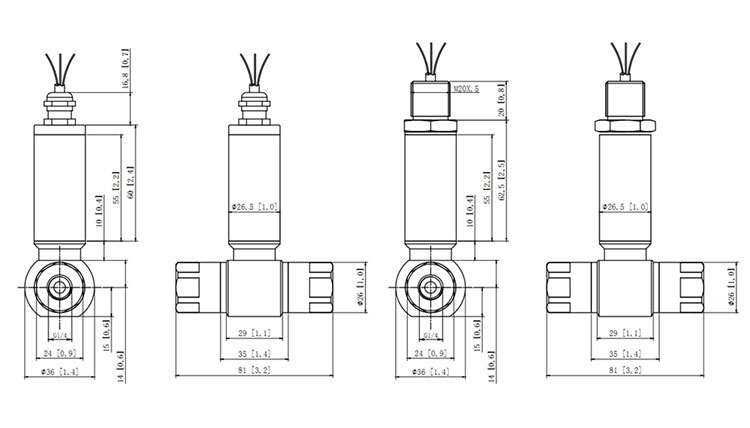

Product Dimension

Force Structure & Assembly Reference

pressure sensor signal output
