Product model: MPT731
Product category: Differential pressure sensor
Product range: 0-2100… 2000KPA
Temperature: -20~+250
Signal output: mv/v, 0-5vdc, 4-20mA, Hart, Rs485
Product application: High temperature gas, liquid differential pressure measurement; HVAC, environmental pollution control, clean engineering, medical instruments and equipment, oven pressurization and furnace air pressure control
Product keywords: liquid differential pressure sensor, gas differential pressure sensor




The selection of load cell products must be fully communicated and detailed solutions must be obtained. This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time. Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

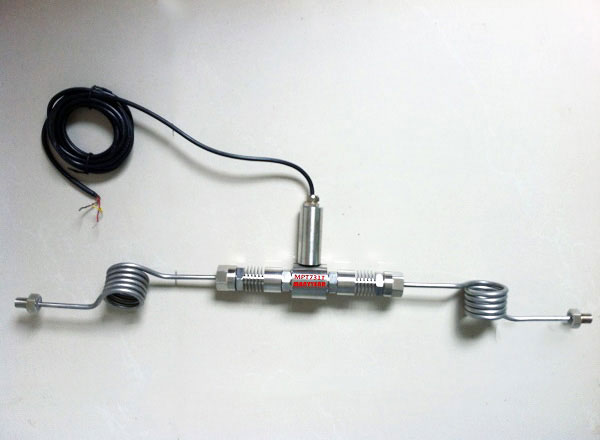

Product Picture Reference

MPT731 High temperature gas liquid differential pressure sensor transmitter-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT731 High temperature gas liquid differential pressure sensor transmitter

Product model: MPT731
Product category: Differential pressure sensor
Product range: 0-2100... 2000KPA
Temperature: -20~+250
Signal output: mv/v, 0-5vdc, 4-20mA, Hart, Rs485
Product application: High temperature gas, liquid differential pressure measurement; HVAC, environmental pollution control, clean engineering, medical instruments and equipment, oven pressurization and furnace air pressure control
Product keywords: liquid differential pressure sensor, gas differential pressure sensor

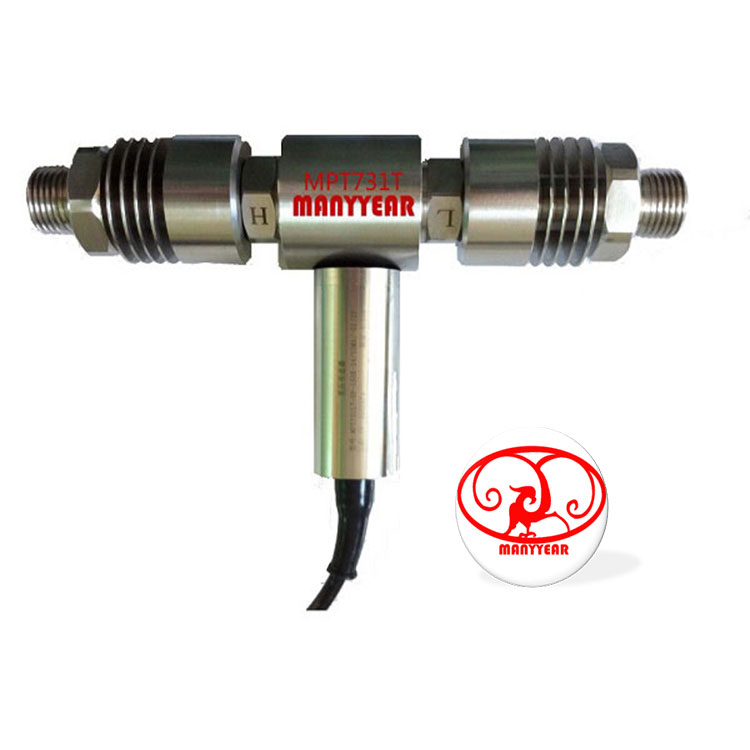

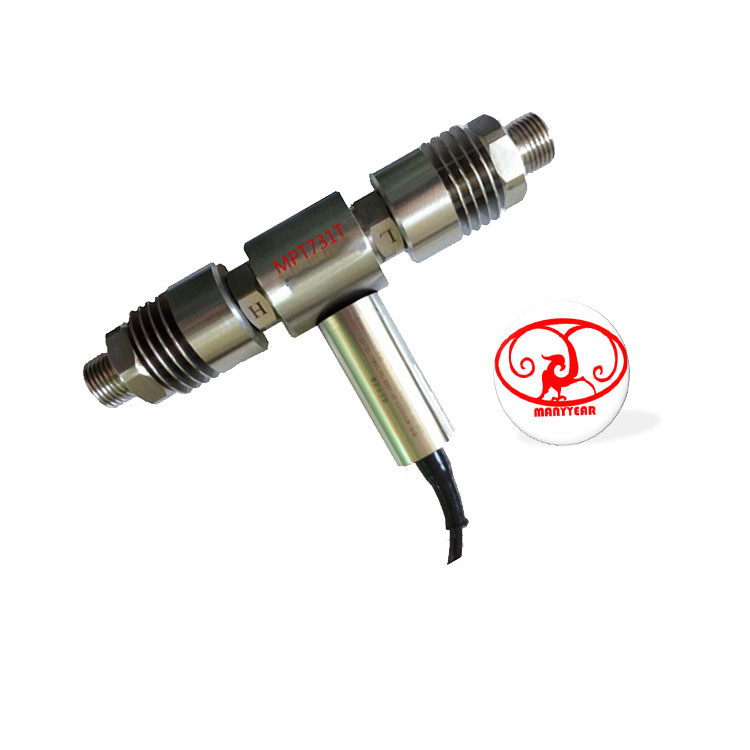

reference picture
Technology parameter:
capability range0~2,100……2000KPA; 0~2,20……2MPA
pressure typeDifferential pressure
signal output(mA/v)mv/v, 0-5vdc,4-20mA,Hart,Rs485
Full load output(mV)30~60~120
Zero point output(mV)≤20
Precision(%FS)0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)≤0.01 ≤0.02 ≤0.03
temperature excursion(zero & delicacy)(%FS/ºC)≤0.01 ≤0.02 ≤0.03
long term stability(%FS/year)≤0.1;≤0.2
execute voltage (V)24v (9~36v)
temperature compensate (ºC)0~+70
environment temperature (ºC)-20~+250
Overload (%)200
Static pressure (type) BAR10~12
load resistance (Ω)R=(U-12.5)/0.02-RD;    U=POWER SUPPLY, RD=Wire resistance
response time(ms)≤1
measure mediumcompatible with 316L,causticity  Gas,liquid
House1Cr18Ni9Ti
connector threadØ7.5,M12×1 or  order by customer
explosion proof gradeoption-able
water proof gradeIP65
Film316Lstainless steel

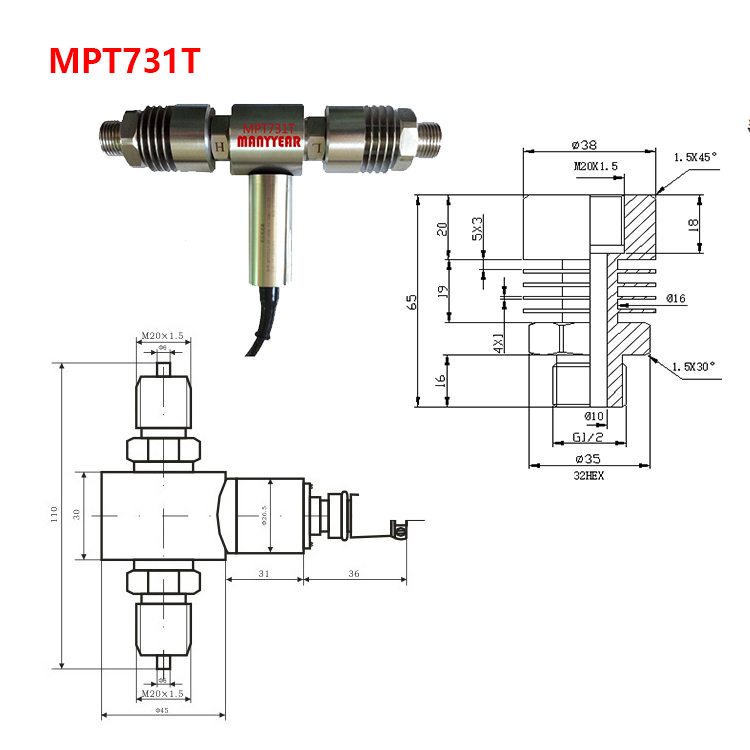

Product Dimension

MPT731 High temperature gas liquid differential pressure sensor transmitter-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT731 High temperature gas liquid differential pressure sensor transmitter-MANYYEAR TECHNOLOGY

pressure sensor signal output
