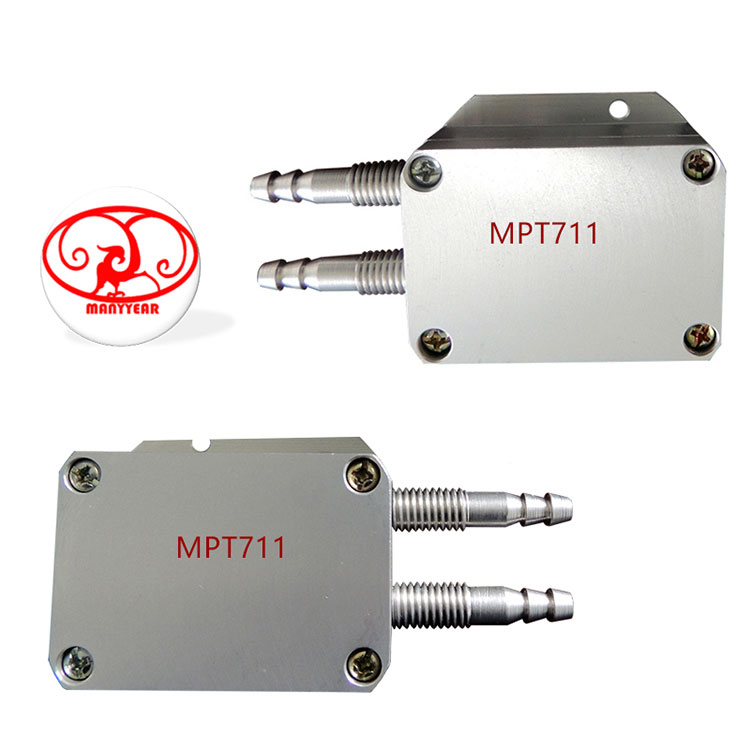

MPT711 micro differential pressure sensor MPT711 micro differential pressure sensor
MPT711 micro differential pressure sensor
MPT711 micro differential pressure sensor-MANYYEAR TECHNOLOGY
MPT711 micro differential pressure sensor-MANYYEAR TECHNOLOGY
MPT711 micro differential pressure sensor-MANYYEAR TECHNOLOGY

MPT711 micro differential pressure sensor

micro differential pressure sensor, air differential pressure sensor, wind differential pressure sensor

Model: MPT711
Category: Differential pressure sensor
Range: 0-100Bar
temperature: ,-20~+85
signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485
Application: micro air differential pressure, wind differential pressure measure


The selection of load cell products must be fully communicated and detailed solutions must be obtained. This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time. Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Online Sales

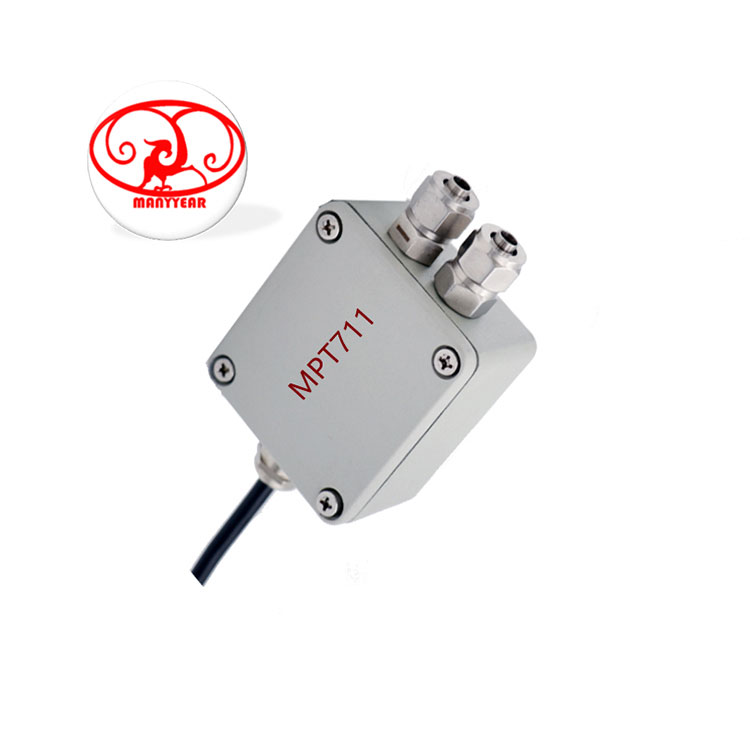

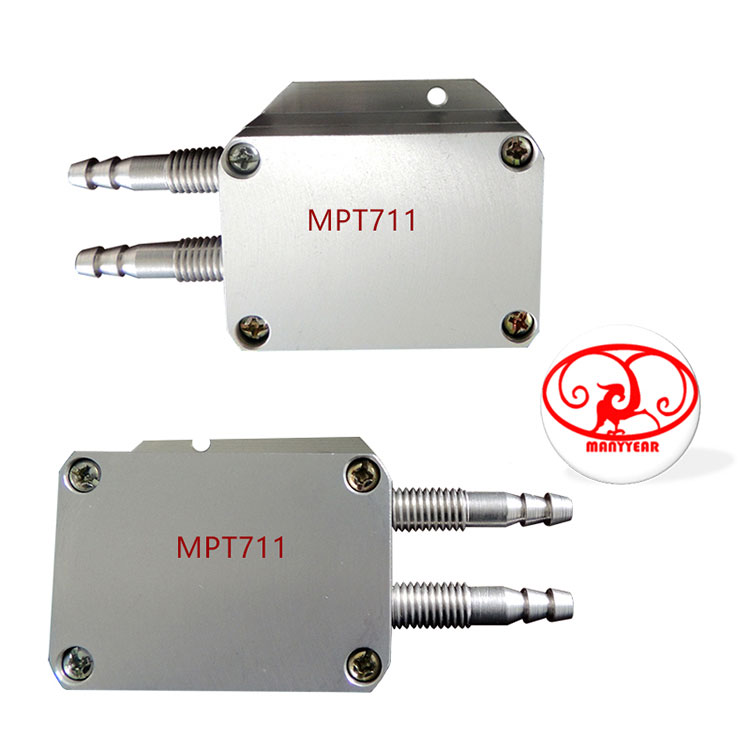

Product Picture Reference

MPT711 micro differential pressure sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT711 micro air differential pressure sensor

Model:MPT711

Category:Differential pressure sensor

Range: 0-100Bar

temperature:-20~+85

signal output:mv/v, 0-5vdc,4-20mA,Hart,Rs485

Application:micro air differential pressure,wind differential pressure measure

Characteristic:micro differential pressure sensor, wind differential pressure sensor,micro air differential pressure sensor

reference picture
Technology parameter:
capability range0~2……1000KPa
pressure typeDifferential pressure
Full load output(mV)mv/v, 0-5vdc,4-20mA,Hart,Rs485
Zero point output(mV)≤20
Precision(%FS)0.1, 0.3, 0.5
sluggish repeat (nor-linearity)(%FS)≤0.1, ≤0.3,  ≤0.5
excursion at zero point(%FS/4h)≤0.1, ≤0.3,  ≤0.5
temperature excursion(zero & delicacy)(%FS/ºC)≤0.01,  ≤0.03,  ≤0.05
long term stability(%FS/year)≤0.2
execute voltage(V)3
temperature compensate(ºC)0~+60
work temperature(ºC)-20~+80
Input/output resistance:(Ω)500/1500
temperature compensate(ºC)0~+60
work temperature(ºC)-20~+80
execute voltage(V)3
Overload(%)300
static pressure(MPa)3.5
response time(ms)≤1
measure mediumNor-causticity Gas
FilmFiSi gelatin
House1Cr18Ni9Ti
connector threadΦ7.5;M10×1 or  order by customer
explosion proof gradeoption-able
water proof gradeIP65
Dimension

Product Dimension

Force Structure & Assembly Reference

MPT711 micro differential pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor signal output







Product Application

MPT711 micro differential pressure sensor-MANYYEAR TECHNOLOGY

wind differential pressure sensor

MPT711 micro differential pressure sensor-MANYYEAR TECHNOLOGY

pharmaceutical-production

MPT711 micro differential pressure sensor-MANYYEAR TECHNOLOGY

flow measurement
