MPT282 digital dispaly pressure sensor

digital dispaly pressure sensor, air pressure sensor, water pressure sensor, liquid pressure sensor,oil pressure sensor, gauge pressure sensor, absolute pressure sensor

Model: MPT282
Category: common pressure sensor
Range: 0-2000bar
temperature: .-40~+125
signal output: mv/v, 0-5vdc,4-20mA
Application: digital dispaly pressure sensor, air pressure sensor, water pressure sensor, liquid pressure sensor,oil pressure sensor, gauge pressure sensor, absolute pressure sensor


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

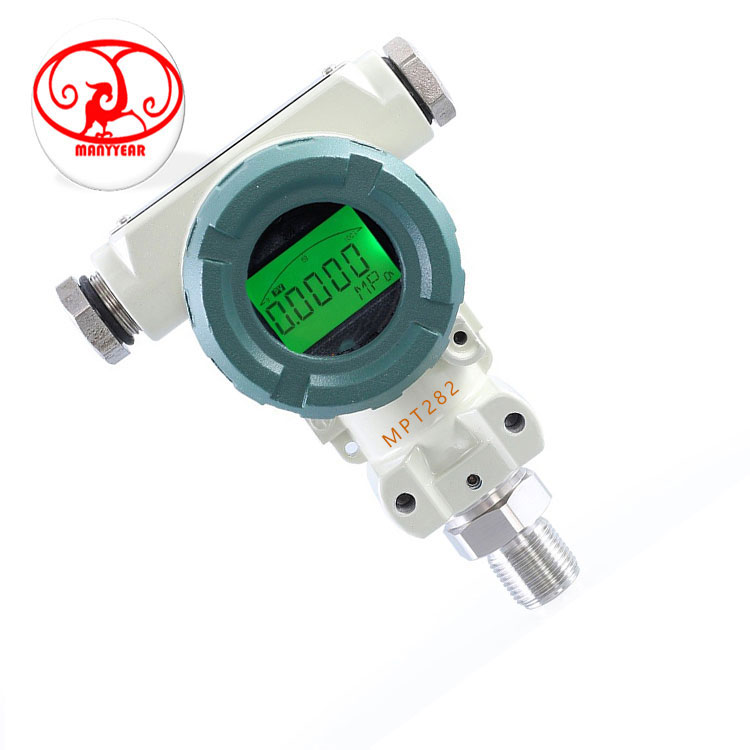

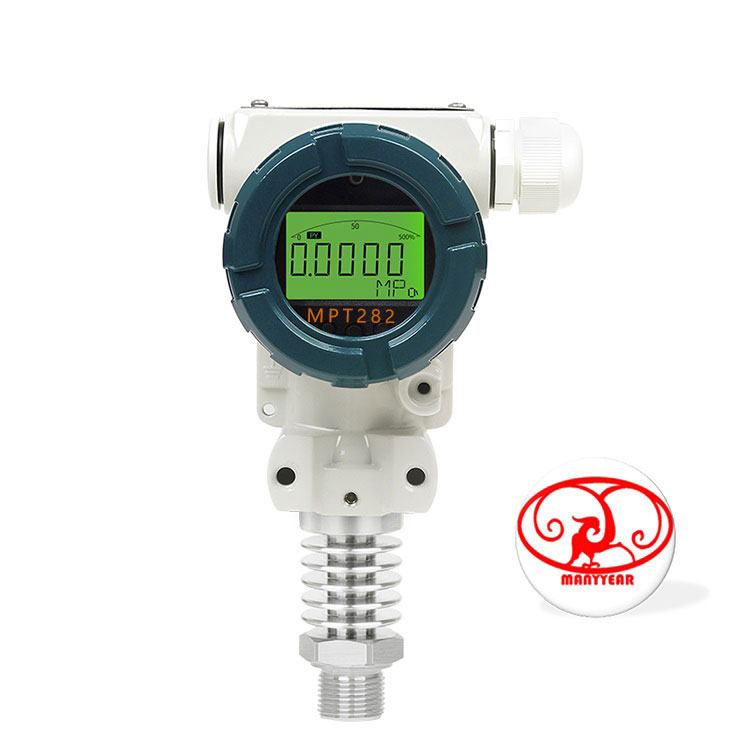

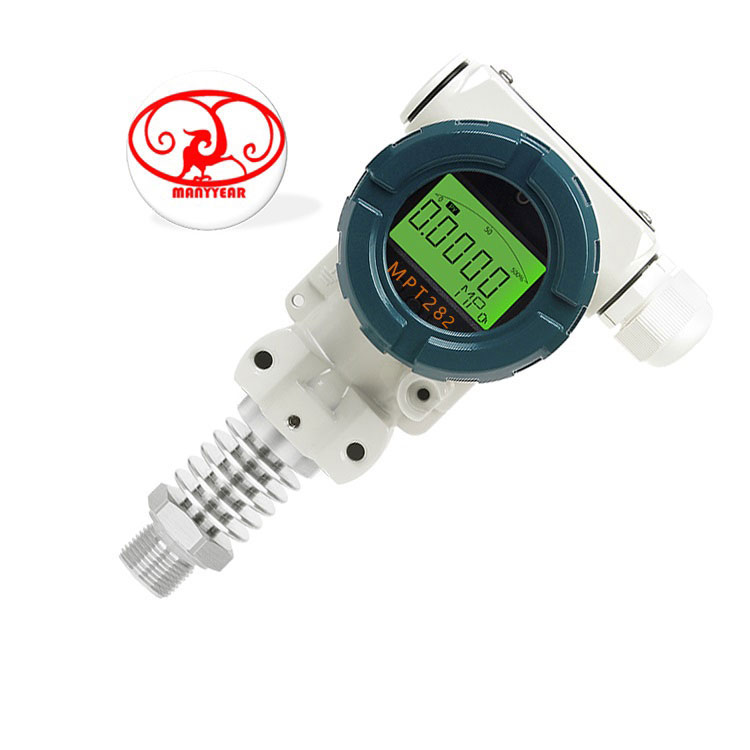

Product Picture Reference

MPT282 digital dispaly pressure sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT282 digital indication style Pressure Transducer

Model:    MPT282

Category: common pressure sensor

Range:    0-2000bar

temperature:    .-40~+125

signal output: mv/v, 0-5vdc,4-20mA

Application:    liquid pressure measure, digit display pressure measure

Characteristic: digital pressure sensor, digital display pressure sensor

reference picture
Technology parameter:
capability range0~10Kpa……100Mpa
pressure typeGauge pressure, Absolutely pressure
signal output(mA/v)

Pressure transducer: 0~5V; 0~10V; 4~20Ma.

Pressure Transducer: 1mV/V; 2mV/V,2.5mV/V ,3.3mV/V

Full load output(mV)30~60
Zero point output(mV)≤20
Precision(%FS)0.1, 0.2,0.3
sluggish repeat (nor-linearity)(%FS)≤0.1 ≤0.2 ≤0.3
excursion at zero point(%FS/4h)≤0.05 ≤0.1 ≤0.2
temperature excursion(zero & delicacy)(%FS/ºC)≤0.005 ≤0.01 ≤0.02
long term stability(%FS/year)≤0.1;≤0.3
execute voltage (V)

pressure transducer:24VDC (9~36)VDC;

Pressure Transducer: 10VDC(6~12V)

temperature compensate (ºC)-20~+60
work temperature (ºC)-20~+85
storage temperature-40~+125
Overload (%)300
Life>1×108pressure cycle(25ºC)
load resistance (Ω)R=(U-12.5)/0.02-RD     U=POWER SUPPLY,RD=Wire resistance
response time(ms)≤1
measuremediumCompatible with 316L. Causticity and nor-causticity medium.
House316L
Connect threadM20×1.5 or  order by customer
explosion proof gradeNA
Digital indication4 bit LED
DimensionREFER TO SPECIFICATION

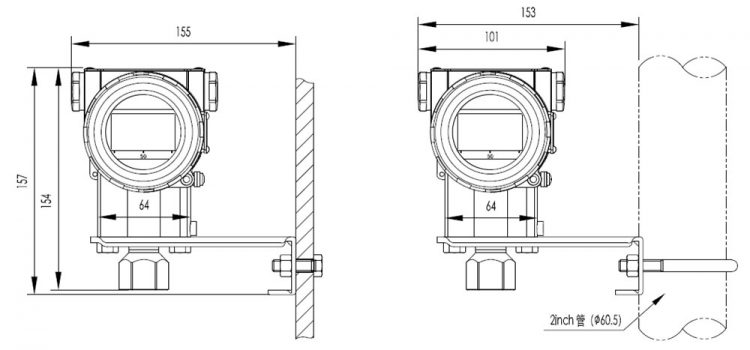

Product Dimension

MPT282 digital dispaly pressure sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT282 digital dispaly pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT282 digital dispaly pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT282 digital dispaly pressure sensor-MANYYEAR TECHNOLOGY

app-Drinking water production

MPT282 digital dispaly pressure sensor-MANYYEAR TECHNOLOGY

app-flow-measurement

MPT282 digital dispaly pressure sensor-MANYYEAR TECHNOLOGY

app-Water pressure measurement
