MPT221LT low temperature pressure sensor

liquid oxygen pressure sensor, liquid nitrogen pressure sensor, liquid hydrogen pressure sensor, liquid helium pressure sensor, Cooling tanks pressure sensor, low temperature pressure sensor

Model: MPT221LT
Category: common pressure sensor
Range: 0-2000bar
temperature: -196℃ to +125℃、-260℃,-350c(especial)
signal output: mv/v, 0-5vdc,4-20mA,Hart,Rs485
Application: liquid oxygen pressure sensor, liquid nitrogen pressure sensor, liquid hydrogen pressure sensor, liquid helium pressure sensor, Cooling tanks pressure sensor, low temperature pressure  sensor


The selection of load cell products must be fully communicated and detailed solutions must be obtained.
This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Customers can refer to the following form and send an email to admin@manyyear.com.
We will give back within 24 hours.

Product selection reference

Sales Online

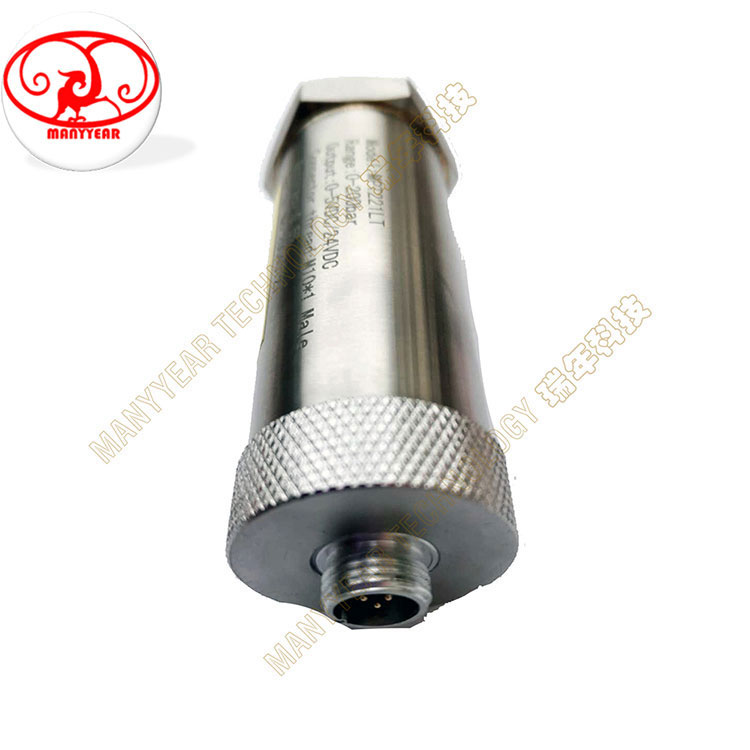

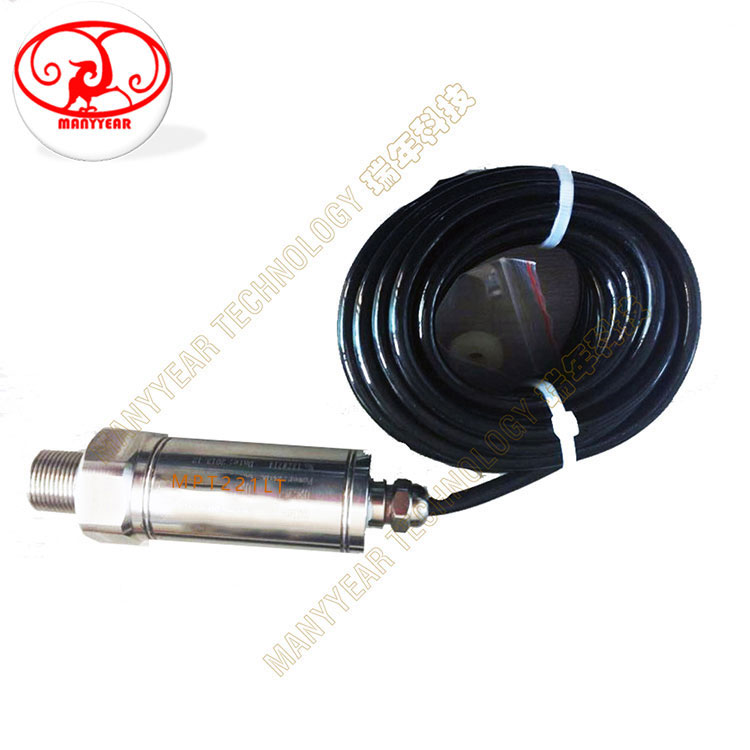

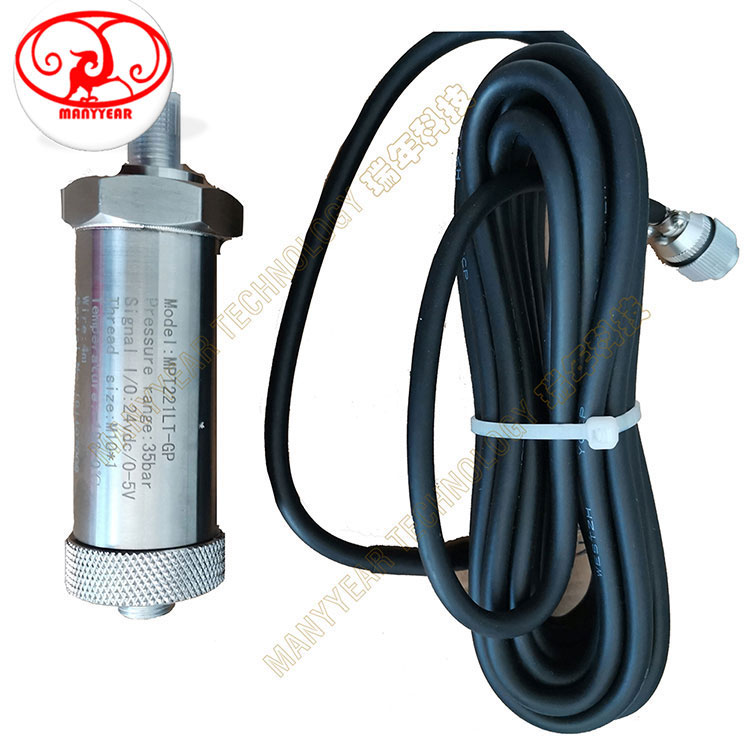

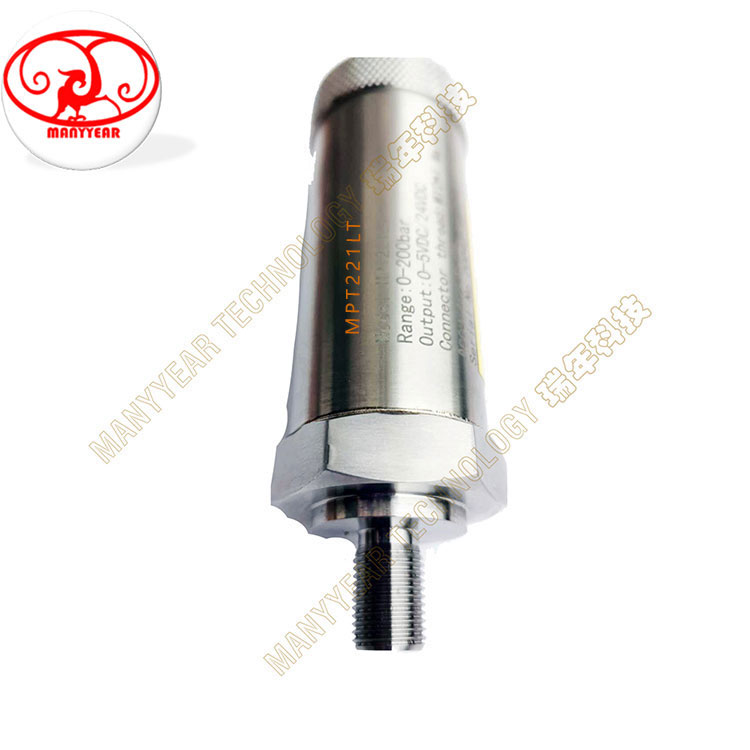

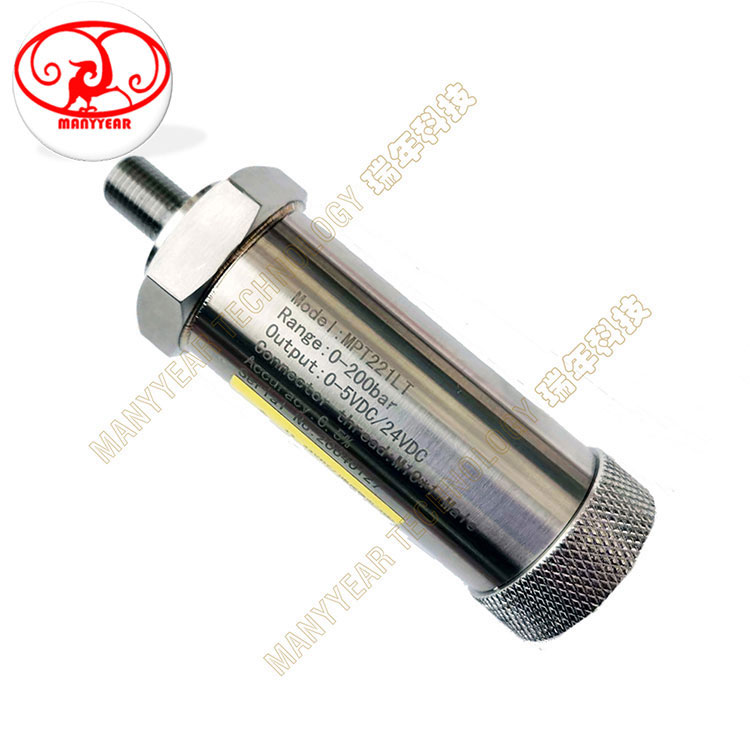

Product Picture Reference

MPT221LT low temperature pressure sensor-MANYYEAR TECHNOLOGY

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
MPT221LT Ultra low Temperature Pressure Transducer

Model:    MPT221LT

Category: common pressure sensor

Range:   0-2000bar

temperature: -196℃~+125℃

signal output:       mv/v, 0-5vdc,4-20mA,Hart,Rs485

Application:   Low temperature pressure measure, liquid oxygen/nitrogen/ hydrogen/helium, Cooling tanks, cryogenic tanks, cryogenic propellants such as pressure measurement

Picture ref



Specification
Mediumfor 17-4PH ,15-5PH, 316L stainless steel non-corrosive gases and liquids
Pressure type absolute pressure, gauge pressure ventilation, sealed reference table pressure
Work voltage 5-15VDC(10VDC) / 9-36vdc
Signal output0-5vdc, 0-10vdc, 4-20mA
Zero output ±5%FS (typical)
Full load output 10mV、20mV、100mV option
Non linearly 0.1%FS、0.2%FS
repeatability 0.05%FS
Accuracynormal temperature: 0.1% FS, 0.2% FS, 0.5% FS;  low temperature: 0.5% FS% ~ 3% FS
Work temperature -196℃~+125℃、-260℃/-350c(especial)
Thermal zero drift1 ~ 4% FS (full-temperature zone)
Hot full-scale drift 1 ~ 4.5% FS (full-temperature zone)
Response frequency > 1kHz or> 5kHz optional
Insulation resistance ≥ 100MΩ/50V
Safety overload 150% FS (1.5 times full scale)
Burst Pressure 300% FS (3 times the full scale)
Vibration5 ~ 1000Hz, amplitude 2mm, X, Y, Z each to 30 minutes, the output changes less than 0.1% FS
Shock50g; X, Y, Z three-way, each to 20ms; output variation less than 0.1% FS
ConnectionM3, M4, M5, M6, M8, M10, M12 × 1 or a designated
Wetted Materials15-5PH ,17-4PH, 316L stainless steel
Relative humidity 95% RH
Protection classIP65 or IP67 enclosure
Wire Air plug and outlet, sealed lead directly

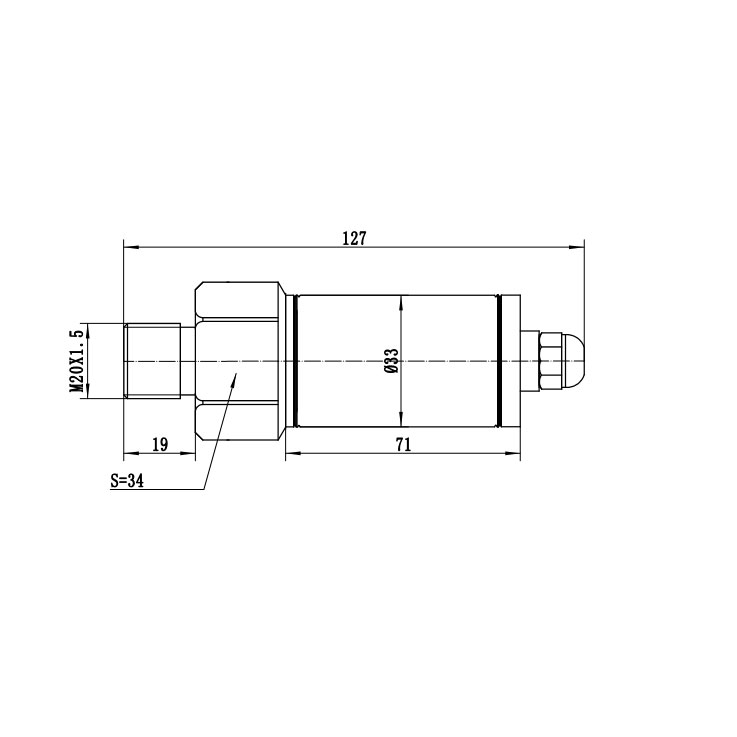

Product Dimension

MPT221LT low temperature pressure sensor-MANYYEAR TECHNOLOGY

Force Structure & Assembly Reference

MPT221LT low temperature pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor signal output







MPT221LT low temperature pressure sensor-MANYYEAR TECHNOLOGY

pressure sensor assembly

Product Application

MPT221LT low temperature pressure sensor-MANYYEAR TECHNOLOGY

app-liquid-nitrogen-production

MPT221LT low temperature pressure sensor-MANYYEAR TECHNOLOGY

app-liquid-nitrogen-storage-tank

MPT221LT low temperature pressure sensor-MANYYEAR TECHNOLOGY

app-liquid-oxygen-transport-vehicle
